Plan 72698DA

Shingled Ranch Home Plan

Pageloader

Shingled Ranch Home Plan

Plan 72698DA

  • 1,658

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • The exterior of this compact shingle-style home exudes nostalgic appeal, while the interior is totally contemporary.
  • In the linked family gathering areas, light spills into the living and dining rooms through wide windows, and both are open to the kitchen.
  • The kitchen center island gives you extra counter space and a walk-in pantry has delightful storage.
  • The owners' suite boasts a good-sized walk-in closet and a private bathroom.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

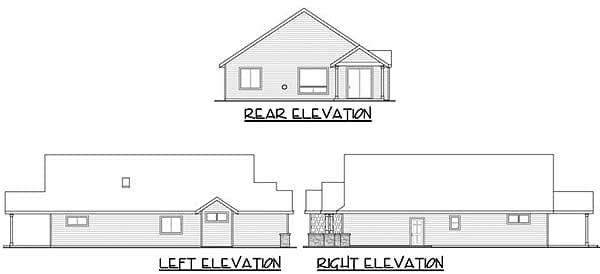

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Shingled Ranch Home Plan

  • 1,658

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • The exterior of this compact shingle-style home exudes nostalgic appeal, while the interior is totally contemporary.
  • In the linked family gathering areas, light spills into the living and dining rooms through wide windows, and both are open to the kitchen.
  • The kitchen center island gives you extra counter space and a walk-in pantry has delightful storage.
  • The owners' suite boasts a good-sized walk-in closet and a private bathroom.

Floor Plans

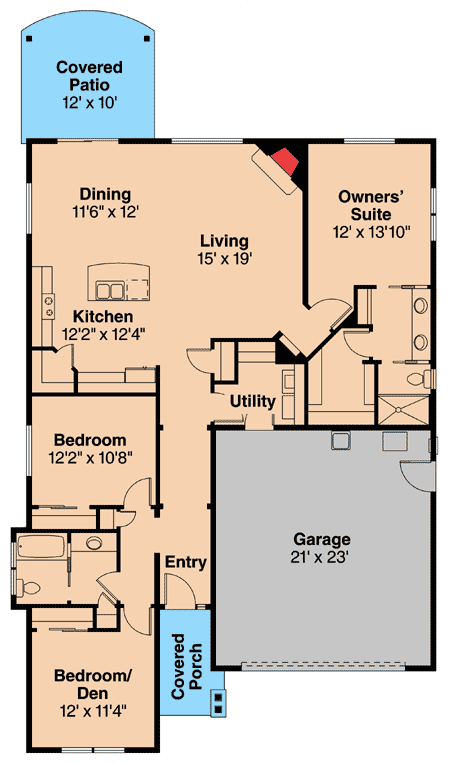

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,658 sq. ft.
  • 1st Floor: 1,658 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 6"
  • Depth: 70' 0"
  • Max ridge height: 23' 5"

Garage

  • Type: Attached
  • Area: 508 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
