Shingles and Trellises

Plan 23303JD

  • 2,900

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

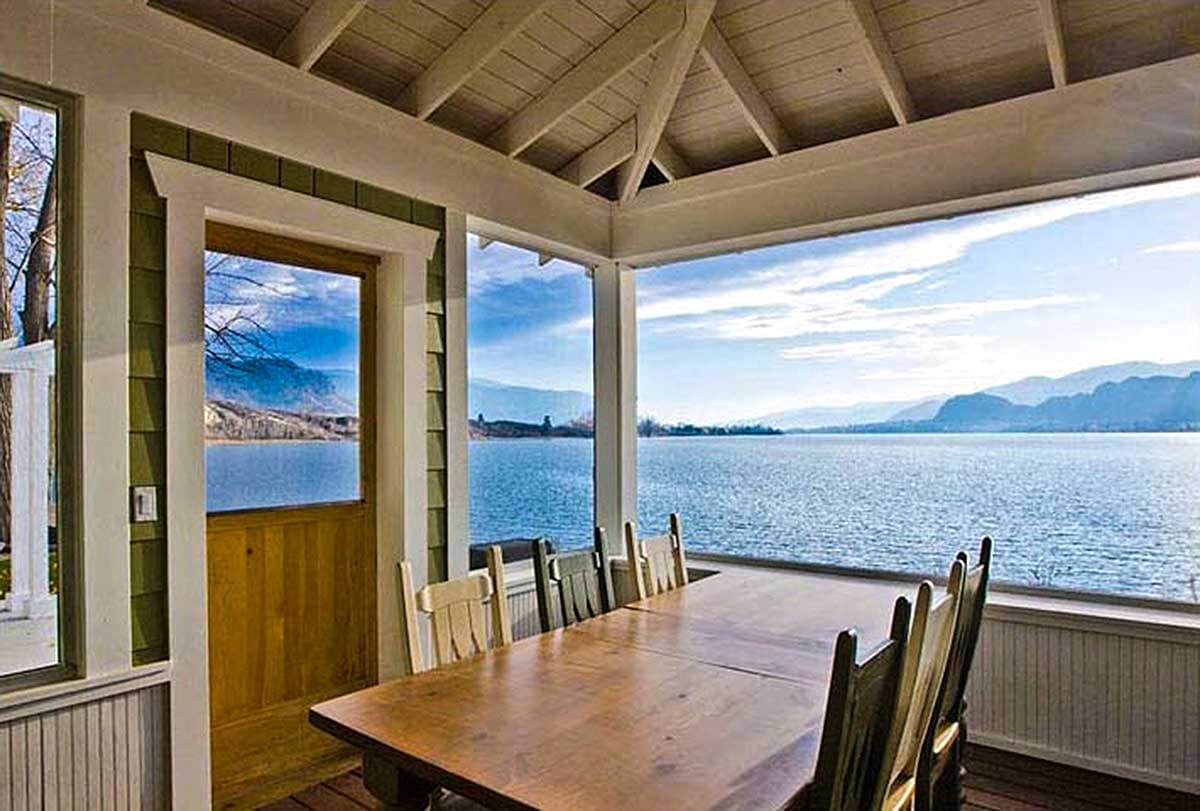

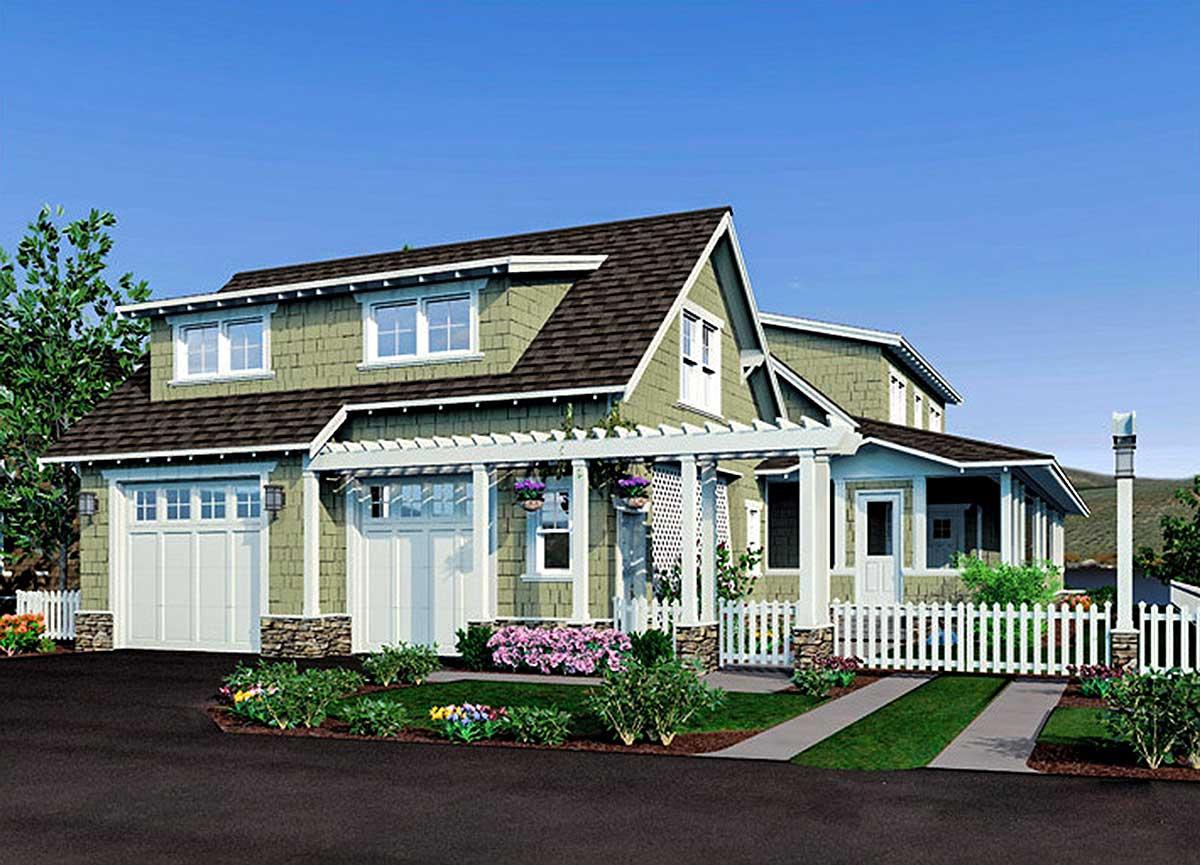

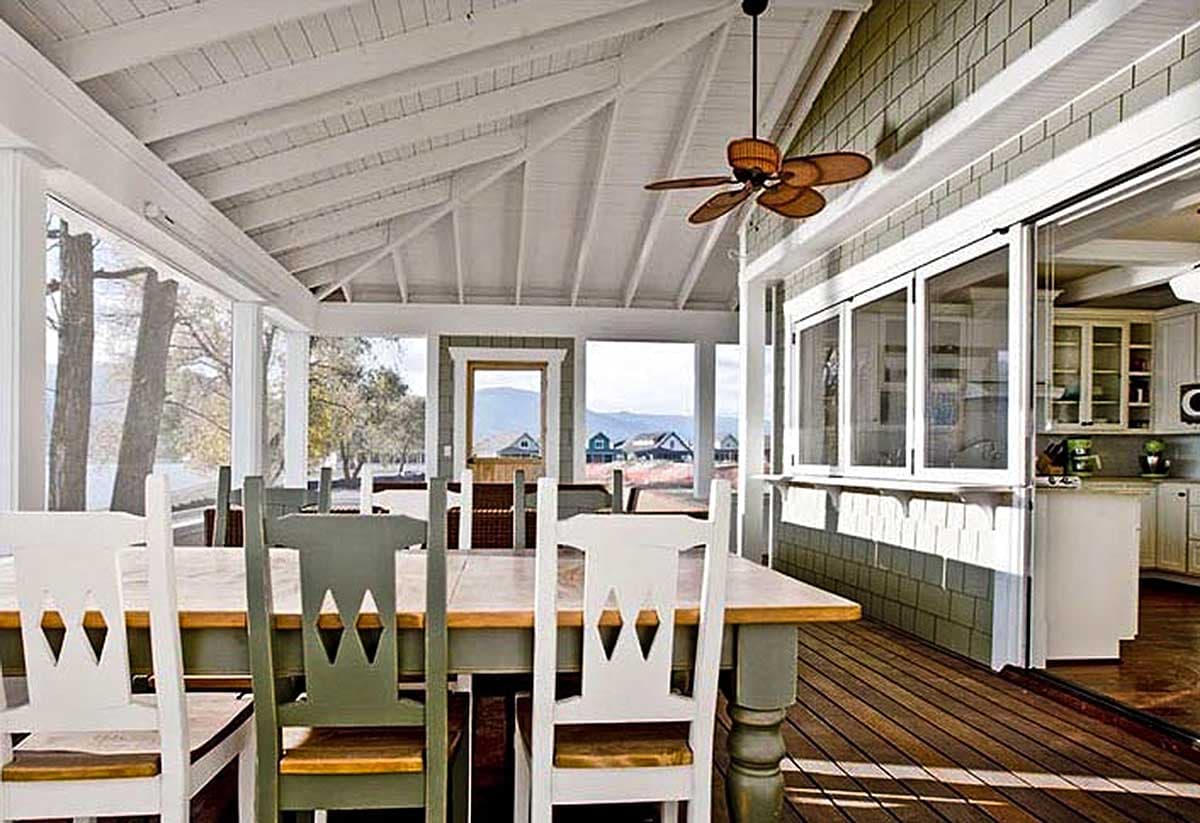

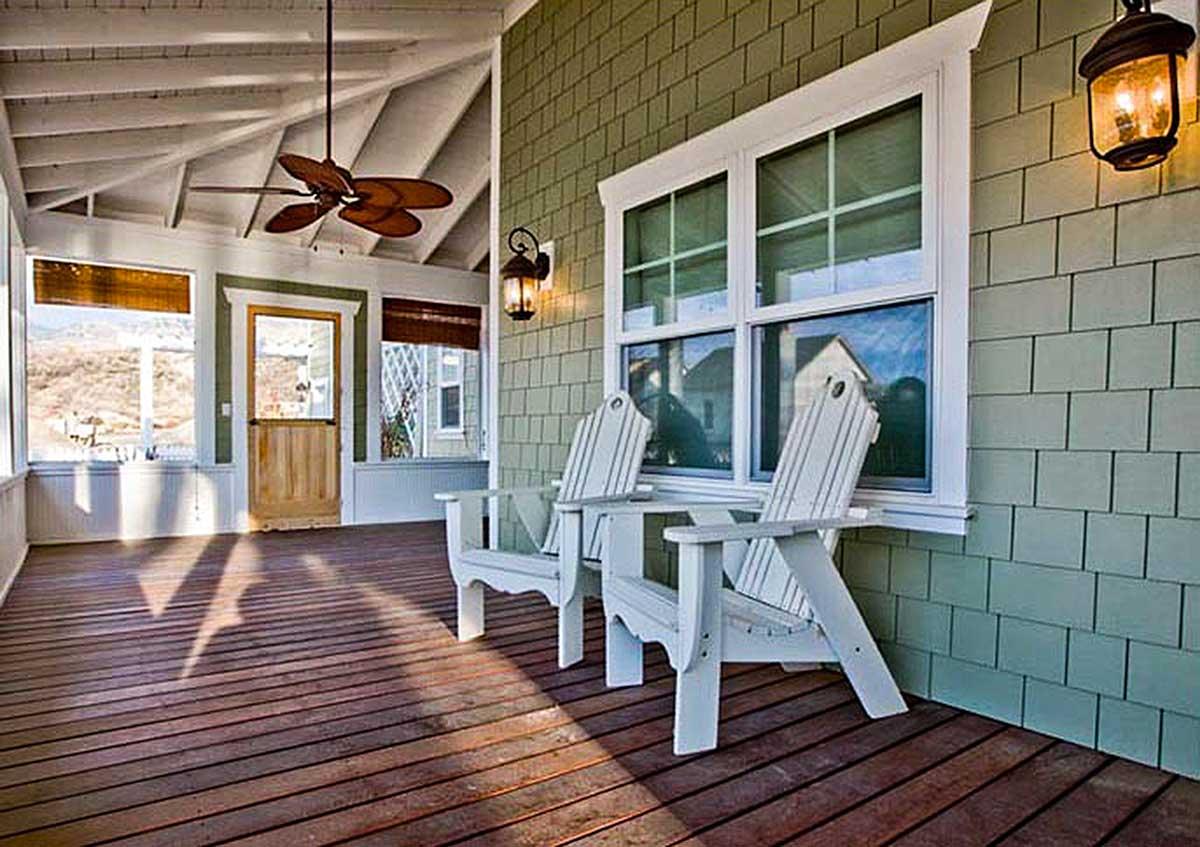

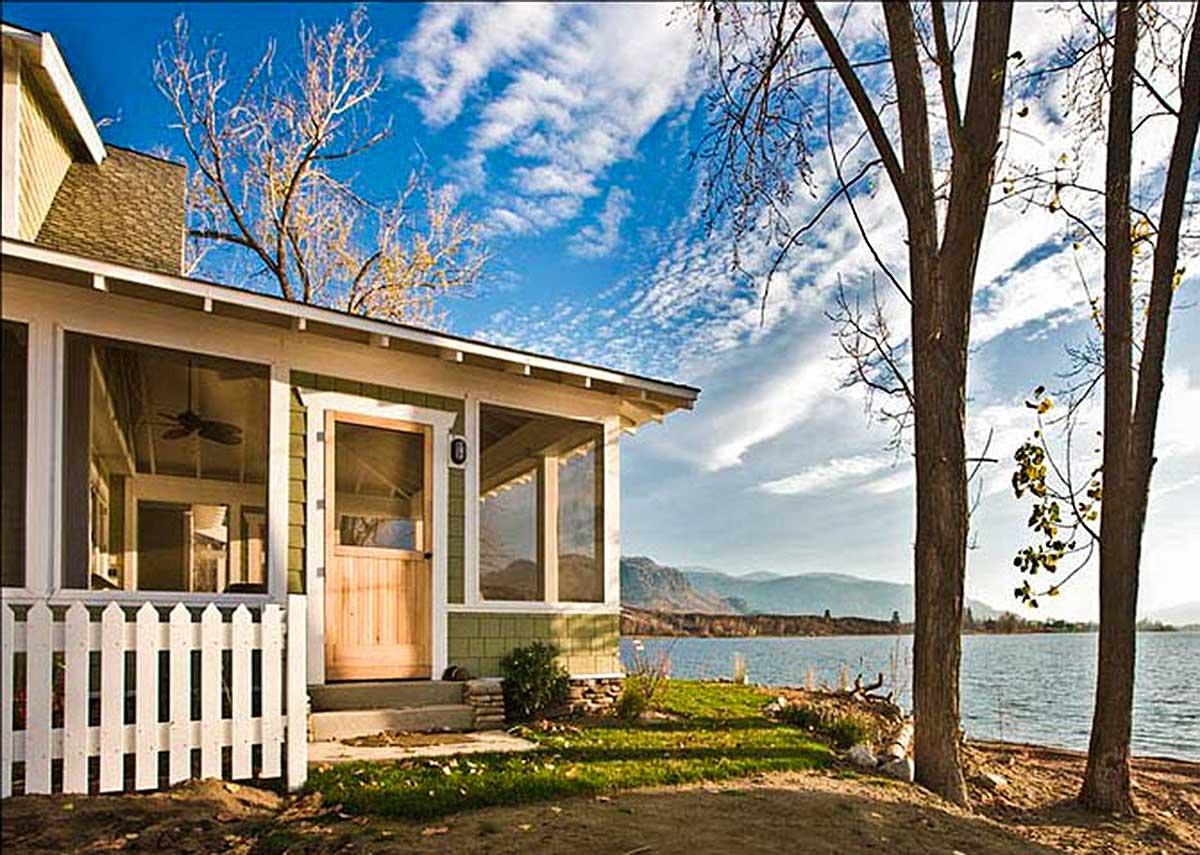

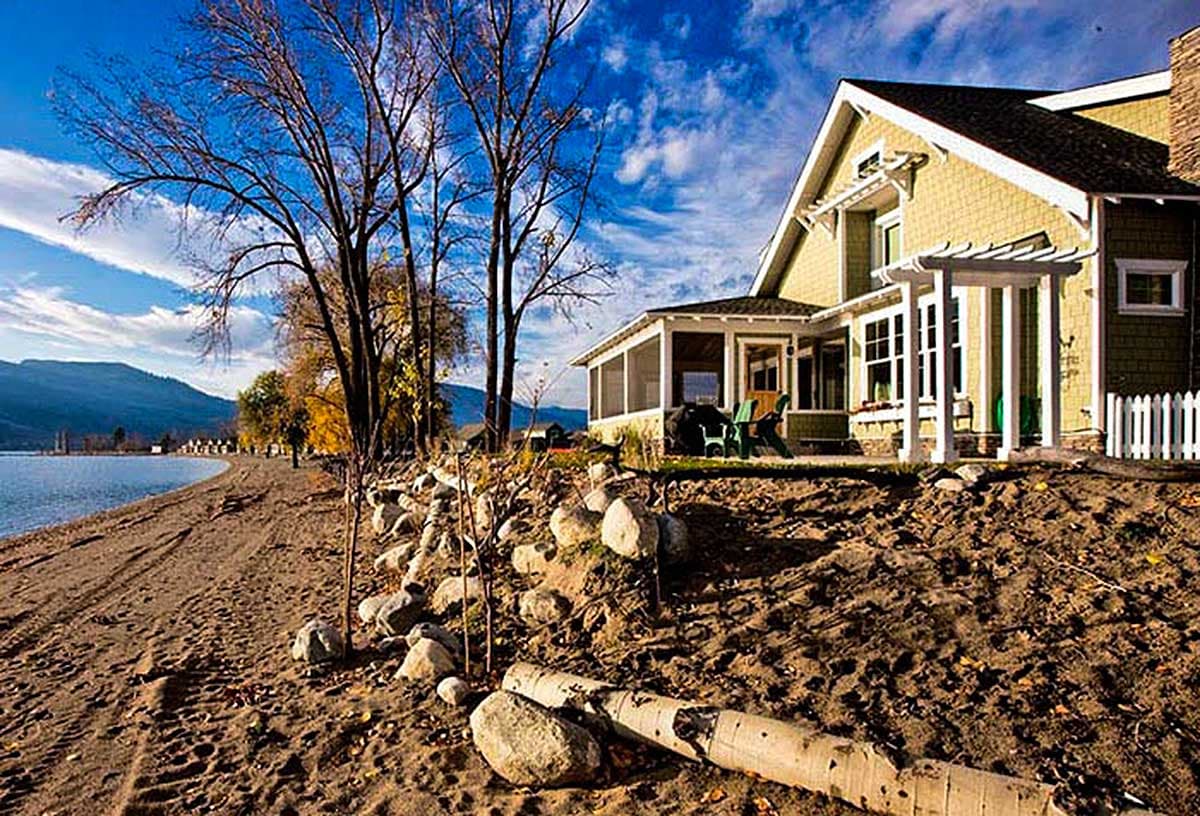

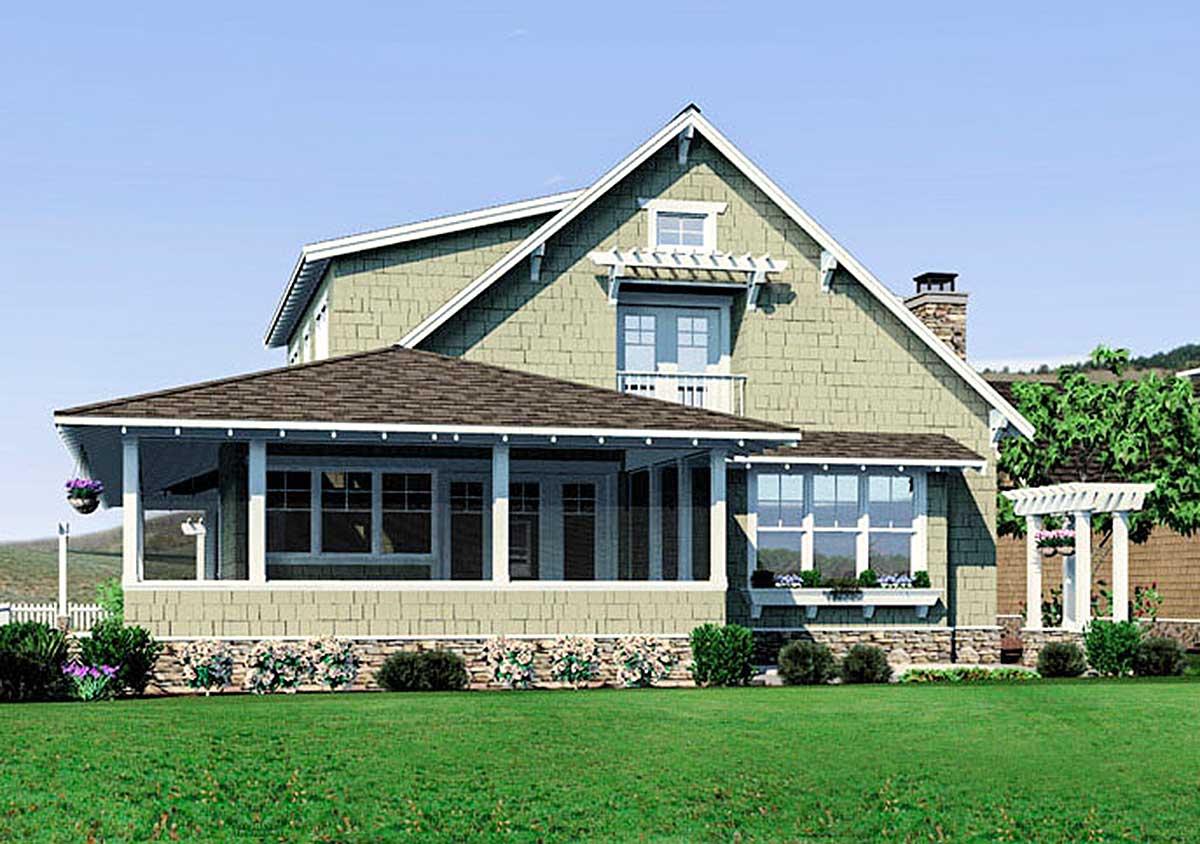

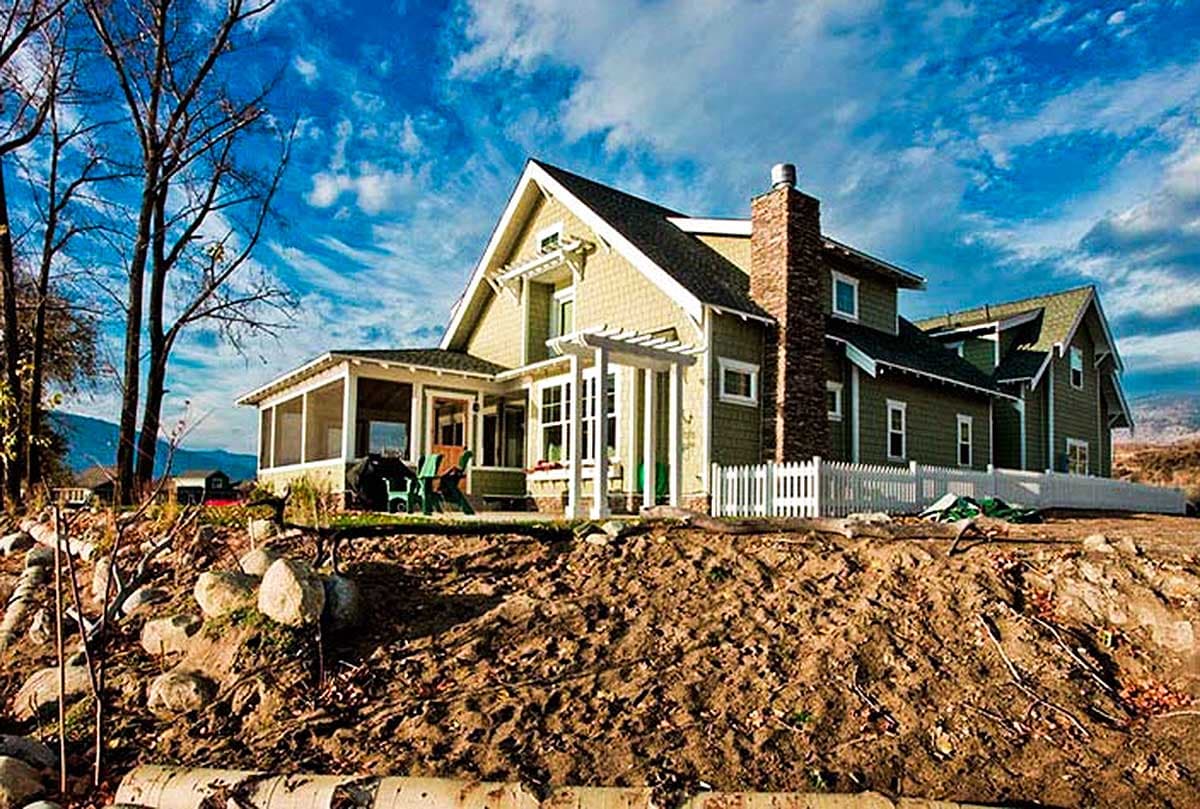

  • Trellises add to the charm of this shingle-style plan with a covered veranda that wraps around the home.

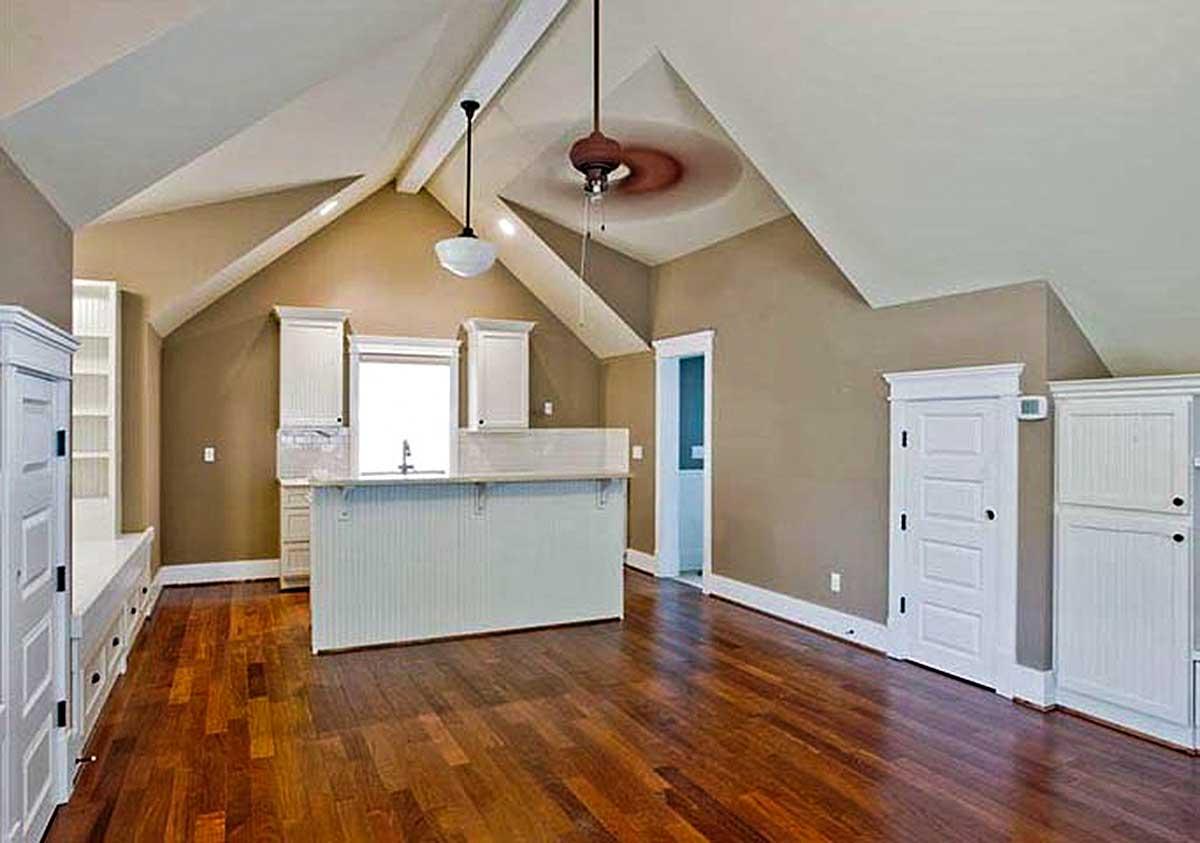

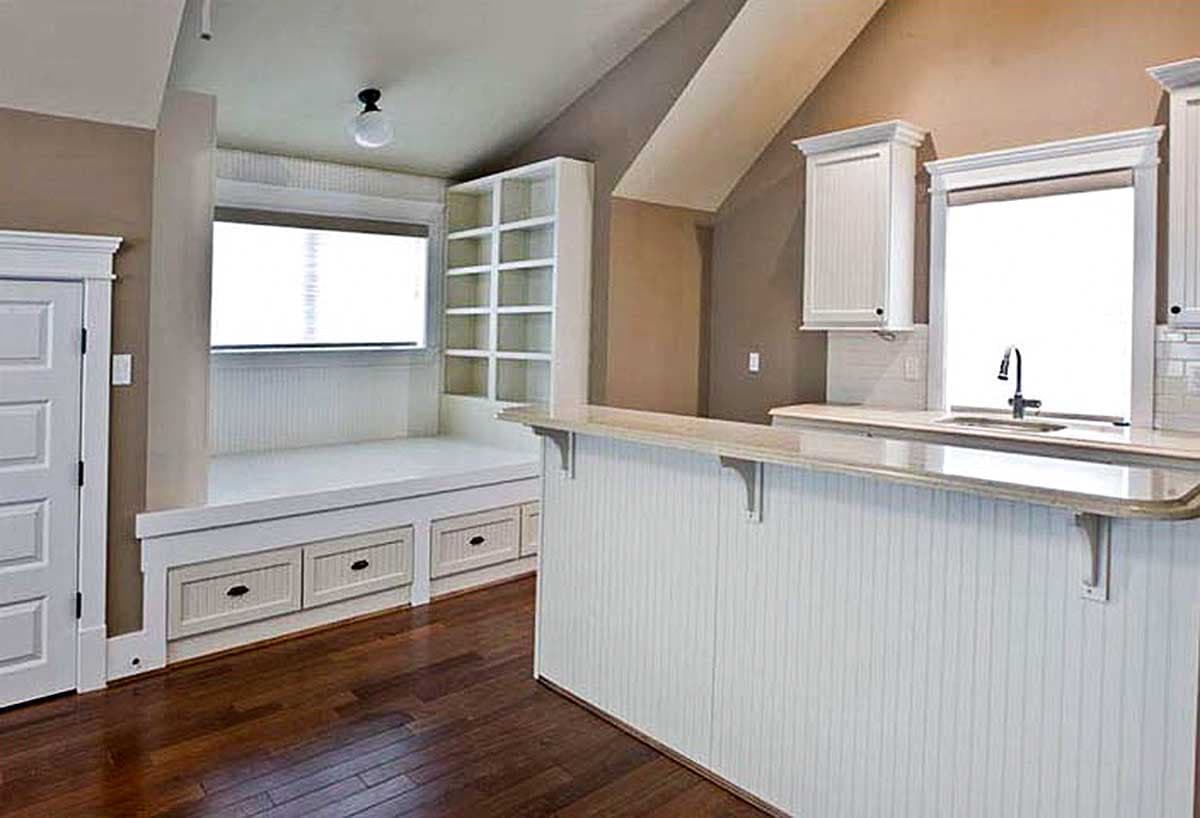

  • A spacious game room with bath over the garage could easily work as an in-law suite or a "guy's hang out".

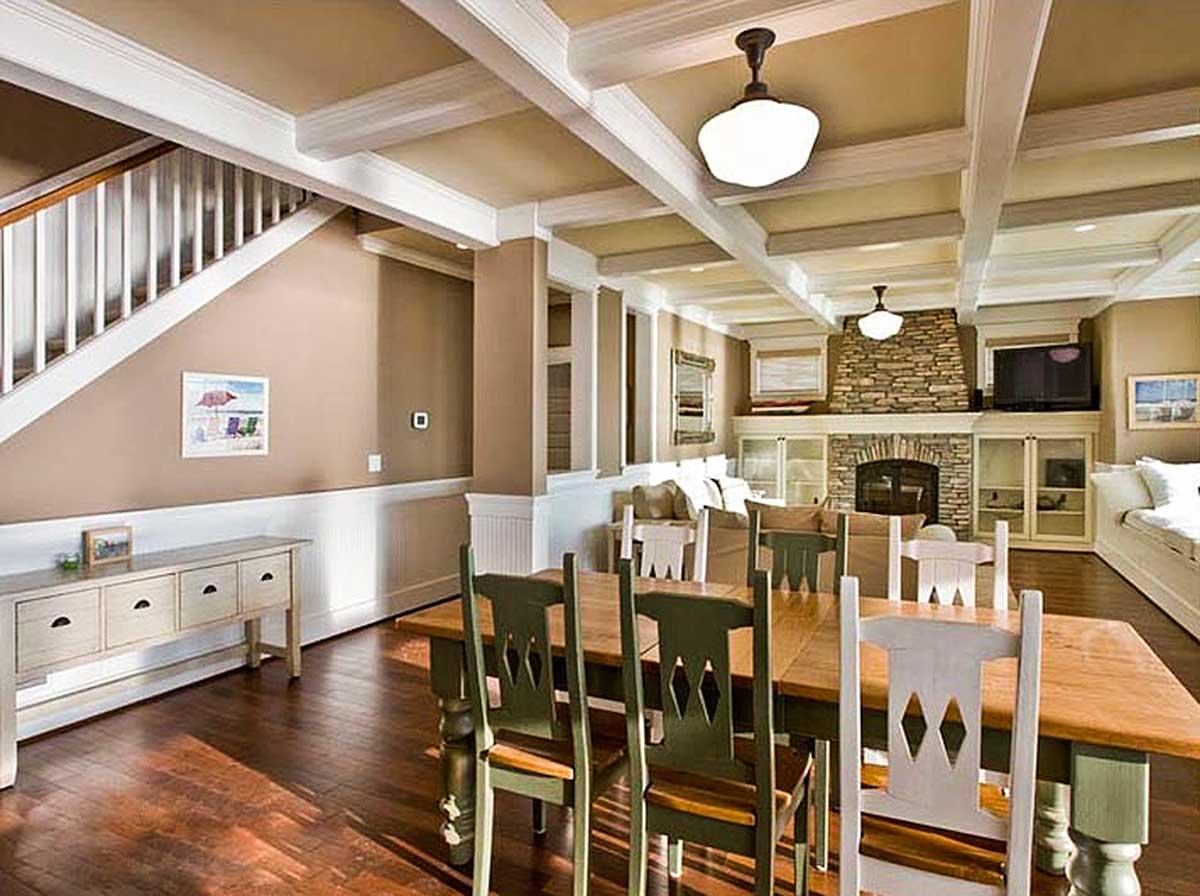

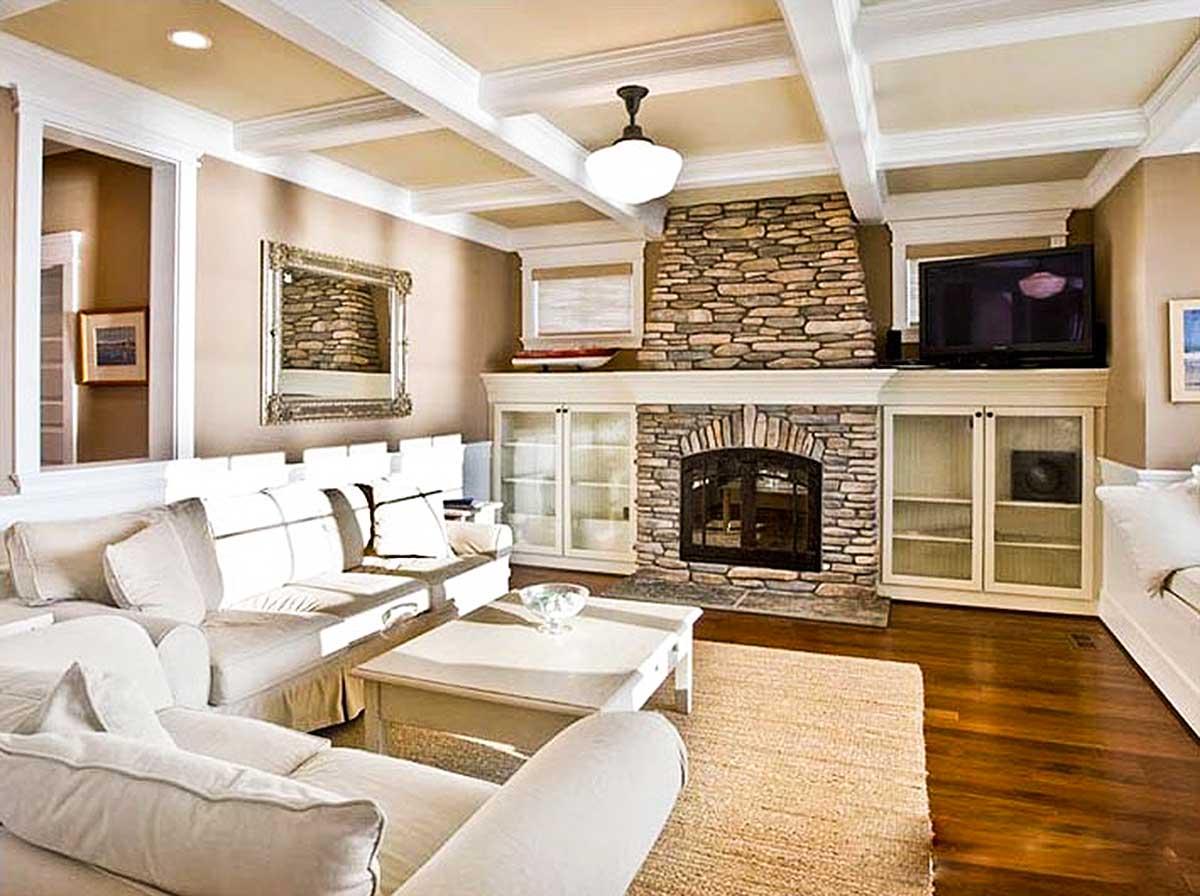

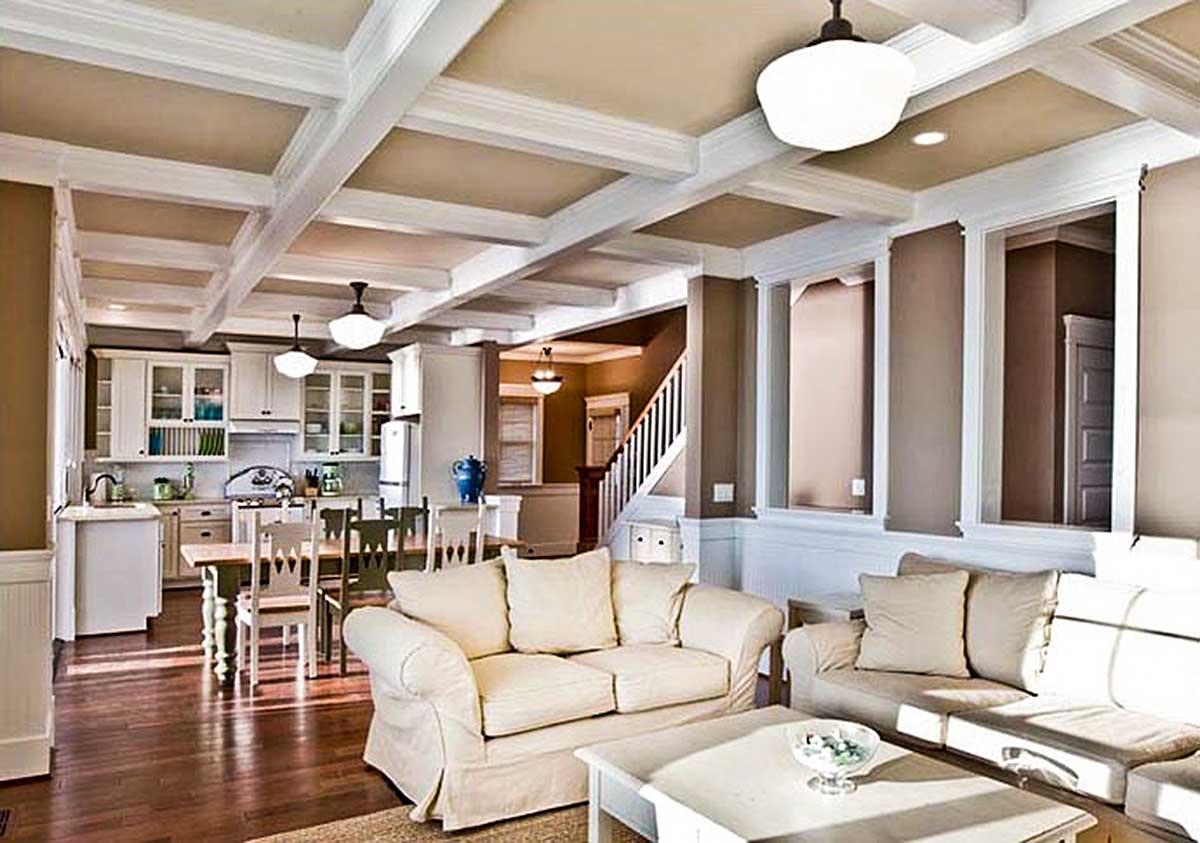

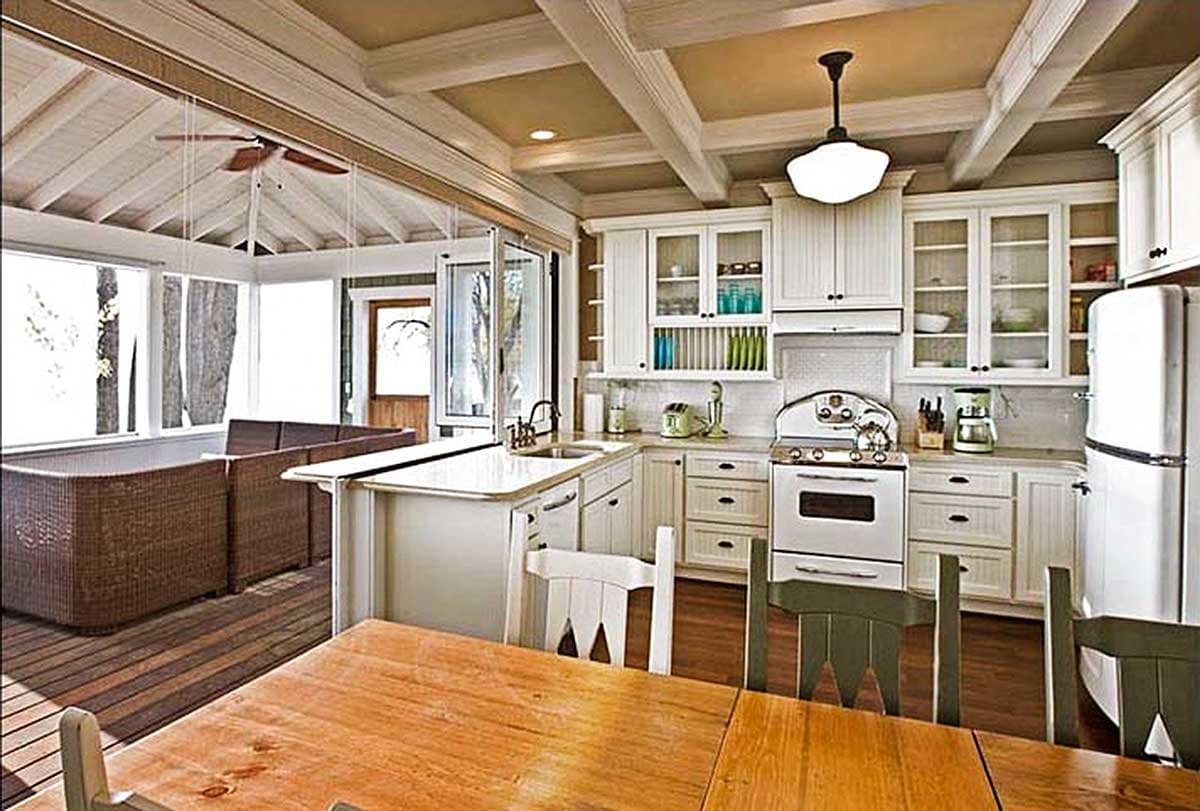

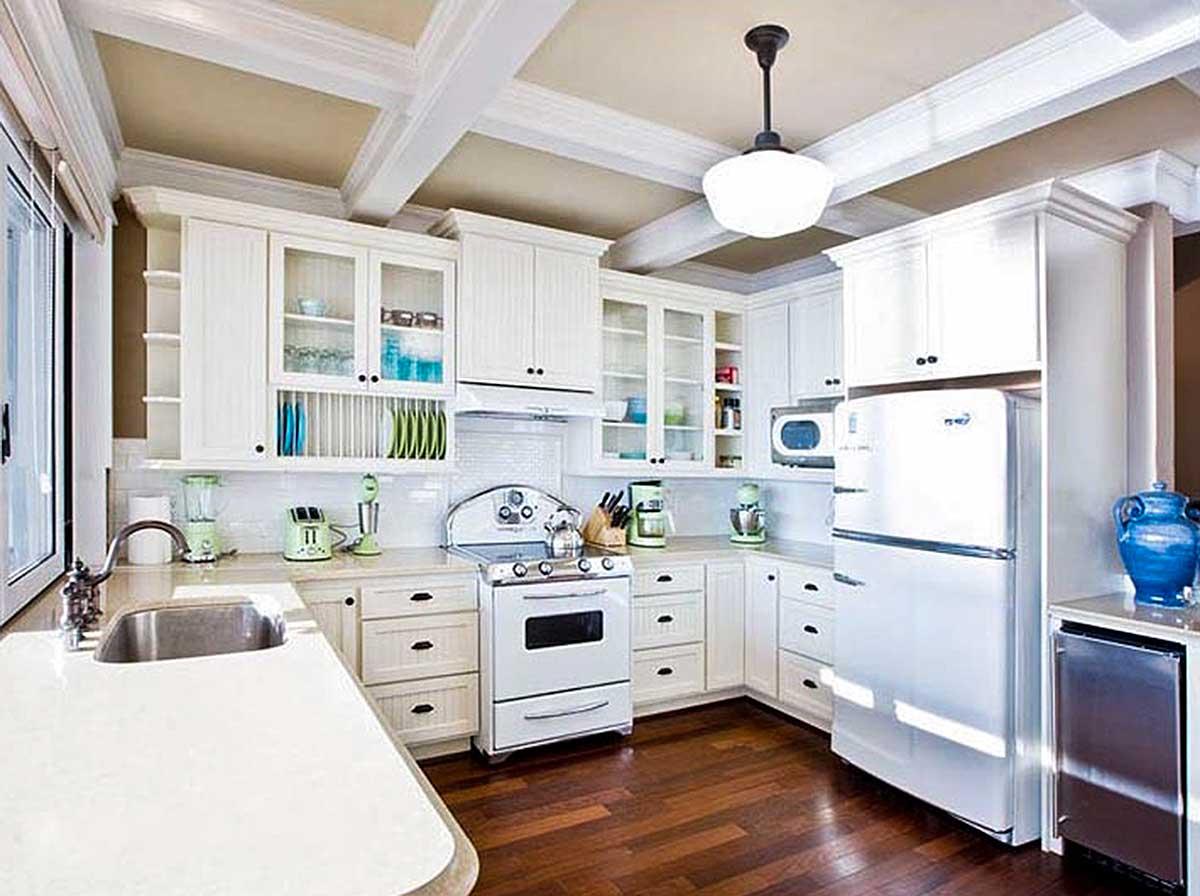

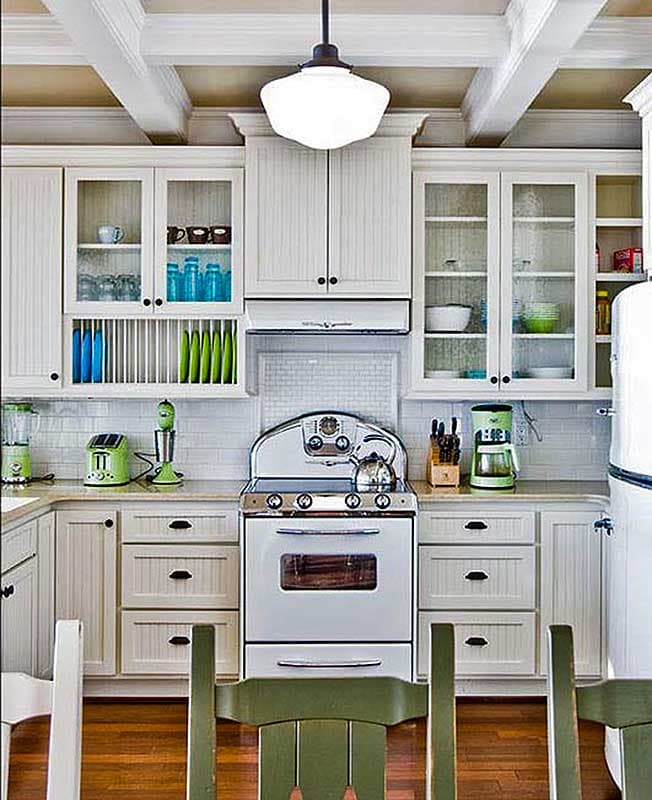

  • Coffered ceilings top the main living area with the living room, dining room and kitchen all open to each other.
  • The first floor master suite has its own bath and another guest bedroom also occupies this level.

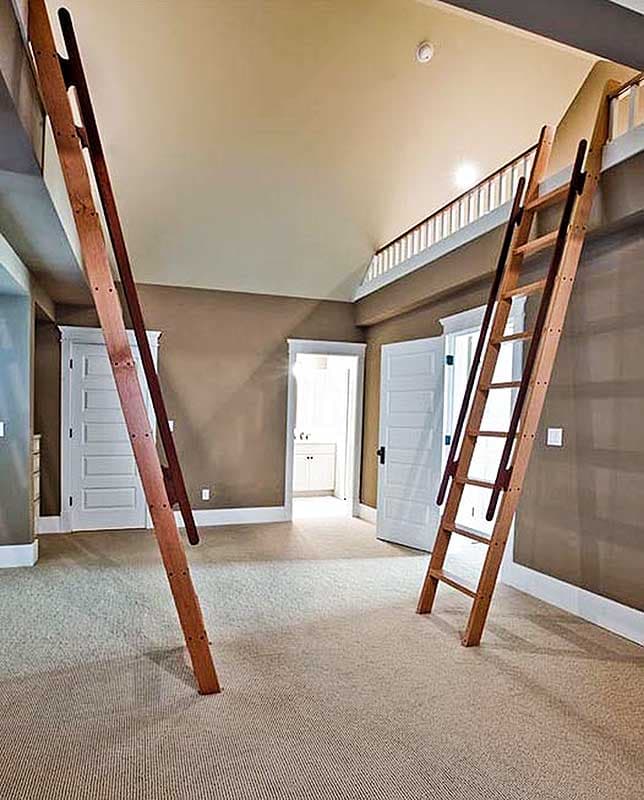

  • Send the kids up to sleep up in the informal bunk rooms on the second floor.
  • Plenty of windows all throughout the home brighten each room.
  • The upper floor is a total of 1,500 square feet which includes 660 square feet for the game room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

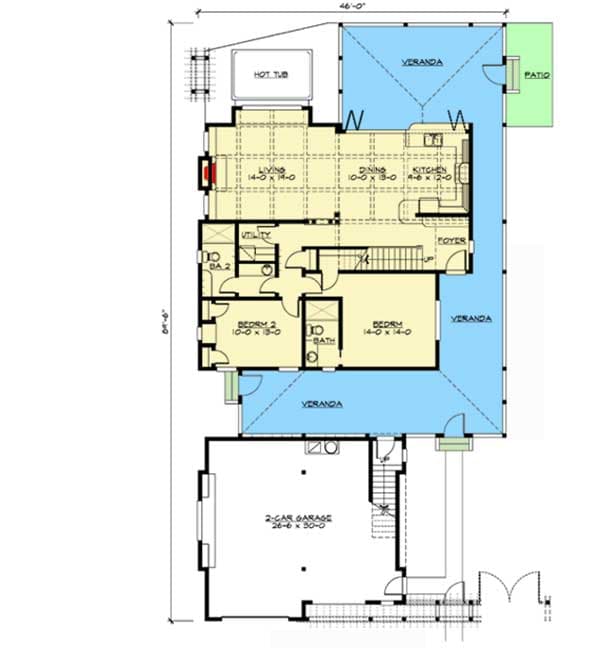

Shingles and Trellises - 23303JD floor plan - Main Level

2nd Floor

Pinit white
Reverse Floor Plan

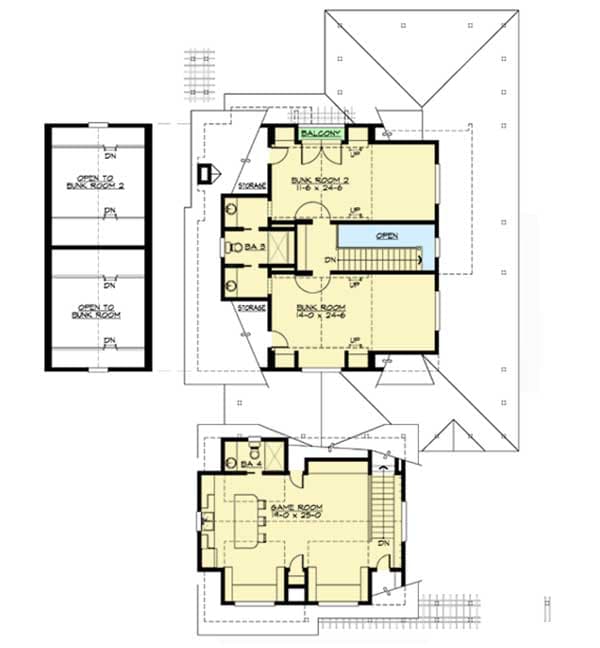

Shingles and Trellises - 23303JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,900 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • 2nd Floor: 1,500 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 90' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 1075 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Shingles and Trellises

  • 2,900

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,400
  • 5 Sets PLUS $1,500
  • CAD - multi-use $2,400
  • View all purchase option online

About This Plan

  • Trellises add to the charm of this shingle-style plan with a covered veranda that wraps around the home.
  • A spacious game room with bath over the garage could easily work as an in-law suite or a "guy's hang out".
  • Coffered ceilings top the main living area with the living room, dining room and kitchen all open to each other.
  • The first floor master suite has its own bath and another guest bedroom also occupies this level.
  • Send the kids up to sleep up in the informal bunk rooms on the second floor.
  • Plenty of windows all throughout the home brighten each room.
  • The upper floor is a total of 1,500 square feet which includes 660 square feet for the game room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,900 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • 2nd Floor: 1,500 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 90' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 1075 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
