Plan 31503GF Side-by-Side Duplex House Plan

4,204 2 44' 0" 41' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Side-by-Side Duplex House Plan

Plan 31503GF

  • 4,204

    Heated s.f.

  • 2

    Units

  • 44' 0"

    Width

  • 41' 0"

    Depth

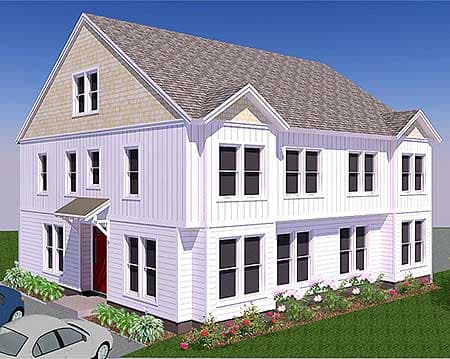

  • This duplex house plan gives you two identical side-by-side units giving each family 2,202 square feet of heated living space.
  • The middle floor has three bedrooms and the upper gives you expansion space for a fourth.
  • The roof has a 9:12 primary and secondary pitches.

Each plan set includes:

  • Cover Sheet: Shows typical notes and requirements.

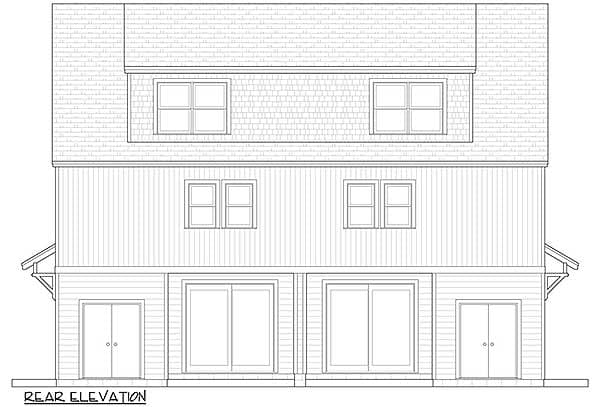

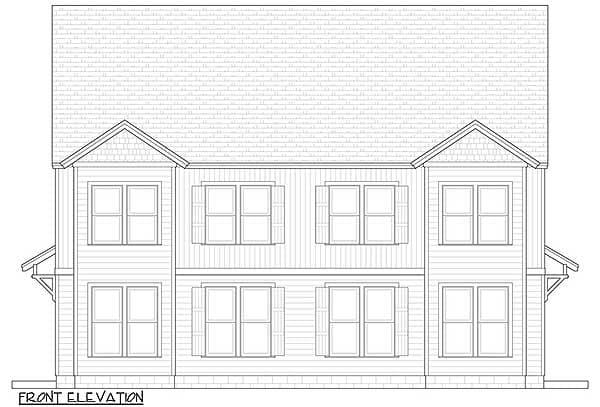

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

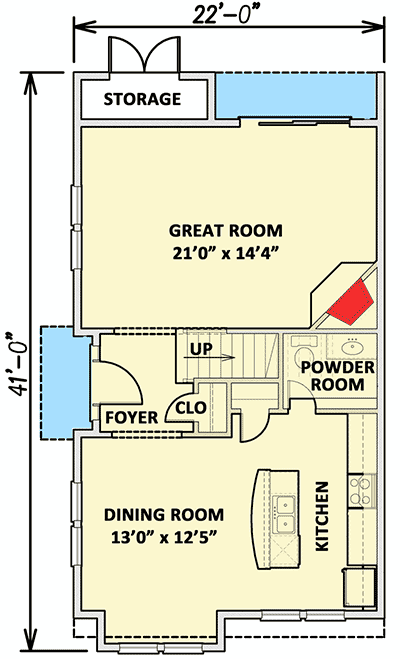

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Side-by-Side Duplex House Plan - 31503GF floor plan - Main Level

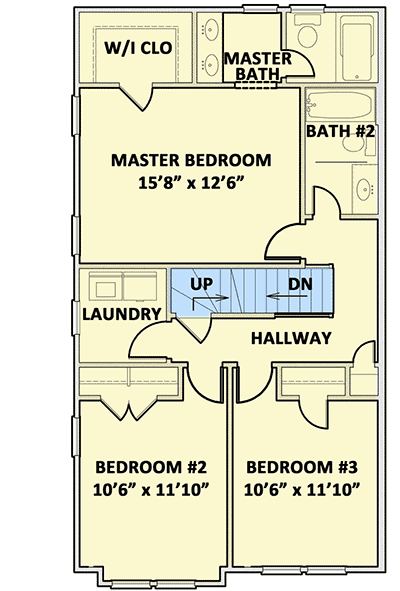

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Side-by-Side Duplex House Plan - 31503GF floor plan - 2nd Floor

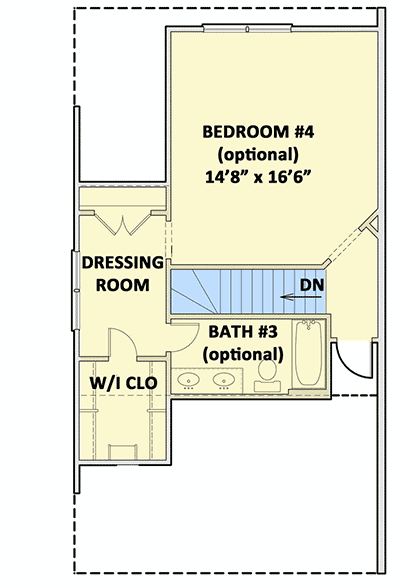

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Side-by-Side Duplex House Plan - 31503GF floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,204 sq. ft.
  • 1st Floor: 1,578 sq. ft.
  • 2nd Floor: 1,778 sq. ft.
  • 3rd Floor: 1,648 sq. ft.
  • Storage: 33 sq. ft.
  • Porch, Combined: 66 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 0"
  • Depth: 41' 0"
  • Max ridge height: 34' 7"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Special features

Plan Collections

Side-by-Side Duplex House Plan

  • 4,204

    Heated s.f.

  • 2

    Units

  • 44' 0"

    Width

  • 41' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,850
  • 5 Sets $1,950
  • 8 Sets $2,050
  • CAD + PDF - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • This duplex house plan gives you two identical side-by-side units giving each family 2,202 square feet of heated living space.
  • The middle floor has three bedrooms and the upper gives you expansion space for a fourth.
  • The roof has a 9:12 primary and secondary pitches.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,204 sq. ft.
  • 1st Floor: 1,578 sq. ft.
  • 2nd Floor: 1,778 sq. ft.
  • 3rd Floor: 1,648 sq. ft.
  • Storage: 33 sq. ft.
  • Porch, Combined: 66 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 0"
  • Depth: 41' 0"
  • Max ridge height: 34' 7"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
