Plan 42626DB Simple 3-Bed Modern Farmhouse Plan with Bedrooms Upstairs

Simple 3-Bed Modern Farmhouse Plan with Bedrooms Upstairs

Plan 42626DB

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Attesting to the popularity of the modern farmhouse style, this 3-bed house plan combines a simple covered porch with horizontal siding and board and batten accents in the gable.
  • Enter the home into the family room with a closet to your right. Ahead, a barn door closes off the pocket office.
  • The island kitchen has plenty of storage in a corner pantry and counter workspace plus a small island.
  • Upstairs, the master suite is located in front of the home. Two more bedrooms share a bathroom.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

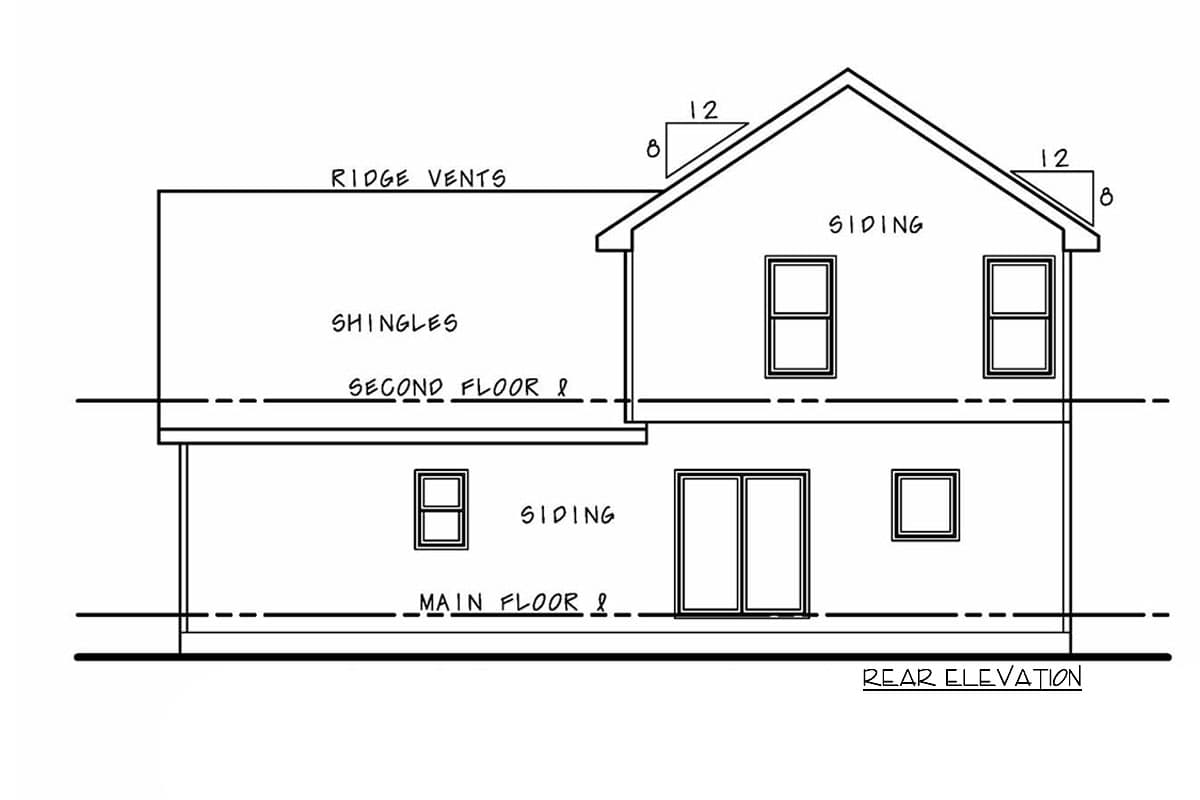

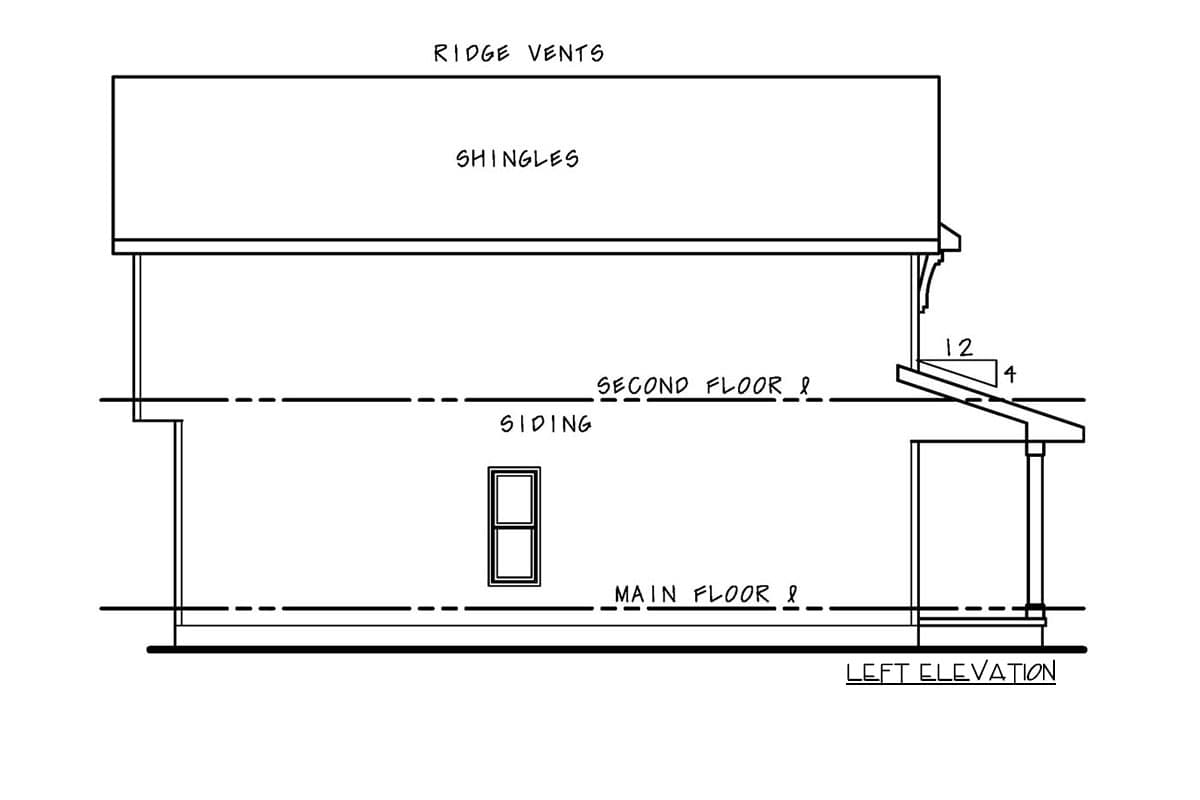

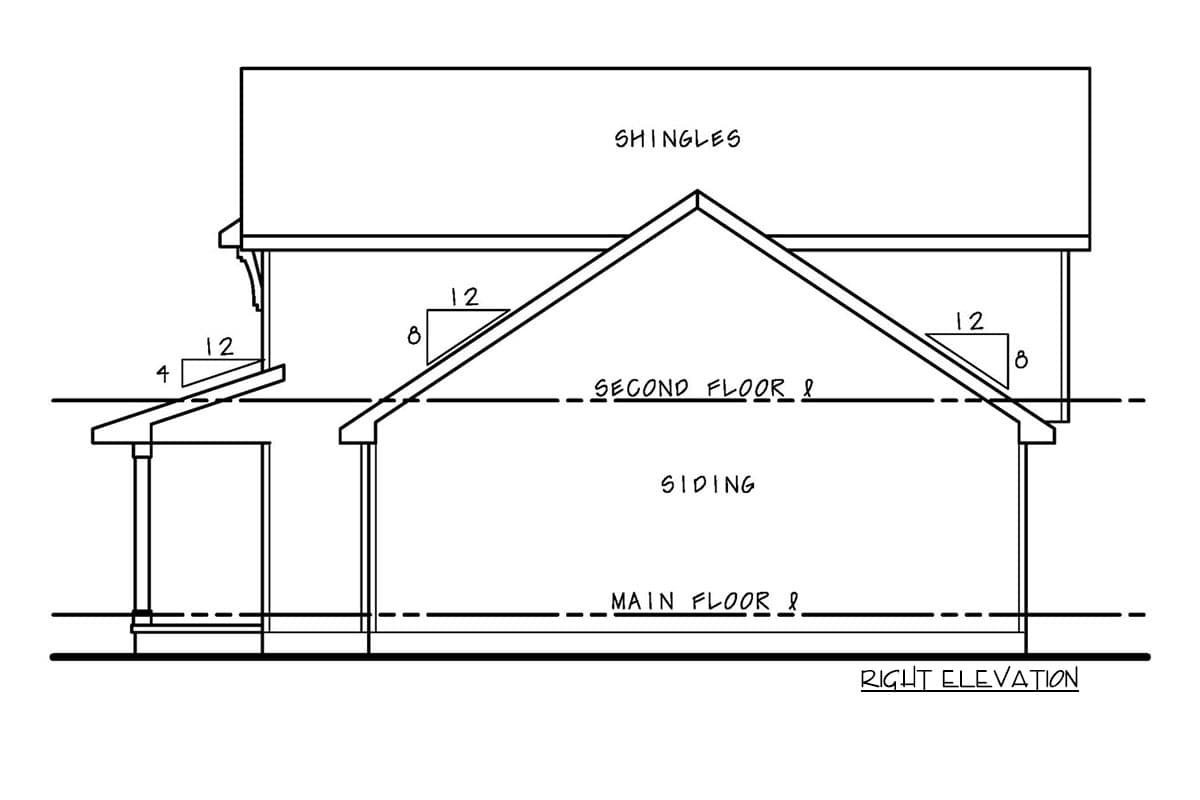

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

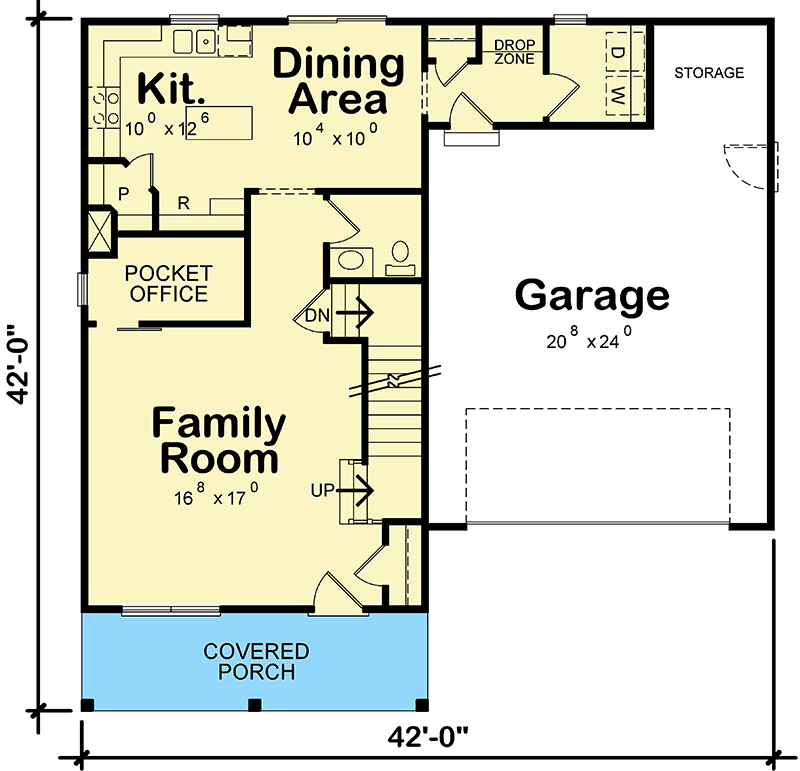

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

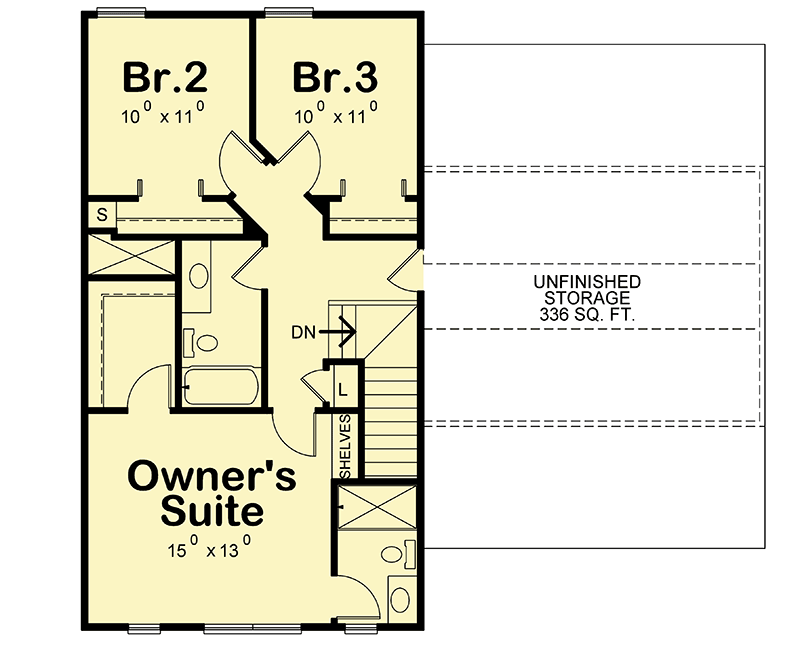

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Simple 3-Bed Modern Farmhouse Plan with Bedrooms Upstairs

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $630
  • PDF - Single-Build $955
  • PDF - Unlimited Build $1,455
  • CAD - Single-Build $1,671
  • CAD - Unlimited Build $2,171
  • View all purchase option online

About This Plan

  • Attesting to the popularity of the modern farmhouse style, this 3-bed house plan combines a simple covered porch with horizontal siding and board and batten accents in the gable.
  • Enter the home into the family room with a closet to your right. Ahead, a barn door closes off the pocket office.
  • The island kitchen has plenty of storage in a corner pantry and counter workspace plus a small island.
  • Upstairs, the master suite is located in front of the home. Two more bedrooms share a bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,600 sq. ft.
  • 1st Floor: 848 sq. ft.
  • 2nd Floor: 752 sq. ft.
  • Storage: 336 sq. ft.
  • Porch, Front: 126 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 42' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
