Simple 3 Bedroom Home Plan with Cathedral Ceilings

Plan 444200GDN

  • 1,287

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This well-proportioned three bedroom country home plan has attractive exterior detailing and is economical to build given its 1,287 square foot size. Put a rocking chair or two on the front porch (15'4" wide and 6' deep) and while away the time.
  • The heart of this home is the common great room, kitchen, and dining area, which provides exceptional openness for visual interaction. Cathedral ceilings (12' peak height) and built-in shelves and cabinets on either side of the fireplace add to the excitement.
  • The spacious kitchen features an angled cooktop island with breakfast bar.
  • A 12' cathedral ceiling expands the master suite with its walk-in closet. A whirlpool tub, separate shower, and dual vanities highlight the master bath.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

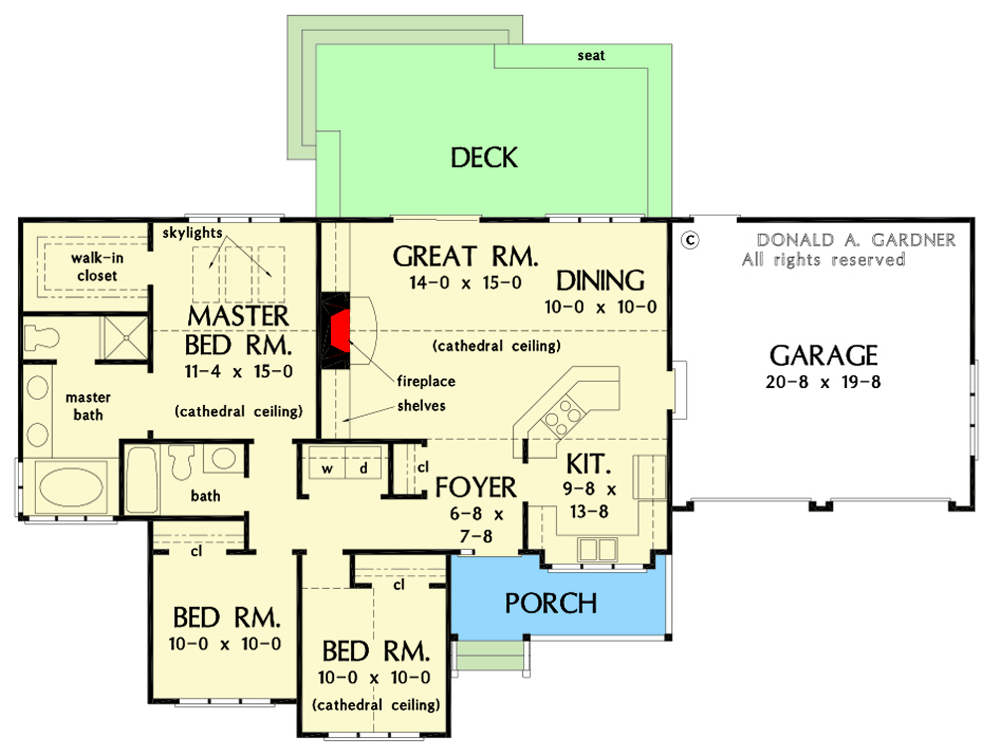

Simple 3 Bedroom Home Plan with Cathedral Ceilings - 444200GDN floor plan - Main Level

Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

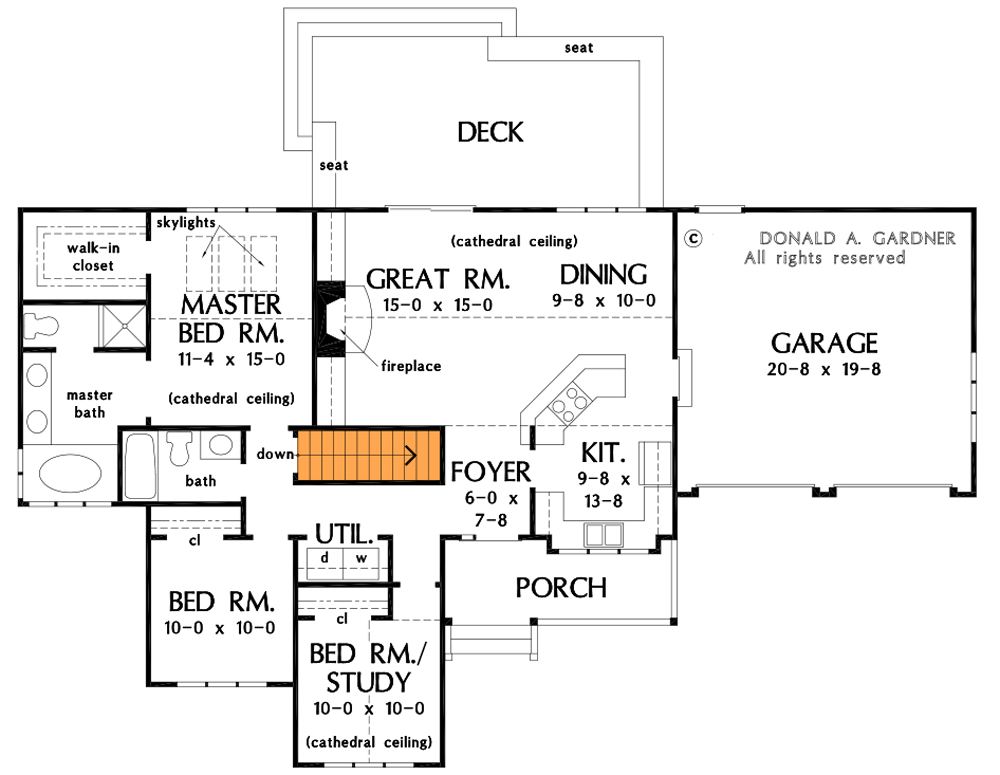

Simple 3 Bedroom Home Plan with Cathedral Ceilings - 444200GDN floor plan - Basement Stair Location

Simple 3 Bedroom Home Plan with Cathedral Ceilings

  • 1,287

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 1,287 sq. ft.
  • 1st Floor: 1,287 sq. ft.

Dimensions

  • Width: 66' 4"
  • Depth: 36' 0"
  • Max ridge height: 19' 8"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 427 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
