Plan 80363PM Simple Two Bedroom Cottage

892 2 1 1
Print
Compare
...

Simple Two Bedroom Cottage

Plan 80363PM

  • 892

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This two bedroom cottage is great for your small lot and smaller budget.
  • A full basement adds to expansion possibilities.
  • The living room has a step-down to the kitchen which has sliding door access to the back yard.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

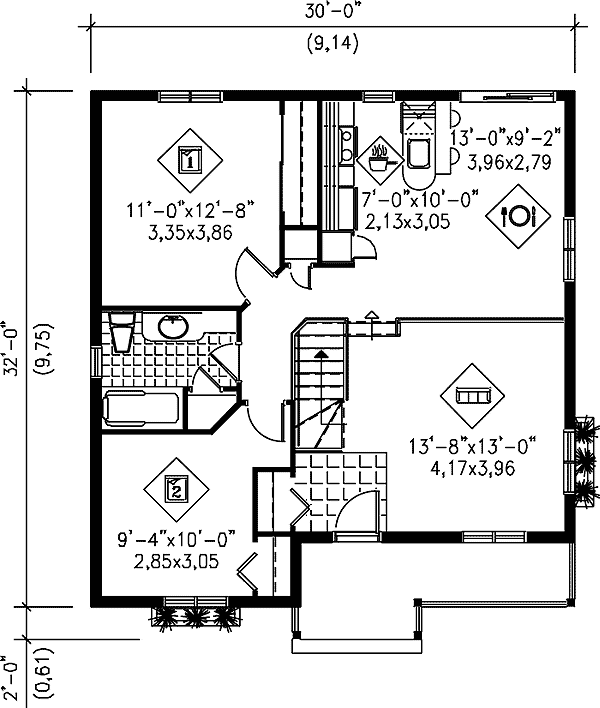

Simple Two Bedroom Cottage - 80363PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 892 sq. ft.
  • 1st Floor: 892 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 32' 0"
  • Max ridge height: 23' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Simple Two Bedroom Cottage

  • 892

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $567
  • 8 Sets $610
  • PDF - Single-Build $742
  • CAD - Single-Build $1,378
  • View all purchase option online

About This Plan

  • This two bedroom cottage is great for your small lot and smaller budget.
  • A full basement adds to expansion possibilities.
  • The living room has a step-down to the kitchen which has sliding door access to the back yard.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 892 sq. ft.
  • 1st Floor: 892 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 32' 0"
  • Max ridge height: 23' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 80363PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/80363PM
|
