Single Family or Garage Home Plan

Plan 72824DA

  • 780

    HEATED S.F.

  • 1

    BEDS

  • 1

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • This house plan can be used either as a detached garage to accompany your home or as standard single family home with a bed and bath.
  • Two cars can be housed in this traditional garage plan. Both garage doors are 9' wide and 8' tall.
  • To the right, this design offers 780 square feet of living space that could be used as a separate recreation room or vacation retreat.
  • In the back of the living room is a bedroom and full bathroom.
  • The roof is stick framed and has a 6:12 pitch.

See What's Included in this Plan...

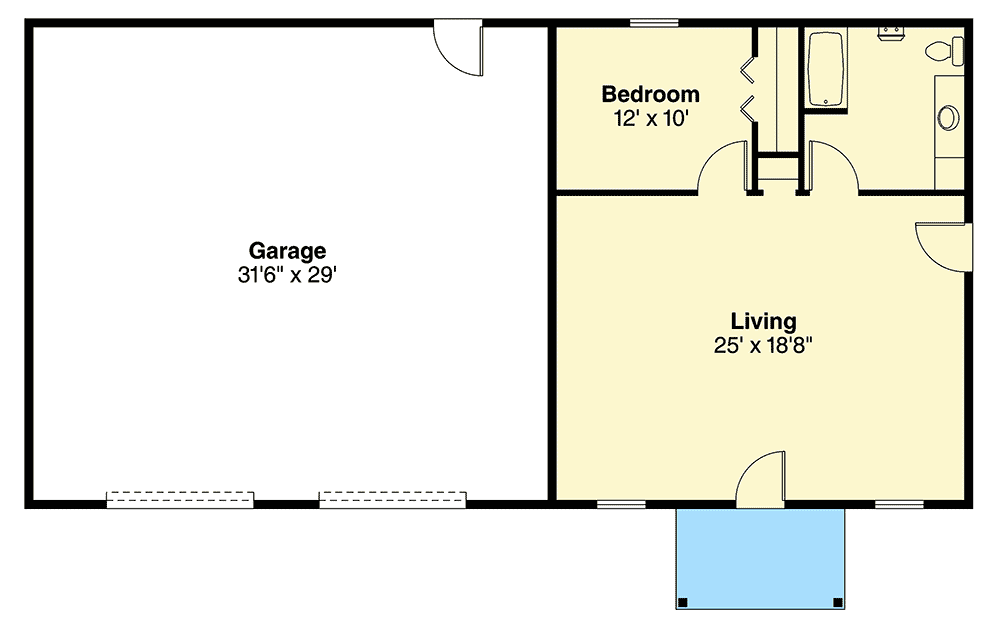

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 780 sq. ft.
  • 1st Floor: 780 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Dimensions

  • Width: 58' 0"
  • Depth: 36' 0"
  • Max ridge height: 17' 9"

Garage

  • Type: Detached
  • Area: 960 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
