Plan 777010MTL

Single-Level Tiny Home Plan with Vaulted Ceiling Throughout

Name: Plan 777010MTL: Single-Level Tiny Home Plan with Vaulted Ceiling Throughout
Brand: Architectural Designs
SKU: 777010MTL
Price: 937.80 USD
Availability: InStock

Heated S.F.

556

Beds

Baths

Stories

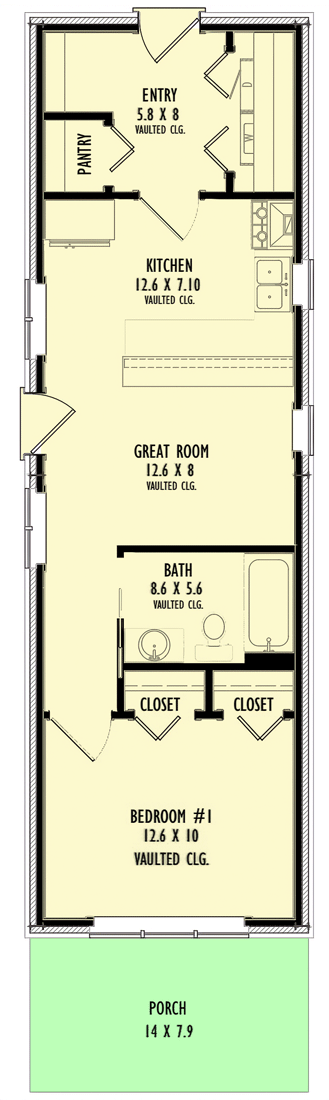

Floor Plan

Main Level

Wall Framing Section

Plan Details

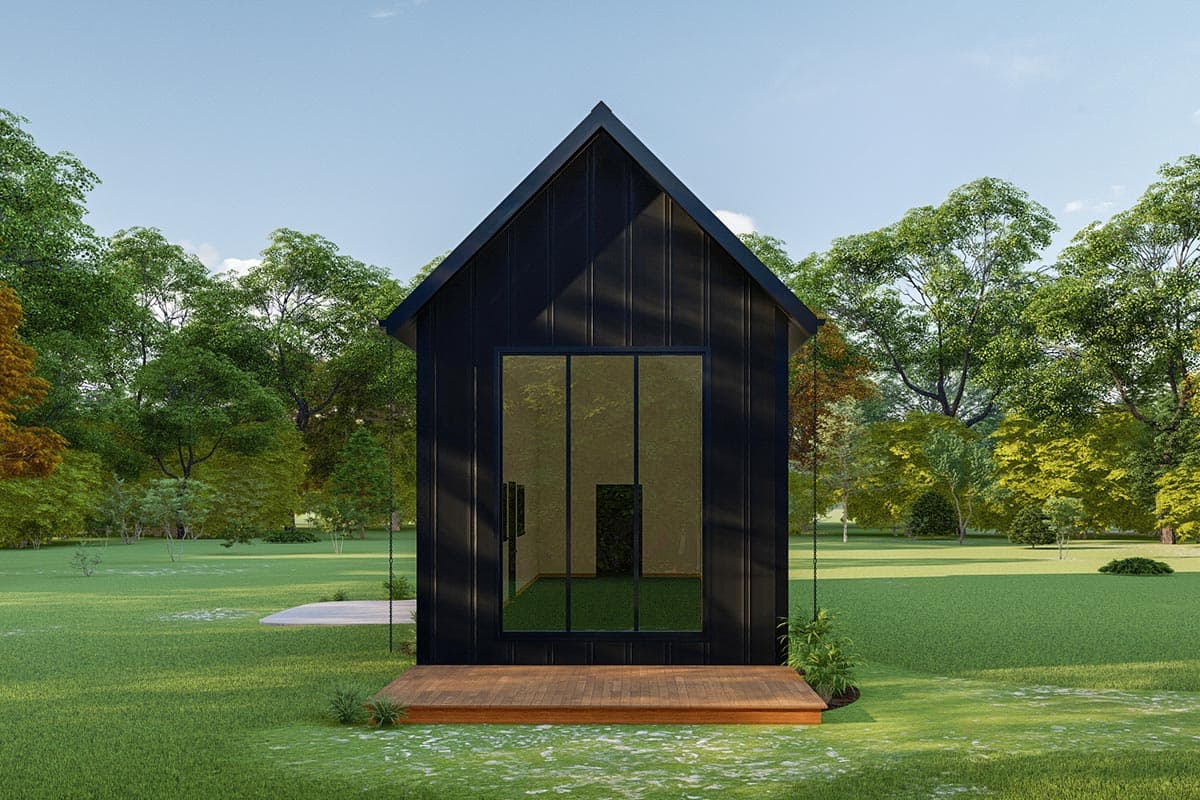

This single-level tiny home plan features a tall vaulted ceiling throughout the narrow design.
The roomy entryway combines the mudroom with the laundry closet and pantry, both hidden behind bi-fold doors.
The kitchen and great room act as one space, and an eating bar provides an ideal spot for meals in the cozy living quarters.
Towards the rear, discover the bedroom with tall windows allowing natural light to fill the space. Two closets sit side-by-side to allow for larger wardrobes and a full bathroom rests behind a pocket door down the hall.

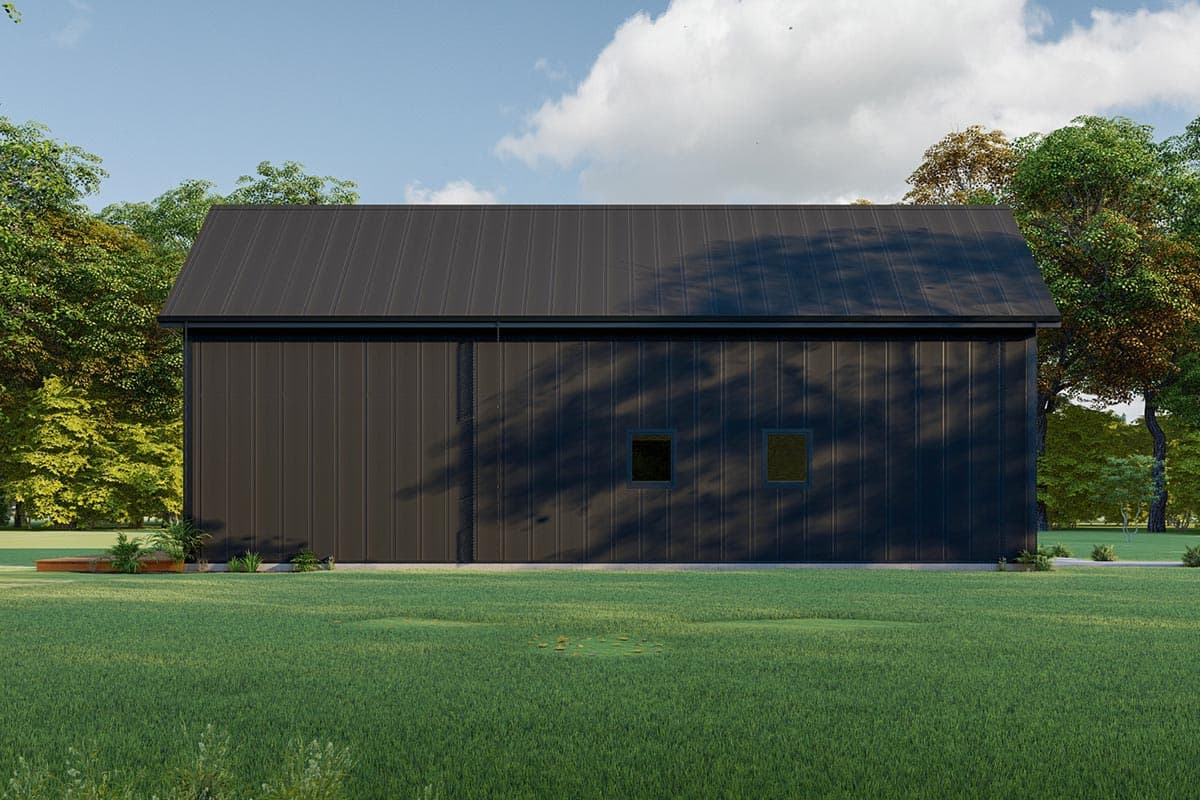

This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

What's Included

Cover sheet
Foundation Plan
Floor plan with basic Electrical Plan and Door/Window Schedule
Roof Plan
Elevations with necessary sections

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
