Single-Story Contemporary House Plan with Formal Dining Room - 2240 Sq Ft
Heated S.F.
2,240
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 833049WAT

Main Level
slide image 0

Plan 833049WAT

1-800-854-7852

1-262-521-4596

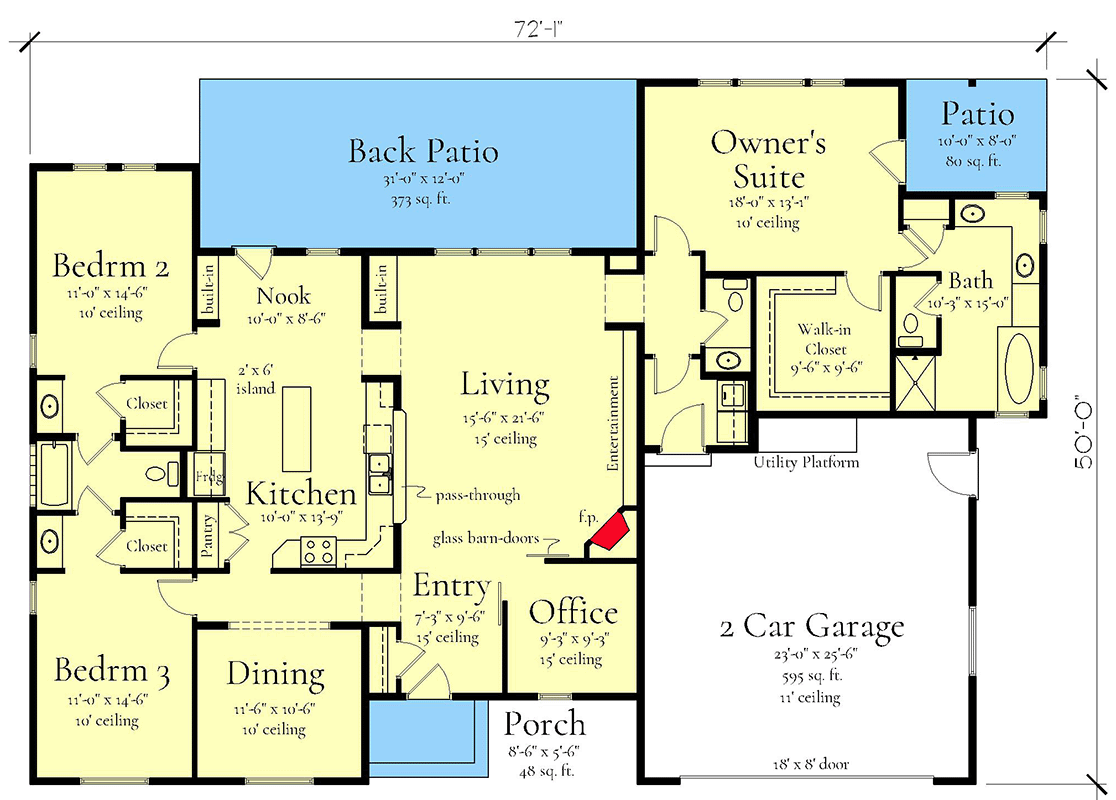

Main Level
floor plan image Main Level
Plan Details
  • This contemporary house plan offers you 2,240 square feet of heated living space with 3 beds, 2.5 baths and a 595 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Floor Plan
  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,240 sq. ft.

1st Floor

2,240 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

373 sq. ft.

Entry

70 sq. ft.

Covered Patio

200 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Joist, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 1"

Depth

50' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

595 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

15' 0''

Office

15' 0''

Entry

15' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,240 sq. ft.

1st Floor

2,240 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

373 sq. ft.

Entry

70 sq. ft.

Covered Patio

200 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Joist, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 1"

Depth

50' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

595 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

15' 0''

Office

15' 0''

Entry

15' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
