Plan 25917GE

Single-Story Craftsman Ranch House Plan with Split Bedrooms

Heated S.F.
1,265
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 25917GE

Main Level
Main Level

Plan 25917GE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 25917GE: Single-Story Craftsman Ranch House Plan with Split Bedrooms - Floor Plan - Main Level - Craftsman, Ranch, Traditional

Plan Details

  • This delightful 1,265 sq. ft. Craftsman Ranch plan features 3 bedrooms and 2 bathrooms, perfect for family living with its split-bedroom design ensuring privacy.
  • Enter through a welcoming front porch into an open layout featuring a spacious living room with cathedral ceilings flowing effortlessly into the dining and kitchen areas.
  • The well-appointed kitchen includes a cozy dining area, ideally situated for morning meals with views of the front porch.
  • The primary bedroom suite on the first floor provides convenience and privacy while the additional bedrooms are cleverly positioned on the opposite side of the house.

What's Included

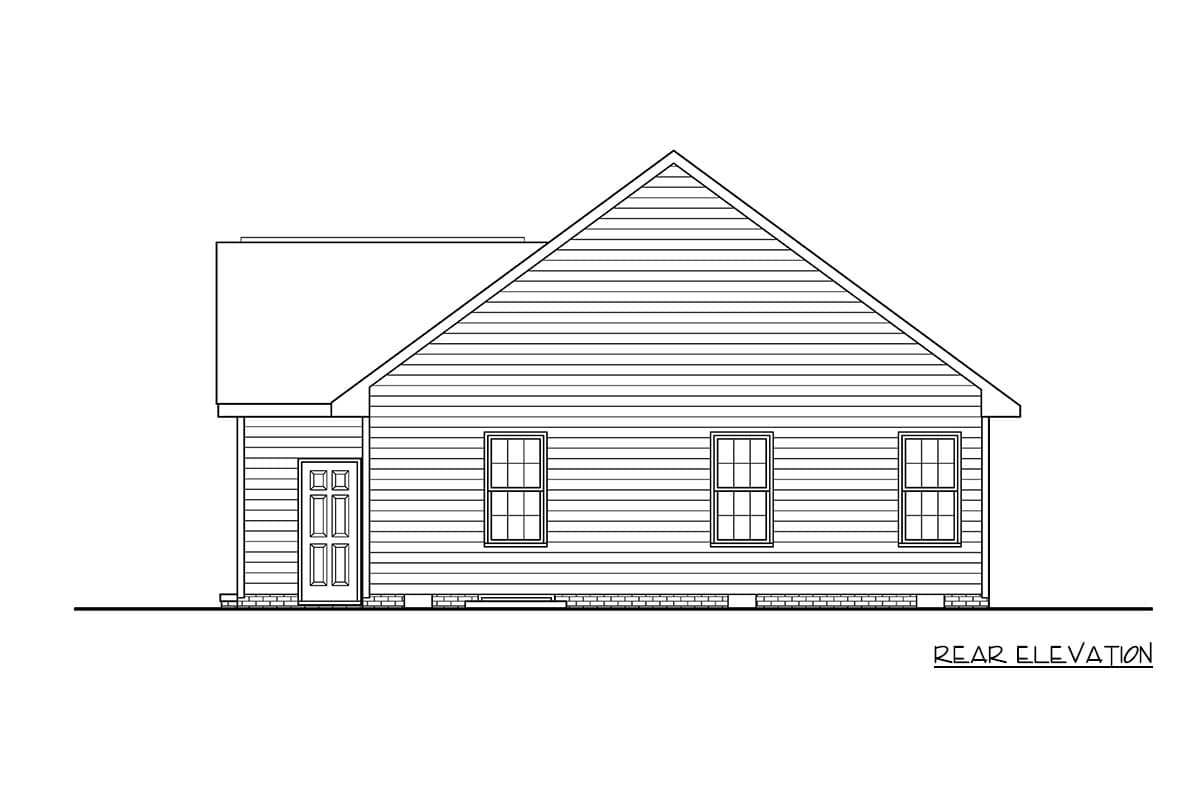

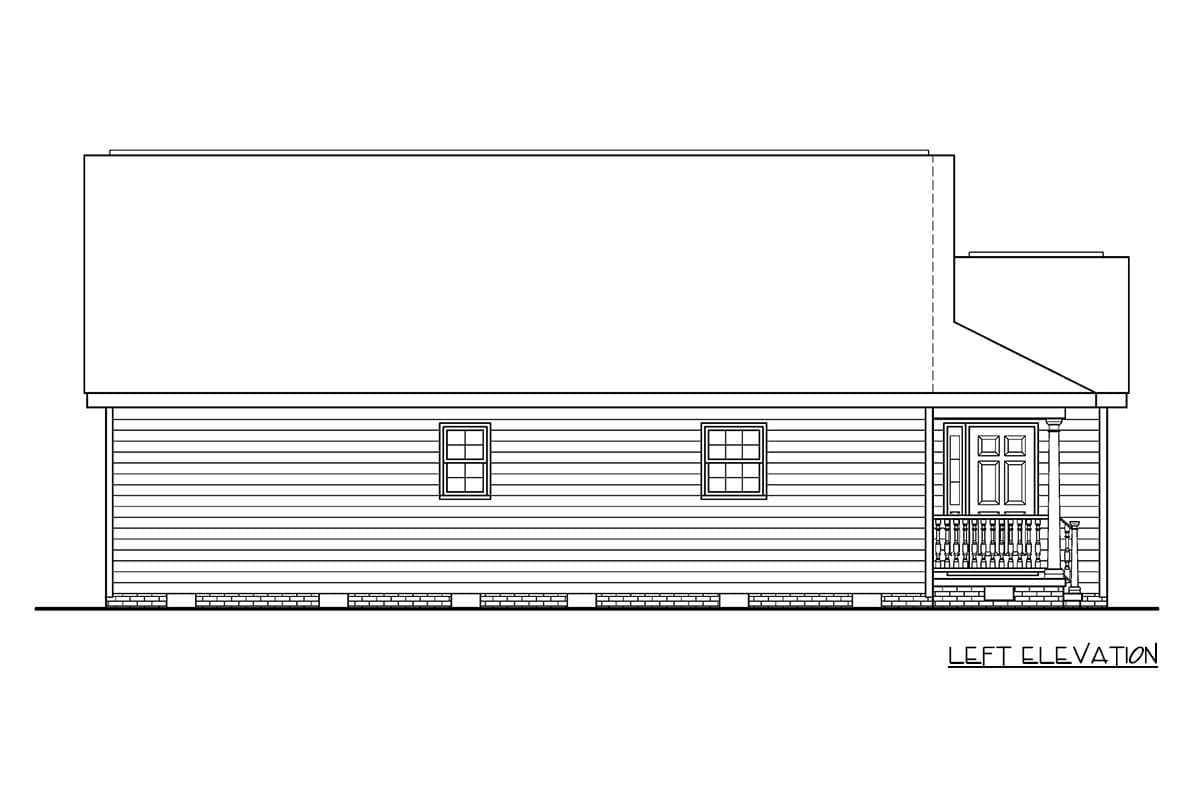

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,265 sq. ft.

1st Floor

1,265 sq. ft.

Porch, Front

86 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

46' 0"

Max Ridge Height

19' 3"

Ceiling Heights

First Floor

8' 1"

Roof Details

Primary Pitch

9 on 12

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,265 sq. ft.

1st Floor

1,265 sq. ft.

Porch, Front

86 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

46' 0"

Max Ridge Height

19' 3"

Ceiling Heights

First Floor

8' 1"

Roof Details

Primary Pitch

9 on 12

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans
