Single-Story Duplex House Plan with Matching 3-Bedroom Units - 1765 Sq Ft Per Unit

Heated S.F.
3,530
Units
2
Width
Depth

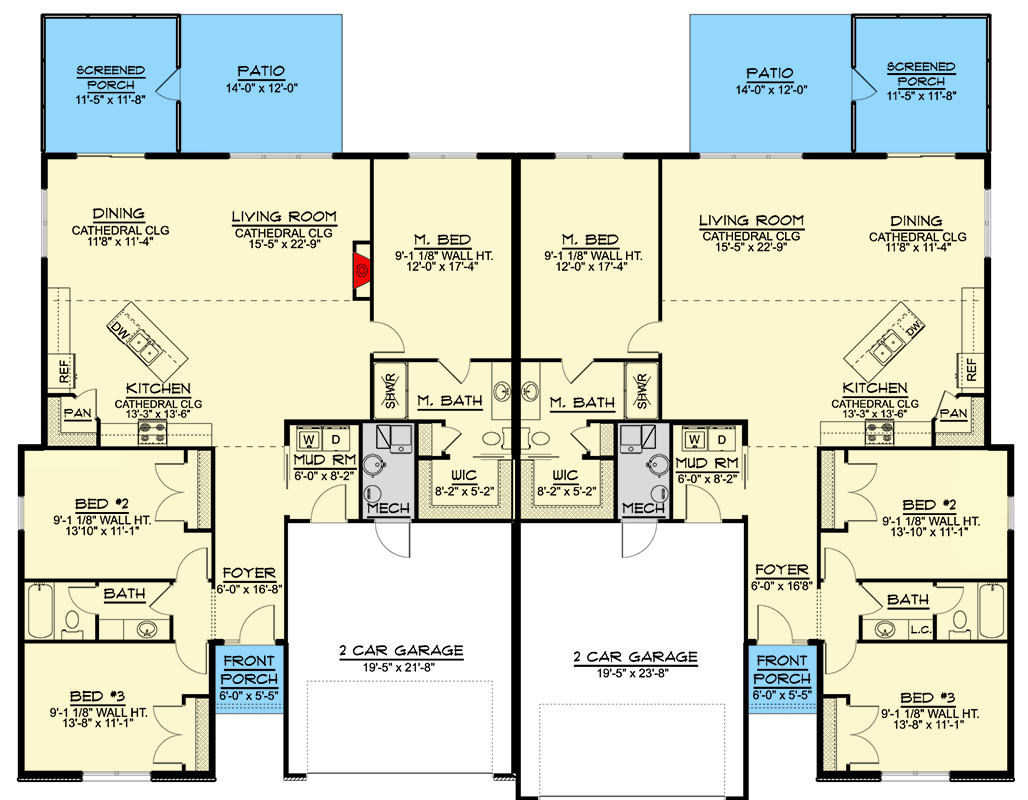

Floor Plan

Plan 135310GRA

Main Level
Main Level

Plan 135310GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135310GRA: Single-Story Duplex House Plan with Matching 3-Bedroom Units - 1765 Sq Ft Per Unit - Floor Plan - Main Level - Country, New American, Ranch

Plan Details

  • This expansive 3,530 sq. ft. New American Ranch duplex house plan offers a combined 6 bedrooms and 4 full bathrooms, complemented by an attached 4-car garage totaling 876 sq. ft., all wrapped in a striking modern country aesthetic with clean lines and stone accents.
  • Upon entering each unit from its inviting front porch, you are welcomed into a spacious foyer that leads directly into the bright, open-concept living area, seamlessly connecting the living room, dining, and kitchen for a fluid sense of space.
  • The heart of each home features a gourmet kitchen with a large island and a convenient butler walk-in pantry, flowing into the dining area and an impressive living room, both boasting dramatic cathedral ceilings that elevate the sense of grandeur and light, perfect for everyday living and intimate gatherings.
  • Each unit's private master suite, located on the main level, offers a serene retreat with a generous walk-in closet and an en-suite master bath, while two additional bedrooms share a well-appointed full bath, ensuring comfort and privacy for all residents.
  • A practical mudroom, complete with main level laundry facilities, provides an essential drop zone from the garage, keeping daily clutter at bay and maintaining the home's pristine ambiance.
  • Beyond the main living areas, sliding doors invite you to a rear patio and a charming screened porch, offering idyllic spots for morning coffee or evening relaxation, seamlessly blending indoor comfort with outdoor tranquility.
Unit A
Heated Area
1,765Sq. Ft.
1765 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
438 Sq. Ft.
Dimensions
43'width
68'depth
21'height
Unfinished Areas
438 Sq. Ft. Garage
33 Sq. Ft. Porch, Front
144 Sq. Ft. Porch, Rear
133 Sq. Ft. Screened Porch
Unit B
Heated Area
1,765Sq. Ft.
1765 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
438 Sq. Ft.
Dimensions
43'width
68'depth
21'height
Unfinished Areas
438 Sq. Ft. Garage
33 Sq. Ft. Porch, Front
144 Sq. Ft. Porch, Rear
133 Sq. Ft. Screened Porch

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,530 sq. ft.

1st Floor

3,530 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

288 sq. ft.

Screened Porch

266 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 1"

Depth

68' 0"

Max Ridge Height

21' 7"

Garage

Type

Attached

Area

876 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,530 sq. ft.

1st Floor

3,530 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

288 sq. ft.

Screened Porch

266 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 1"

Depth

68' 0"

Max Ridge Height

21' 7"

Garage

Type

Attached

Area

876 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
