Plan 801117PM Single-story Farmhouse Plan with Split-bed Layout

1,729 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Single-story Farmhouse Plan with Split-bed Layout

Plan 801117PM

  • 1,729

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This single-story Farmhouse plan delivers immense curb appeal with a side-entry, double garage, stone elements, and metal roof accents.
  • From the garage, you access the laundry room and from there you get to the open-concept dining room, living room, and kitchen with an island.
  • Two sets of sliding doors extend the living / entertaining space onto a 22' by 10' covered porch.
  • Five seats at the kitchen island provides a place for quick meals, while a nearby walk-in pantry increases storage for larger appliances.
  • The primary bedroom is situated apart from the other bedrooms for privacy and includes a 4-fixture bathroom and walk-in closet.
  • NOTE: Please allow up to 15 business days for delivery.

Plan sets include the following:

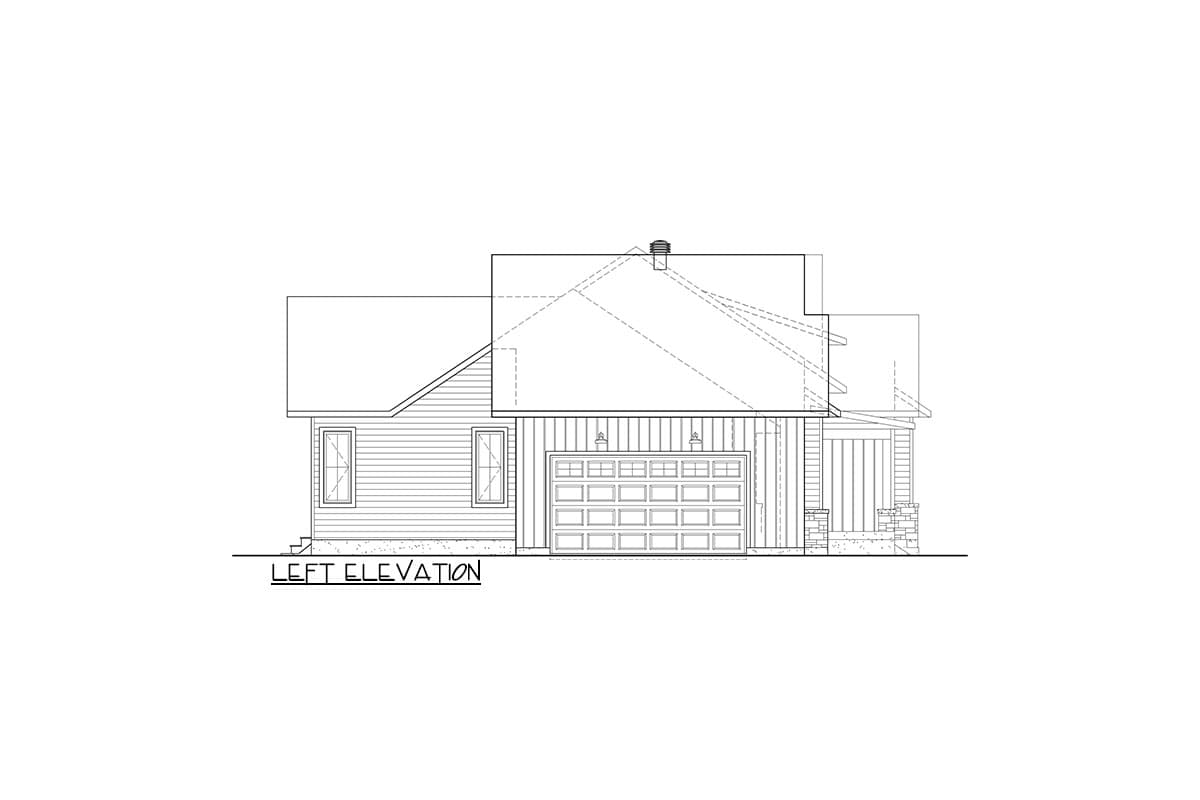

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

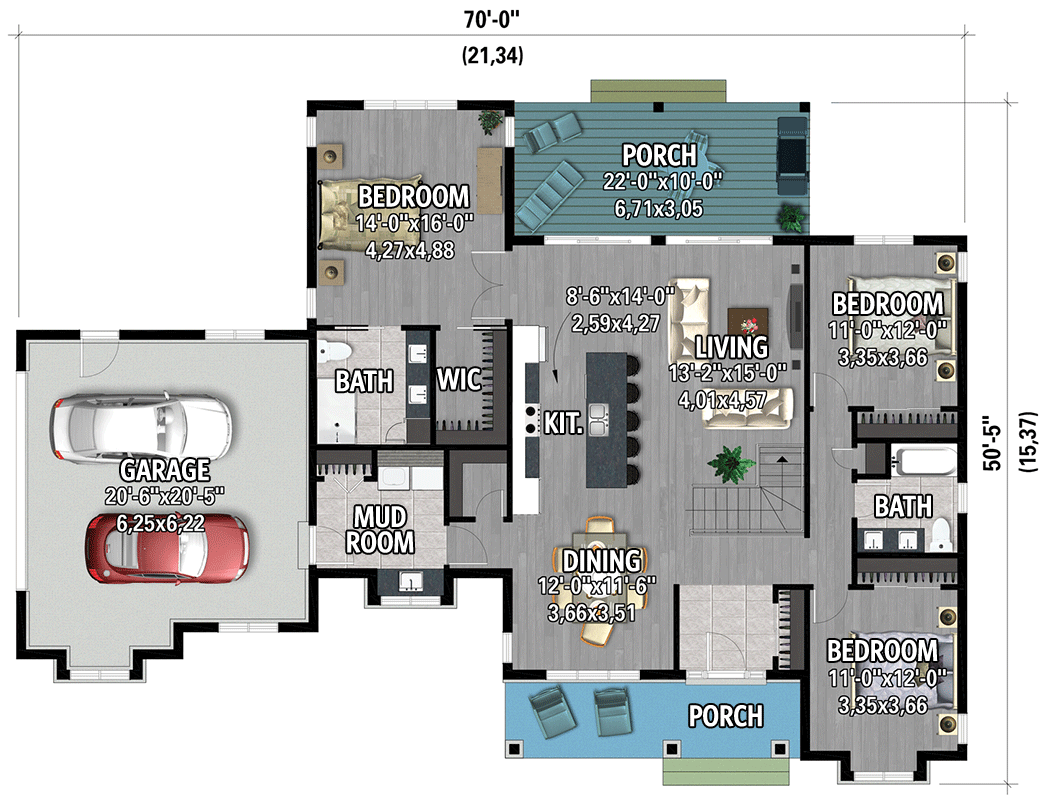

Single-story Farmhouse Plan with Split-bed Layout - 801117PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,729 sq. ft.
  • 1st Floor: 1,729 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 50' 5"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Single-story Farmhouse Plan with Split-bed Layout

  • 1,729

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $970
  • 5 Sets $1,015
  • 5 Sets + PDF $1,110
  • 5 Set + PDF + Materials List $1,200
  • CAD + PDF - Single-Build $1,990
  • View all purchase option online

About This Plan

  • This single-story Farmhouse plan delivers immense curb appeal with a side-entry, double garage, stone elements, and metal roof accents.
  • From the garage, you access the laundry room and from there you get to the open-concept dining room, living room, and kitchen with an island.
  • Two sets of sliding doors extend the living / entertaining space onto a 22' by 10' covered porch.
  • Five seats at the kitchen island provides a place for quick meals, while a nearby walk-in pantry increases storage for larger appliances.
  • The primary bedroom is situated apart from the other bedrooms for privacy and includes a 4-fixture bathroom and walk-in closet.
  • NOTE: Please allow up to 15 business days for delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,729 sq. ft.
  • 1st Floor: 1,729 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 50' 5"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
