Plan 69016AM

Single Story French Home Plan

1,817 2 2 1 3
Pageloader

Single Story French Home Plan

Plan 69016AM

  • 1,817

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • With a decidedly Craftsman flavor, this precious one-story home plan will surprise you with its thoughtful floor plan. Though less than 2,000 square feet, it contains office space, two bedrooms, two full baths, a large great room and a gourmet-style kitchen with attached dining room. A covered porch opens from the dining area.
  • Ceilings throughout are 9' high, except in the great room where the ceiling is vaulted. The office could double as a guestroom; choose built-in cabinetry or a closet for this space. Loaded for luxury, the master bath includes a spa tub, separate shower, dual sinks and compartmented toilet.
  • Two art niches grace the hallways - perfect for displaying cherished treasures. A service hall contains a pantry near the kitchen, then leads through the laundry area to a double garage with shop space. Don't miss the fireplace and media center in the great room.
  • Related Plans: For alternate elevations, see these house plans - 6929AM and 6933AM.

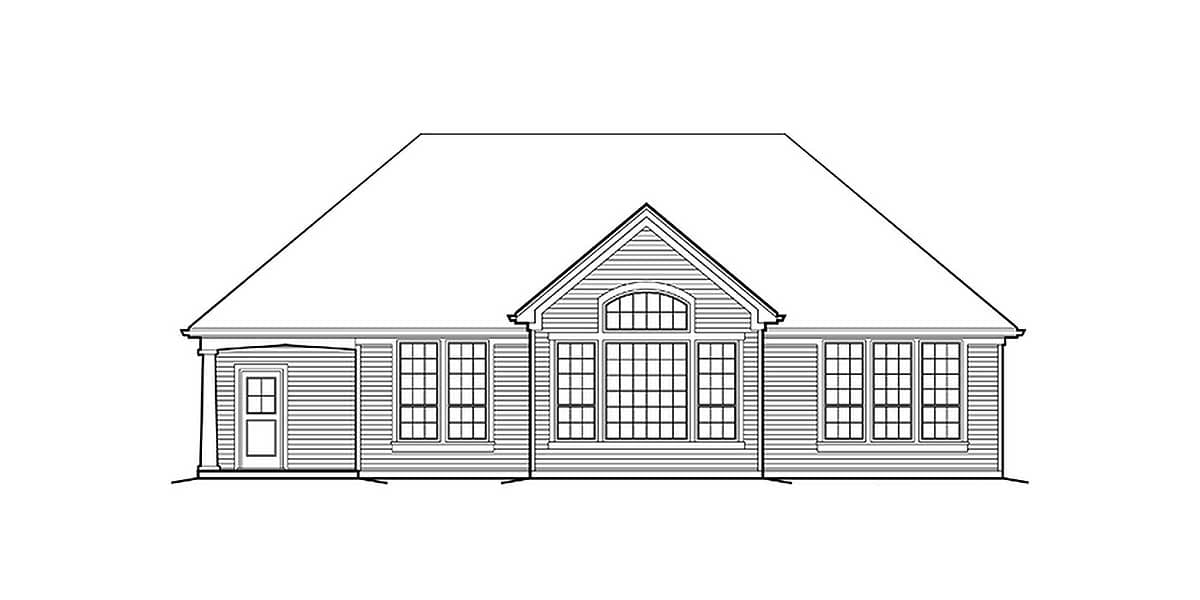

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

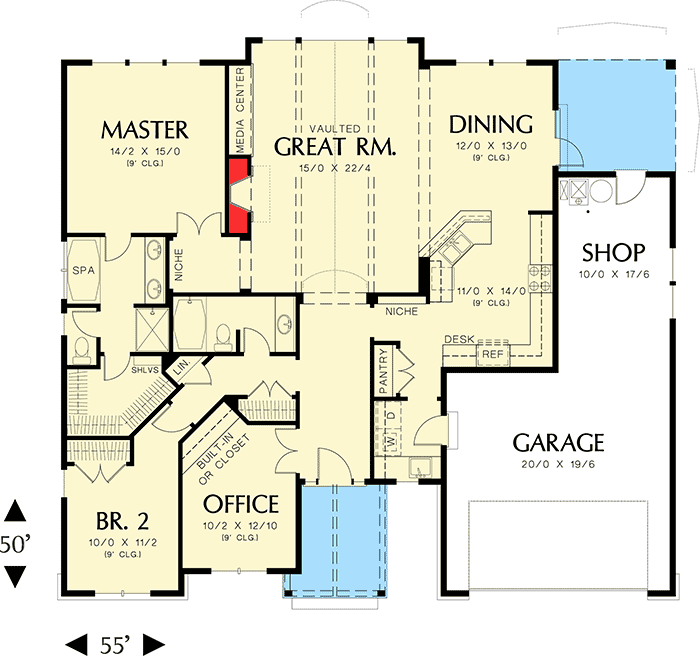

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details

Architectural Style

Plan Collections



Single Story French Home Plan

  • 1,817

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $714
  • PDF - single-use $1,064
  • 5 Sets $1,214
  • 5 Sets PLUS $1,264
  • CAD - multi-use $2,128
  • View all purchase option online

About This Plan

  • With a decidedly Craftsman flavor, this precious one-story home plan will surprise you with its thoughtful floor plan. Though less than 2,000 square feet, it contains office space, two bedrooms, two full baths, a large great room and a gourmet-style kitchen with attached dining room. A covered porch opens from the dining area.
  • Ceilings throughout are 9' high, except in the great room where the ceiling is vaulted. The office could double as a guestroom; choose built-in cabinetry or a closet for this space. Loaded for luxury, the master bath includes a spa tub, separate shower, dual sinks and compartmented toilet.
  • Two art niches grace the hallways - perfect for displaying cherished treasures. A service hall contains a pantry near the kitchen, then leads through the laundry area to a double garage with shop space. Don't miss the fireplace and media center in the great room.
  • Related Plans: For alternate elevations, see these house plans - 6929AM and 6933AM.

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,817 sq. ft.
  • 1st Floor: 1,817 sq. ft.
  • Covered Patio: 95 sq. ft.
  • Workshop: 176 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 50' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 604 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
