Plan 147060RML

Single-Story Modern Craftsman Ranch House Plan with Den and Angled Garage

Heated S.F.
2,569
Beds
3
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 147060RML

Main Level
Main Level

Plan 147060RML

M-F 9am-5pm EST |

1-203-761-8500

Main Level

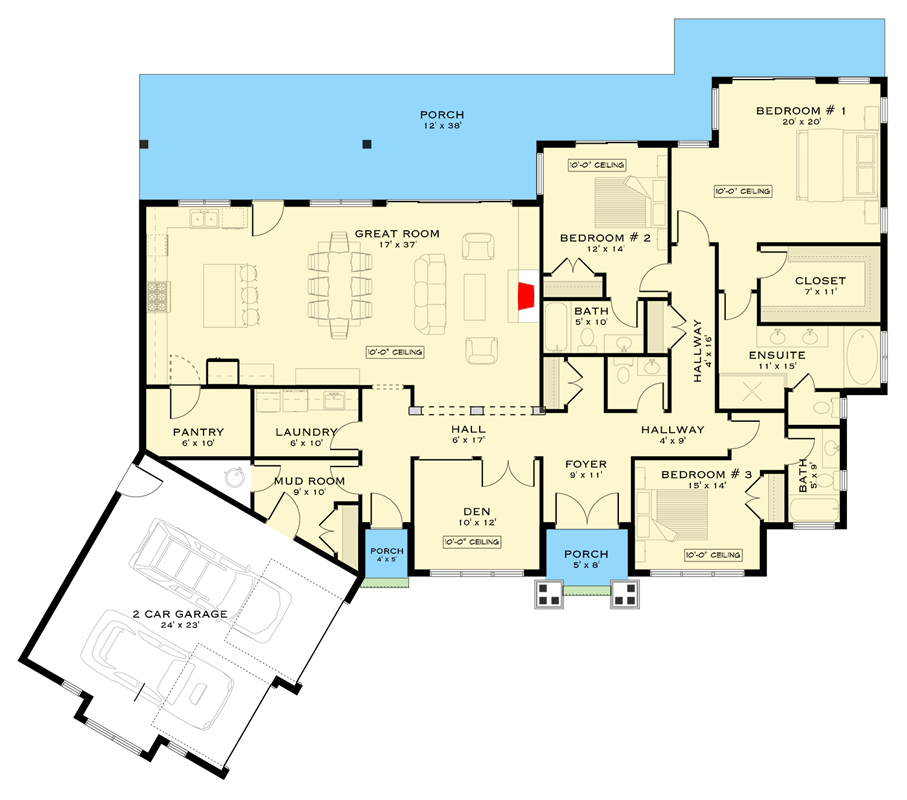

Plan 147060RML: Single-Story Modern Craftsman Ranch House Plan with Den and Angled Garage - Floor Plan - Main Level - Country, Craftsman, Modern, Ranch

Plan Details

  • Boasting 2,569 finished square feet, this Modern Ranch includes 3 bedrooms, 3.5 baths, and a 577-square-foot 2-car angled garage.
  • An inviting front porch opens to a formal foyer and a private den, offering a sophisticated first impression and a quiet workspace.
  • The vast great room flows into the open kitchen and dining areas, creating a bright central hub characterized by 10-foot ceilings and easy access to a walk-in pantry.
  • The primary suite features an impressive 20-by-20-foot bedroom and private ensuite, situated near two additional bedrooms for a convenient clustered layout.
  • A functional mudroom and adjacent laundry room are positioned near the side-entry garage to streamline daily transitions into the home.
  • The expansive 38-foot-wide rear porch provides a seamless connection to the outdoors, ideal for enjoying fresh air and morning coffee.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,569 sq. ft.

1st Floor

2,569 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 7"

Depth

66' 9"

Max Ridge Height

21' 5"

Garage

Type

Standard, Attached

Area

577 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

10' 0''

All Bedrooms

Flat

10' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Modern

Ranch

Special Features

Angled Garage

Bedrooms - Clustered

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,569 sq. ft.

1st Floor

2,569 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 7"

Depth

66' 9"

Max Ridge Height

21' 5"

Garage

Type

Standard, Attached

Area

577 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

10' 0''

All Bedrooms

Flat

10' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Modern

Ranch

Special Features

Angled Garage

Bedrooms - Clustered

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
