Plan 61591UT

Single-Story Multi-Family House Plan with 1-Bed Units - 1543 Sq Ft Per Unit

Heated S.F.
3,086
Units
2
Width
Depth

Floor Plan

Plan 61591UT

Main Level
Main Level

Plan 61591UT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

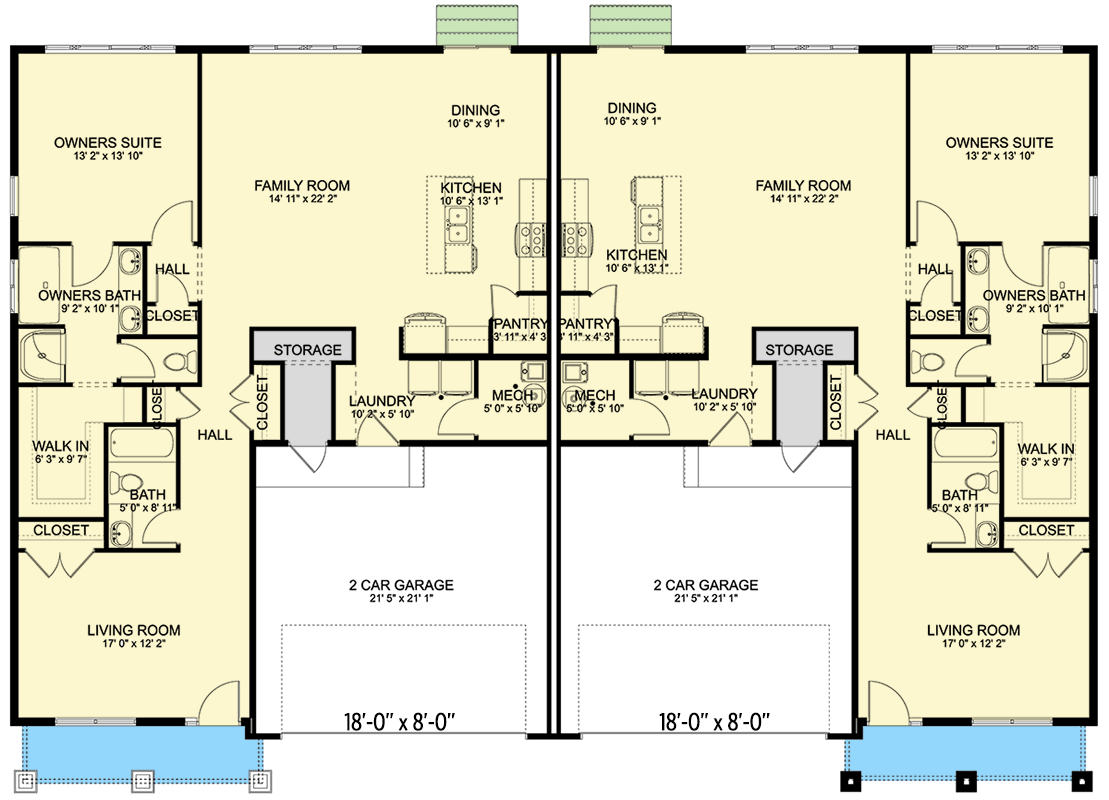

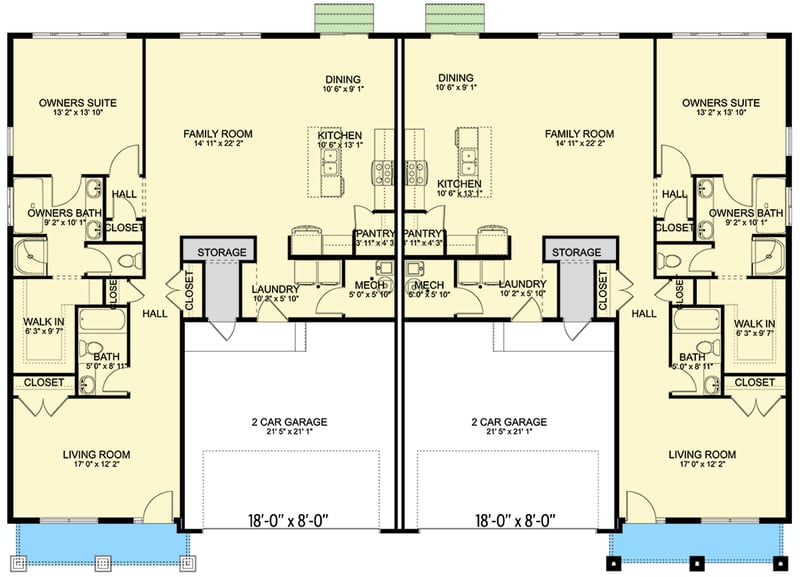

Plan 61591UT: Single-Story Multi-Family House Plan with 1-Bed Units - 1543 Sq Ft Per Unit - Floor Plan - Main Level - Craftsman, Ranch, Traditional

Plan Details

  • This multi-family house plan gives you 2 units each with 1,543 square feet of heated living space, 1 bed, 2 baths and a 469 sq. ft. 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,543Sq. Ft.
1543 Sq. Ft. 1st
Beds
1Beds
Baths
2Full Baths
Cars
Attached
469 Sq. Ft.
Dimensions
40'width
50'depth
Unfinished Areas
469 Sq. Ft. Garage
90 Sq. Ft. Porch, Front
Unit B
Heated Area
1,543Sq. Ft.
1543 Sq. Ft. 1st
Beds
1Beds
Baths
2Full Baths
Cars
Attached
469 Sq. Ft.
Dimensions
40'width
50'depth
Unfinished Areas
469 Sq. Ft. Garage
90 Sq. Ft. Porch, Front

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

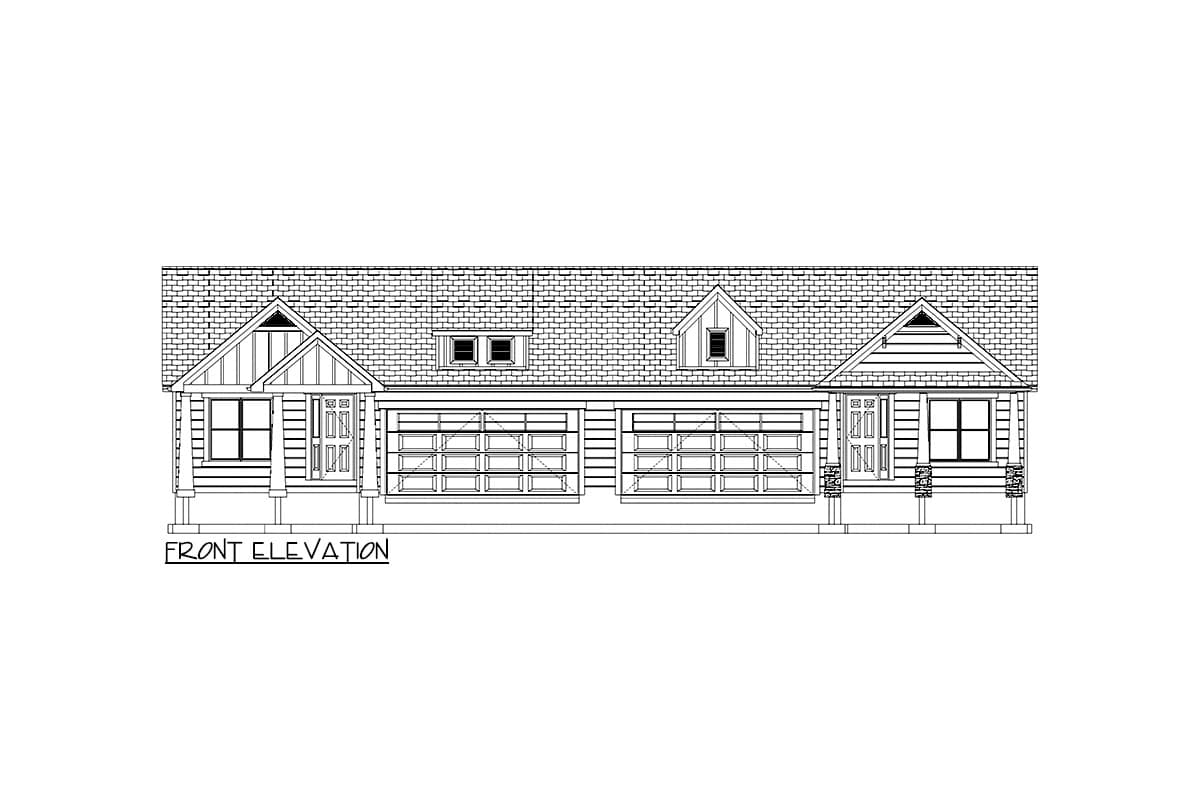

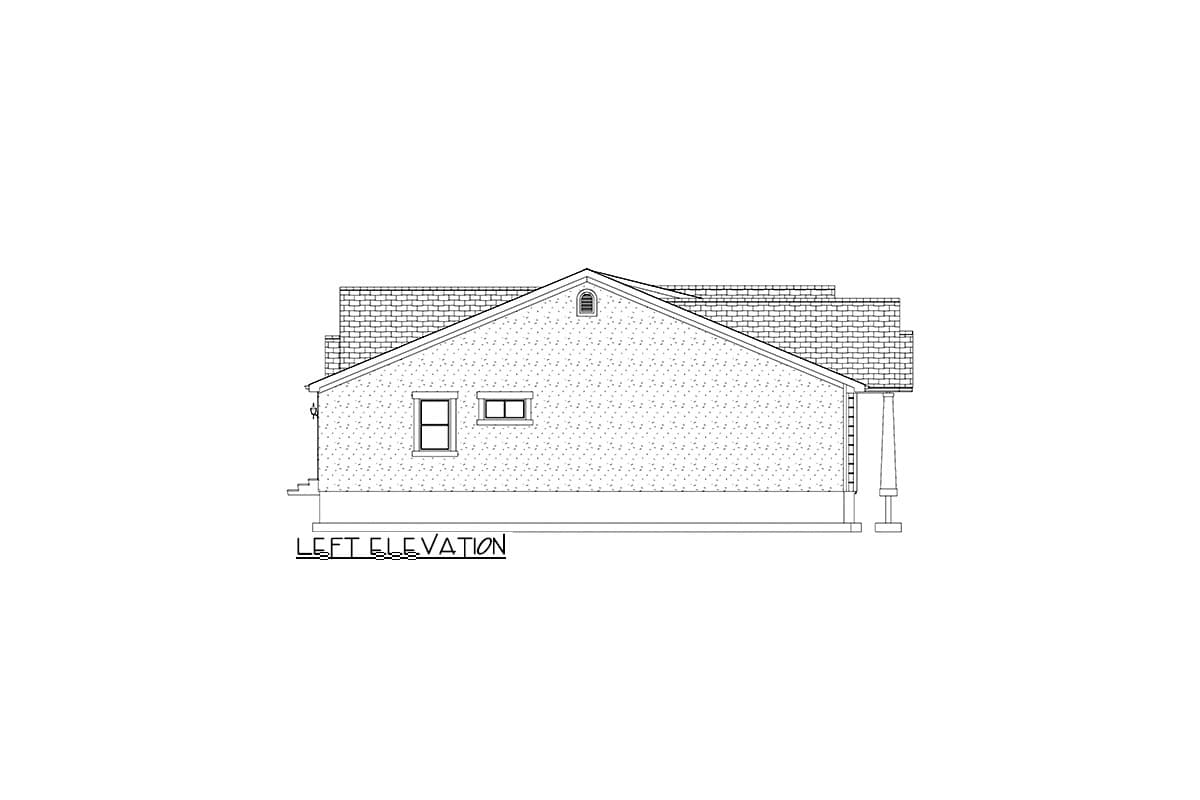

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,086 sq. ft.

1st Floor

3,086 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

50' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

938 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Butler Walk-in Pantry

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,086 sq. ft.

1st Floor

3,086 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

50' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

938 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Butler Walk-in Pantry

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
