Single-Story Ranch House Plan with Split Bedrooms

Heated S.F.
1,753
Beds
3
Baths
2
Stories
1
Cars
2

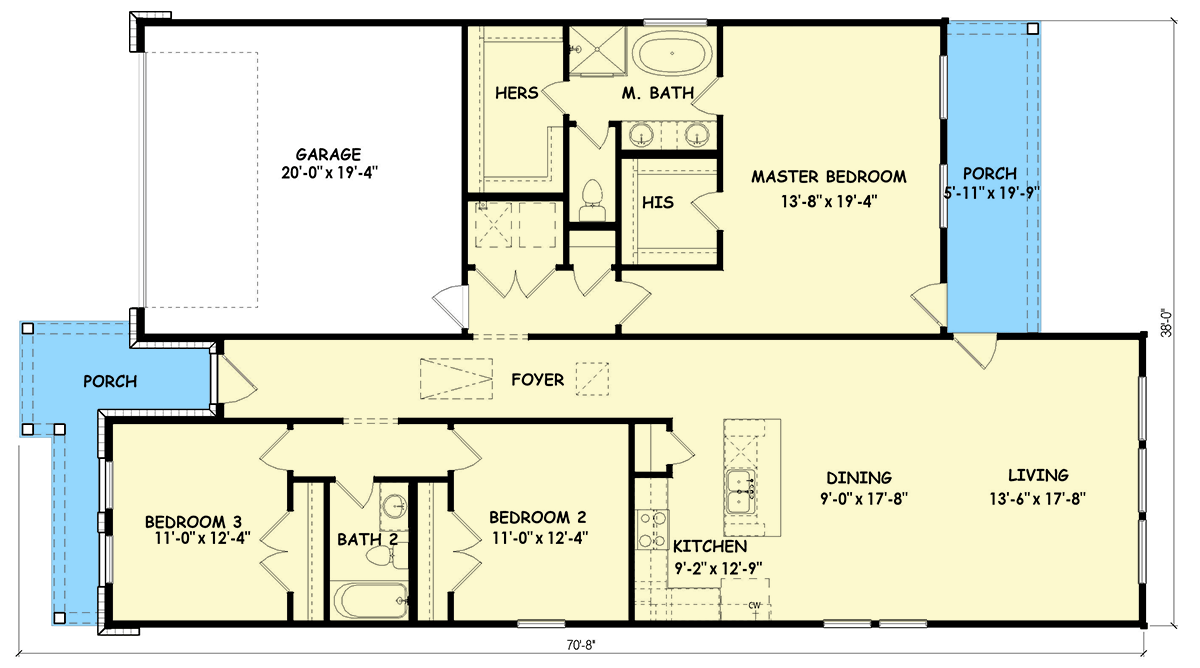

Floor Plan

Plan 100355GHR

Main Level
Main Level

Plan 100355GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100355GHR: Single-Story Ranch House Plan with Split Bedrooms - Floor Plan - Main Level - Country, New American, Ranch, Traditional

Plan Details

  • Experience the comfort of a 1,753 sq. ft. ranch-style home featuring 3 bedrooms, 2 bathrooms, and an attached 2-car garage with 402 sq. ft. of space.
  • Step into the inviting foyer leading to an open-concept living and dining area, perfect for modern living and cozy gatherings.
  • The efficient kitchen design includes a functional layout, ideal for meal prep and family time, seamlessly connecting to the main living spaces.
  • The master suite is privately situated on the first floor and features separate "his and hers" closets alongside a well-appointed master bath.
  • Enjoy outdoor leisure on the spacious front and rear porches, adding an extra 237 sq. ft. of relaxation space for morning coffees or evening unwinds.
  • This home offers a laundry room conveniently located on the main level, making household chores effortlessly accessible.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE
