Single-Story Symmetrical Ranch House Plan with Vaulted Master Bedroom - 1316 Sq Ft

Heated S.F.
1,316
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 25860GE

Main Level
Main Level

Plan 25860GE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

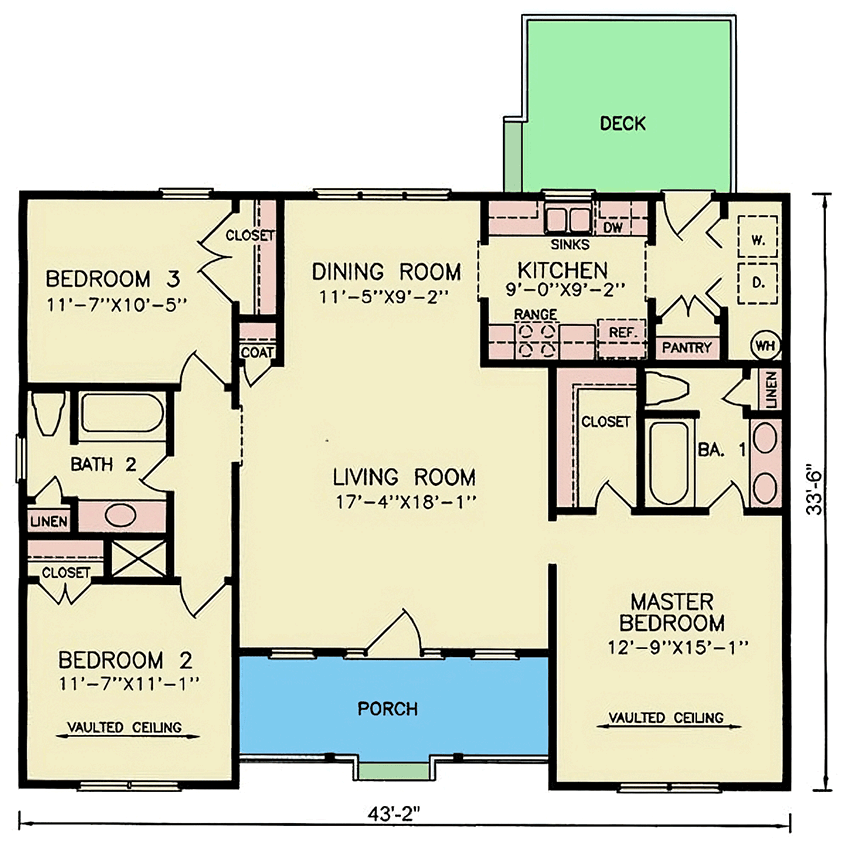

Plan 25860GE: Single-Story Symmetrical Ranch House Plan with Vaulted Master Bedroom - 1316 Sq Ft - Floor Plan - Main Level - Country, Ranch

Plan Details

  • This ranch house plan offers you 1,316 square feet of heated living space with 3 beds and 2 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,316 sq. ft.

1st Floor

1,316 sq. ft.

Porch, Front

104 sq. ft.

Deck

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 2"

Depth

43' 6"

Max Ridge Height

18' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,316 sq. ft.

1st Floor

1,316 sq. ft.

Porch, Front

104 sq. ft.

Deck

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 2"

Depth

43' 6"

Max Ridge Height

18' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans
