Plan 59614ND

Single-Story Triplex House Plan with Two 2 Bed Units and One 1 Bed Unit

Heated S.F.
4,027
Units
3
Width
Depth

Floor Plan

Plan 59614ND

Main Level
Main Level

Plan 59614ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

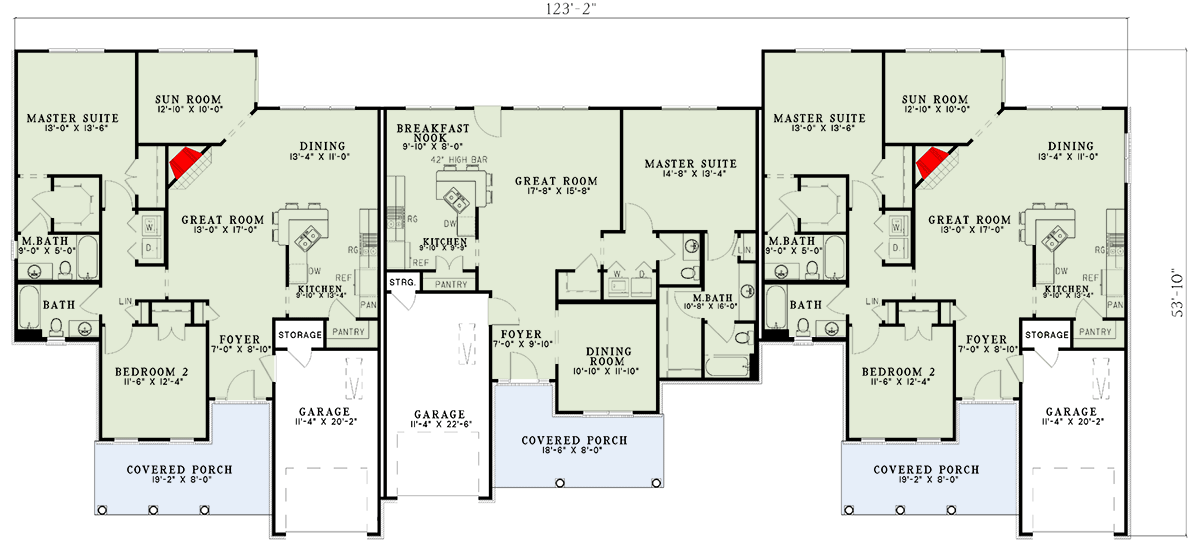

Plan 59614ND: Single-Story Triplex House Plan with Two 2 Bed Units and One 1 Bed Unit - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This triplex house plan features three units. Each end unit offers 1,417 sq. ft. of heated living space with 2 bedrooms, 2 bathrooms, and a 267 sq. ft. 1-car garage. The middle unit provides 1,193 sq. ft. of heated living space with 1 bedroom, 1.5 bathrooms, and a 284 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,417Sq. Ft.
1417 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
267 Sq. Ft.
Dimensions
41'width
53' 10"depth
Unfinished Areas
267 Sq. Ft. Garage
177 Sq. Ft. Porch, Front
Unit B
Heated Area
1,193Sq. Ft.
1193 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
284 Sq. Ft.
Dimensions
41'width
53' 10"depth
Unfinished Areas
284 Sq. Ft. Garage
168 Sq. Ft. Porch, Front
Unit C
Heated Area
1,417Sq. Ft.
4027 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
267 Sq. Ft.
Dimensions
41'width
53' 10"depth
Unfinished Areas
786 Sq. Ft. Attached
267 Sq. Ft. Garage
177 Sq. Ft. Porch, Front

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,027 sq. ft.

1st Floor

4,027 sq. ft.

Porch, Front

522 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

123' 2"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

284 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

4,027 sq. ft.

1st Floor

4,027 sq. ft.

Porch, Front

522 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

123' 2"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

284 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom

Walk-in Pantry
