Plan: 59669ND

Sleek Design

1,519 3 2 1 2
Pageloader

Sleek Design

Plan 59669ND

  • 1,519

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This sleek home plan has a lovely arched window and contemporary hip roofline giving it easy street appeal. Once inside, admire the great room corner fireplace and lovely view of the rear grilling porch.
  • Three windows in the nearby breakfast room and kitchen combo will give natural light to both areas, while the spacious laundry room just steps away will make household chores less tiresome.
  • You'll love the private computer center centrally located near the kitchen and great room. And for the perfect refuge, check out the secluded master suite with plenty of wall space and an elegant nine-foot boxed ceiling.
  • The private bathroom has a whirlpool tub nestled between two large walk-in closets, double vanities, and a separate shower making it the perfect refuge.
  • The roof is stick and has a 9:12 pitch.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Sleek Design

  • 1,519

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $580
  • 5 Sets $630
  • 8 Sets $720
  • Reproducible Set $1,105
  • PDF - single-use $1,105
  • CAD $1,700
  • View all purchase option online

About This Plan

  • This sleek home plan has a lovely arched window and contemporary hip roofline giving it easy street appeal. Once inside, admire the great room corner fireplace and lovely view of the rear grilling porch.
  • Three windows in the nearby breakfast room and kitchen combo will give natural light to both areas, while the spacious laundry room just steps away will make household chores less tiresome.
  • You'll love the private computer center centrally located near the kitchen and great room. And for the perfect refuge, check out the secluded master suite with plenty of wall space and an elegant nine-foot boxed ceiling.
  • The private bathroom has a whirlpool tub nestled between two large walk-in closets, double vanities, and a separate shower making it the perfect refuge.
  • The roof is stick and has a 9:12 pitch.

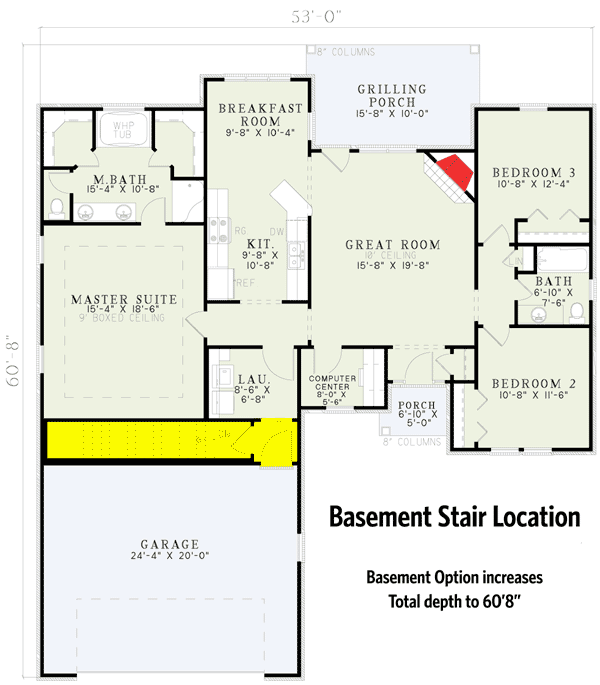

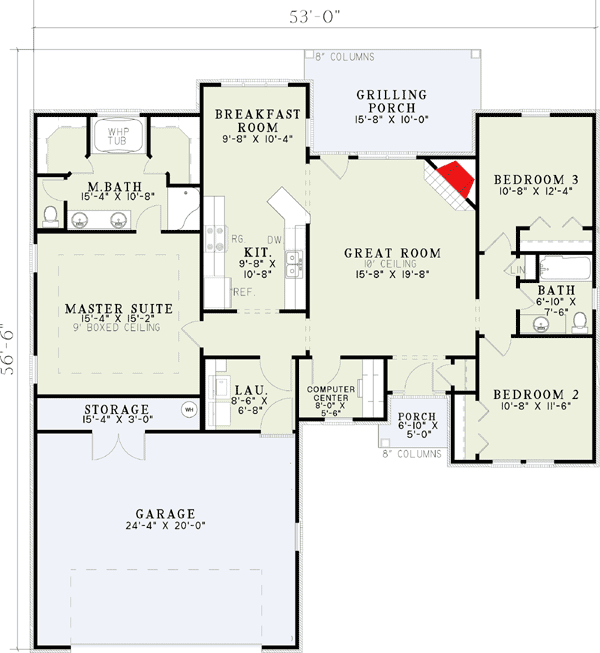

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,519 sq. ft.
  • 1st Floor: 1,519 sq. ft.
  • Porch, Combined: 193 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 56' 6"
  • Max ridge height: 18' 3"

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

  • Ranch
  • Southern
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms

Plan Collections

  • Photo Gallery
