Sloping Lot Home Plan with Great Rear-Facing Views

Plan 35394GH

3,963
Heated s.f.
5
Beds
3
Baths
1-2
Stories
3
Cars

Enjoy the outdoors with the spacious decking - covered and uncovered - and even enjoy the views from your own hot tub.
Inside, two-story windows in the great room entice you to enjoy the great outdoor views. With a fireplace as the focal point of the room, your family will enjoy many a cozy fire.
The first floor ' suite is spacious and has easy access to the hot tub.
The kitchen is open to the 2-story great room and dining room. Seating is also available at the couner.
Everyone else sleeps in the lower level complete with family room with fireplace and its own outdoor space.

Each plan set includes the following:

Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

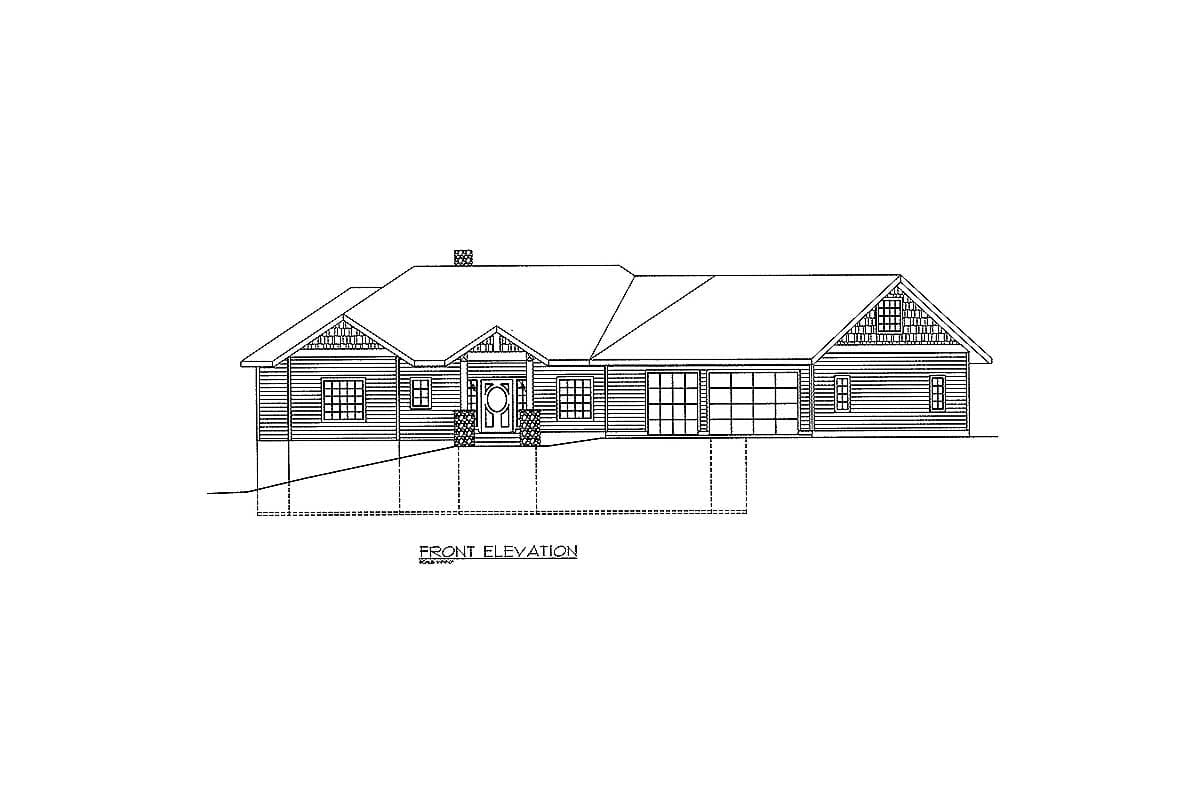

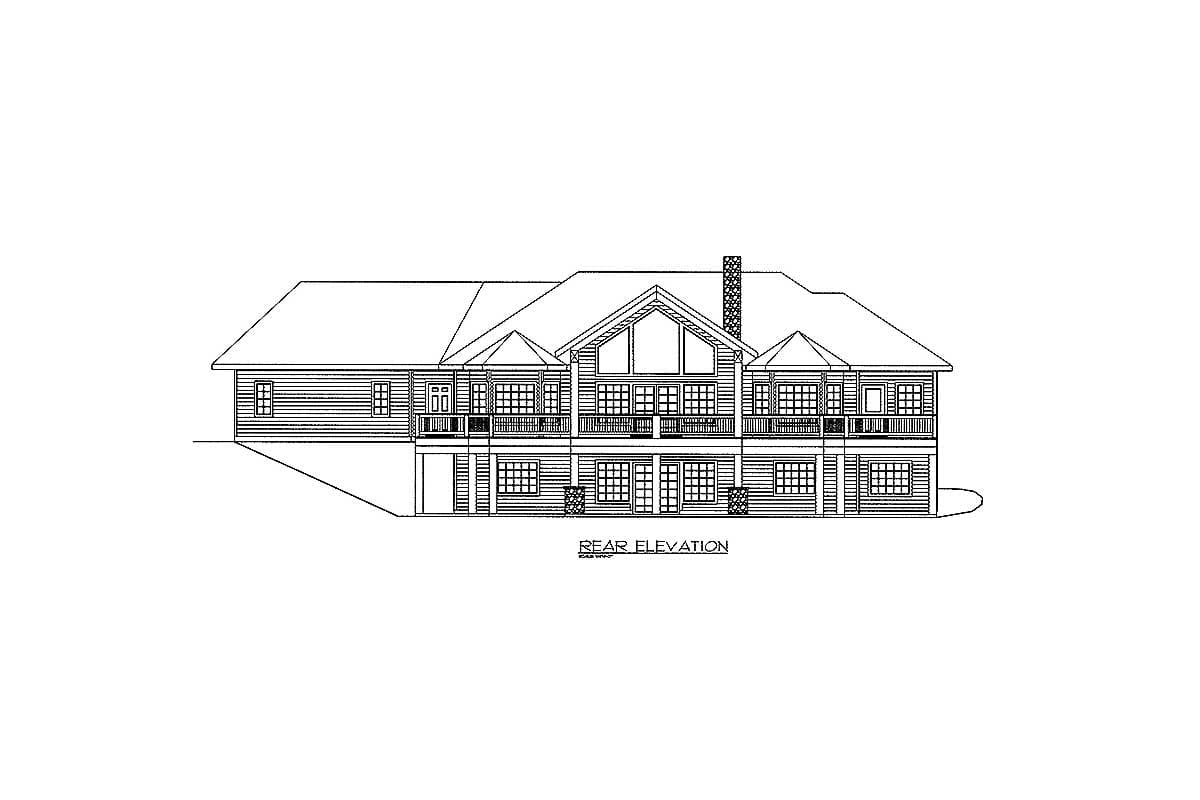

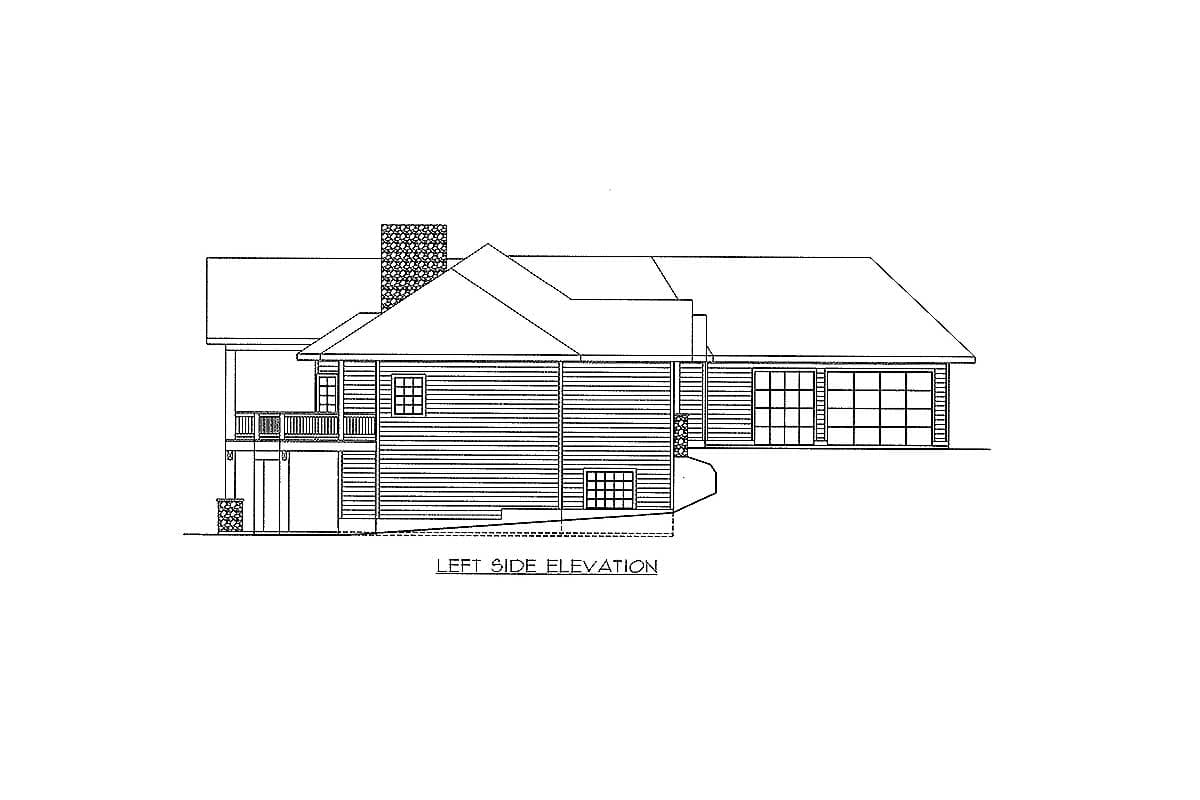

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

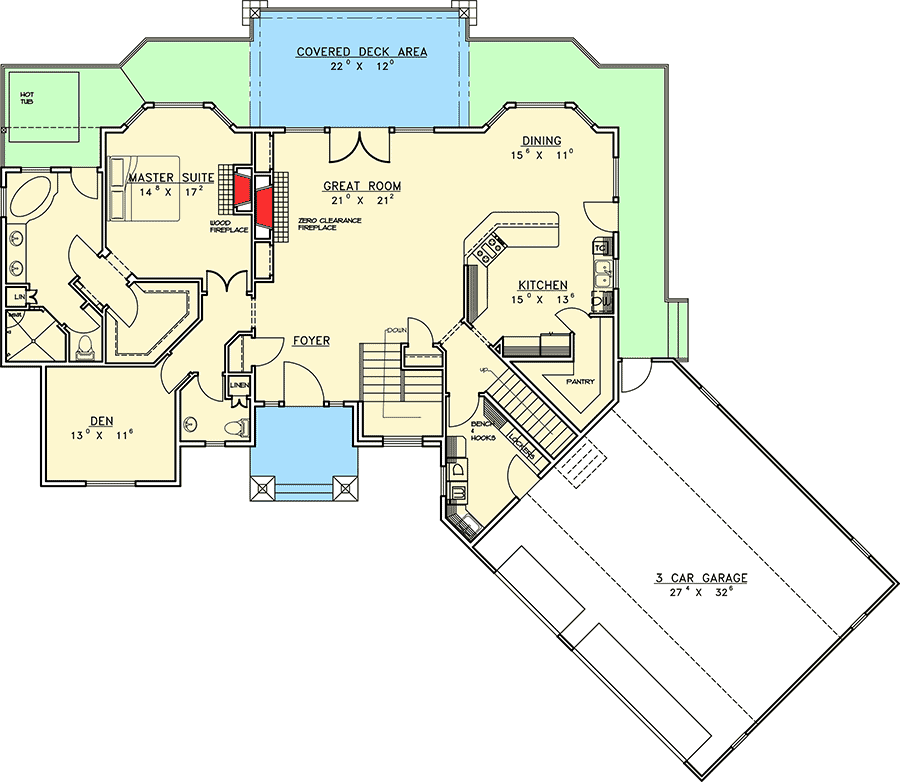

Sloping Lot Home Plan with Great Rear-Facing Views - 35394GH floor plan - Main Level

Bonus

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

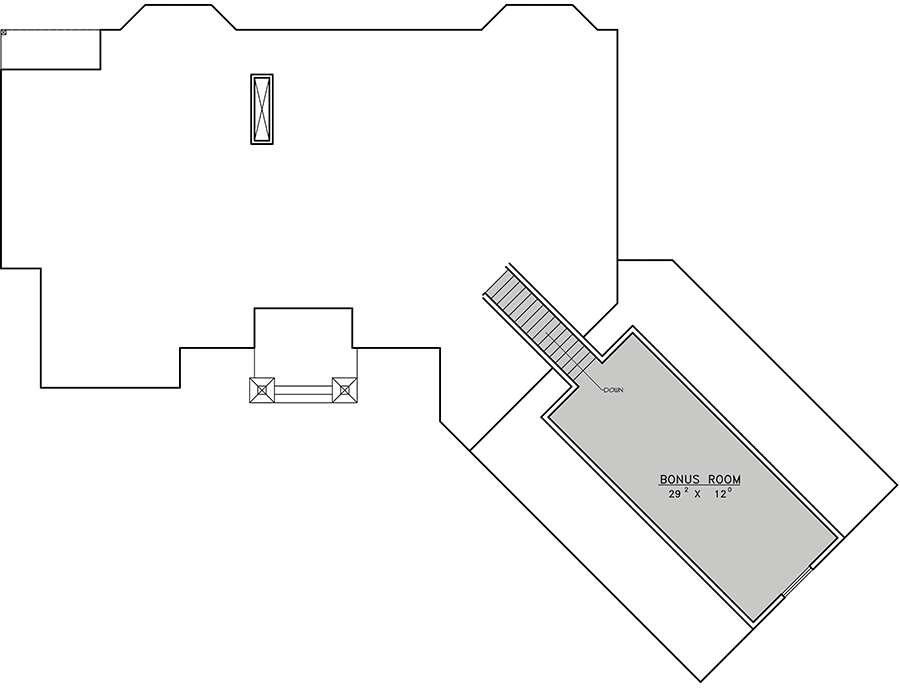

Sloping Lot Home Plan with Great Rear-Facing Views - 35394GH floor plan - Bonus

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

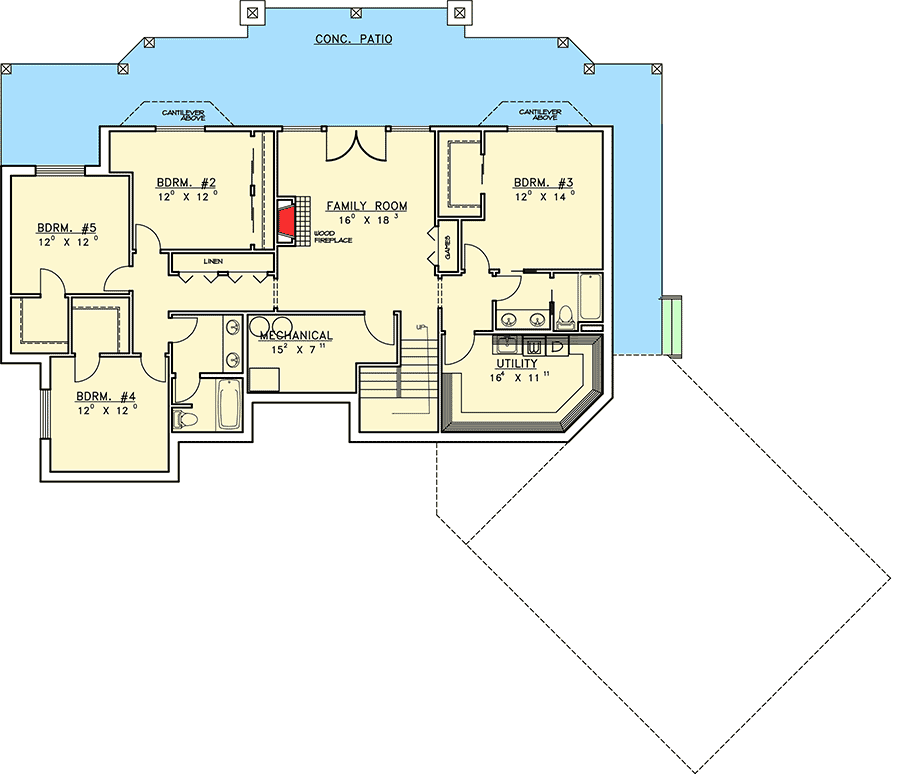

Sloping Lot Home Plan with Great Rear-Facing Views - 35394GH floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,963 sq. ft.
Lower Level: 1,919 sq. ft.
1st Floor: 2,044 sq. ft.

Bonus: 394 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3

Foundation Type

Standard Foundations: Daylight

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 90' 2"
Depth: 68' 1"
Max ridge height: 21' 11"

Garage

Type: Attached
Area: 929 sq. ft.
Count: 3 Cars
