Sloping Lot Lake Home Plan with 2-car Attached a 2-car Drive-under Garages

Plan 68971VR

  • 1,740

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2-4

    Cars

  • This 2-bed design with a 2-car attached garage plus a 2-car drive-under one makes a great sloping lot lake or mountain home.
  • Enter from the 10'-deep front porch into the vaulted space that is open front to back.
  • The spacious great room features a fireplace framed by sliding doors that lead to a covered deck. The adjoining kitchen boasts an island and pantry closet/mudroom with a door to the outside steps away.
  • Bedrooms lie to either side of the great room. The master bedroom has a pair of doors that open to the screened porch that is connected to both an open deck on the side and a covered deck in back.
  • Related Plans: Remove the attached garage with house plan 68902VR and 68777VR (1,560 square feet) and get an alternate version with house plans 68759VR (side-load drive-under garage) and 68521VR (finished basement).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

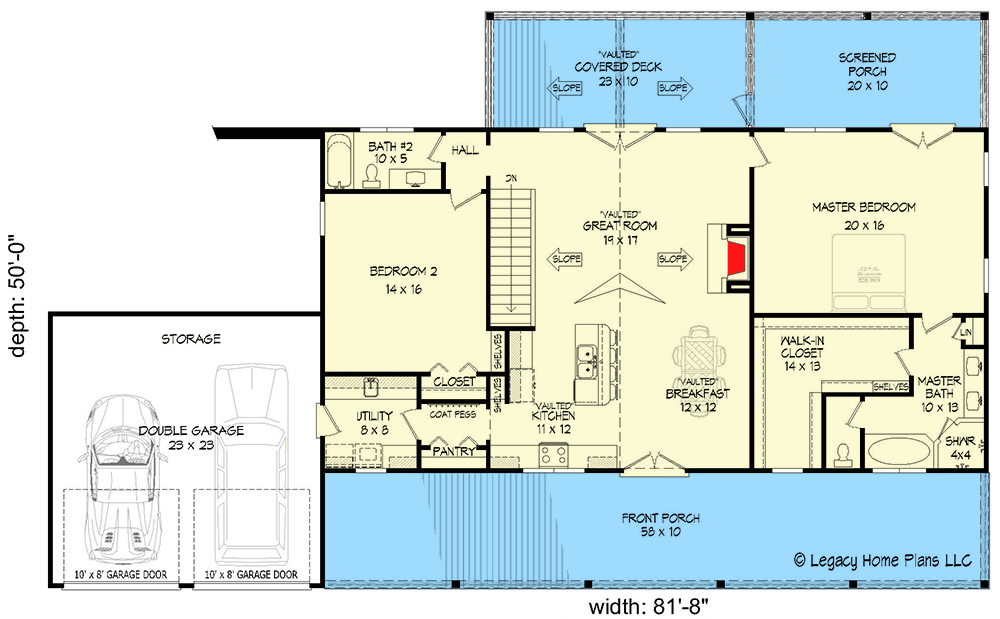

Sloping Lot Lake Home Plan with 2-car Attached a 2-car Drive-under Garages - 68971VR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

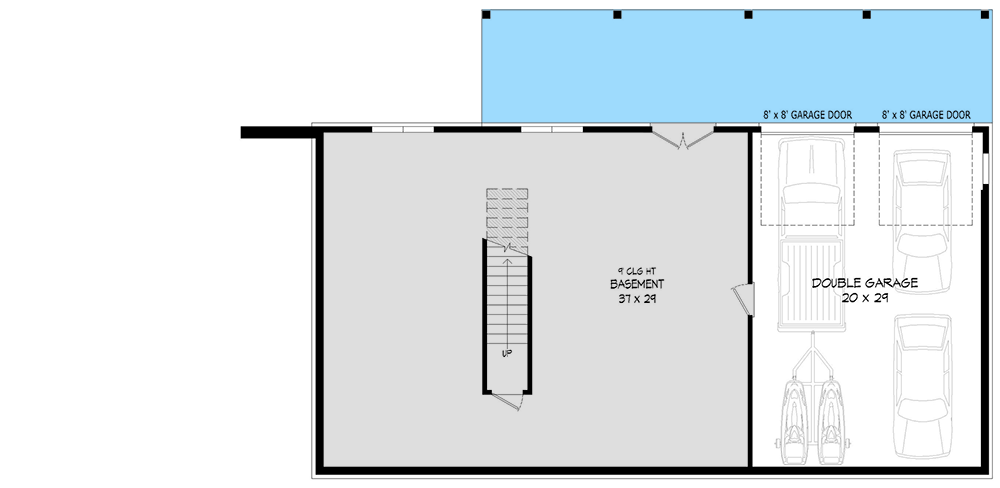

Sloping Lot Lake Home Plan with 2-car Attached a 2-car Drive-under Garages - 68971VR floor plan - Lower Level
