Sloping Lot Split Level House Plan

Plan 72788DA

  • 1,593

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • The house plan is a richly glassed split-level mountain home plan. In the right setting, it offers breathtaking views. The plan is designed for construction on a lot that slopes up to the rear.
  • Banks of multipaned windows, wide and tall, sparkle across the right side of the exterior. Inside, light washes in through those windows, naturally illuminating the great room and sunroom. Some even spills over into the kitchen, where the kitchen sink window makes its own contribution.
  • In the great room, a fireplace adds color and warmth on dark days and nights. An informal dining area sits further back in this space, close to the kitchen, where a peninsular counter with a raised eating bar provides partial separation. Cabinets, counters and built-in appliances, including a six-burner cook top, wrap around three sides of the kitchen. A five-sided work island anchors the center, and a deep walk-in pantry provides abundant storage.
  • Double doors in the dining area open into the sunroom, where windows fill most of its two exterior walls. More light washes down through four large skylights. Sliding glass doors offer easy access to an elevated deck that could be covered, if desired.
  • Storage closets, a utility room, a bathroom and a sauna fill out the rest of the main floor.
  • A large vaulted bedroom sits a half-flight up from the main floor, where it boasts a private railed deck. Amenities here include a large corner soaking tub, dual vanity, good-size shower, private toilet, and roomy walk-in closet. Climb another half-flight of stairs, and you find yourself in the observatory. A window bay expands this special room, which could be used as an office, sleeping area, or simply for enjoying the elevated view.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

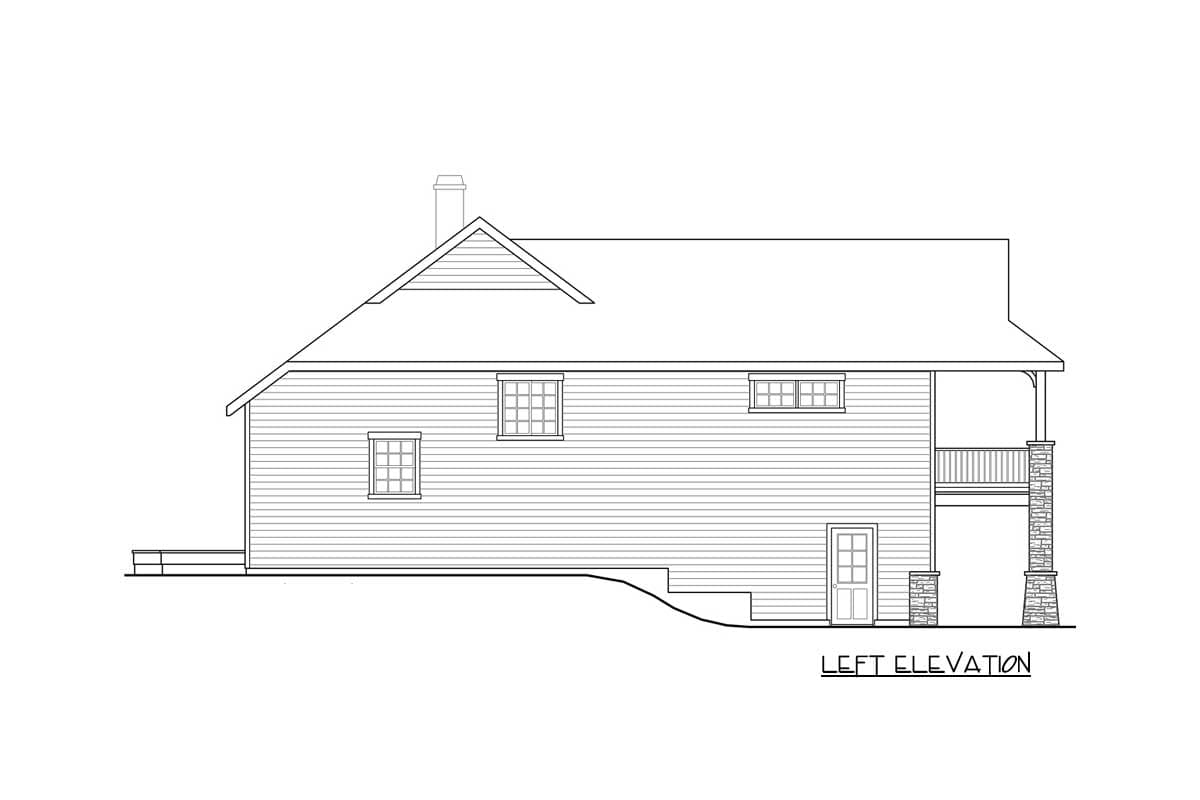

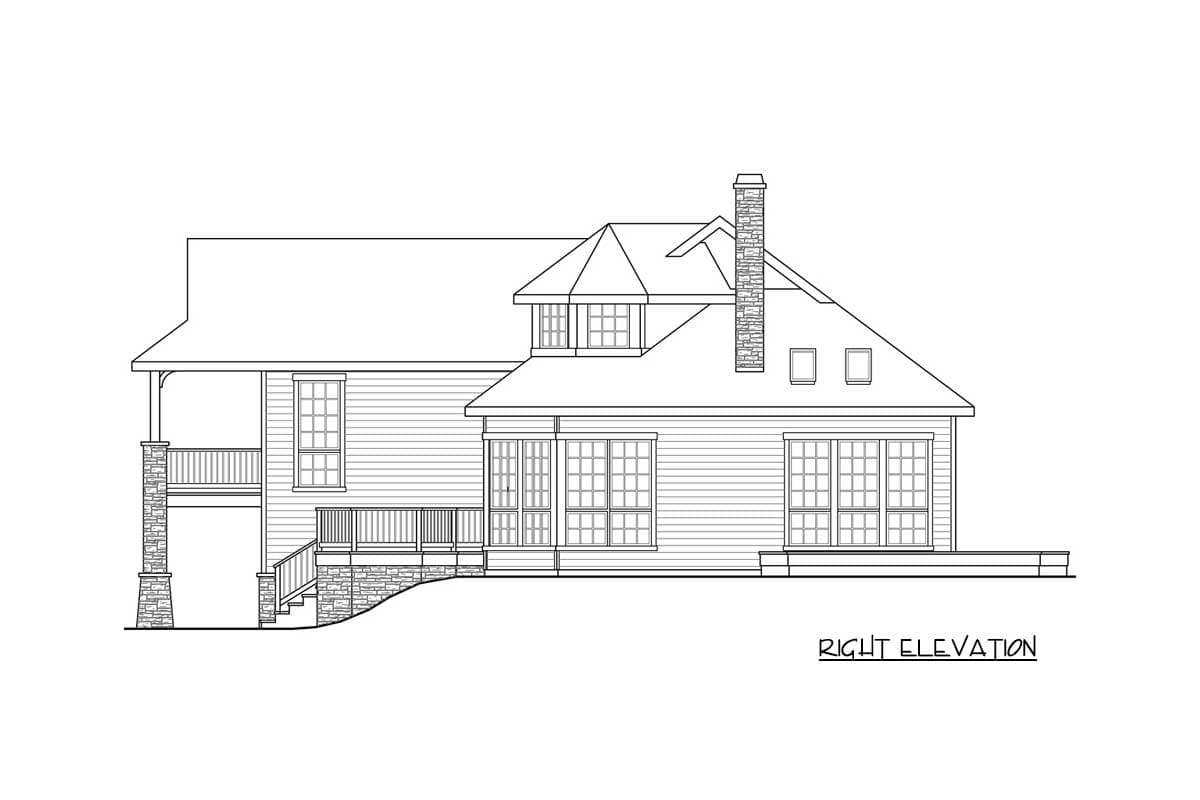

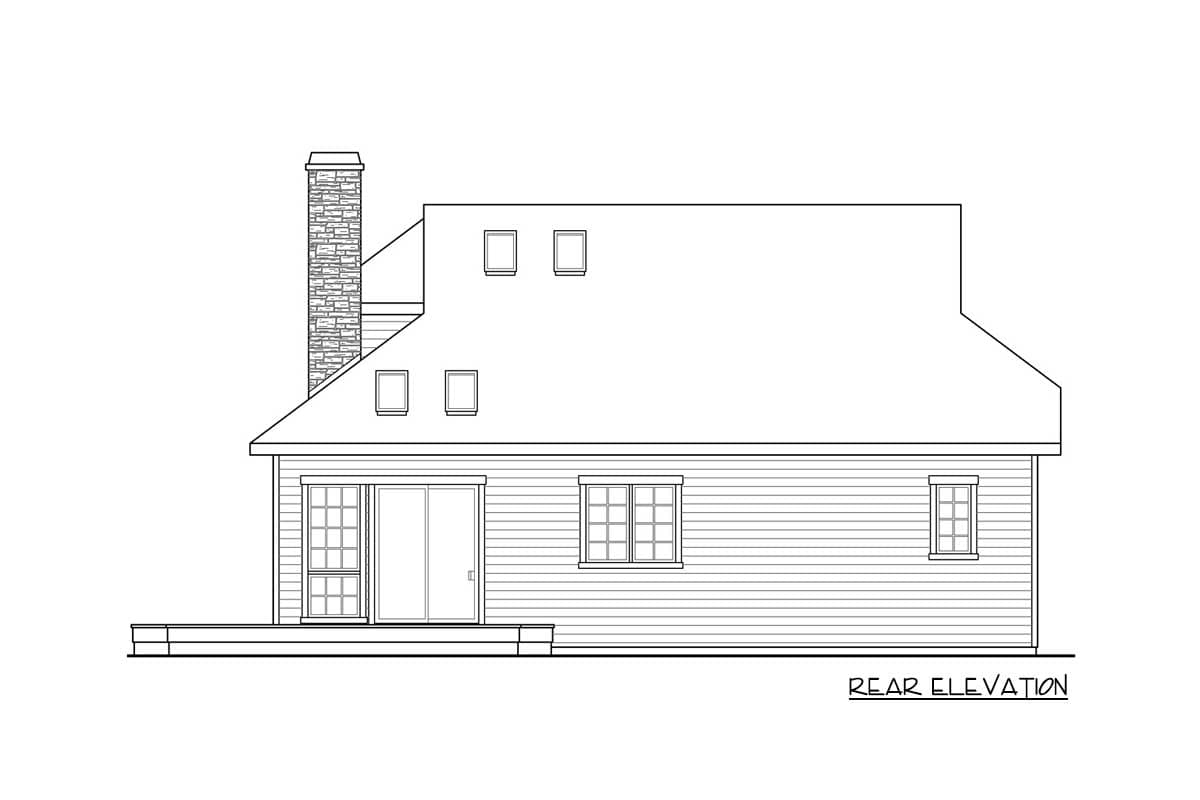

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

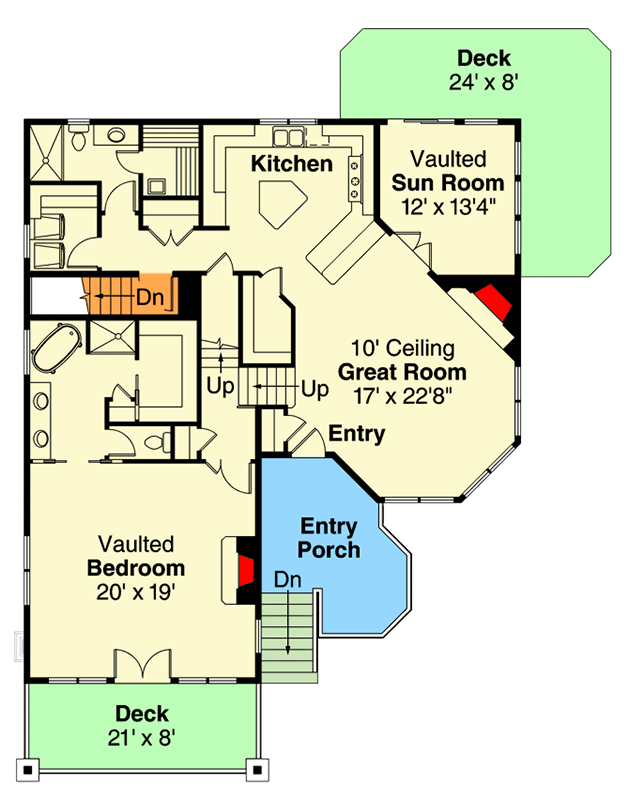

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sloping Lot Split Level House Plan - 72788DA floor plan - Main Level

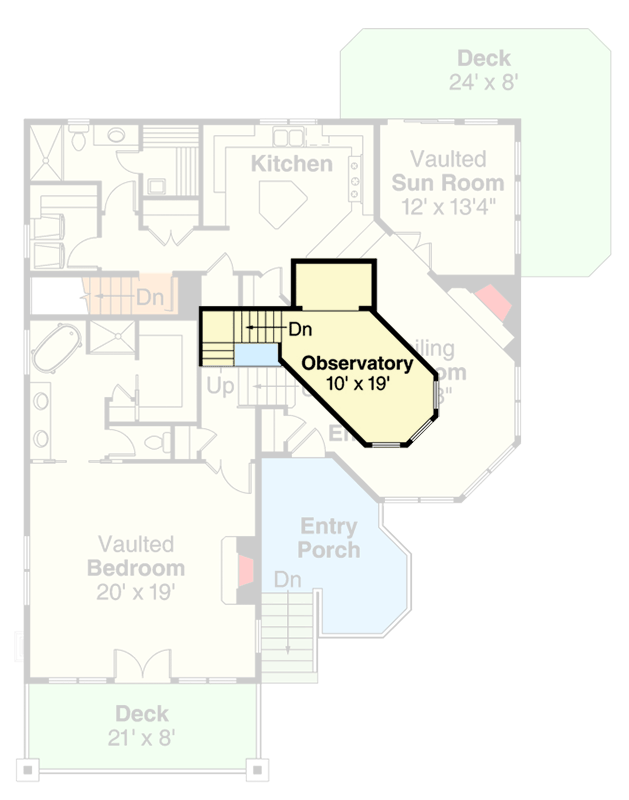

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sloping Lot Split Level House Plan - 72788DA floor plan - 2nd Floor

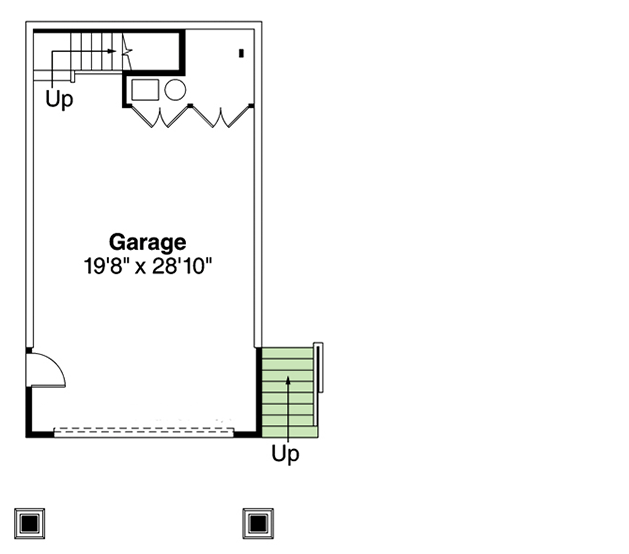

Garage Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sloping Lot Split Level House Plan - 72788DA floor plan - Garage Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,593 sq. ft.
  • 1st Floor: 1,593 sq. ft.
  • Sunroom: 160 sq. ft.
  • Basement Unfinished: 223 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 58' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: Drive Under
  • Area: 725 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections

Sloping Lot Split Level House Plan

  • 1,593

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $770
  • PDF Light $1,010
  • 5 Sets + PDF $1,235
  • PDF - Single-Build $2,075
  • CAD - Single-Build $2,225
  • CAD - Unlimited Build $2,445
  • View all purchase option online

About This Plan

  • The house plan is a richly glassed split-level mountain home plan. In the right setting, it offers breathtaking views. The plan is designed for construction on a lot that slopes up to the rear.
  • Banks of multipaned windows, wide and tall, sparkle across the right side of the exterior. Inside, light washes in through those windows, naturally illuminating the great room and sunroom. Some even spills over into the kitchen, where the kitchen sink window makes its own contribution.
  • In the great room, a fireplace adds color and warmth on dark days and nights. An informal dining area sits further back in this space, close to the kitchen, where a peninsular counter with a raised eating bar provides partial separation. Cabinets, counters and built-in appliances, including a six-burner cook top, wrap around three sides of the kitchen. A five-sided work island anchors the center, and a deep walk-in pantry provides abundant storage.
  • Double doors in the dining area open into the sunroom, where windows fill most of its two exterior walls. More light washes down through four large skylights. Sliding glass doors offer easy access to an elevated deck that could be covered, if desired.
  • Storage closets, a utility room, a bathroom and a sauna fill out the rest of the main floor.
  • A large vaulted bedroom sits a half-flight up from the main floor, where it boasts a private railed deck. Amenities here include a large corner soaking tub, dual vanity, good-size shower, private toilet, and roomy walk-in closet. Climb another half-flight of stairs, and you find yourself in the observatory. A window bay expands this special room, which could be used as an office, sleeping area, or simply for enjoying the elevated view.

Floor Plans

  • Main Level

  • 2nd Floor

  • Garage Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,593 sq. ft.
  • 1st Floor: 1,593 sq. ft.
  • Sunroom: 160 sq. ft.
  • Basement Unfinished: 223 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 58' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: Drive Under
  • Area: 725 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick and Truss
