Small 2-Bed House Plan with Tiny House Plan Cousins

Plan 530022UKD

  • 1,389

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This house gives you two bedrooms and comes in multiple smaller one-bed versions giving you tiny house living.
  • Enjoy the open floor plan with the kitchen open to the living area and multiple points of access to the covered porch.
  • Two bedrooms share the bathroom. The master bedroom has a tray ceiling and a walk-in closet.
  • Related Plans: Get 1-bed tiny house plans with 530020UKD (932 sq. ft.), 530015UKD (701 sq. ft.) and 530017UKD (681 sq. ft.).

Below is a listing of sheets typically included in our plans:

1.      Title Sheet -  Isometric of Front Elevation

2.      Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0

3.      Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale

4.      Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches.  ¼” = 1’-0

5.      Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.

6.      Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.

7.      Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.

8.      Roof Framing Plan - provides guideline for rafters, ridges, hip framing

9.      Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.

10.  Notes & Details ‐ per IRC 2015


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

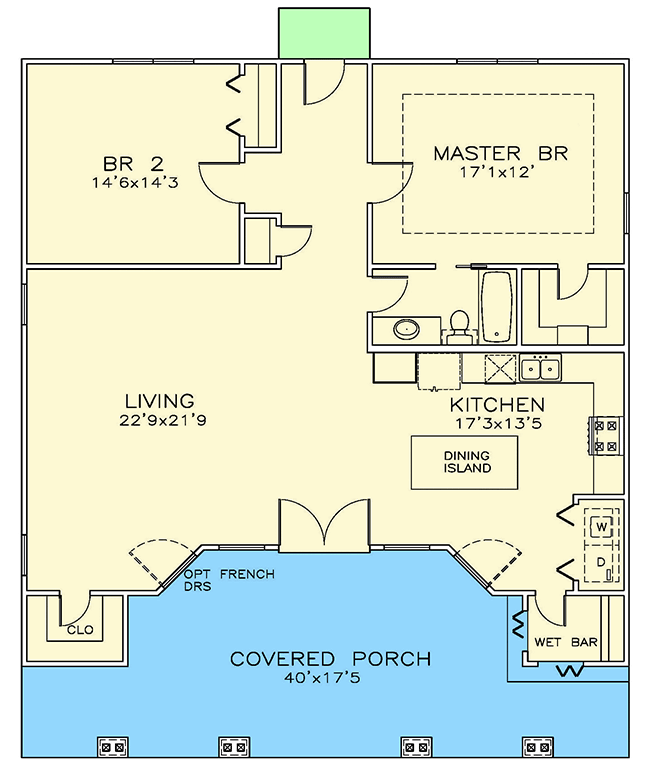

Small 2-Bed House Plan with Tiny House Plan Cousins - 530022UKD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,389 sq. ft.
  • 1st Floor: 1,389 sq. ft.
  • Covered Patio: 451 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 46' 0"
  • Max ridge height: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Small 2-Bed House Plan with Tiny House Plan Cousins

  • 1,389

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $600
  • CAD - Single-Build $1,300
  • View all purchase option online

About This Plan

  • This house gives you two bedrooms and comes in multiple smaller one-bed versions giving you tiny house living.
  • Enjoy the open floor plan with the kitchen open to the living area and multiple points of access to the covered porch.
  • Two bedrooms share the bathroom. The master bedroom has a tray ceiling and a walk-in closet.
  • Related Plans: Get 1-bed tiny house plans with 530020UKD (932 sq. ft.), 530015UKD (701 sq. ft.) and 530017UKD (681 sq. ft.).
