Plan 444147GDN Small Craftsman with Front Porch and Rear Deck and Bonus Expansion

1,651 3-4 2 - 3 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Small Craftsman with Front Porch and Rear Deck and Bonus Expansion

Plan 444147GDN

  • 1,651

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

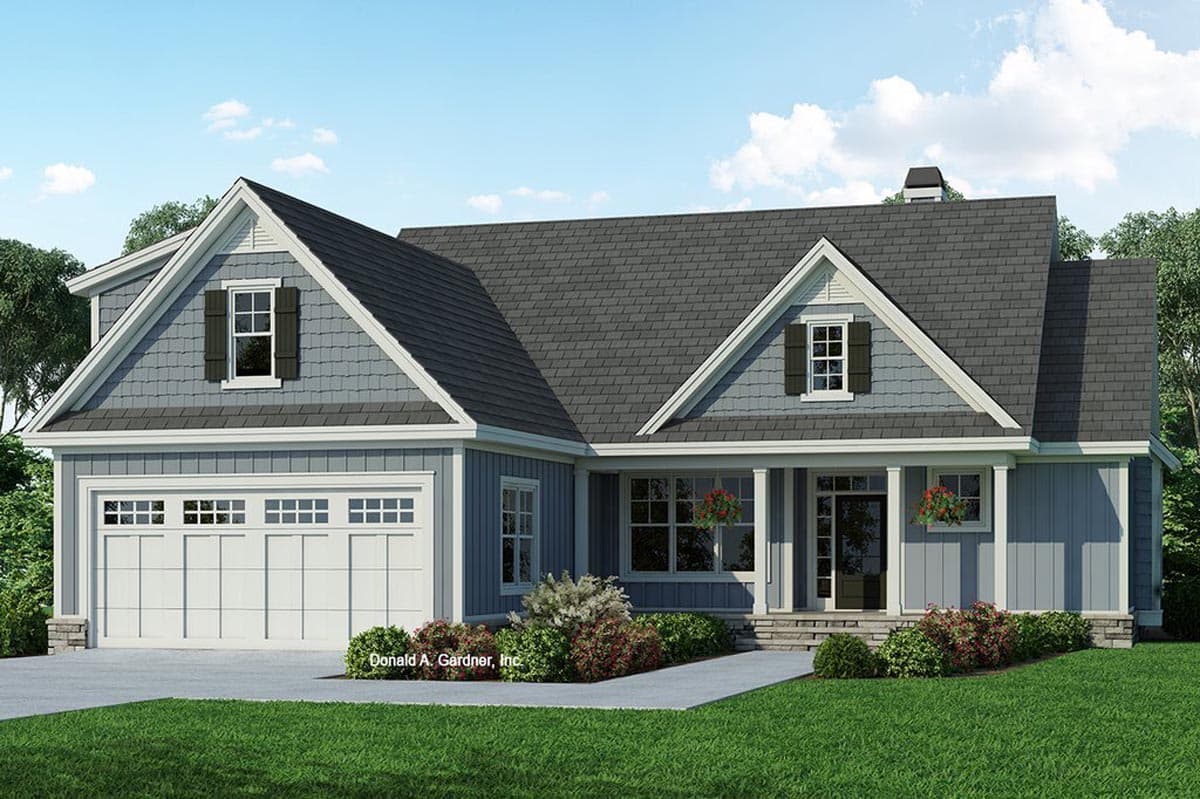

  • Cedar shakes provide balance to the board-and-batten exterior of this modest Craftsman house plan. Eight columns support the 160 square foot front porch (24'2" wide and 6' deep) and add to the visual appeal of the home.

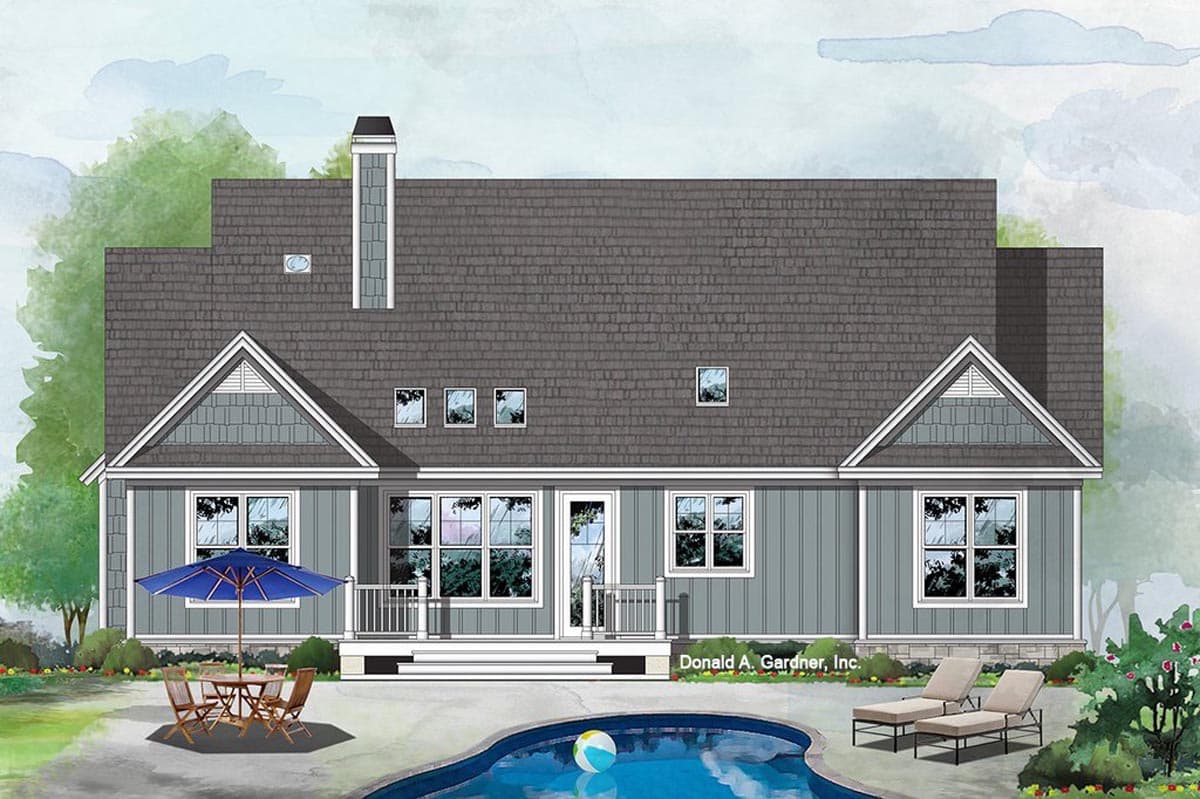

  • The floor plan lives large with a 14'6" cathedral ceiling that extends from the island kitchen to the skylight topped great room and a rear deck giving you 177 square feet of outdoor space to enjoy.
  • The master bedroom is a private wing and has a 13' cathedral ceiling while two additional bedrooms share a spacious bathroom and abundant storage across the home.
  • Above the garage, a bonus room and bathroom give you 408 square feet of expansion and would make a great guest suite or media space.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

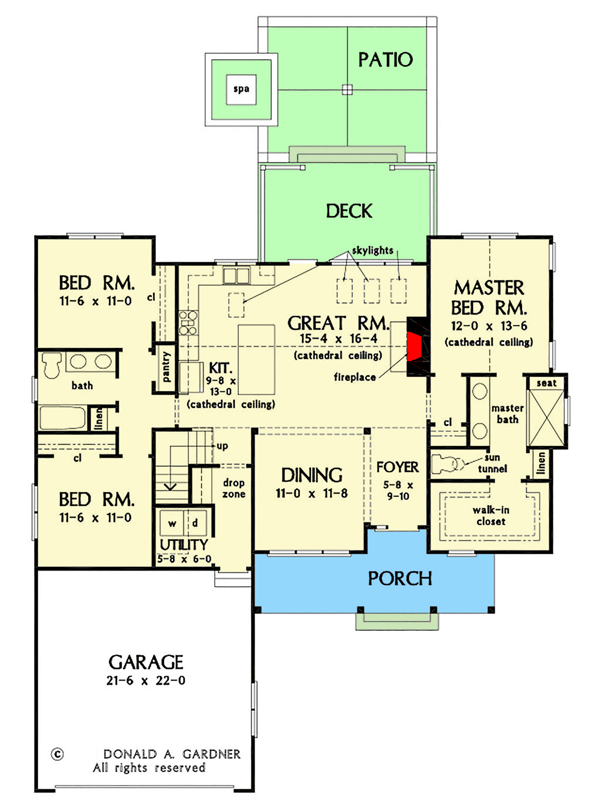

Small Craftsman with Front Porch and Rear Deck and Bonus Expansion - 444147GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

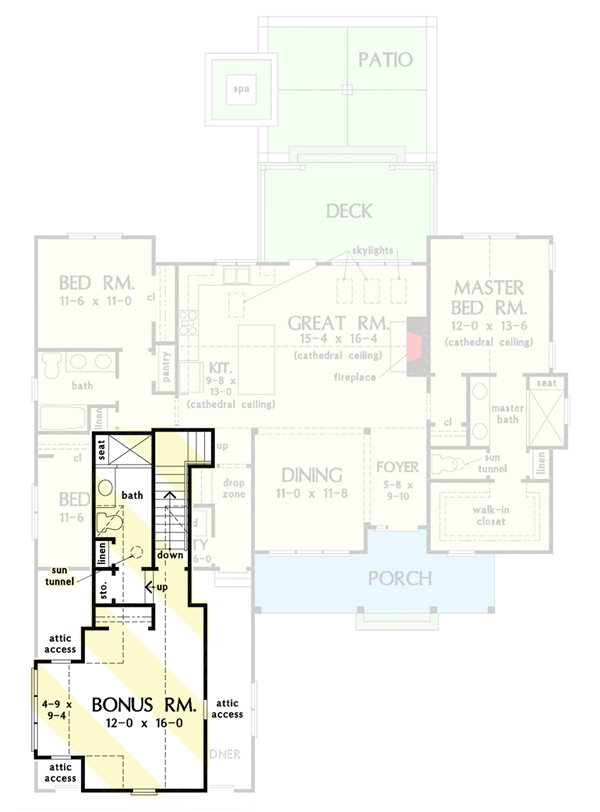

Small Craftsman with Front Porch and Rear Deck and Bonus Expansion - 444147GDN floor plan - Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,651 sq. ft.
  • 1st Floor: 1,651 sq. ft.
  • Covered Patio: 303 sq. ft.
  • Deck: 177 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Bonus: 408 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 8"
  • Depth: 56' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Small Craftsman with Front Porch and Rear Deck and Bonus Expansion

  • 1,651

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,105
  • PDF - Single-Build $1,305
  • 5 Sets + PDF $1,555
  • CAD Unlimited + PDF $2,610
  • View all purchase option online

About This Plan

  • Cedar shakes provide balance to the board-and-batten exterior of this modest Craftsman house plan. Eight columns support the 160 square foot front porch (24'2" wide and 6' deep) and add to the visual appeal of the home.
  • The floor plan lives large with a 14'6" cathedral ceiling that extends from the island kitchen to the skylight topped great room and a rear deck giving you 177 square feet of outdoor space to enjoy.
  • The master bedroom is a private wing and has a 13' cathedral ceiling while two additional bedrooms share a spacious bathroom and abundant storage across the home.
  • Above the garage, a bonus room and bathroom give you 408 square feet of expansion and would make a great guest suite or media space.

Floor Plans

  • Main Level

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,651 sq. ft.
  • 1st Floor: 1,651 sq. ft.
  • Covered Patio: 303 sq. ft.
  • Deck: 177 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Bonus: 408 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 8"
  • Depth: 56' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 444147GDN
View this and more for this plan by visiting www.architechtecturaldesigns.com/444147GDN
|
