Plan 5713HA
Small Ranch For A Perfect Country Haven
Heated S.F.
1,761
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Exterior window dressing, roof dormers and planter boxes provide this traditional ranch home plan with visual warmth and charm.
  • The great room boasts a vaulted ceiling, fireplace and opens to the pass-through kitchen.
  • Bedrooms are clustered together on one side of the home. The master bedroom, with a luxury bath and walk-in closet, and another bedroom have vaulted ceilings.
  • The home features eight separate closets with an abundance of storage.
  • Ceilings: 8' standard.
  • Foundation: basement.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

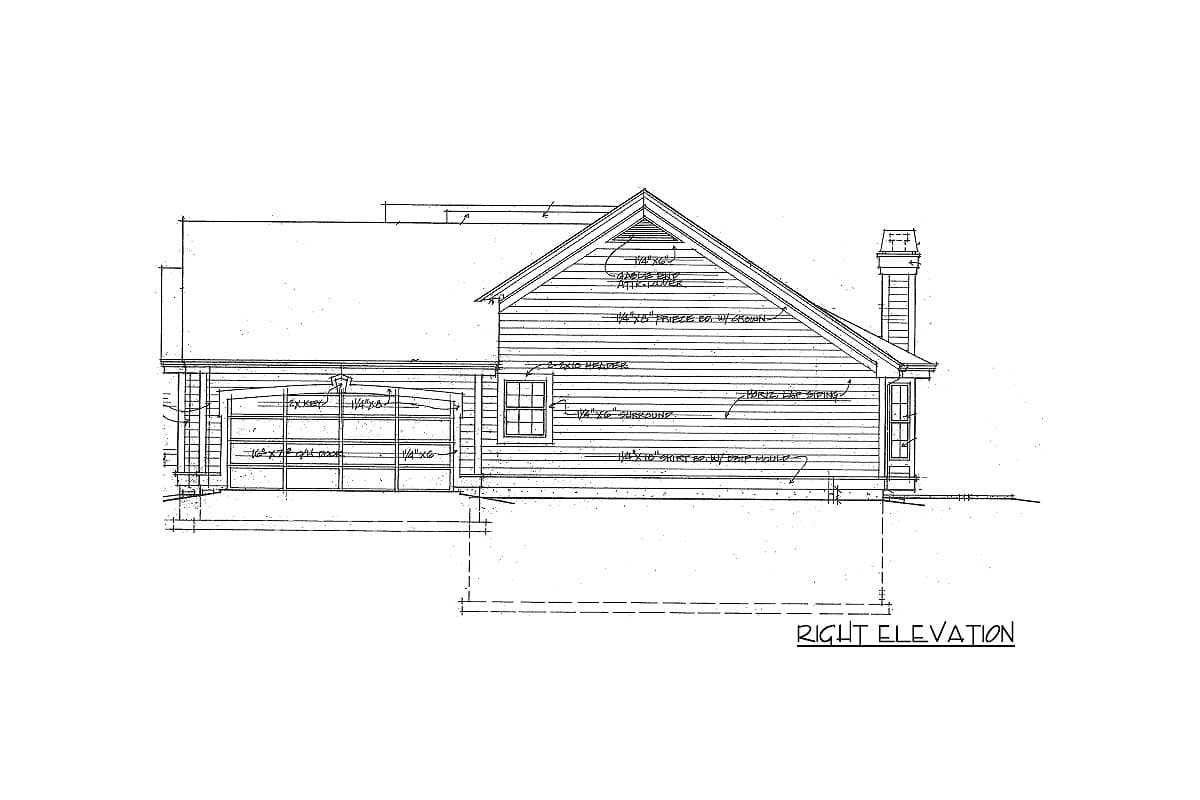

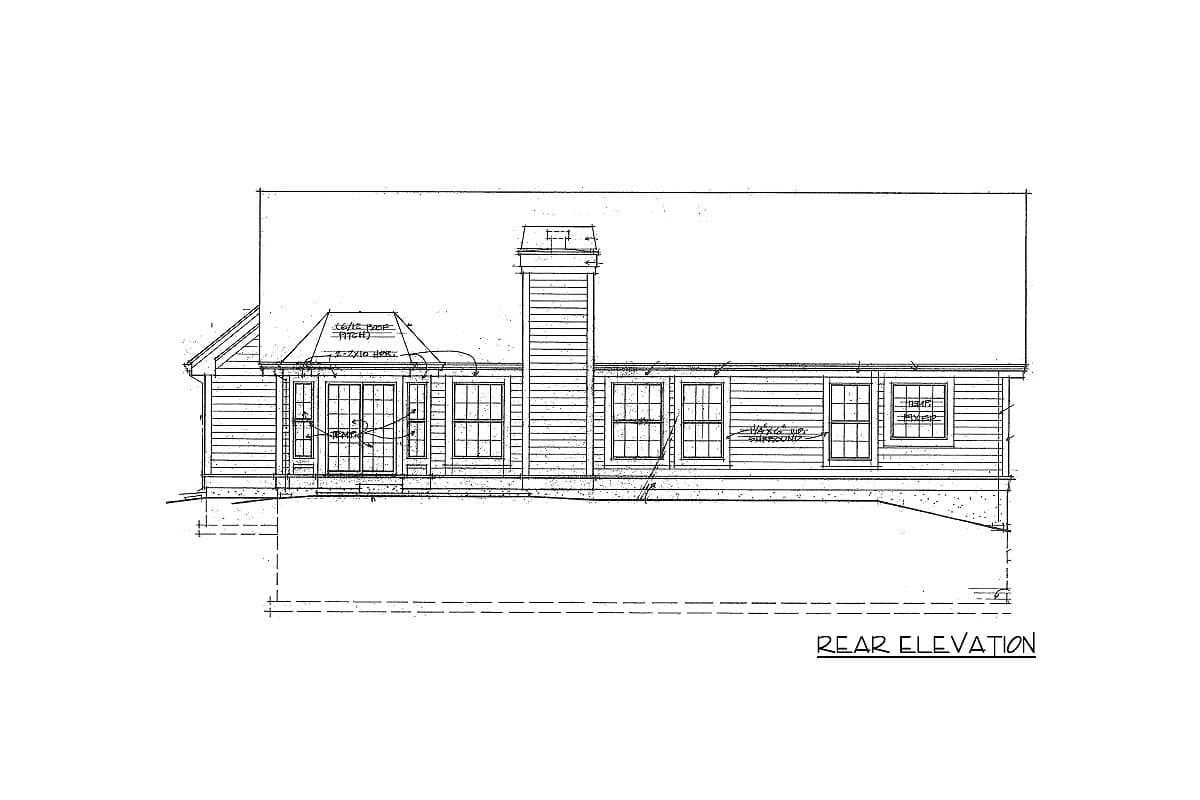

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Small Ranch For A Perfect Country Haven

  • 1,761

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

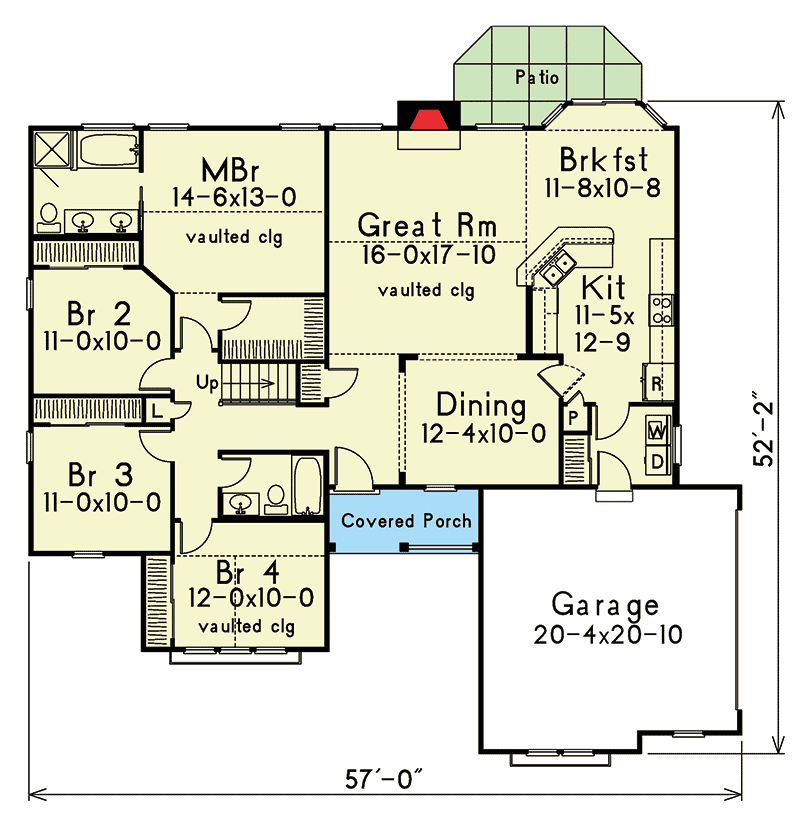

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,761 sq. ft.
  • 1st Floor: 1,761 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 92' 2"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 393 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
