Small Ranch Lives Large

Plan 89818AH

  • 1,664

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • In just over 1,600 square feet, you'll enjoy three-bedrooms, an open plan design and curb appeal that is hard to beat.
  • The entry draws you forward into the home where you'll find the great room, kitchen and dining area that create the main living area of the home.
  • A breakfast bar in the kitchen provides additional seating for guests as mom prepares the evening meal.
  • The bedroom suite lies to the right of the home and includes a master bedroom with a step ceiling, on-suite bathroom and walk-in closet. Two additional bathrooms lie to the front of the master with access to the full bath just outside in the hall.
  • A three-stall garage with extra storage completes the home plan.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.

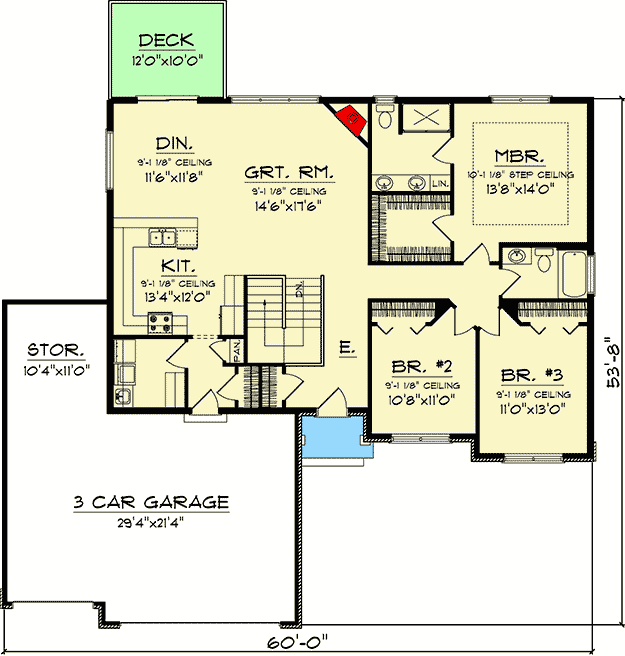

Floor Plan

Plan details

Architectural Style

Plan Collections



Small Ranch Lives Large

  • 1,664

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $900
  • 8 Sets $940
  • Reproducible Set $1,125
  • PDF - single-use $1,125
  • CAD $1,775
  • View all purchase option online

About This Plan

  • In just over 1,600 square feet, you'll enjoy three-bedrooms, an open plan design and curb appeal that is hard to beat.
  • The entry draws you forward into the home where you'll find the great room, kitchen and dining area that create the main living area of the home.
  • A breakfast bar in the kitchen provides additional seating for guests as mom prepares the evening meal.
  • The bedroom suite lies to the right of the home and includes a master bedroom with a step ceiling, on-suite bathroom and walk-in closet. Two additional bathrooms lie to the front of the master with access to the full bath just outside in the hall.
  • A three-stall garage with extra storage completes the home plan.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,664 sq. ft.
  • 1st Floor: 1,664 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 53' 8"
  • Max ridge height: 21' 3"

Garage

  • Type: Attached
  • Area: 750 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
