Plan 72730DA
Small Ranch With Large Family Space
Heated S.F.
1,611
Beds
2
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • No stairs makes aging in place possible with this small 2 beroom ranch home plan and is equally appropriate for first-time home buyers and small families.
  • Cultured stone veneer underscores the lap siding that frames large front windows, while an eye-catching series of low-pitched gables ascends to merge with the hipped roof.
  • Entering, you step directly into a large living room expanded by a rectangular window bay. A gas fireplace nestles into cabinetry that lines one wall, next to a wide home entertainment center. Cabinets or bookshelves (owner's choice) fill in the corners, and light washes in through a slender window that crowns the space.
  • A hutch provides partial separation between the entry and dining area. Otherwise, the living room is open to the dining room and kitchen, which is bounded by a combination work island and eating bar. Counters, appliances and cupboards are arrayed along two walls of the kitchen. Atrium doors open onto a covered patio.
  • At the rear of the dining room is a short hallway that leads to the owners' suite. Natural light beams down through a sun tube into the suite's roomy walk-in closet.
  • The other bedroom is accessed via a hallway near the front door. A coat closet fills the wall that leads to the main bathroom.
  • In the hallway that leads to the garage and utility room, coat hooks line up over a storage bench for foot gear.
  • The roof has a 5:12 pitch.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

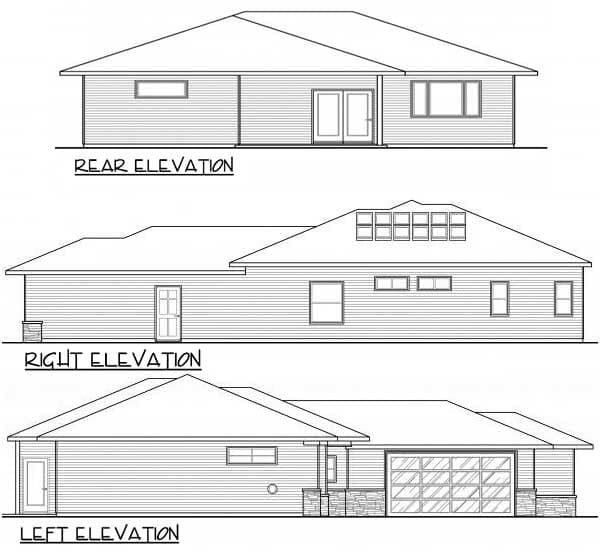

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Small Ranch With Large Family Space

  • 1,611

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

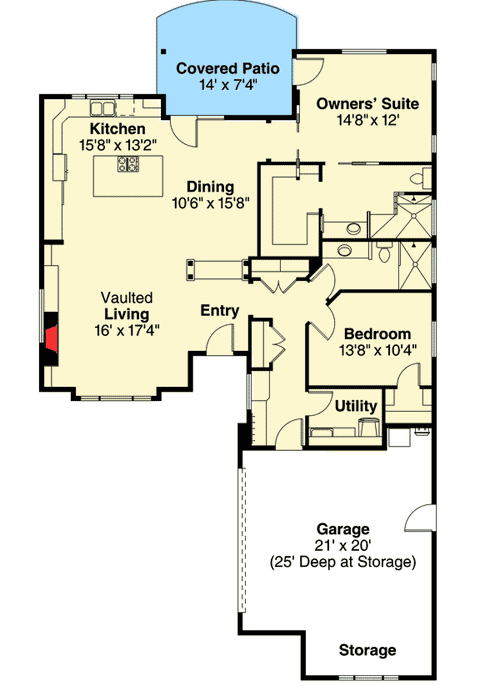

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,611 sq. ft.
  • 1st Floor: 1,611 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 70' 0"
  • Max ridge height: 17' 11"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 5 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Small Ranch With Large Family Space

  • 1,611

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Small Ranch With Large Family Space

  • 1,611

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,611 sq. ft.
  • 1st Floor: 1,611 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 70' 0"
  • Max ridge height: 17' 11"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 5 on 12
