Plan 56420SM

Southern Beauty with Great Garage

Pageloader

Southern Beauty with Great Garage

Plan 56420SM

  • 2,646

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 4-bed house plan has an open concept layout, with the spacious kitchen, dining and family rooms open to each other.
  • The large kitchen island gives you casual seating on two sides and has base cabinets on all sides giving you great storage.
  • A hall bath is easily accessible from the living area.
  • In back, the master bedroom enjoys privacy. The master bathroom is large and accommodating with separate his and her vanities and ample master closet space.
  • The rear porch is huge and great for outdoor entertaining, and there is a 3/4 bath near the back door to allow access from outdoor activities.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

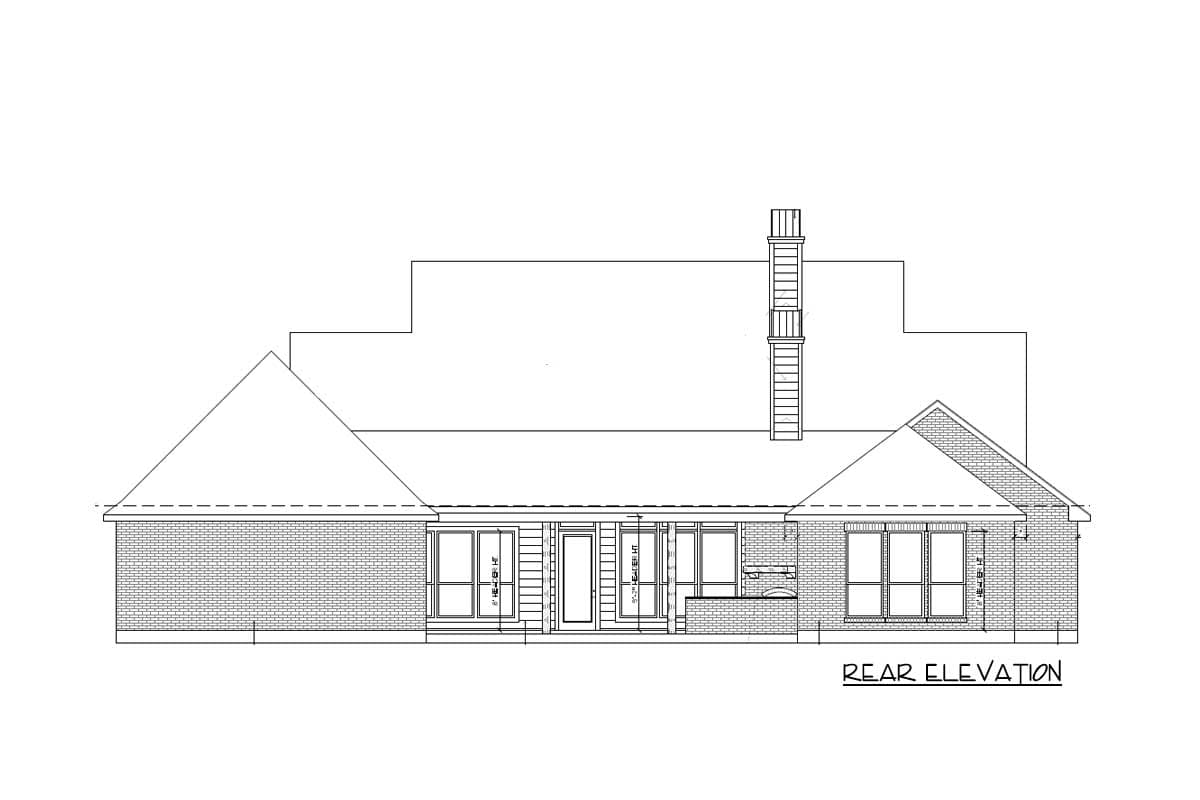

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

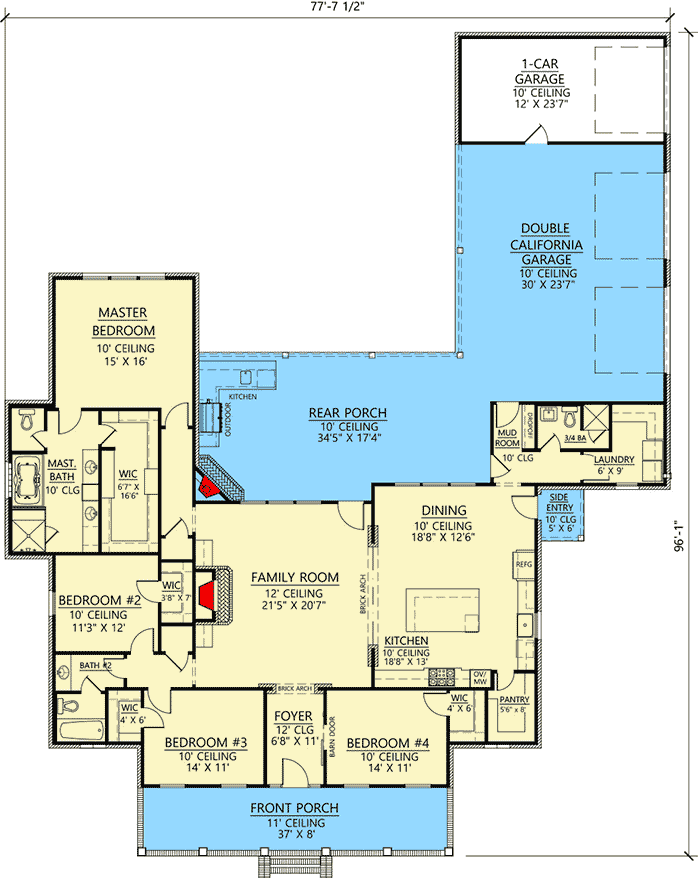

Floor Plan

Plan details

Architectural Style



Southern Beauty with Great Garage

  • 2,646

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,025
  • 6 Sets $1,125
  • 5 Sets PLUS $1,325
  • CAD $2,025
  • CAD - multi-use $2,420
  • View all purchase option online

About This Plan

  • This 4-bed house plan has an open concept layout, with the spacious kitchen, dining and family rooms open to each other.
  • The large kitchen island gives you casual seating on two sides and has base cabinets on all sides giving you great storage.
  • A hall bath is easily accessible from the living area.
  • In back, the master bedroom enjoys privacy. The master bathroom is large and accommodating with separate his and her vanities and ample master closet space.
  • The rear porch is huge and great for outdoor entertaining, and there is a 3/4 bath near the back door to allow access from outdoor activities.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,646 sq. ft.
  • 1st Floor: 2,646 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 77' 8"
  • Depth: 96' 1"

Garage

  • Type: Carport
  • Area: 990 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
