Plan 15850GE
Southern Beauty with In-Law Suite
Heated S.F.
7,091
Beds
4
Baths
4.5 - 5.5
Stories
2
Cars
4
What's Included
Plan Details
  • A dramatic two-story front porch leads to a towering 2-story foyer in this master down house plan.
  • Columns separate the banquet hall from the foyer and the gallery, with views of an elaborate curved staircase to catch your eye.
  • In the 2-story grand room, a see through fireplace is shared with the rear veranda.
  • A 2-story family room opens to the kitchen and provides additional space for entertaining family and friends.

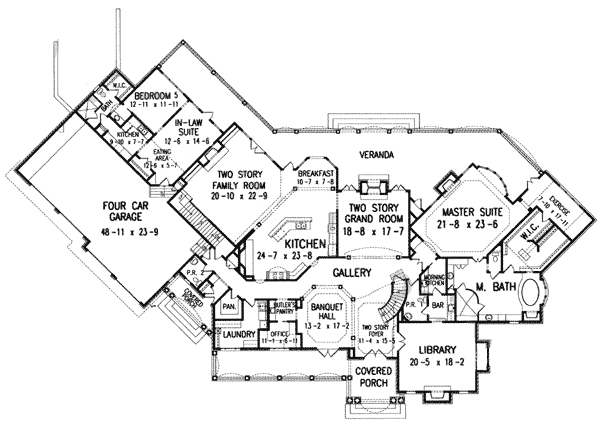

  • The in-law suite features a kitchen, bath and an eating area.
  • An exercise room and oversized walk-in closet enhance the generous master suite.

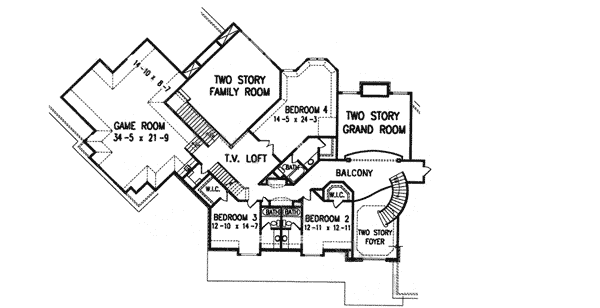

  • The second floor consists of a game room and three additional bedrooms complete with private baths.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Beauty with In-Law Suite

  • 7,091

    Heated s.f.

  • 4

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 7,091 sq. ft.
  • 1st Floor: 4,631 sq. ft.
  • 2nd Floor: 2,460 sq. ft.

Dimensions

  • Width: 153' 0"
  • Depth: 96' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1162 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
