Plan 55184BR

Southern Charm with three beds

Heated S.F.
1,688
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 55184BR

Main Floor
Main Floor
Optional Detached Garage
Optional Detached Garage

Plan 55184BR

M-F 9am-5pm EST |

1-203-761-8500

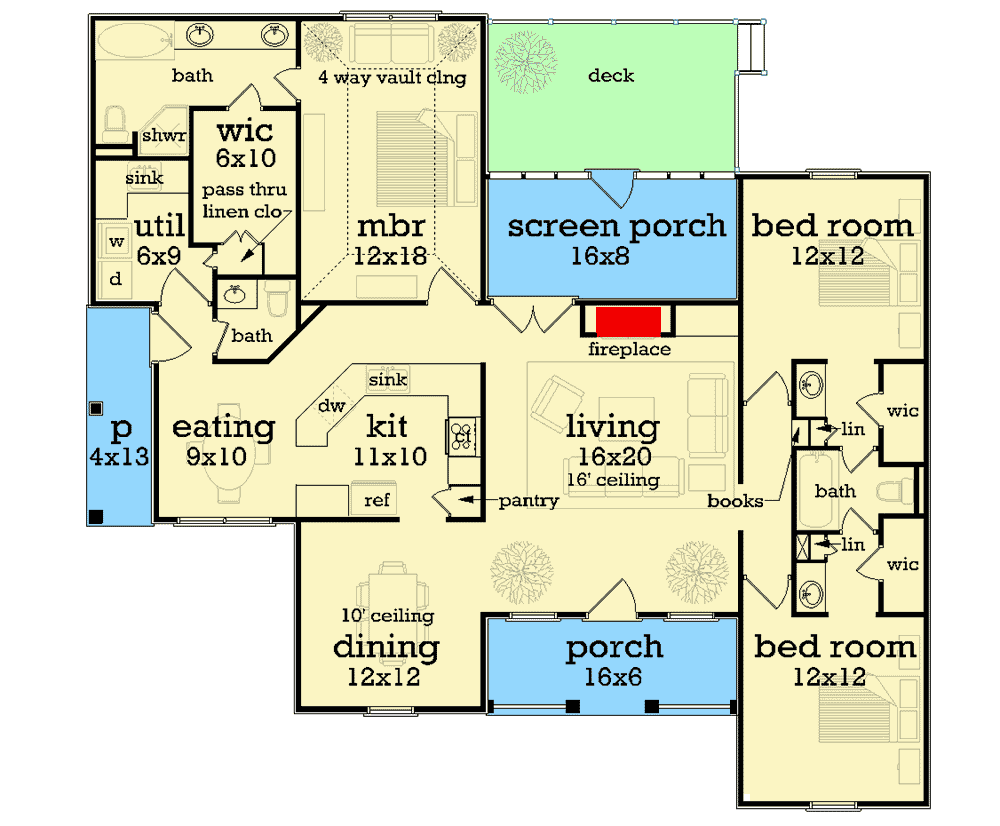

Main Floor

Plan 55184BR: Southern Charm with three beds - Floor Plan - Main Floor - Acadian, French Country, Louisiana-Style, Southern

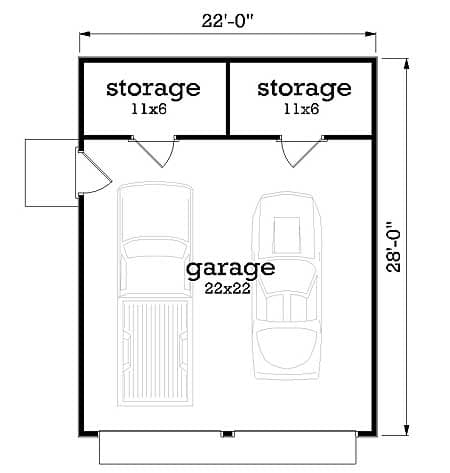

Optional Detached Garage

Plan 55184BR: Southern Charm with three beds - Floor Plan - Optional Detached Garage - Acadian, French Country, Louisiana-Style, Southern

Plan Details

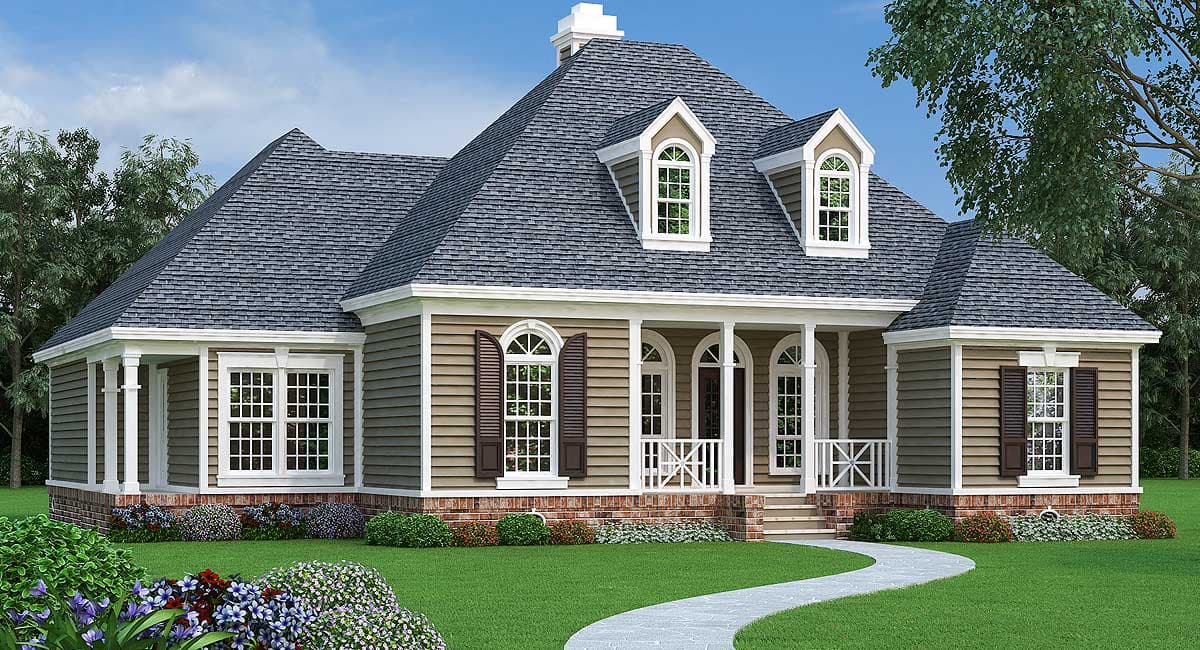

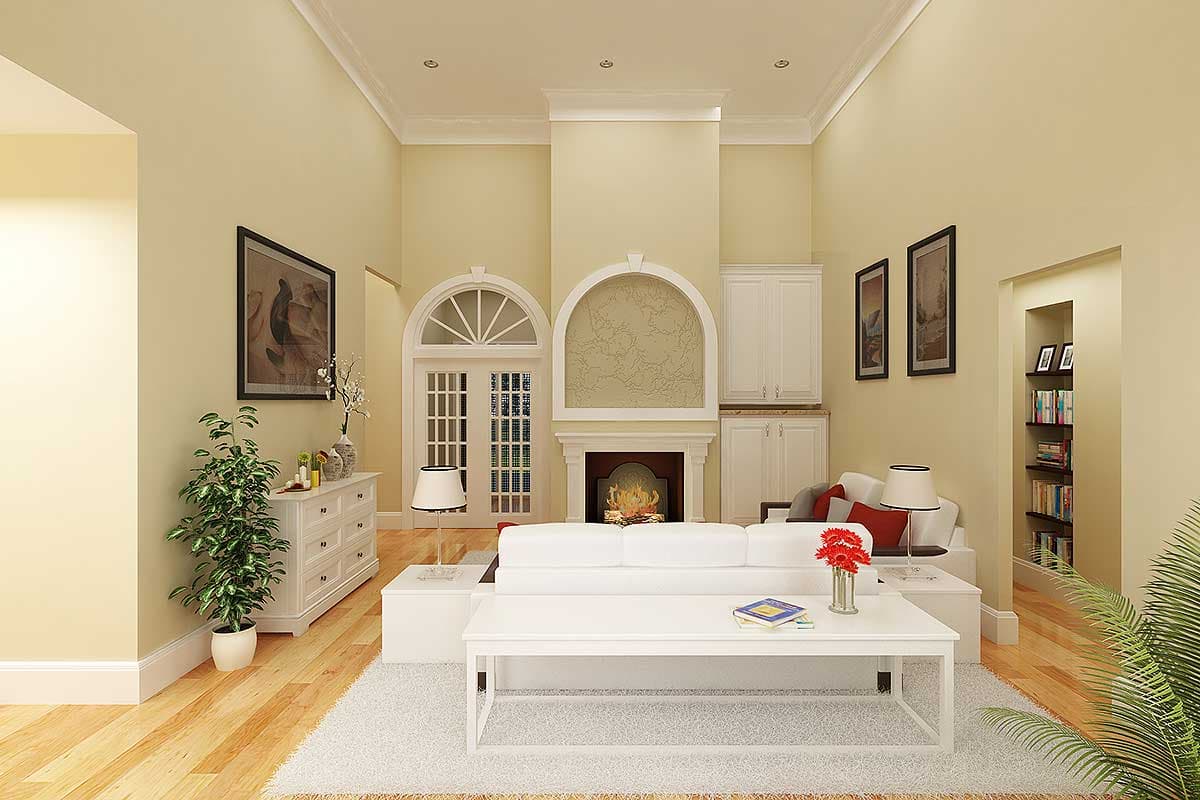

  • The front door of this Southern beauty opens into a gracious living room with 16 high ceilings and a fireplace flanked by a built-in entertainment center on one side and a pair of French doors on the opposite side.

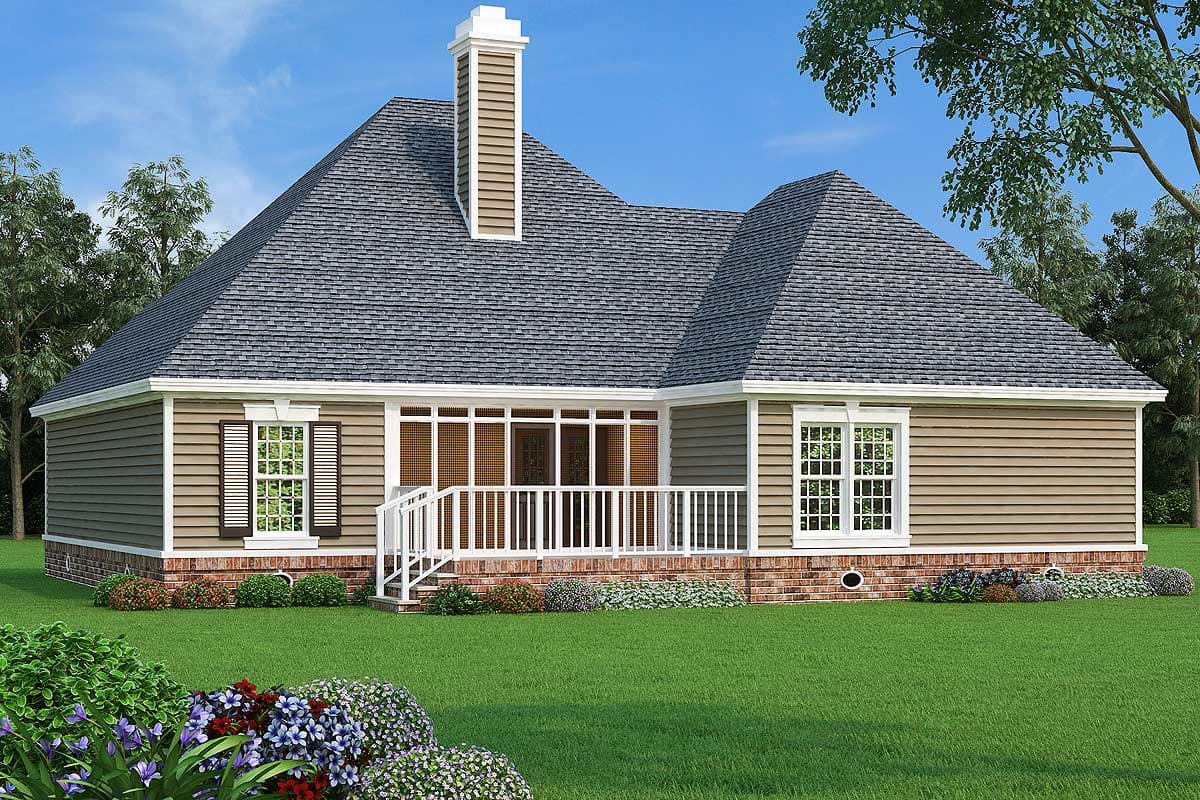

  • The French doors lead to a combo of outdoor living spaces consisting of a screen porch with vaulted beamed ceilings and an adjoining deck.  The secondary bedrooms are designed with private dressing rooms, walk-in closets and linen closets.  Compare the room sizes with other equal size homes and you will find them to be much larger than usual because of the efficient use of space.
  • The master suite has a 10 tray ceiling and a fully appointed bath with dual lavatories, a separate shower and a large soaking tub.  The master walk-in closet is a whopping 6-6 x 10 and has a large linen storage with a soiled clothes hamper that opens to the utility room  that allows the owner to deposit soiled clothes in the master and pick them up in the utility room ready for washing.

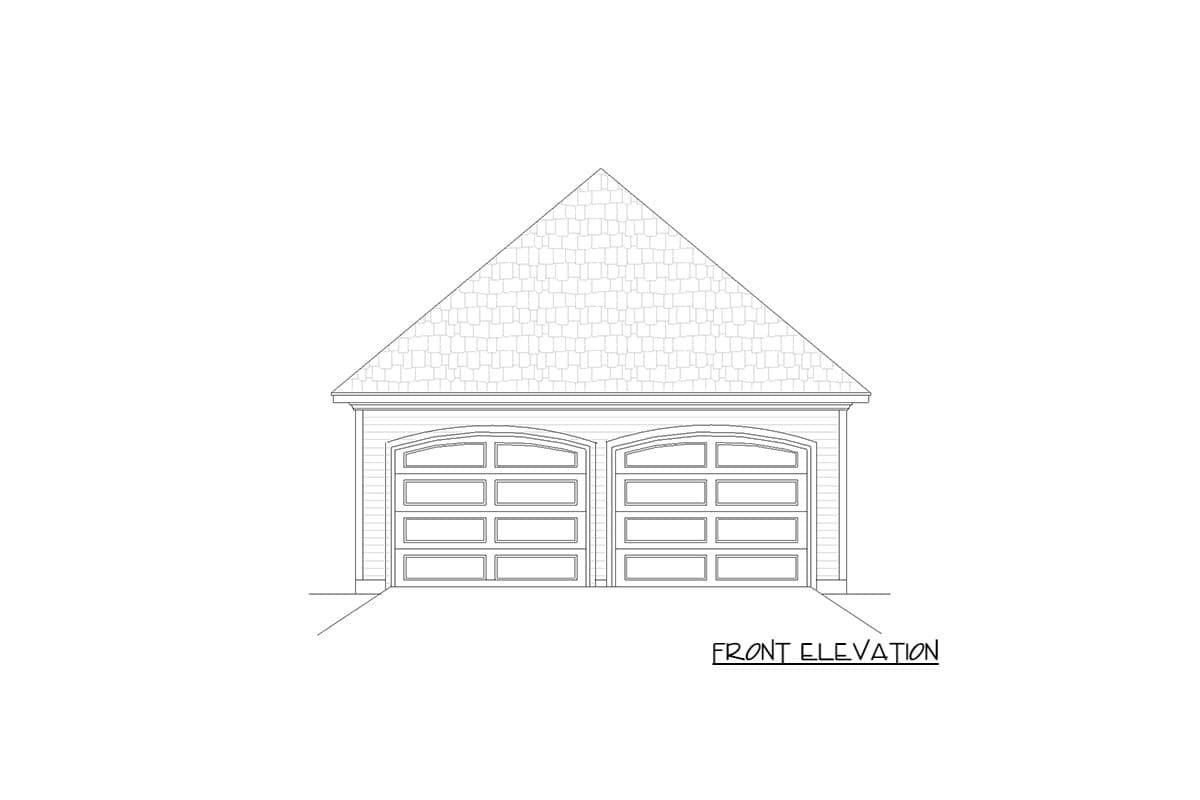

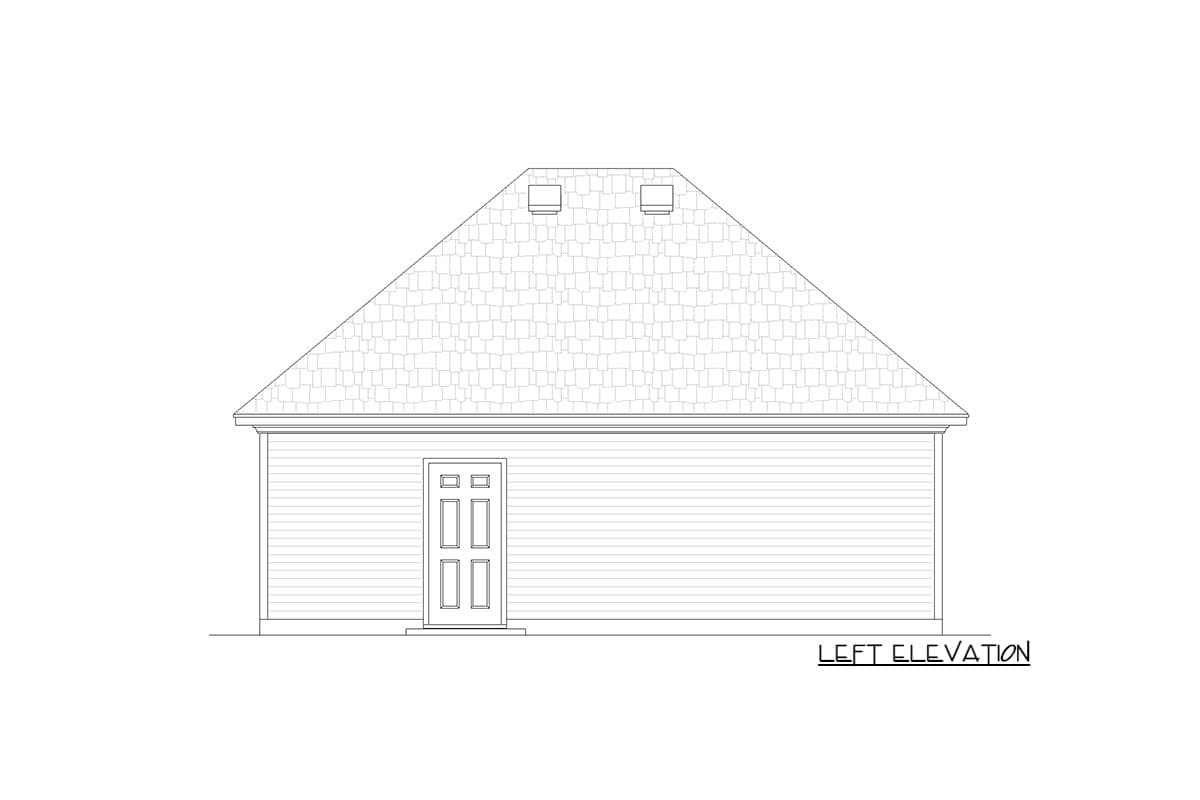

  • An optional two-car garage plan with 132 square feet of storage space comes with this floor plan.
  • NOTE:  There may be a delivery delay if ordering the plan in a readable reverse format.  Contact us for a delivery timeline.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,688 sq. ft.

1st Floor

1,688 sq. ft.

Porch, Combined

278 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

50' 0"

Max Ridge Height

28' 0"

Garage

Type

Detached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

16' 0''

Dining Room

10' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Sitting Area

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,688 sq. ft.

1st Floor

1,688 sq. ft.

Porch, Combined

278 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

50' 0"

Max Ridge Height

28' 0"

Garage

Type

Detached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

16' 0''

Dining Room

10' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Sitting Area

Walk-in Pantry
