Plan 510030WDY Southern Classic with Rear-Entry Garage

2,767 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Southern Classic with Rear-Entry Garage

Plan 510030WDY

  • 2,767

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

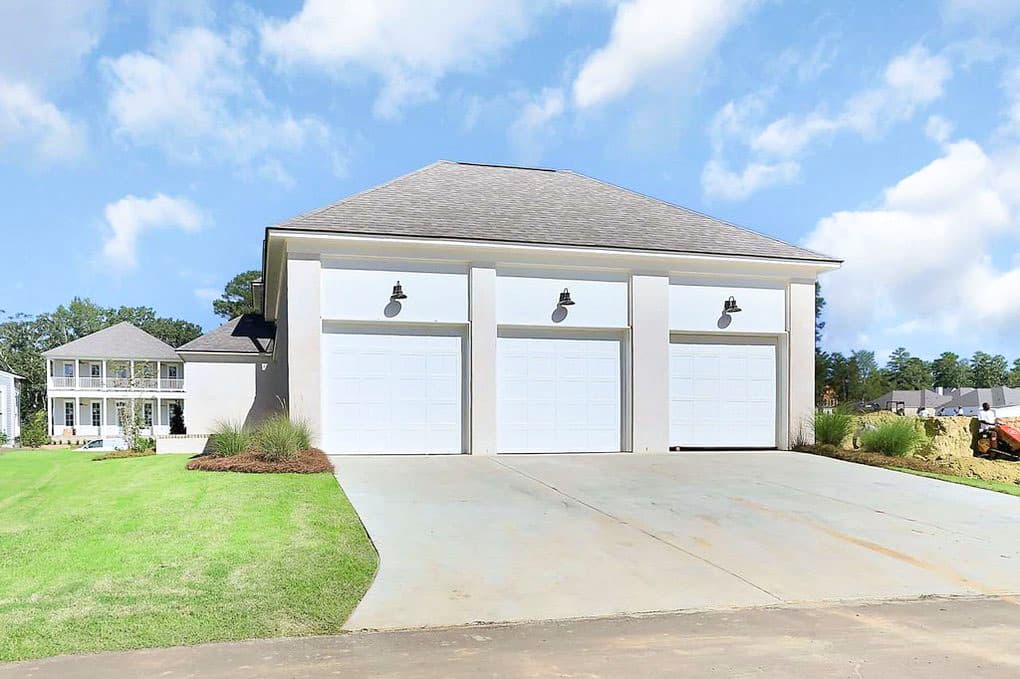

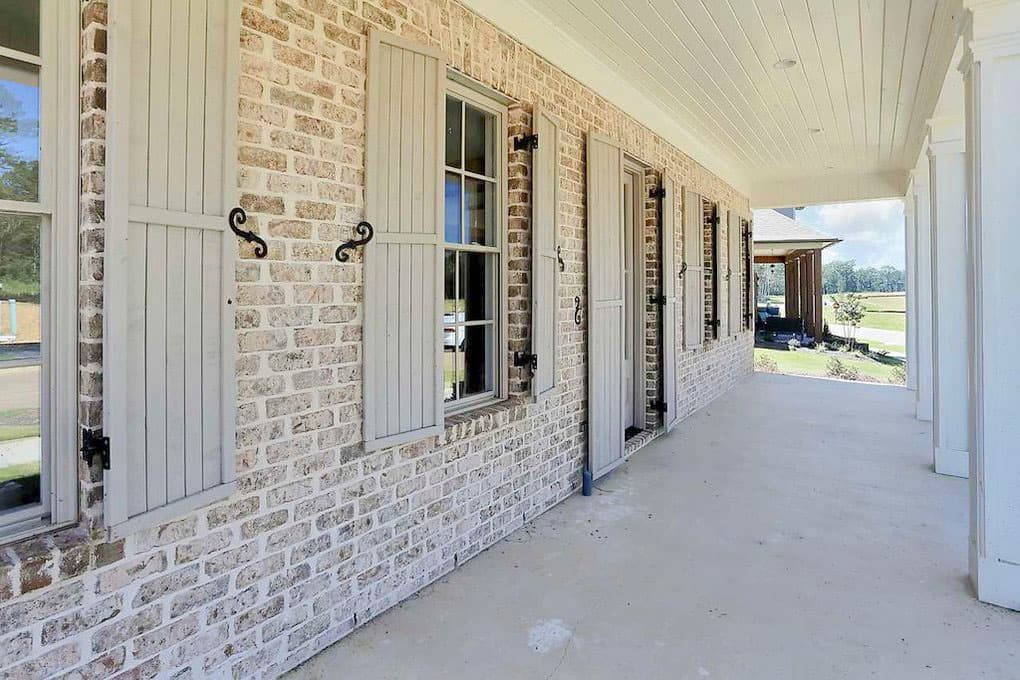

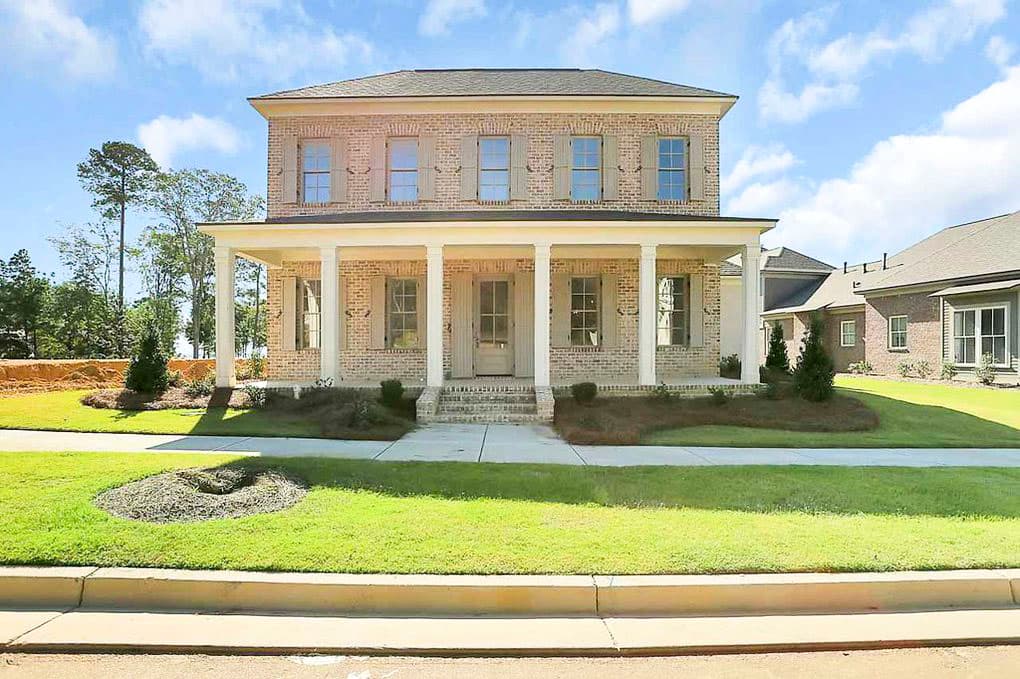

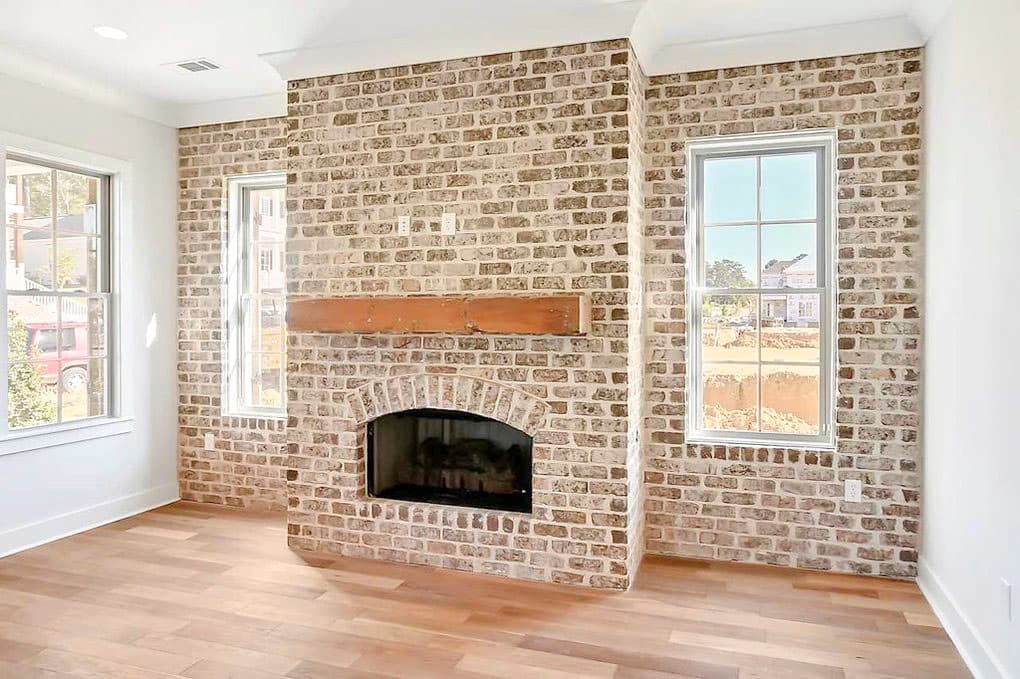

  • This classic southern home design, lined with windows across the front elevation, boasts a lengthy front porch and brick accents inside and out. The rear-facing garage features 3 bays and a storage room.

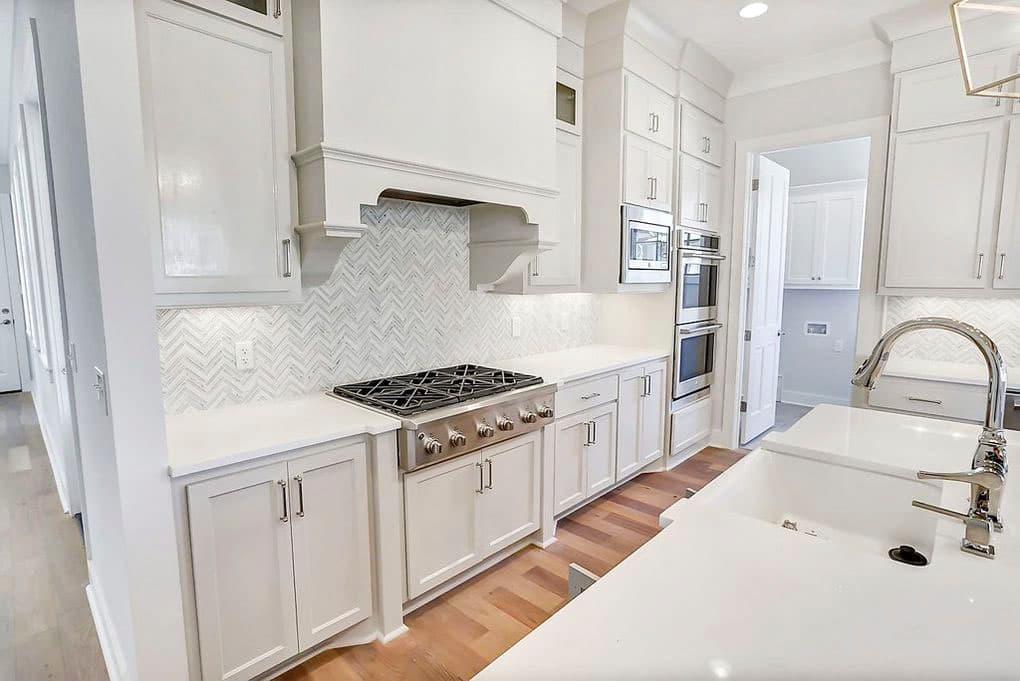

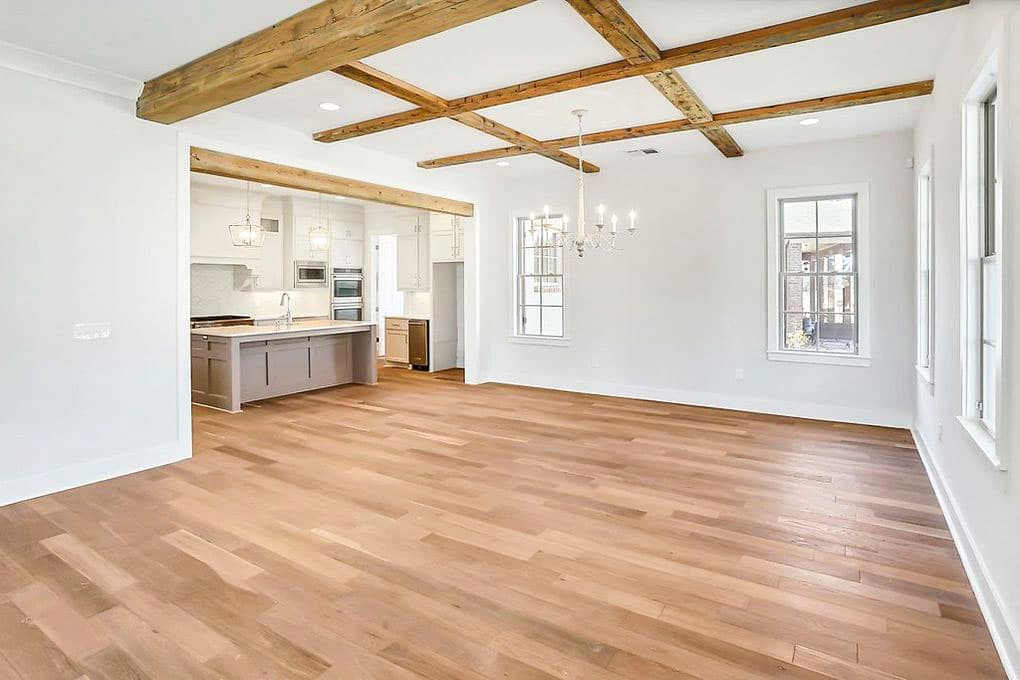

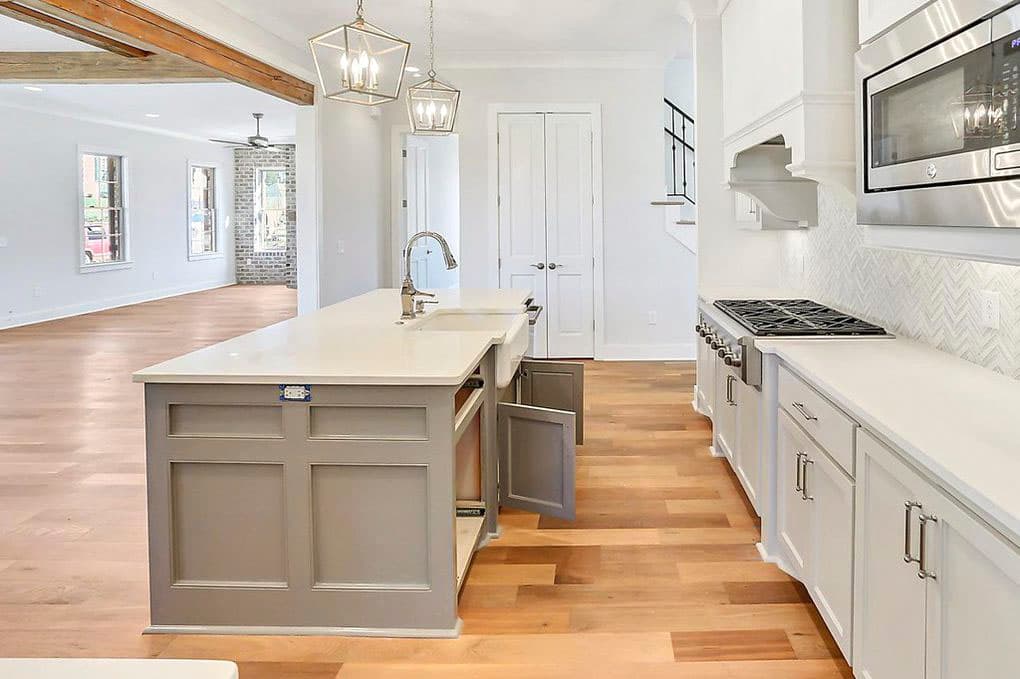

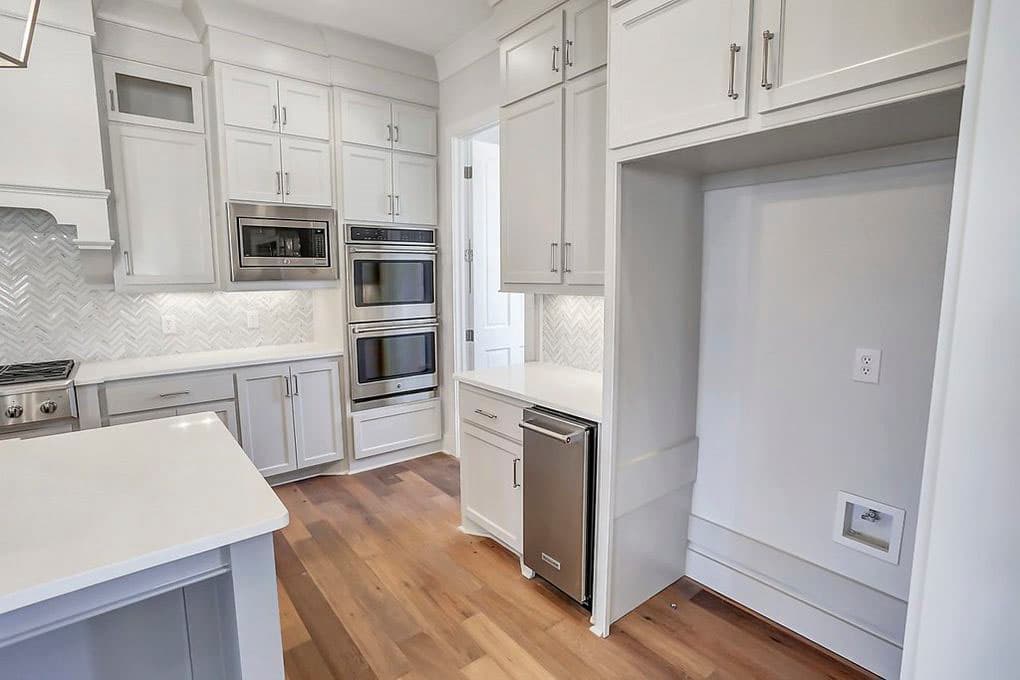

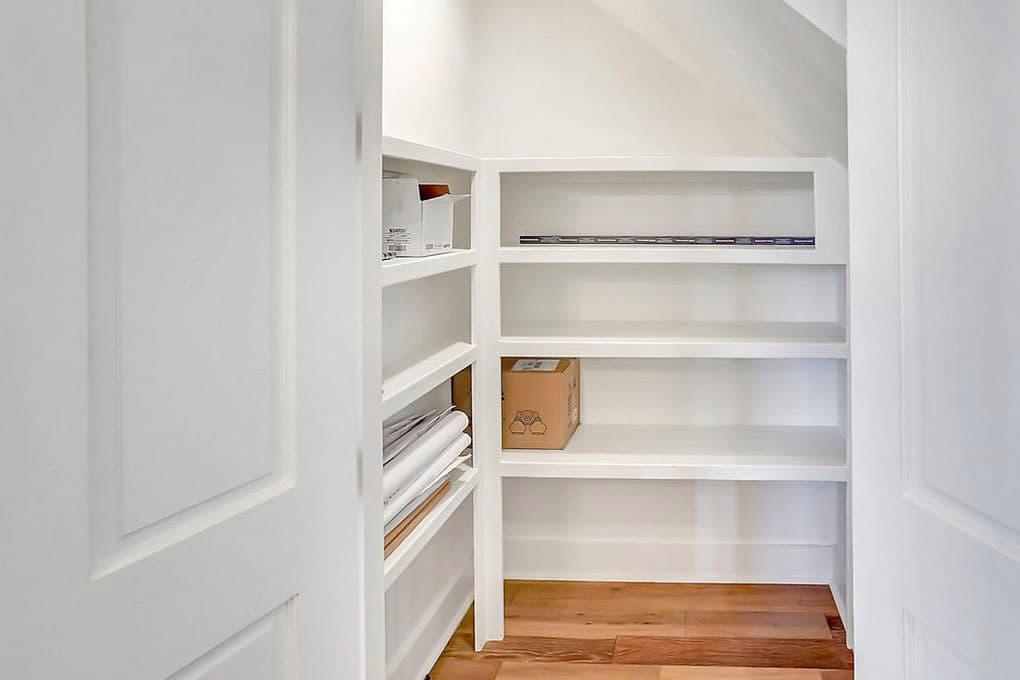

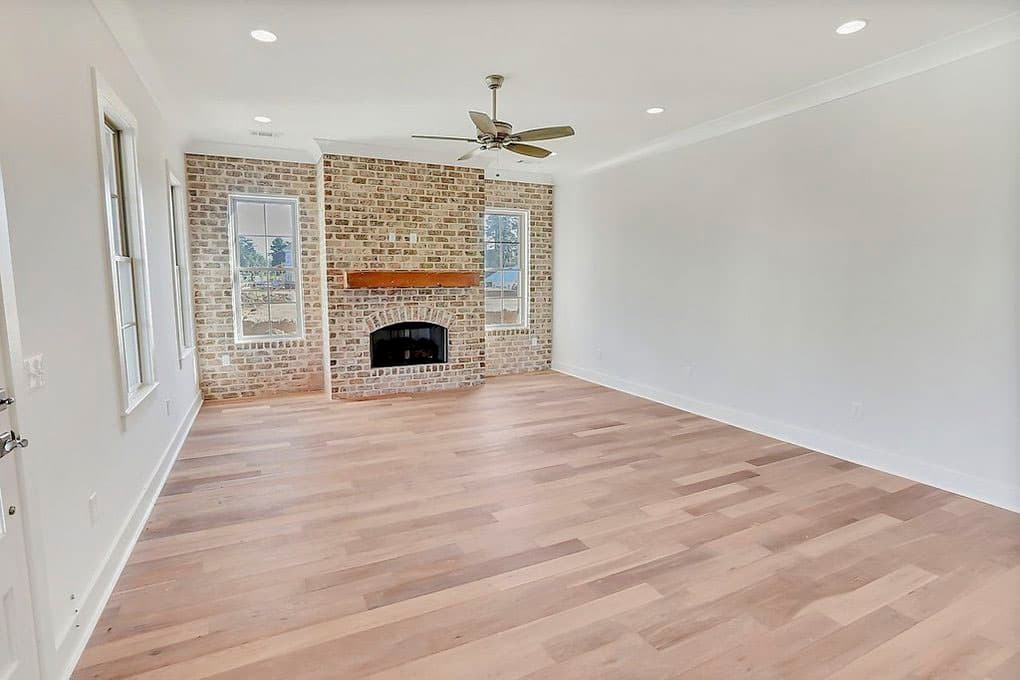

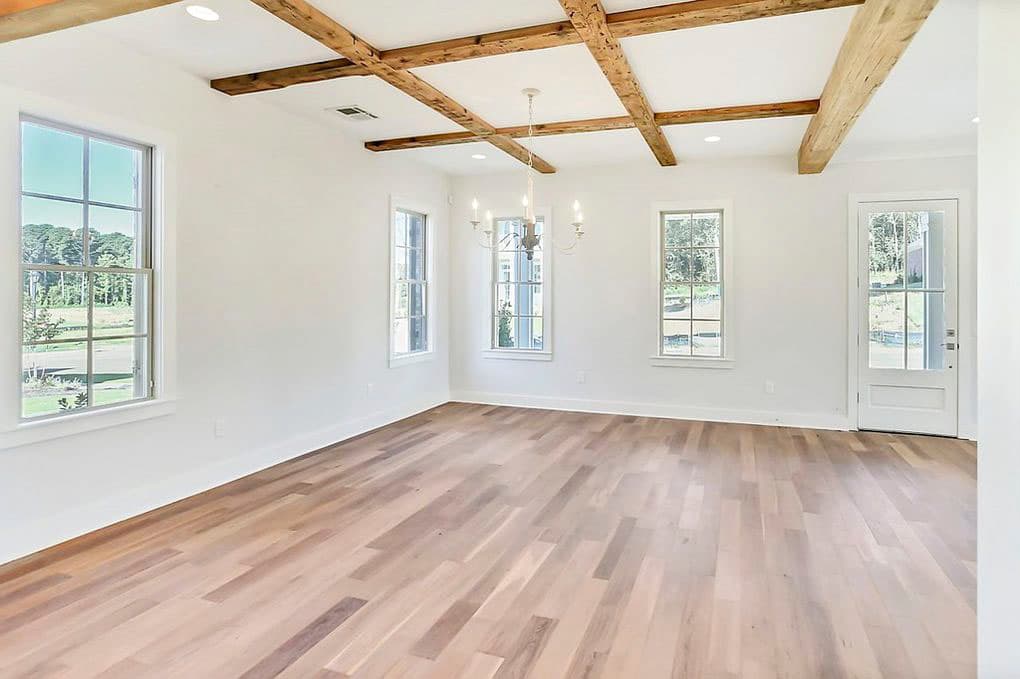

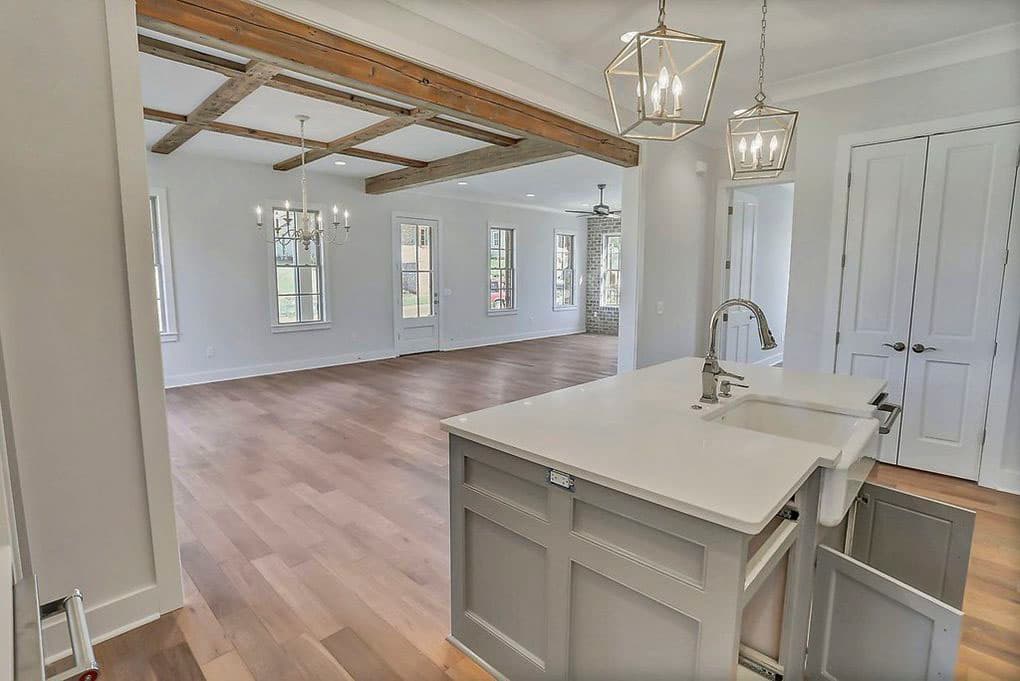

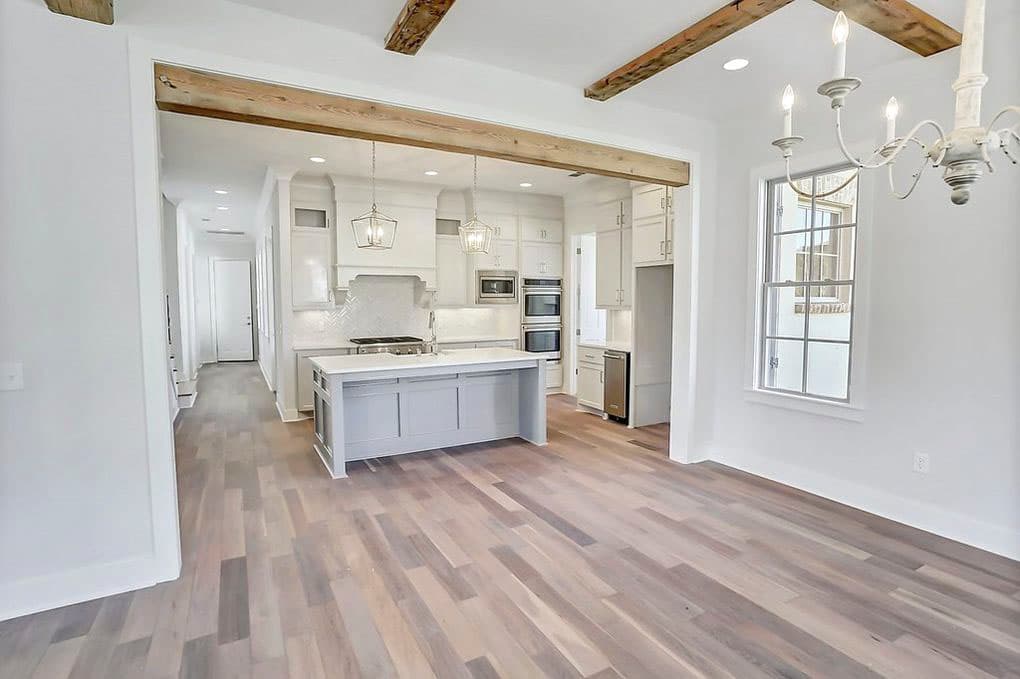

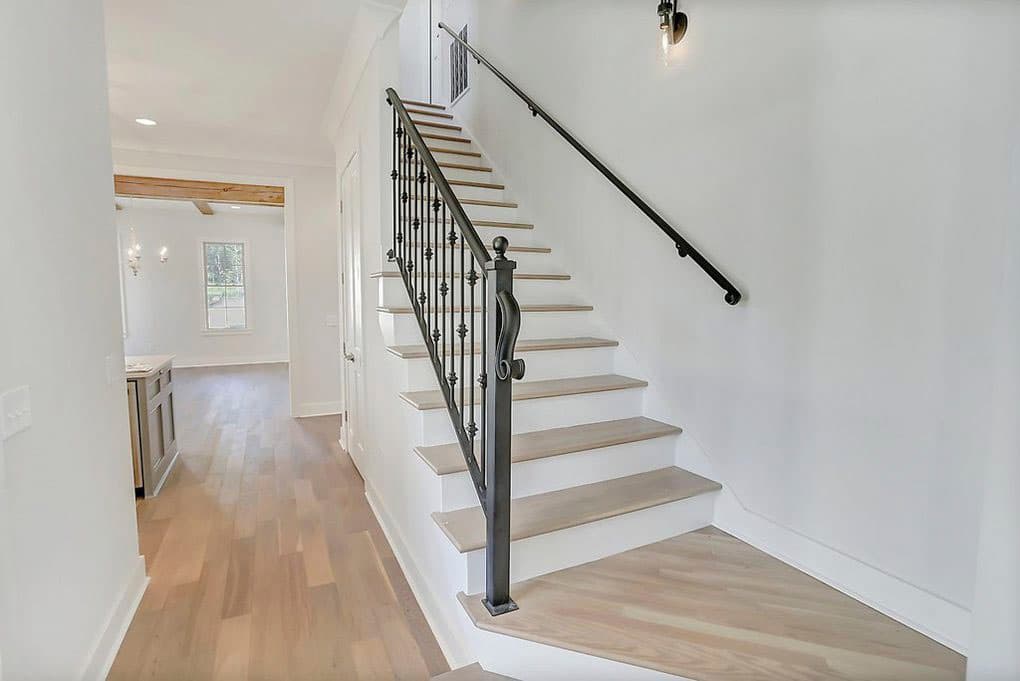

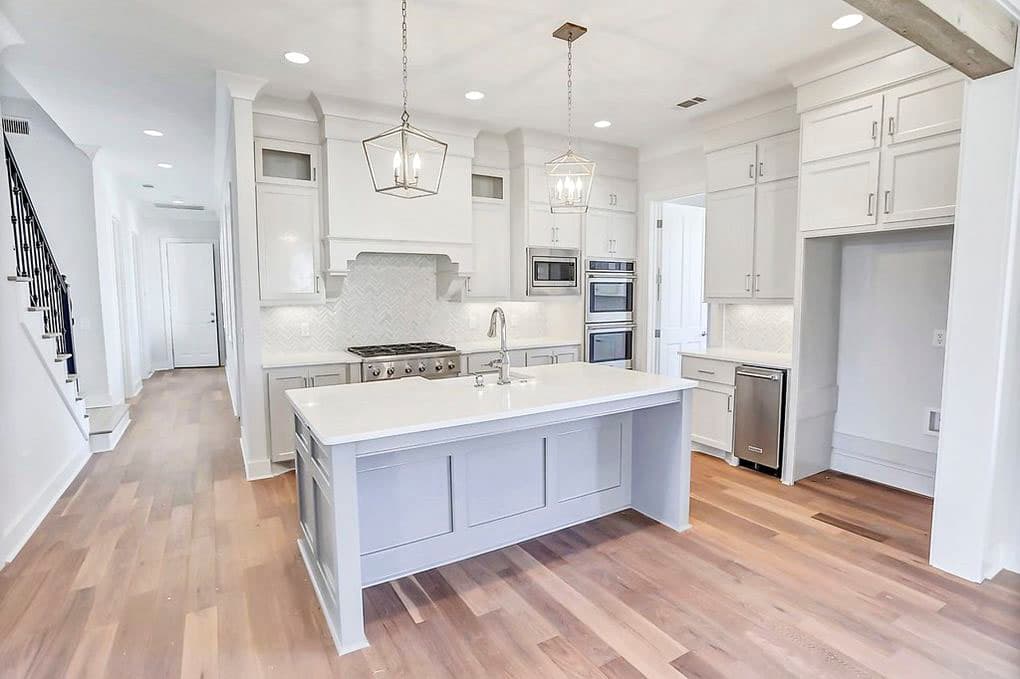

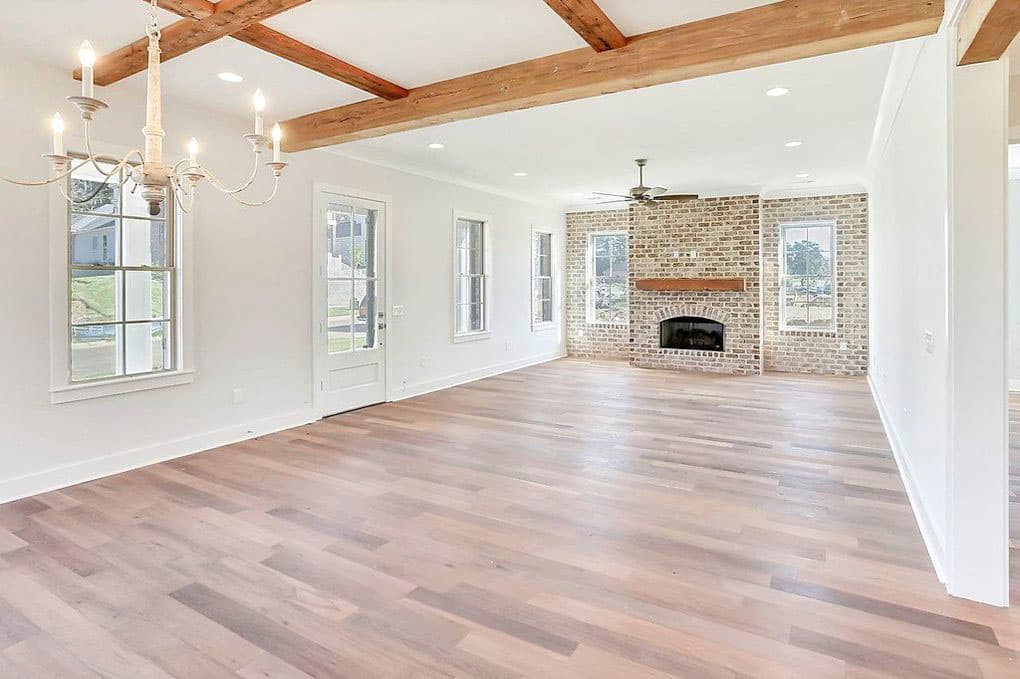

  • The front door ushers guests into the heart of the home with a living room that opens to the dining room and then the kitchen. The double-bowl sink resides in the kitchen island, and a walk-in pantry utilizes the space beneath the stairs.

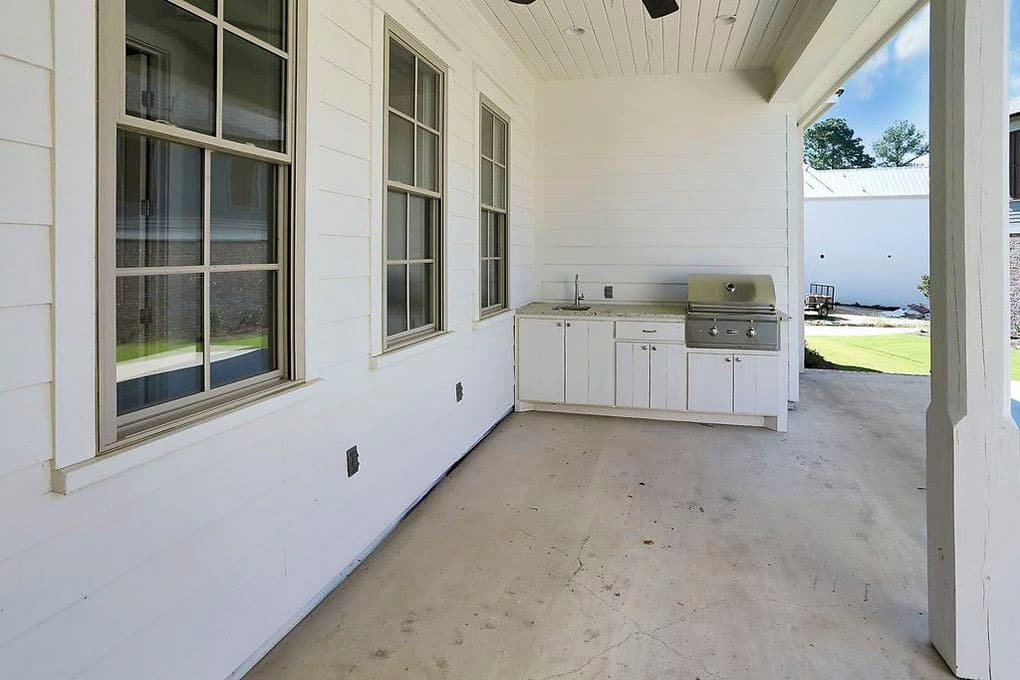

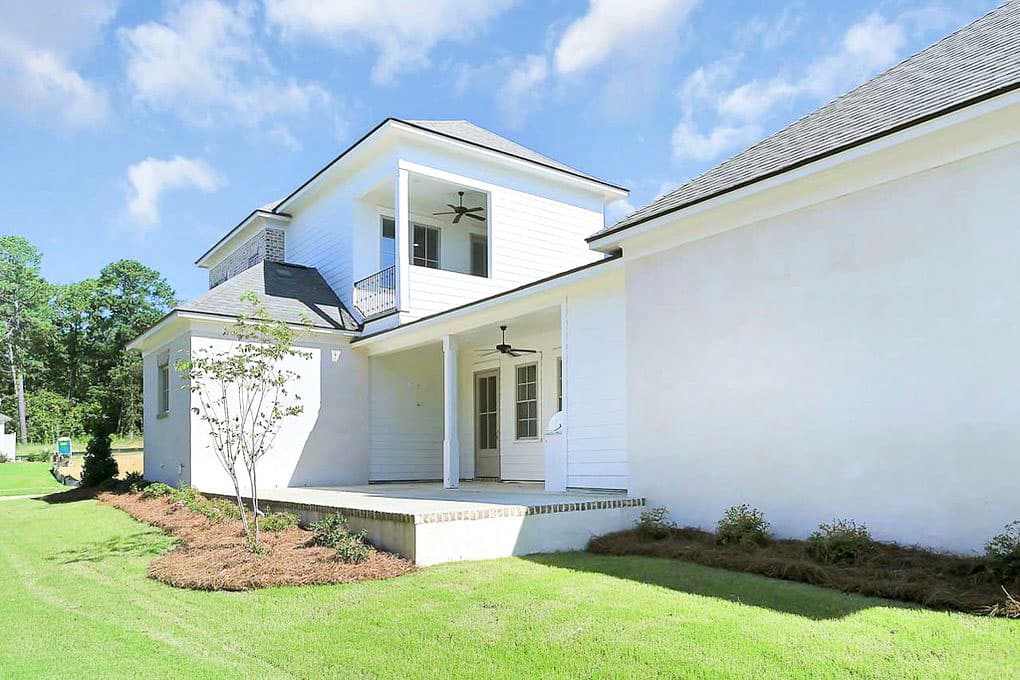

  • A hallway off the kitchen grants access to the partially covered porch / patio, complete with a grilling station and bar sink.

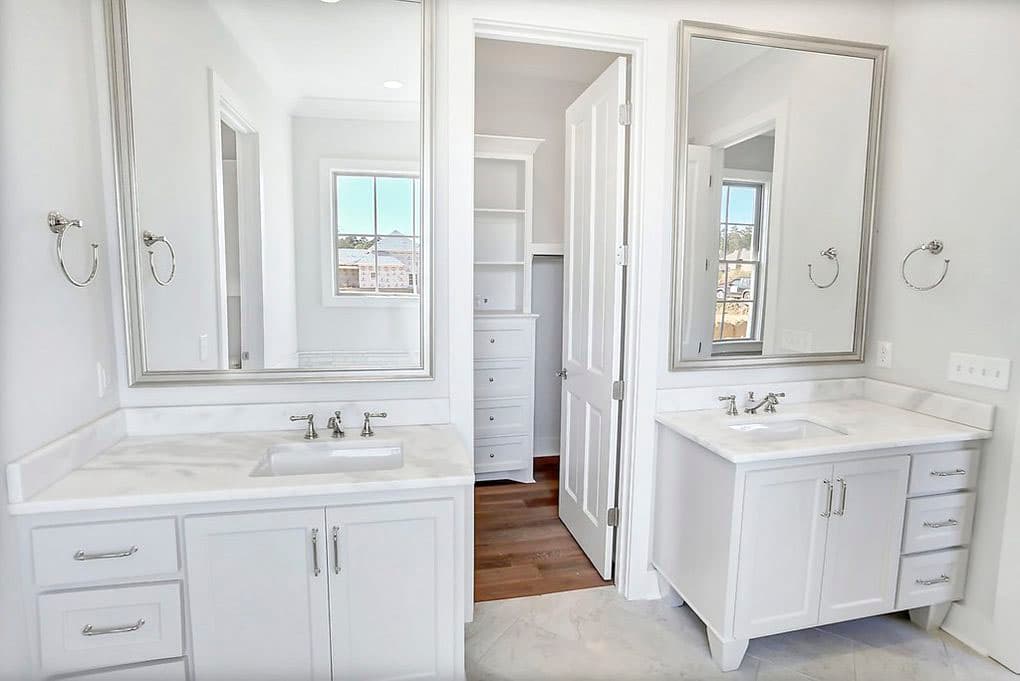

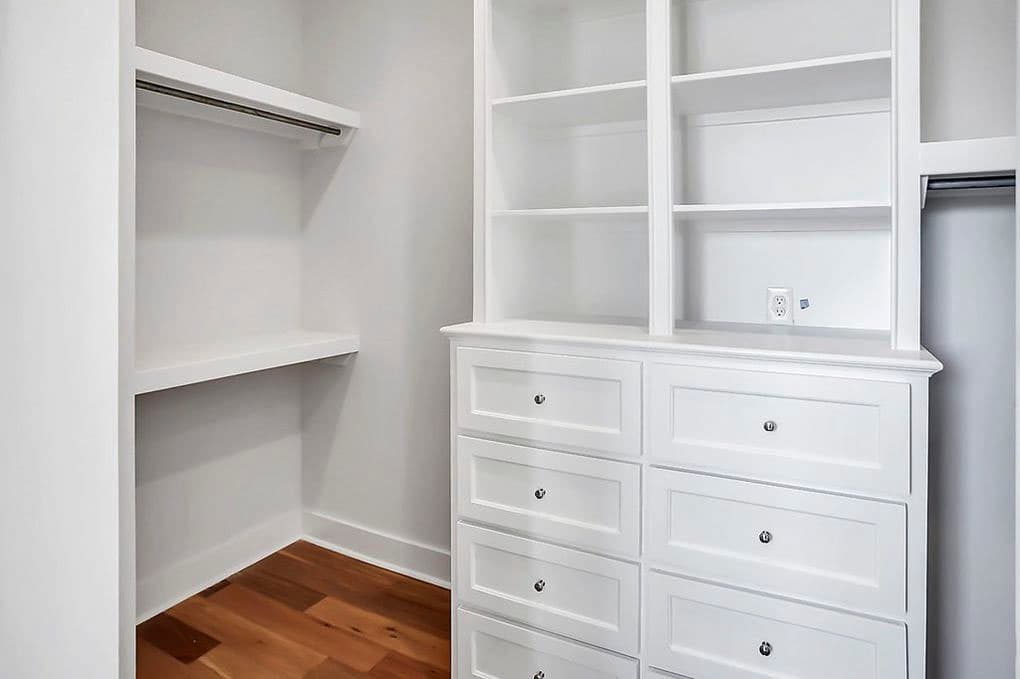

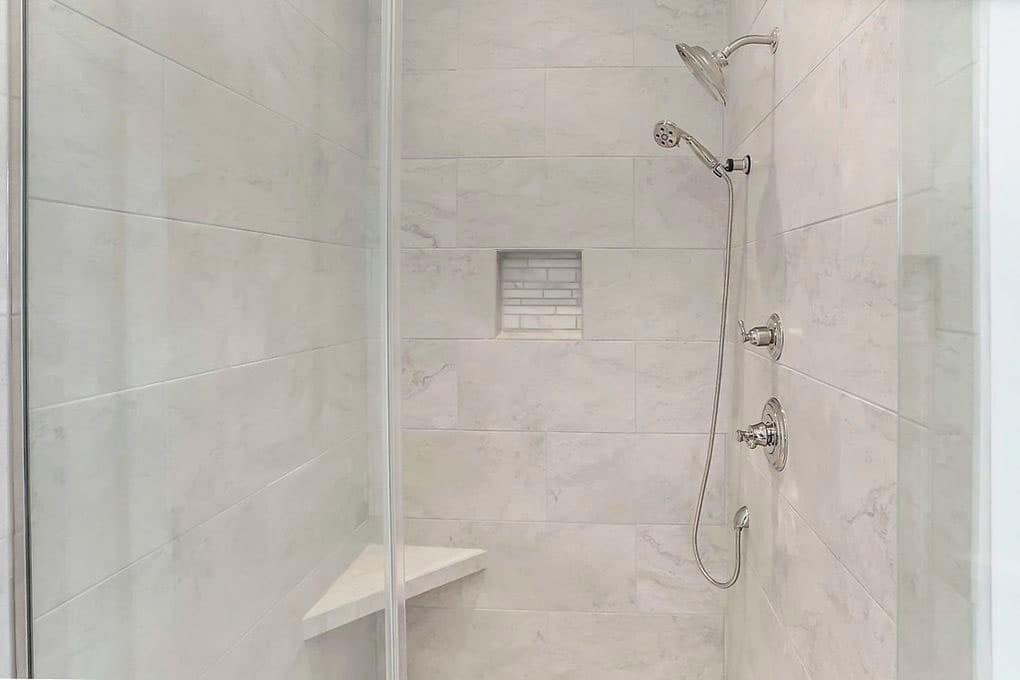

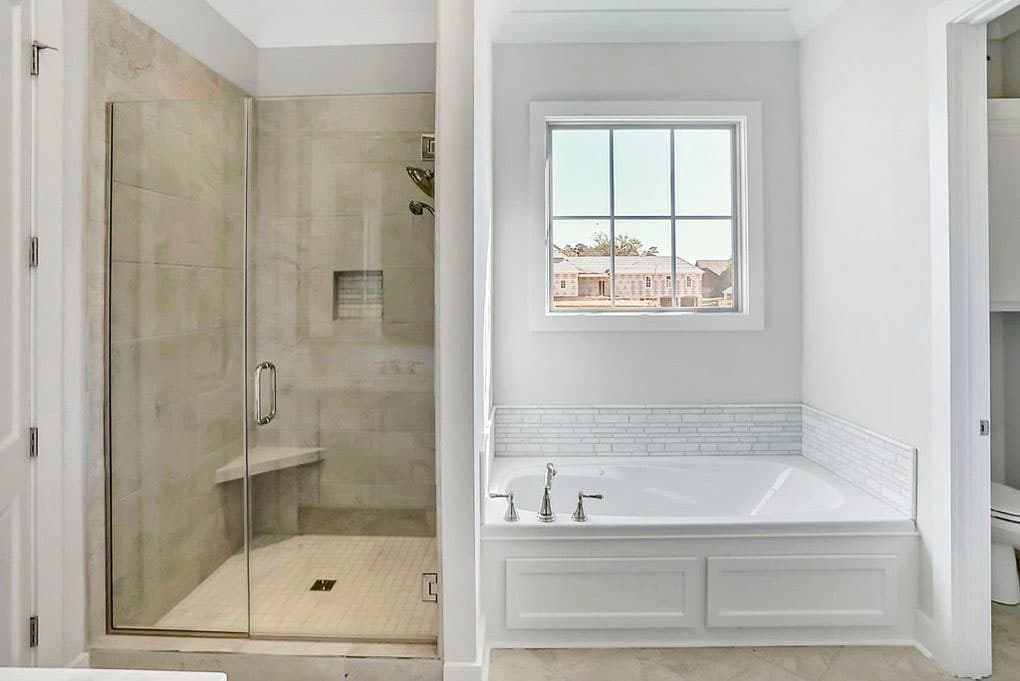

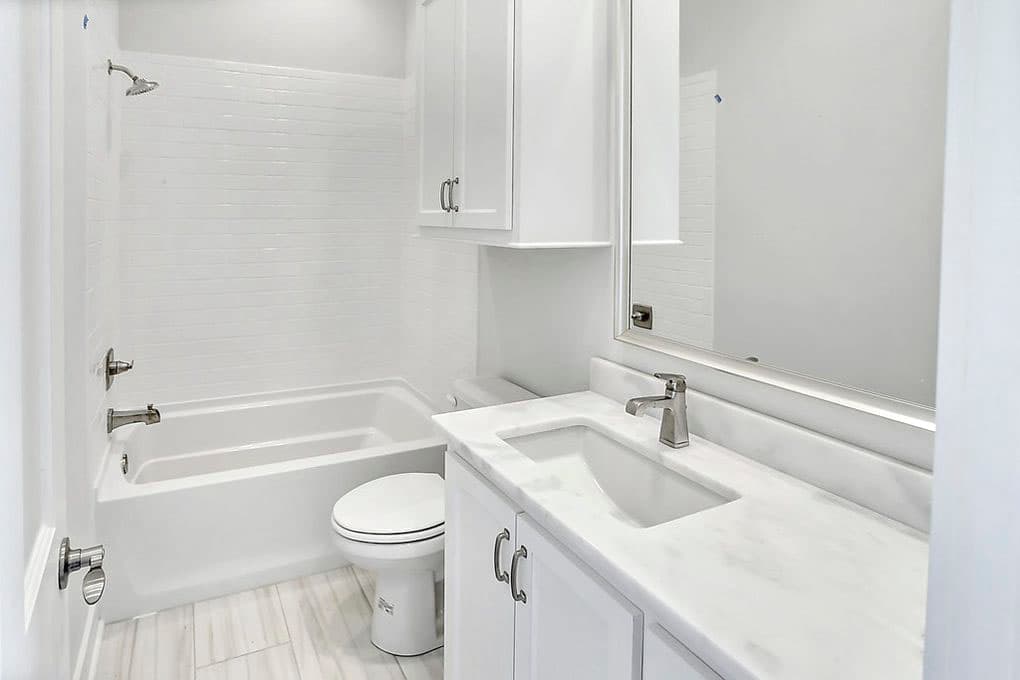

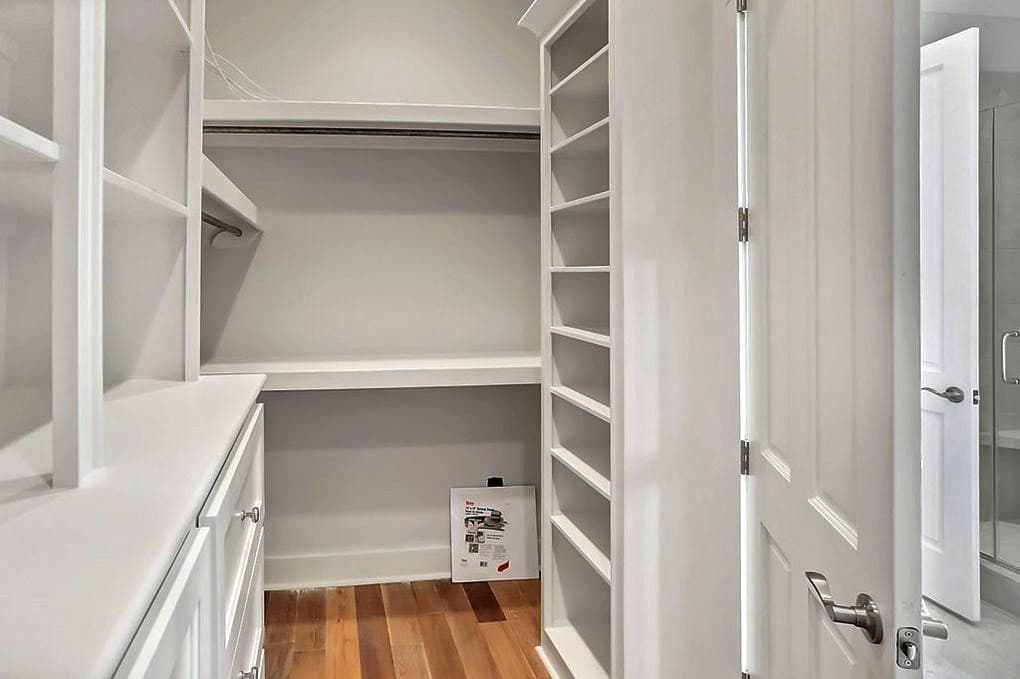

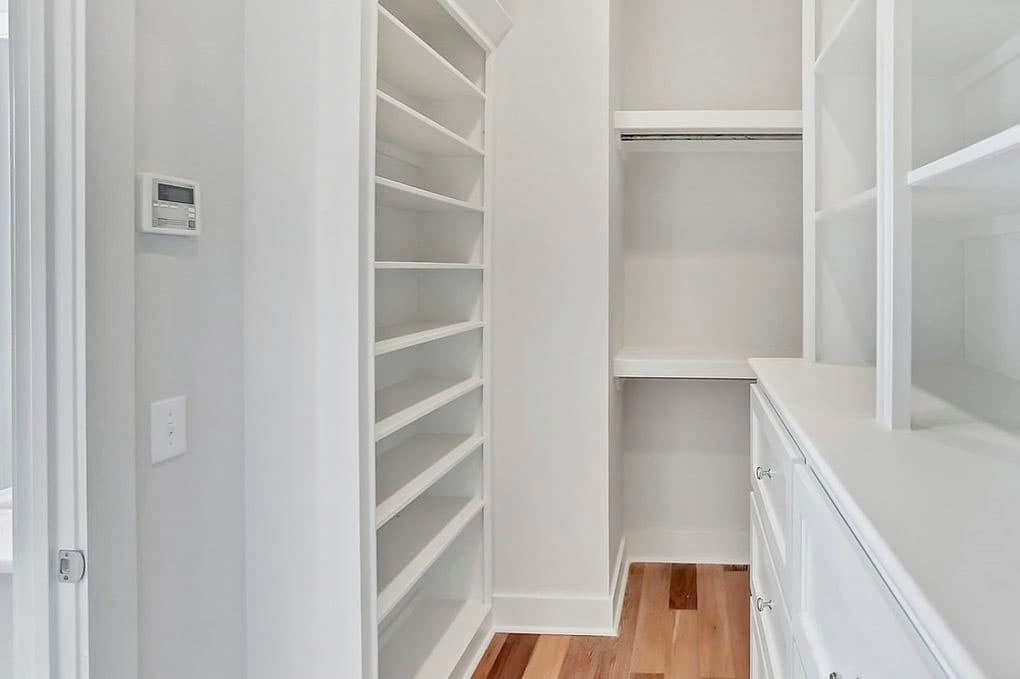

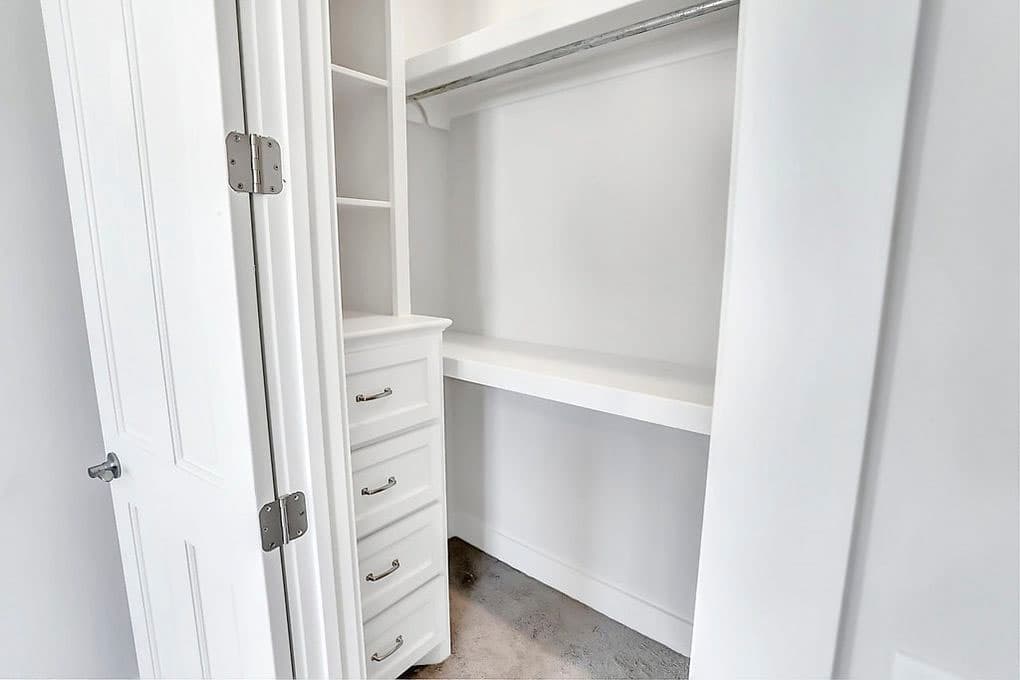

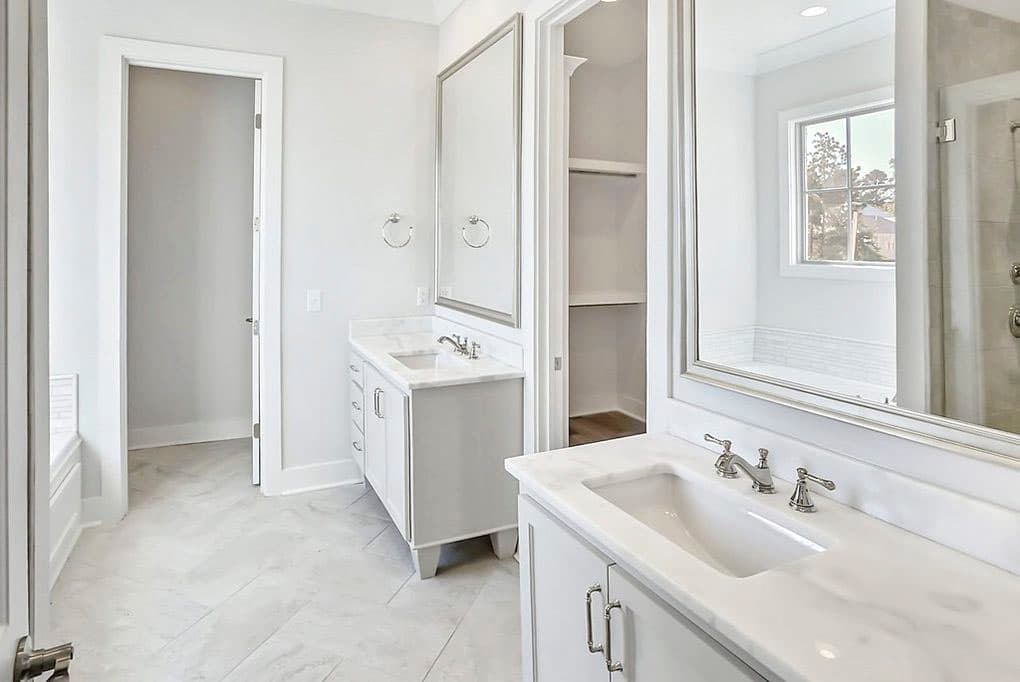

  • The main-level, master bathroom considers your future needs, and includes a 5-fixture bath with a roomy walk-in closet. A second bedroom with a full bath is located down the hall, perfect for guests.

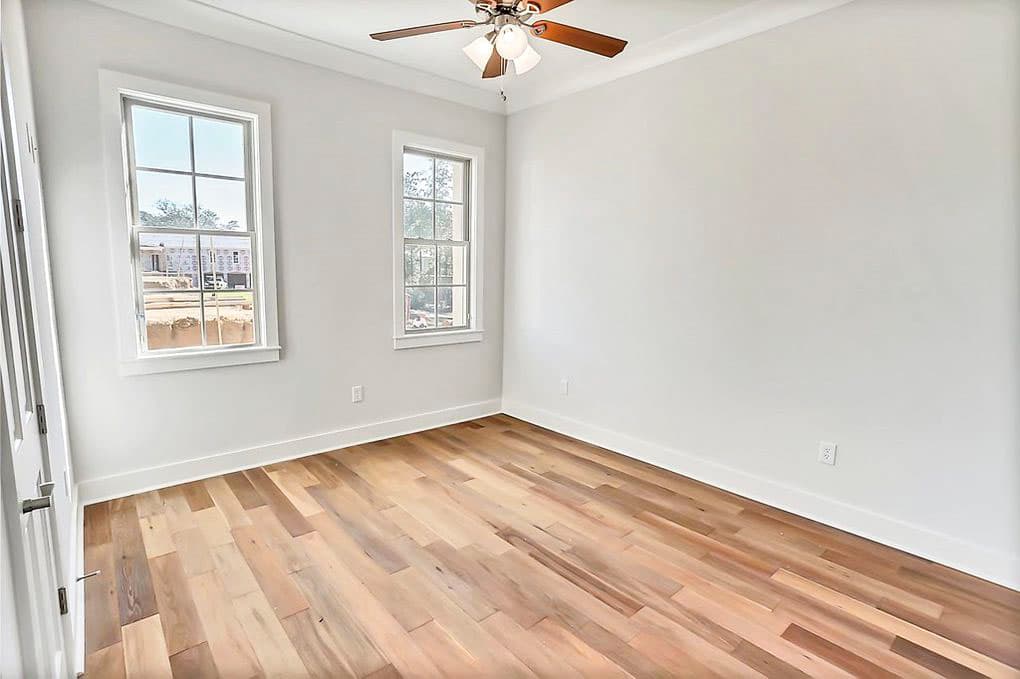

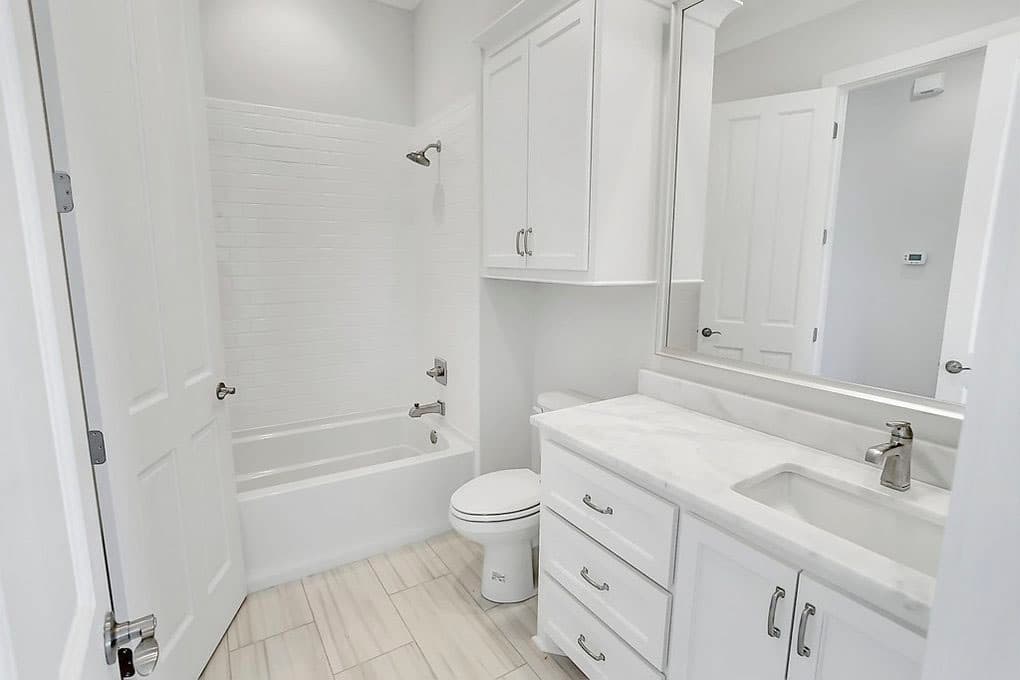

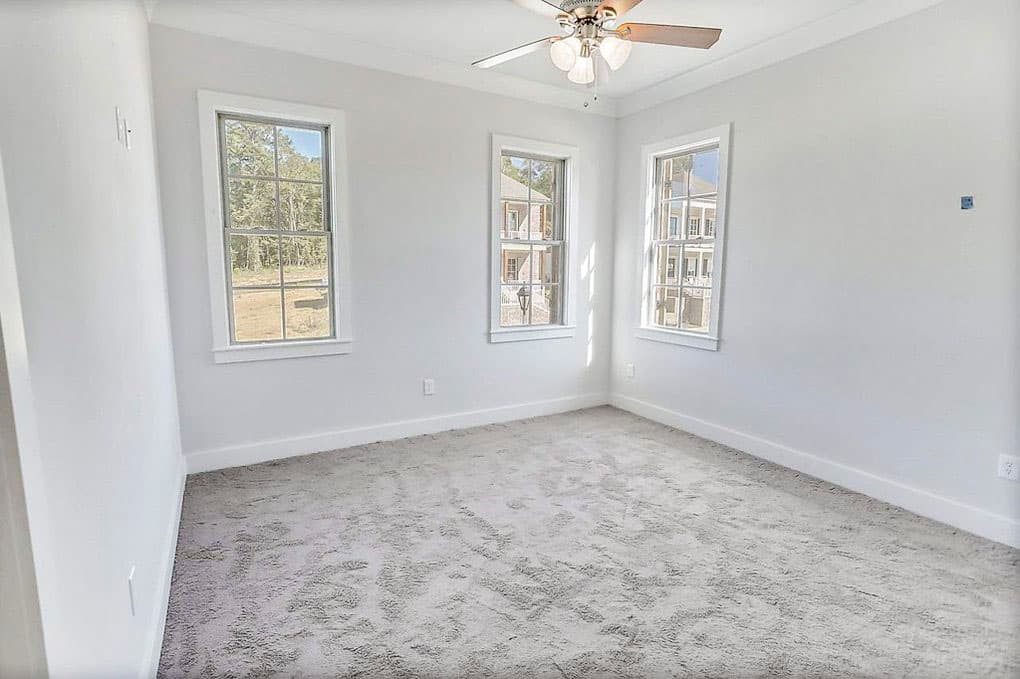

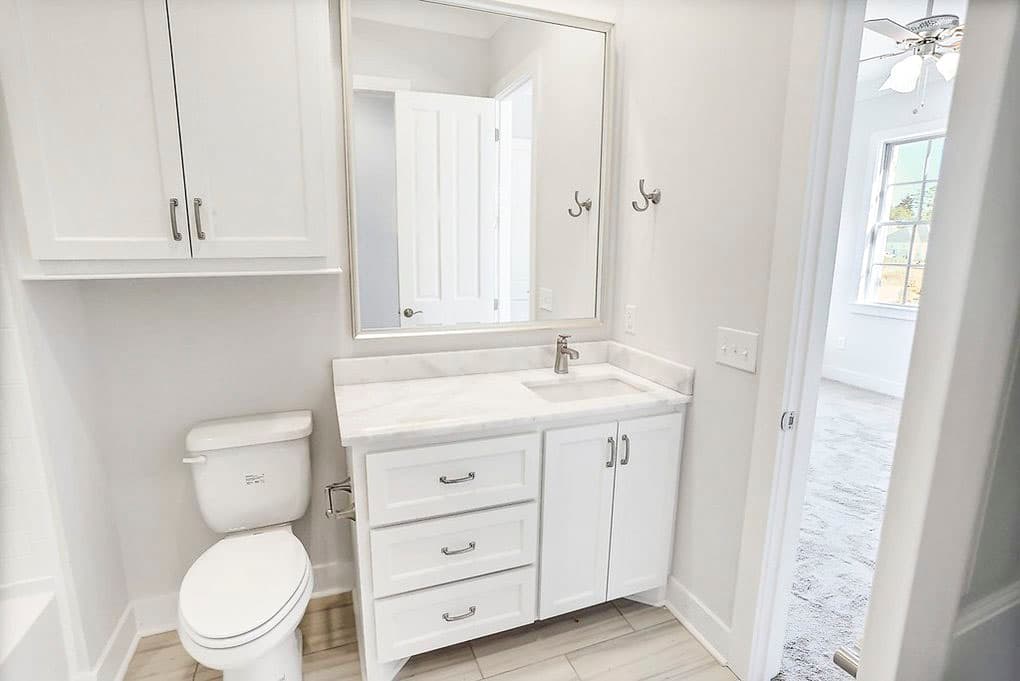

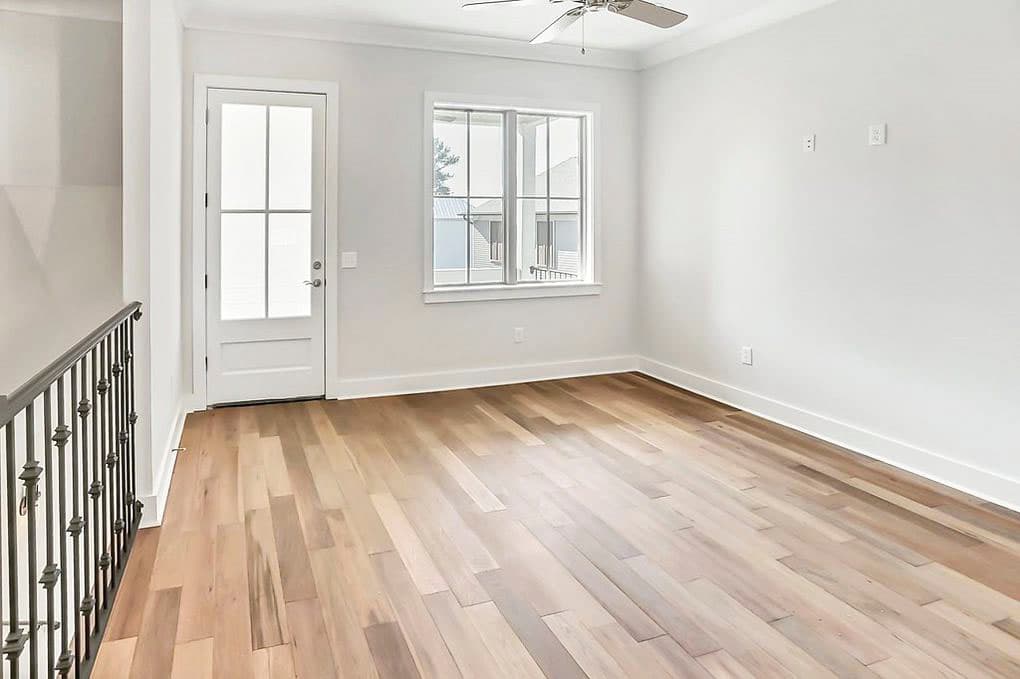

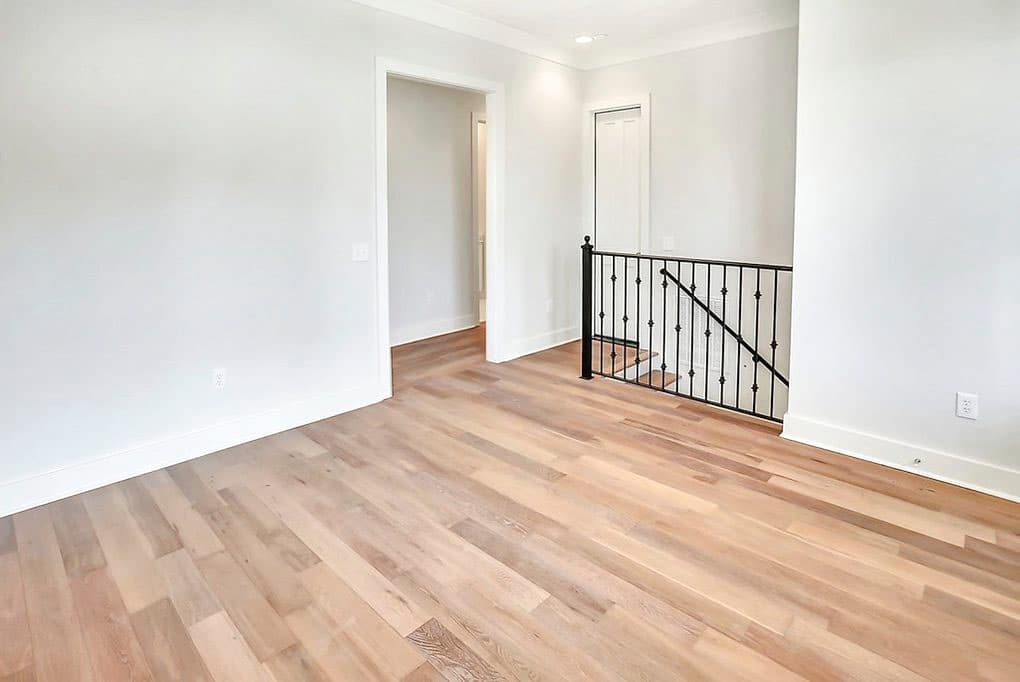

  • Upstairs, a media room provides a common space for the kids to enjoy, and two bedrooms each include a full bath.

This plan has 14 pages as follows:

  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

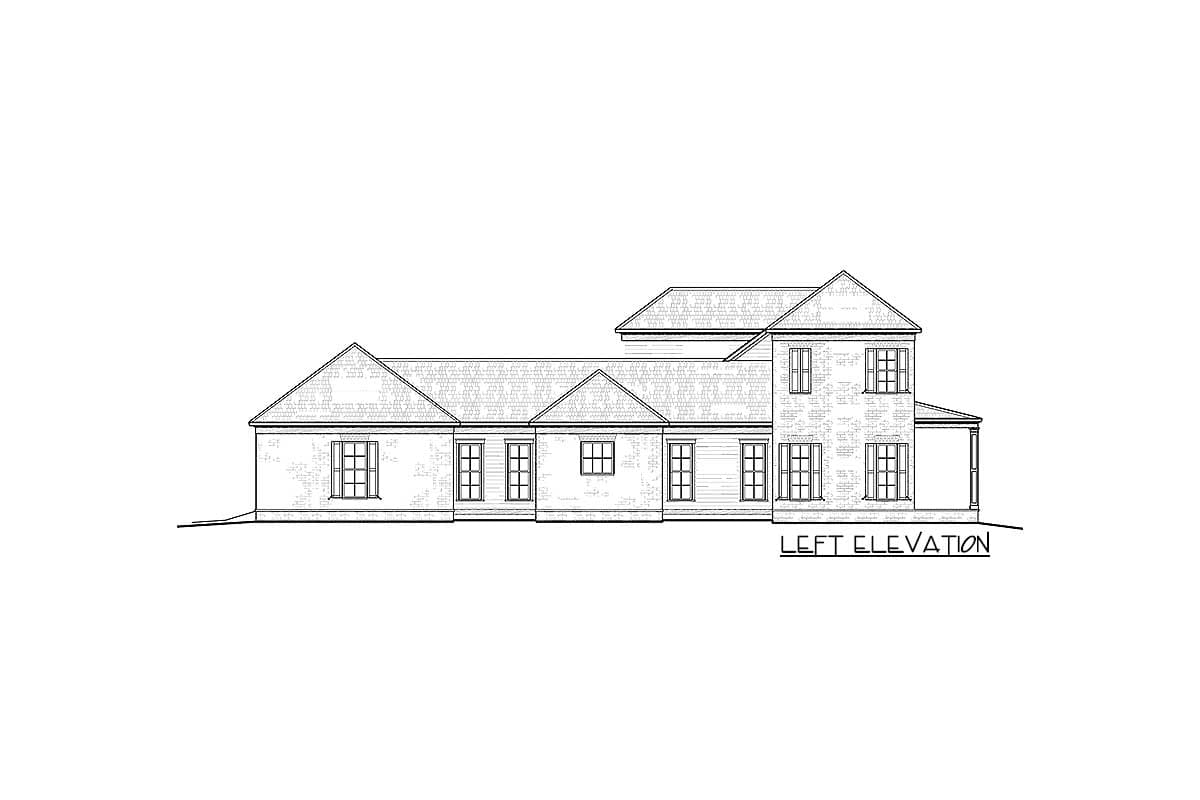

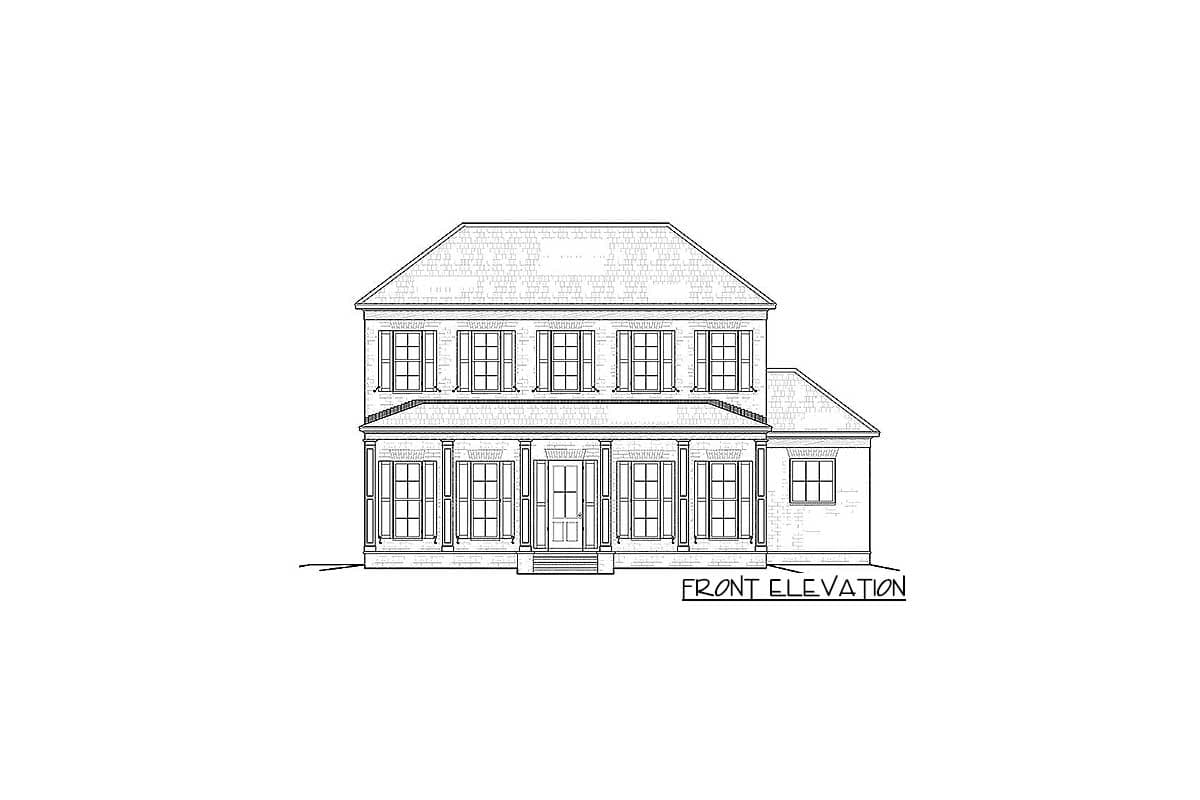

  4. Front & Left Exterior Elevations, Notes, Siding Detail, Column Detail

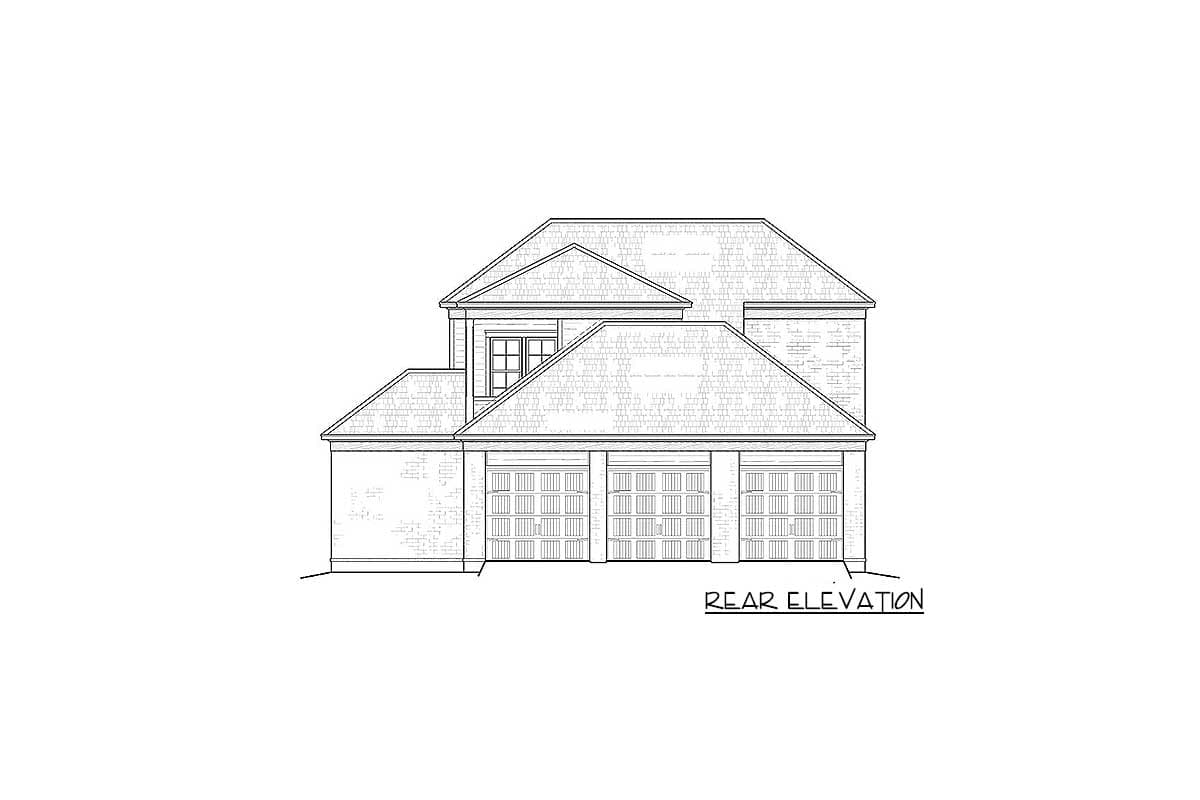

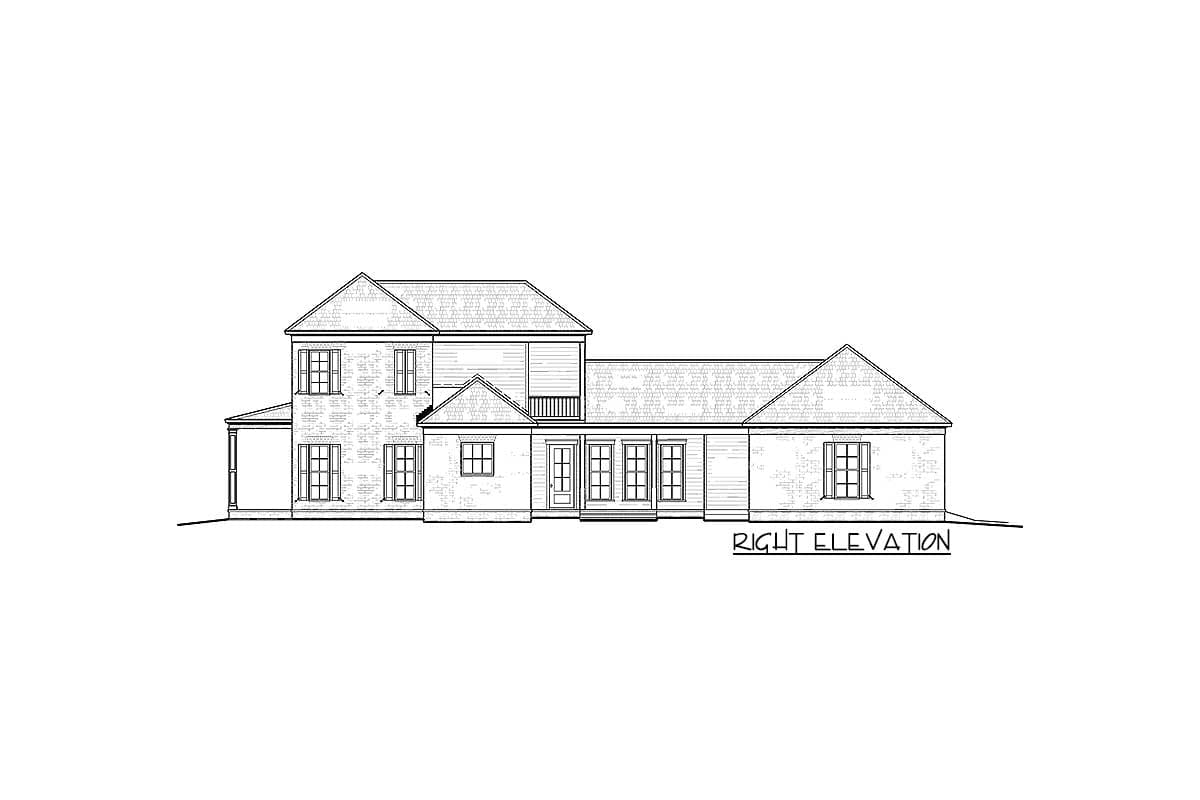

  5. Rear & Right Exterior Elevations, Step Details, Edging Detail
  6. Roof Plan, Building Sections, Wall Flashing Detail, Strong Back Detail
  7. Wall Sections
  8. Wall Sections
  9. Wall Sections
  10. Rafter Spann Schedule, Window Details, Ridge Detail, Cornice Detail
  11. Cornice Details, Column Details
  12. First & Second Floor Electrical Plan and Schedules
  13. Slab Foundation
  14. Footing Details

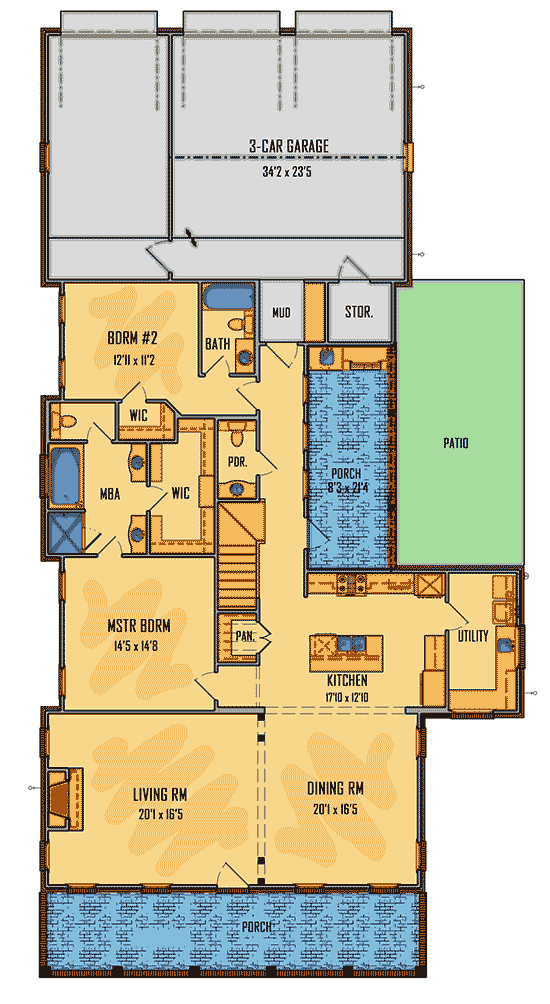

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Classic with Rear-Entry Garage - 510030WDY floor plan - Main Level

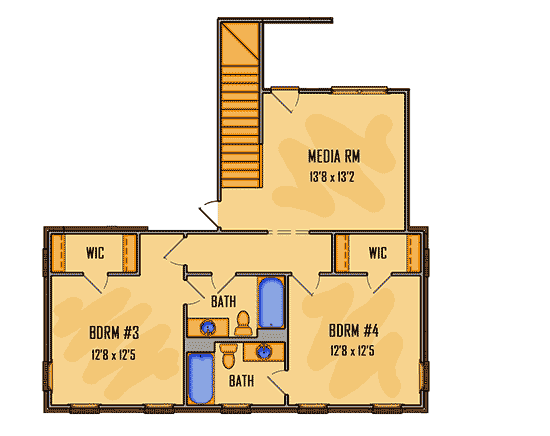

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Classic with Rear-Entry Garage - 510030WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,767 sq. ft.
  • 1st Floor: 1,912 sq. ft.
  • 2nd Floor: 855 sq. ft.
  • Porch, Front: 295 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 9"
  • Depth: 91' 3"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 906 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Southern Classic with Rear-Entry Garage

  • 2,767

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $800
  • 8 Sets $900
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • CAD + PDF - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • This classic southern home design, lined with windows across the front elevation, boasts a lengthy front porch and brick accents inside and out. The rear-facing garage features 3 bays and a storage room.
  • The front door ushers guests into the heart of the home with a living room that opens to the dining room and then the kitchen. The double-bowl sink resides in the kitchen island, and a walk-in pantry utilizes the space beneath the stairs.
  • A hallway off the kitchen grants access to the partially covered porch / patio, complete with a grilling station and bar sink.
  • The main-level, master bathroom considers your future needs, and includes a 5-fixture bath with a roomy walk-in closet. A second bedroom with a full bath is located down the hall, perfect for guests.
  • Upstairs, a media room provides a common space for the kids to enjoy, and two bedrooms each include a full bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,767 sq. ft.
  • 1st Floor: 1,912 sq. ft.
  • 2nd Floor: 855 sq. ft.
  • Porch, Front: 295 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 9"
  • Depth: 91' 3"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 906 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
