Plan 51219MM
Southern Country Duplex House Plan with 2 Bed Units - 1216 Sq Ft Each
Heated S.F.
2,432
Units
2
Width
64'
Depth
42'
What's Included
Plan Details
  • This duplex house plan gives you matching 2 bed, 2 bath units with 1,216 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in building them. Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,216 Sq. Ft.
1216 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
32' w 42' d 15' 5" h
Unit B
1,216 Sq. Ft.
1216 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
32' w 42' d 15' 5" h
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

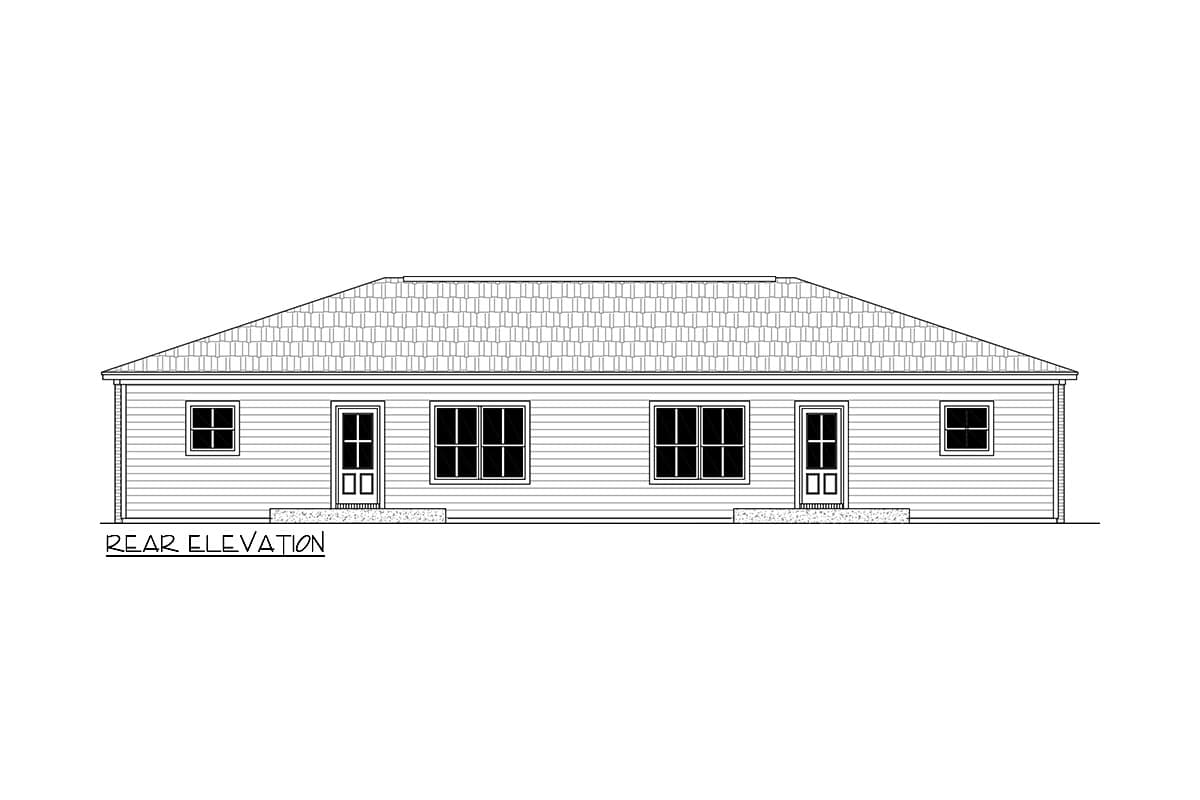

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Country Duplex House Plan with 2 Bed Units - 1216 Sq Ft Each

  • 2,432

    Heated s.f.

  • 2

    Units

  • 64'

    Width

  • 42'

    Depth

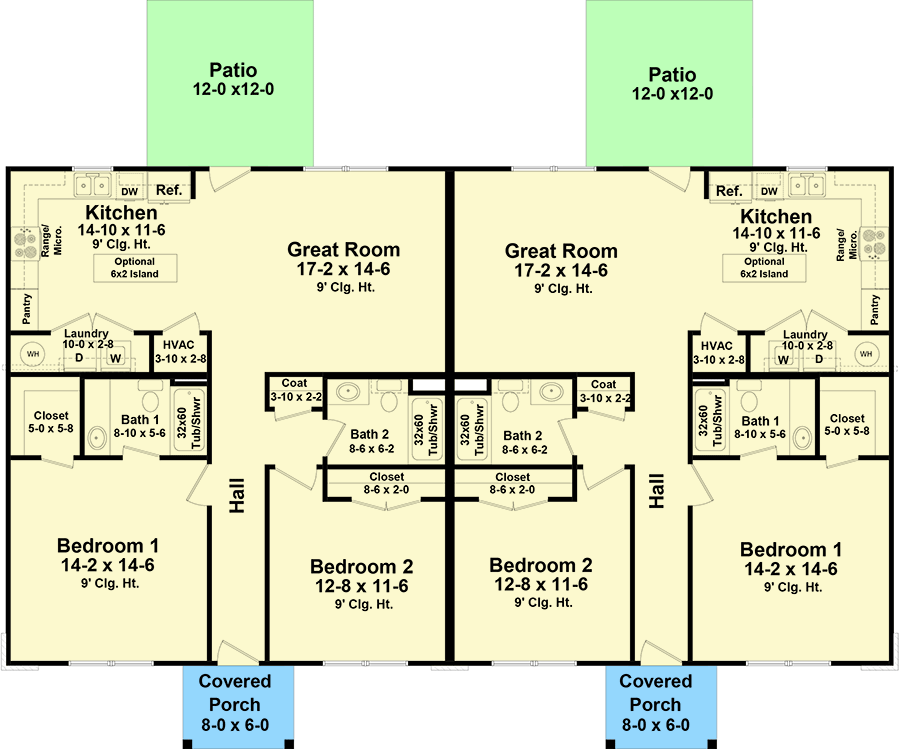

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,432 sq. ft.
  • 1st Floor: 2,432 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 42' 0"
  • Max ridge height: 15' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 8 on 12
