Southern Country Retreat

Plan 2551DH

  • 1,438

    HEATED S.F.

  • 3

    BEDS

  • 1

    BATHS

  • 1

    FLOORS

  • CAR GARAGE

About this Plan

  • The covered front porch welcomes you into this southern country retreat. The large great room features a gas fireplace and custom built-in cabinets.
  • The well-appointed kitchen/dining area contains a large pantry, angled island with raised snack bar as well as a sunny bay window.
  • Just off the dining area is a nice sized laundry. Plently of storage, a built-in laundry sink and easy access from the rear porch make clean up a breeze.
  • A French door leads out onto the rear covered porch or the huge screened porch.
  • French doors lead out onto the screened porch from the master bedroom, the perfect retreat.
  • The bath has lots of counter space, a tub/shower unit and large linen storage area.
  • Need more space? See house plan 2538DH and gain 391 sq. ft. upstairs.

See What's Included in this Plan...

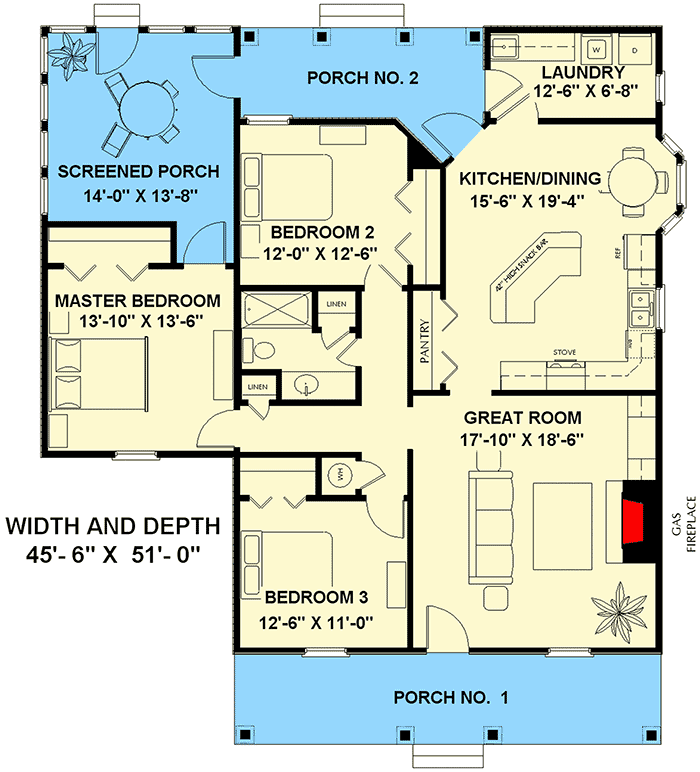

Floor Plan

Plan details

Total Heated Area

  • Total Heated Area: 1,438 sq. ft.
  • 1st Floor: 1,438 sq. ft.
  • Porch, Combined: 529 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Dimensions

  • Width: 45' 6"
  • Depth: 51' 0"
  • Max ridge height: 23' 0"

Foundation Type

  • Standard Foundations: Crawl,Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features
