Plan 82104KA

Southern House Plan in Two Versions

Heated S.F.
1,934
Beds
3
Baths
2
Stories
1
Cars
2

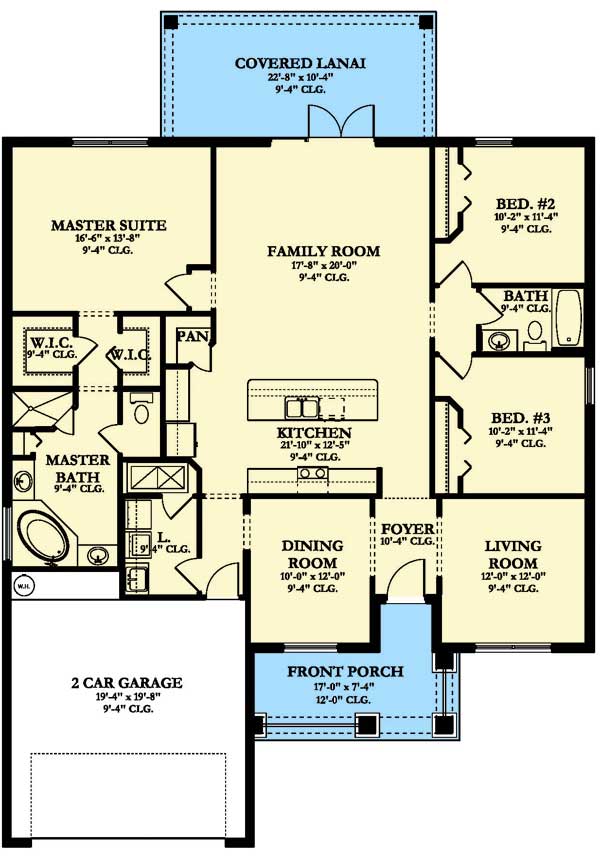

Floor Plan

Plan 82104KA

Main Level
Main Level

Plan 82104KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 82104KA: Southern House Plan in Two Versions - Floor Plan - Main Level - Southern

Plan Details

  • Transom windows shed extra light into the foyer and dining room of this Southern house plan.
  • You get both a formal living room and an informal family area in back, where double doors lead out to the relaxing covered lanai.
  • The kitchen is huge with lots of counter space and storage from the island and walk-in pantry.
  • Bedrooms are separated onto opposite sides of the home, a wonderful privacy feature.
  • Related Plan: Get an alternate interior layout with house plan 82105KA (1,934 sq. ft.).

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,934 sq. ft.

1st Floor

1,934 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

234 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

48' 8"

Depth

58' 4"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,934 sq. ft.

1st Floor

1,934 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

234 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

48' 8"

Depth

58' 4"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
