Plan 82105KA

Southern House Plan in Two Versions

1,934 3 2 1 2
Pageloader

Southern House Plan in Two Versions

Plan 82105KA

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Transom windows shed extra light into the foyer and dining room of this Southern house plan.
  • You get huge great room where double doors lead out to the spacious relaxing covered lanai.
  • The kitchen has a peninsula eating bar and a walk-in pantry.
  • Flex space could be a formal dining room with windows on two sides.
  • Bedrooms are separated onto opposite sides of the home, a wonderful privacy feature.
  • Related Plan: Get an alternate interior layout with house plan 82104KA (1,934 sq. ft.).

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

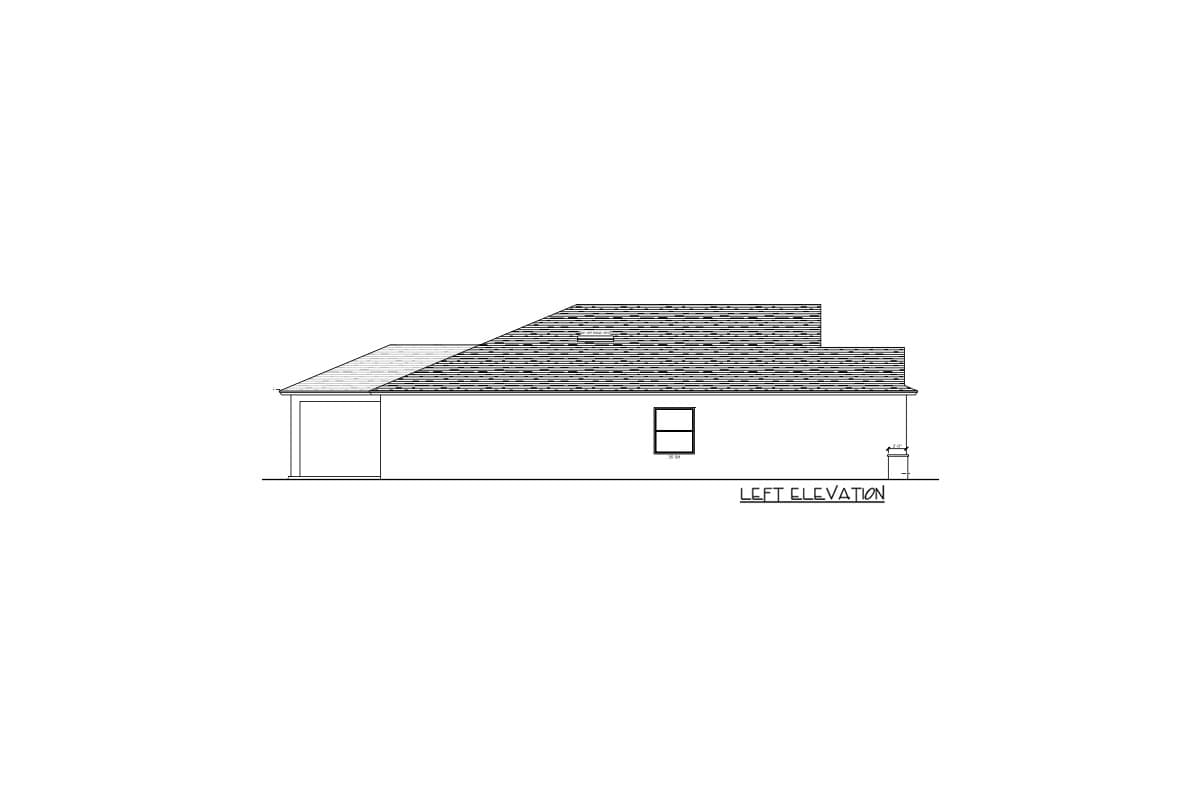

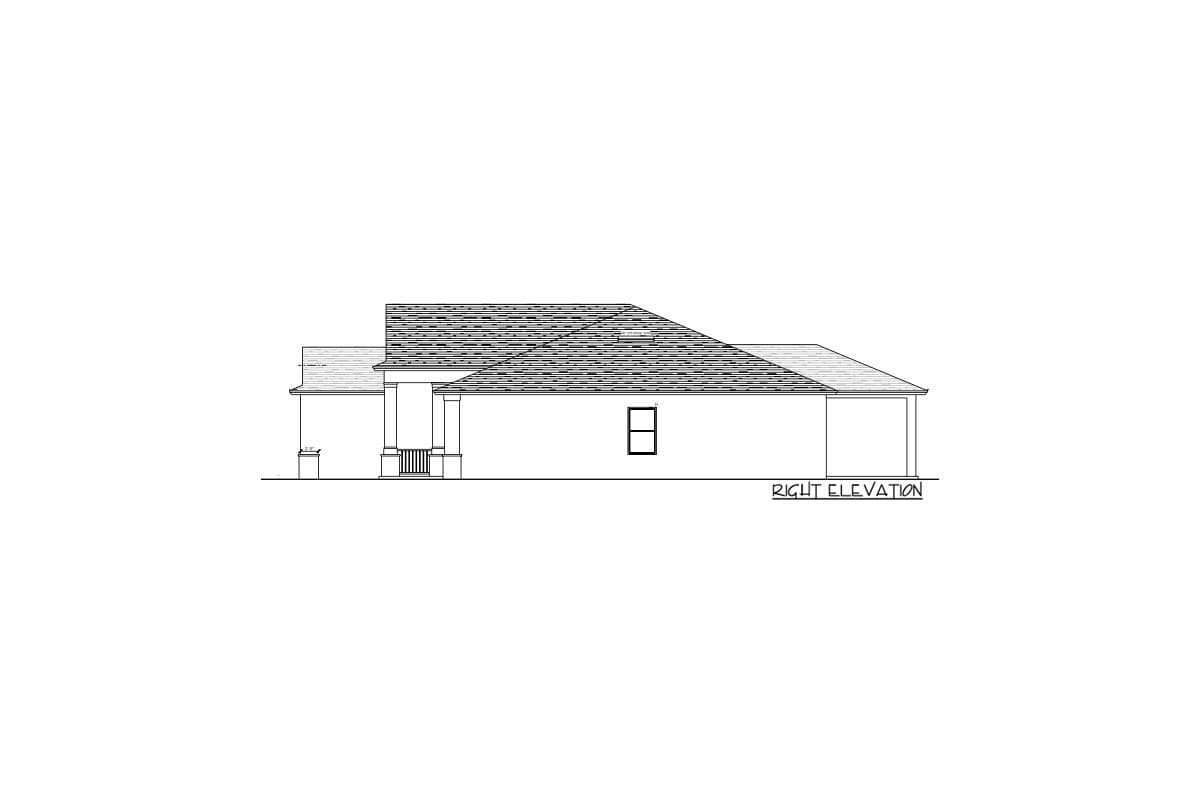

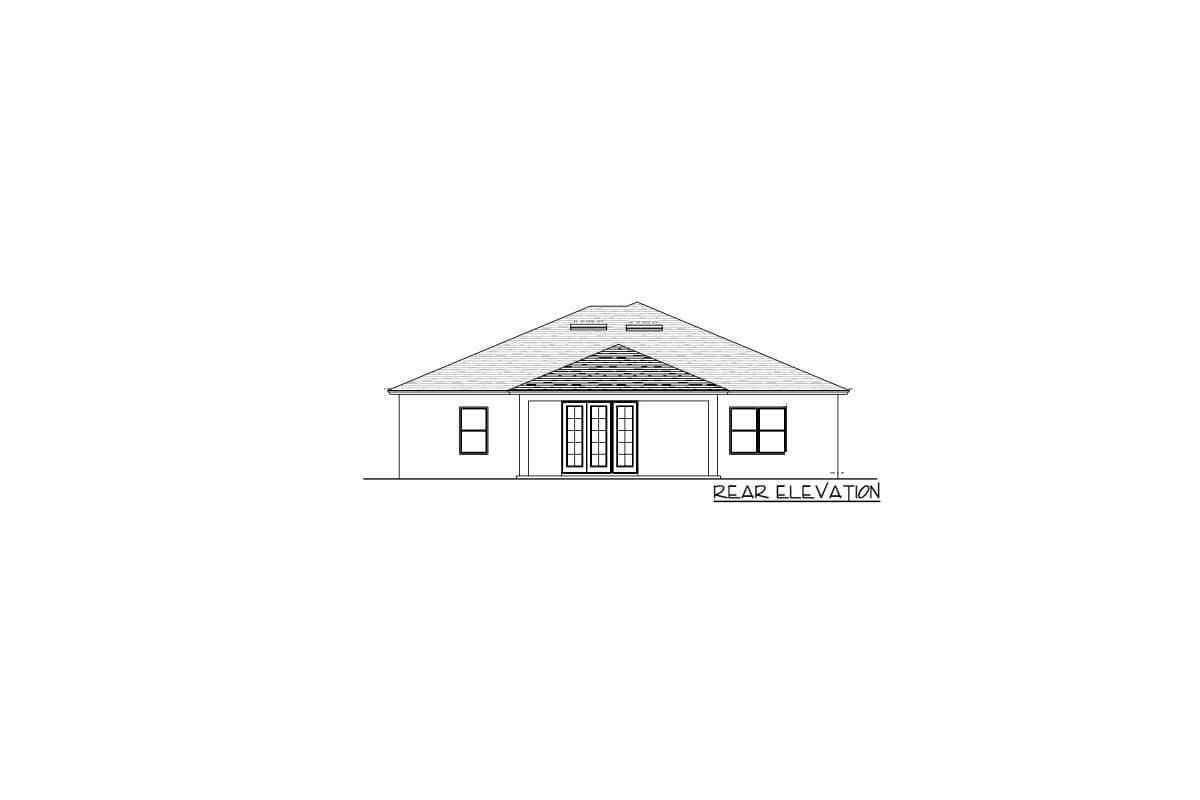

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Plan details



Southern House Plan in Two Versions

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,005
  • 8 Sets $1,080
  • PDF - single-use $1,215
  • CAD $1,215
  • View all purchase option online

About This Plan

  • Transom windows shed extra light into the foyer and dining room of this Southern house plan.
  • You get huge great room where double doors lead out to the spacious relaxing covered lanai.
  • The kitchen has a peninsula eating bar and a walk-in pantry.
  • Flex space could be a formal dining room with windows on two sides.
  • Bedrooms are separated onto opposite sides of the home, a wonderful privacy feature.
  • Related Plan: Get an alternate interior layout with house plan 82104KA (1,934 sq. ft.).

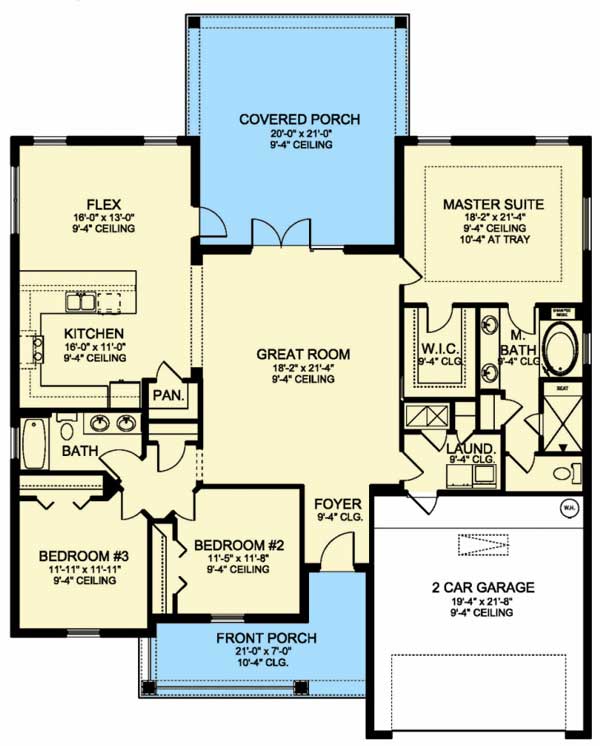

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 1,934 sq. ft.
  • Porch, Front: 168 sq. ft.
  • Porch, Rear: 400 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 48' 8"
  • Depth: 58' 4"
  • Max ridge height: 19' 0"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
