Southern House Plan with Fireplaced Patio In Back - 3579 Sq Ft

Heated S.F.
3,579
Beds
4
Baths
4.5
Stories
2
Cars
3
Client Photos

Floor Plan

Plan 510004WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510004WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

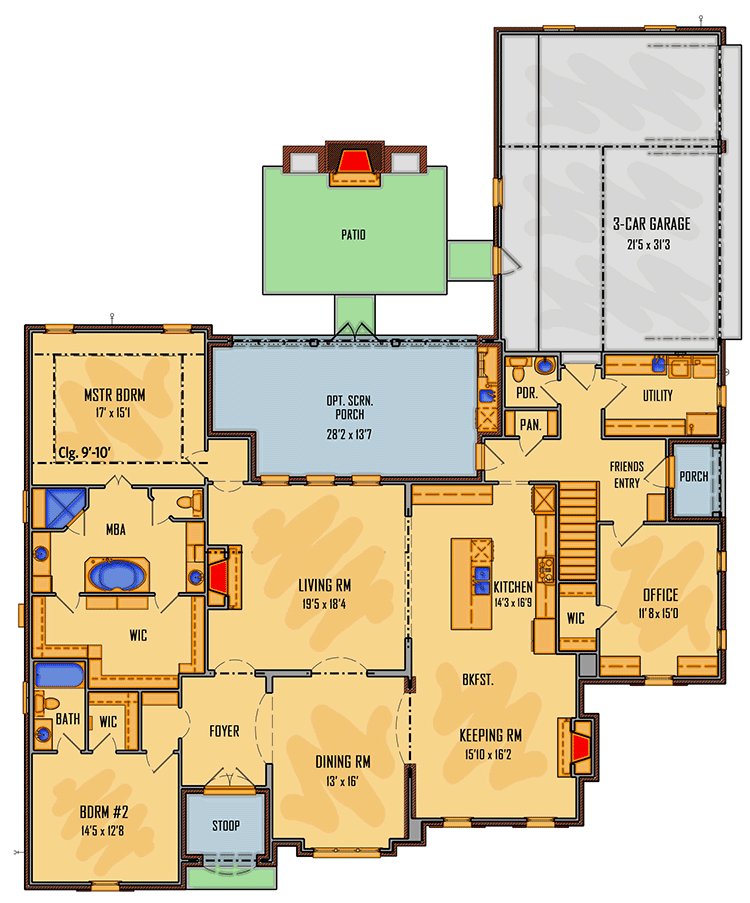

Plan 510004WDY: Southern House Plan with Fireplaced Patio In Back - 3579 Sq Ft - Floor Plan - Main Level - European, French Country, Southern

2nd Floor

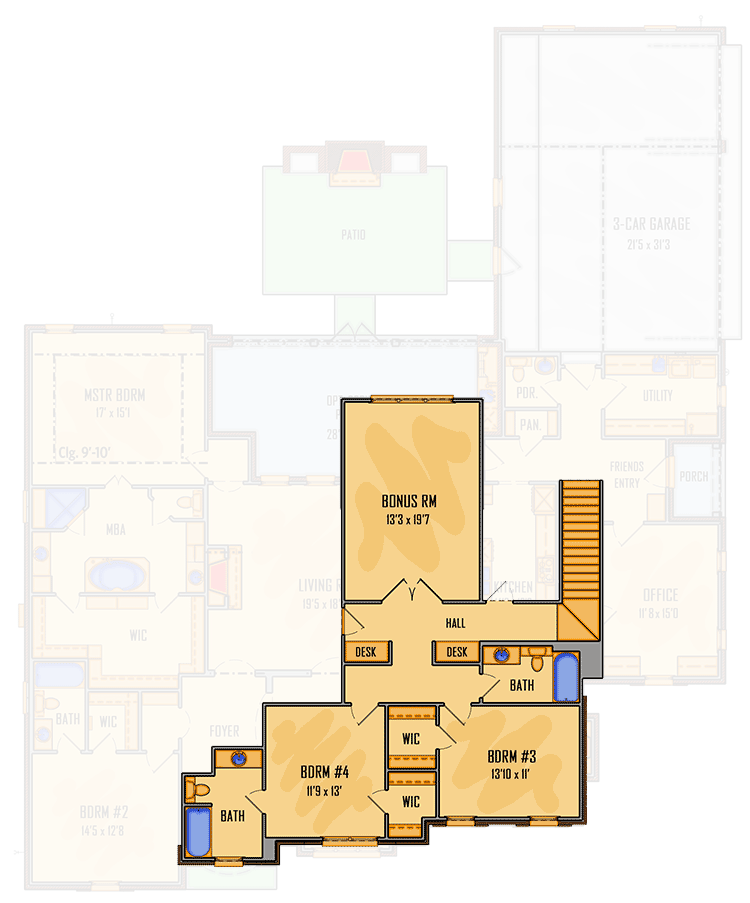

Plan 510004WDY: Southern House Plan with Fireplaced Patio In Back - 3579 Sq Ft - Floor Plan - 2nd Floor - European, French Country, Southern

Plan Details

  • The elegant exterior of this Southern House Plan is set off by a gorgeous round window on the second floor.
  • Wide arched entryways add a custom touch and enhance the views between rooms.
  • The optional screened porch is delightful for eating outdoors.
  • The first floor guest suite has a private bathroom and is ideal for family members who are visiting.
  • Built-ins and a walk-in storage closet make the home office more functional.
  • Homeowners gets a lovely tray ceiling in the master suite and a spacious master bathroom with giant walk-in closet.
  • On the upper floor, two built-in desks help keep the kids organized.
  • Finish the bonus room to gain an extra 276 square feet of living space.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Southern House Plan 510004WDY Comes to Life in Oklahoma (again!)

Southern House Plan 510004WDY Comes to Life in Oklahoma (again!)

121

Photos

build gallery item - Southern House Plan 510004WDY comes to life in Oklahoma

Southern House Plan 510004WDY comes to life in Oklahoma

109

Photos

What's Included

This plan has 10 sheets as follows:
  1. Coversheet Color Rendering
  2. 1st Floor Plan with Dimensions, Notes,Door and Window Sizes, Beam Sizing
  3. 2nd Floor Plan with Dimensions, Notes,Door and Window Sizes, Beam Sizing

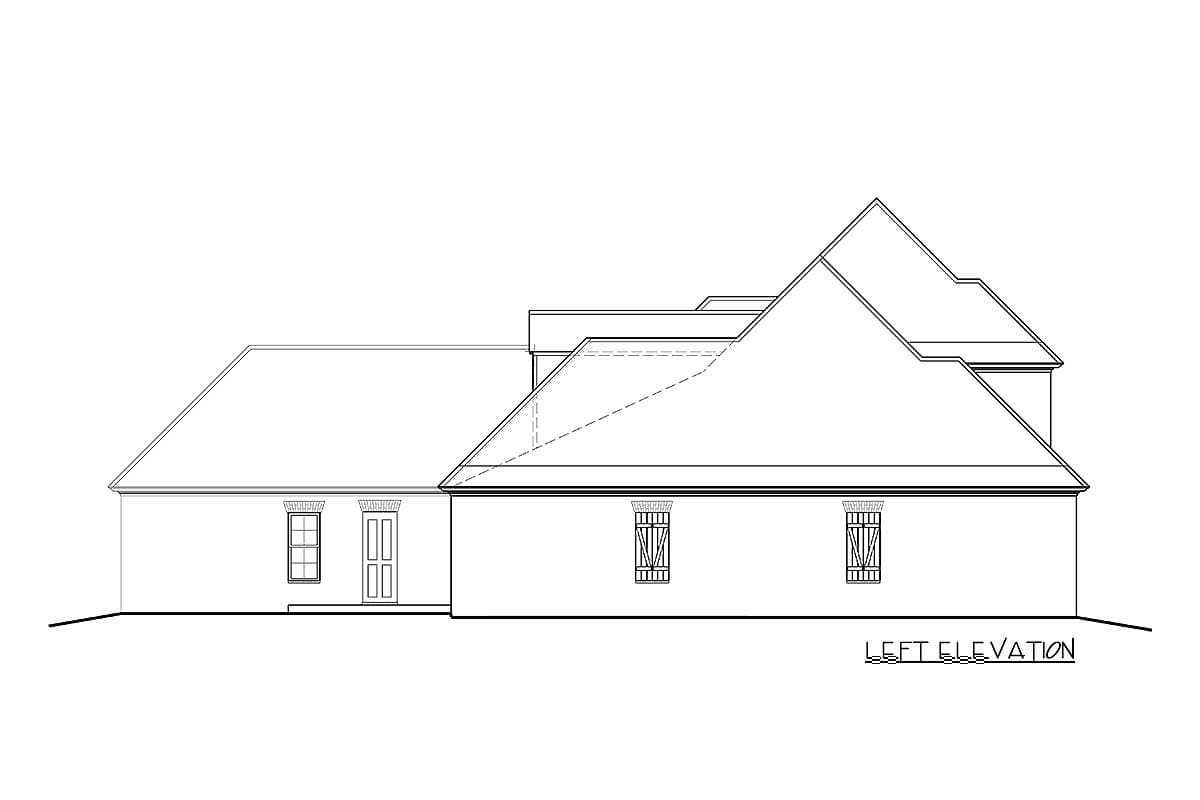

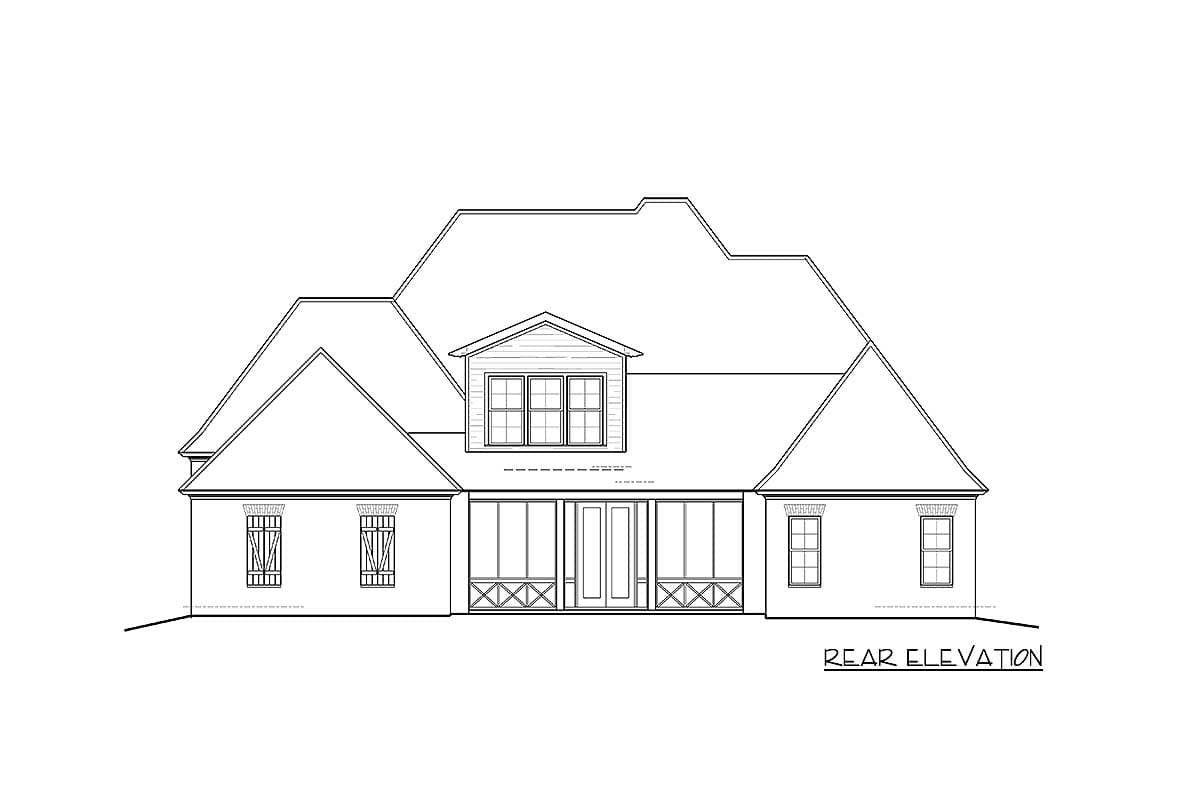

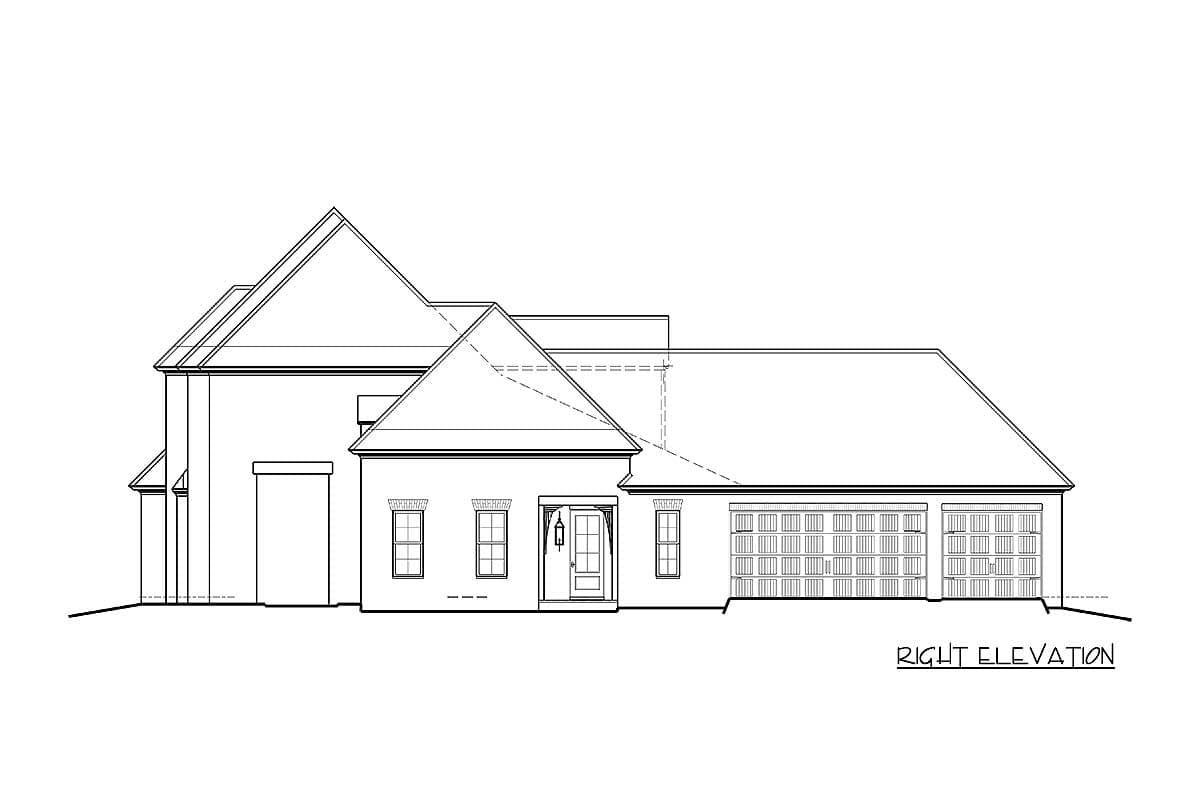

  4. Front, Left, Right, Rear Elevations, Roof Plan
  5. Building Sections and Roof Plan
  6. Misc. Details and Rafter Schedule
  7. 1st Floor Electrical and Schedules
  8. 2nd Floor Electrical and Schedules
  9. Slab Foundation
  10. Slab Foundation Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,579 sq. ft.

1st Floor

2,833 sq. ft.

2nd Floor

746 sq. ft.

Bonus

276 sq. ft.

Porch, Front

57 sq. ft.

Porch, Rear

364 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 1"

Depth

85' 1"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

698 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Formal Dining

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry
