Plan 59945ND Southern House Plan with Game Room and Loft

2,471 3 2.5 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Southern House Plan with Game Room and Loft

Plan 59945ND

  • 2,471

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

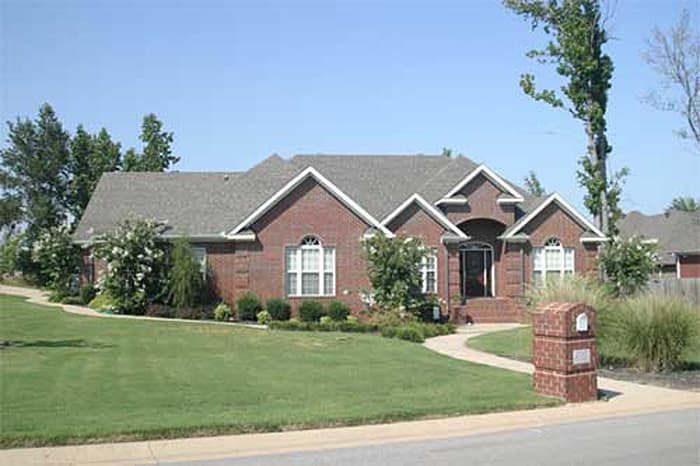

  • Elegant circle-top windows mirror the elegant features inside of this Southern house plan.
  • Tray and vaulted ceilings plus built-ins by the great room fireplace and double doors that usher you into the formal dining room all elevate this home, giving it a custom feel.
  • The marvelous open floor plan in the main living area lets your family easily spend time together.
  • Four stools at the raised eating bar in the kitchen give your family a place to grab a quick snack or just chat while dinner is cooking.
  • The spacious master suite has sloped ceilings and lots of room to create a fabulous master retreat.
  • Climb the stairs to reach the big game room that comes with a handy half bathroom.
  • Bench seating and a built-in desk in the loft area make this space extremely functional.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

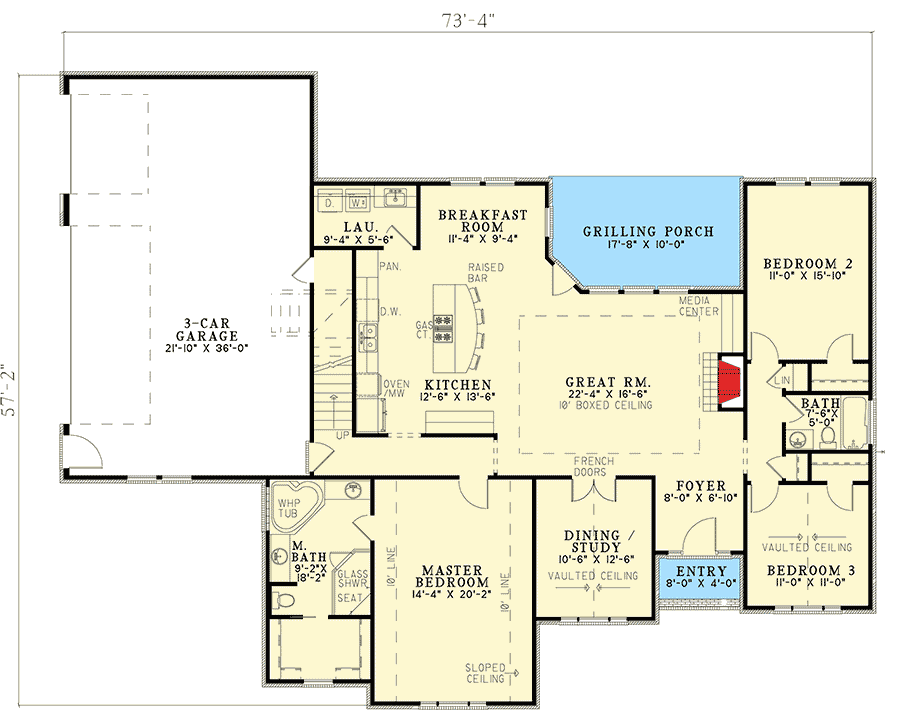

Southern House Plan with Game Room and Loft - 59945ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

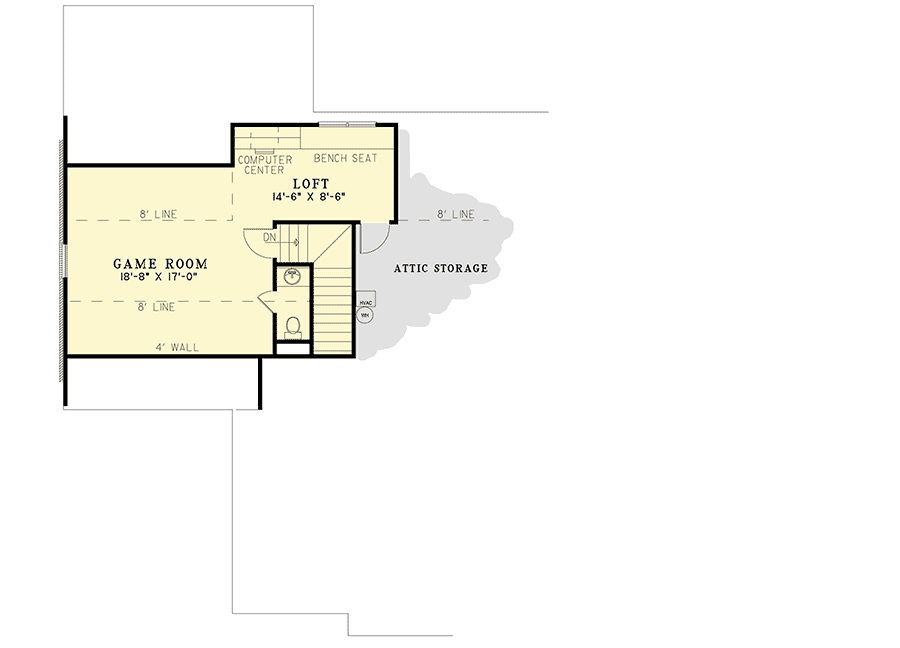

Southern House Plan with Game Room and Loft - 59945ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,471 sq. ft.
  • 1st Floor: 1,984 sq. ft.
  • 2nd Floor: 487 sq. ft.
  • Porch, Rear: 168 sq. ft.
  • Entry: 32 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 4"
  • Depth: 57' 2"
  • Max ridge height: 24' 5"

Garage

  • Type: Attached
  • Area: 853 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Southern House Plan with Game Room and Loft

  • 2,471

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,471 sq. ft.
  • 1st Floor: 1,984 sq. ft.
  • 2nd Floor: 487 sq. ft.

Dimensions

  • Width: 73' 4"
  • Depth: 57' 2"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 853 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
