Plan 52272WM
Southern House Plan with Open Layout - 1709 Sq Ft
Heated S.F.
1,709
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 52272WM

Main Level
slide image 0

Plan 52272WM

1-800-854-7852

1-262-521-4596

Main Level

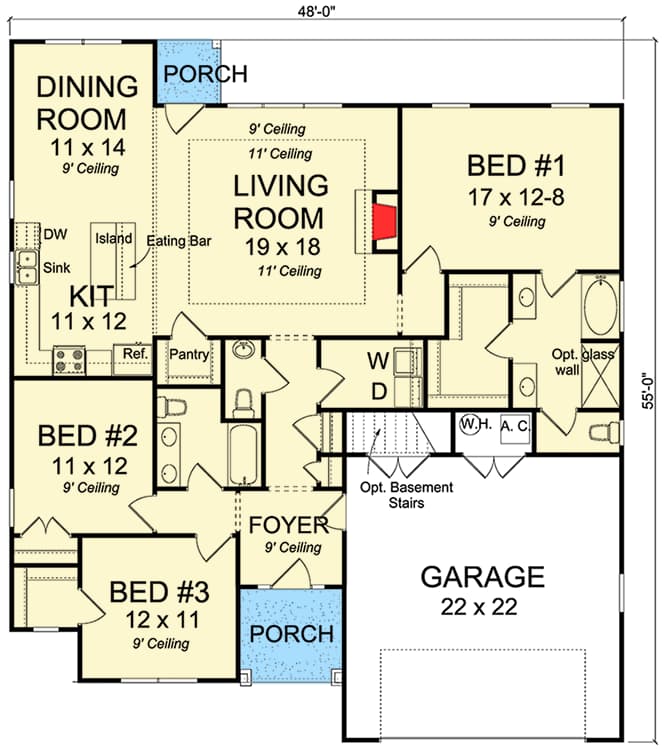

floor plan image Main Level
Plan Details
  • Coming in at under 50' wide, this well-planned Southern house plan takes you past two secondary bedrooms at the front of the house to reach the huge open layout in the back.
  • The kitchen, dining room and living room are all united in one huge space where the whole family can be together.
  • An 11' high tray ceiling crowns the living room that also offers a fireplace.
  • The island in the kitchen gives you a peninsula eating bar and extra storage plus counter space.
  • The master bedroom is tucked away in the back of the home, away from street noise.
  • Bedroom 3 has a large walk-in closet and shares a hall bathroom with bedroom 2.
  • Related Plans: Get a four bedroom version with house plan 52273WM (2,107 sq. ft.) and even more space with a game room and 3rd garage bay with house plan 52274WM (2,425 sq. ft.).
What's Included
  • Front elevation and construction notes

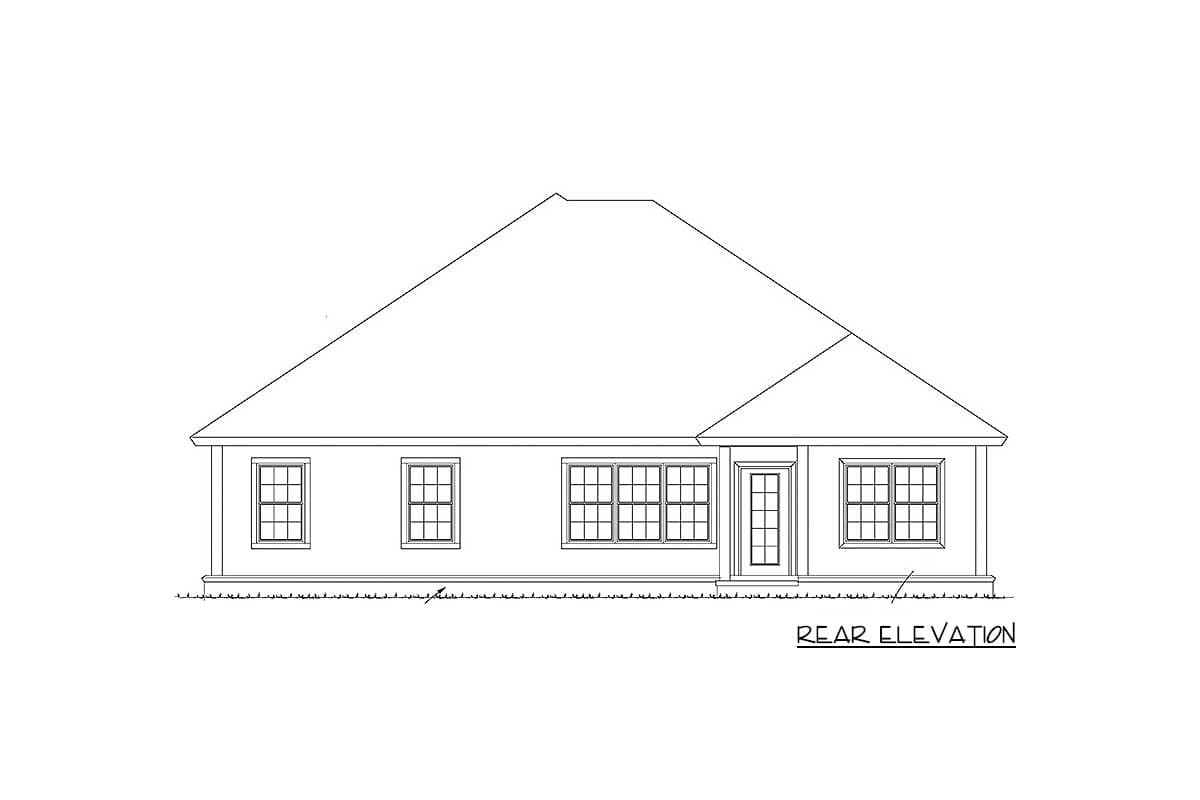

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
