Southern Ranch Home Plan with Vaulted Family Room

Plan 20144GA

  • 2,140

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This charming traditional Southern ranch home plan has a spacious interior featuring a vaulted family room.
  • The country kitchen, with a generous walk-in pantry, is open to the vaulted family room. A French door leads to the vaulted screened porch which has access to the deck.
  • The dining room has a tray ceiling and a decorative square column.
  • The master suite has a tray ceiling, a sitting area, his and hers walk-in closets, and exquisite bath. Bedrooms 2 and 3 feature walk-in closets and individual baths.
  • Stairs are tucked behind the functional laundry room and take you to the bonus level which adds 1,535 square feet to the home should you build it as designed. The upstairs gives you two additional bedrooms, a sitting area, a rec room and storage.

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

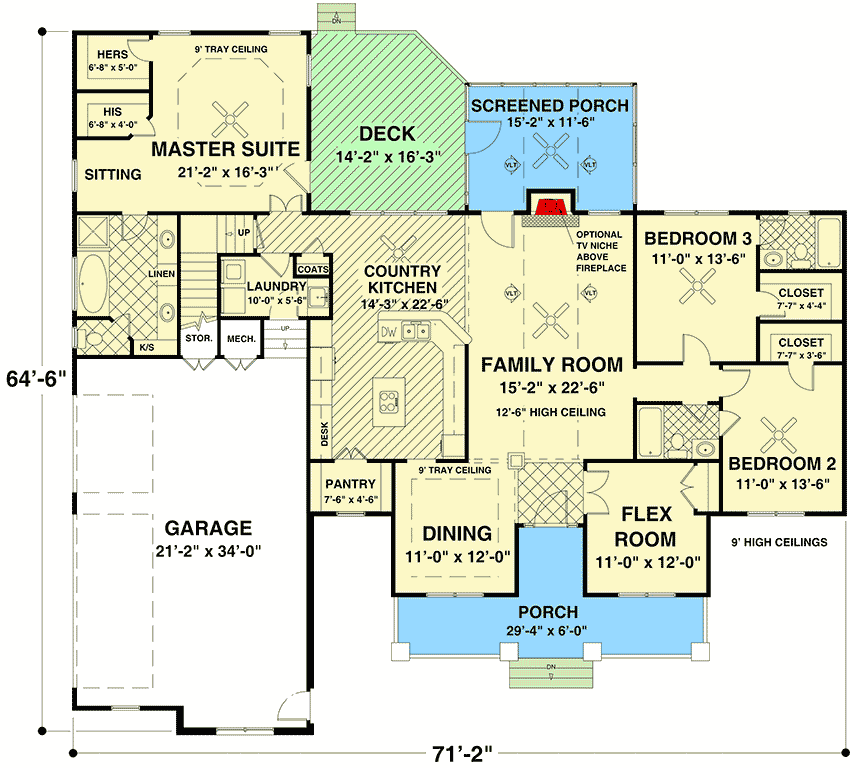

Southern Ranch Home Plan with Vaulted Family Room - 20144GA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

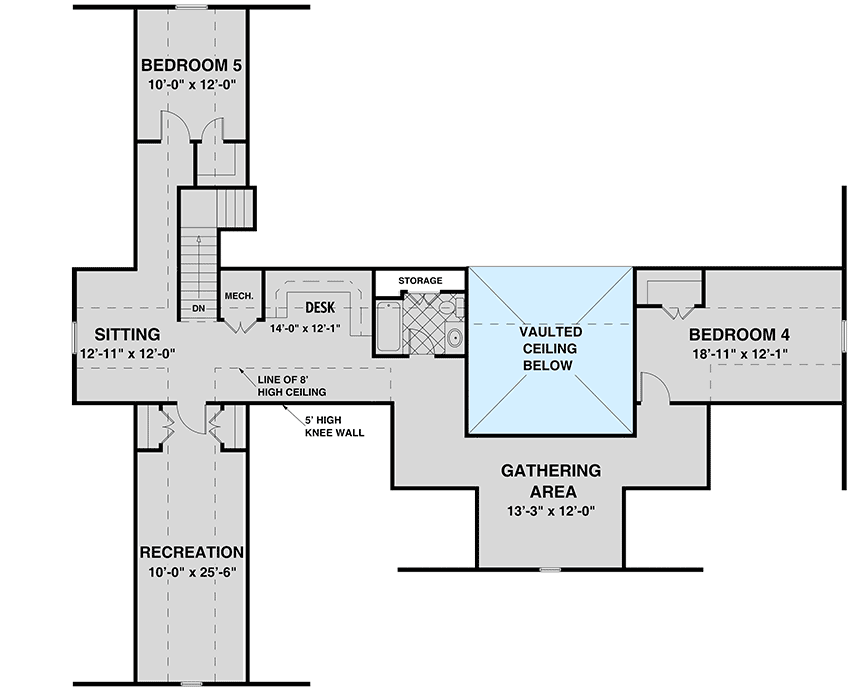

Southern Ranch Home Plan with Vaulted Family Room - 20144GA floor plan - Bonus Level

Southern Ranch Home Plan with Vaulted Family Room

  • 2,140

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,140 sq. ft.
  • 1st Floor: 2,140 sq. ft.

Dimensions

  • Width: 71' 2"
  • Depth: 64' 6"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
