Southern Ranch House Plan: 3 Beds, Split Layout, and Inviting Porches

Heated S.F.
1,928
Beds
3
Baths
2
Stories
1
Cars
2

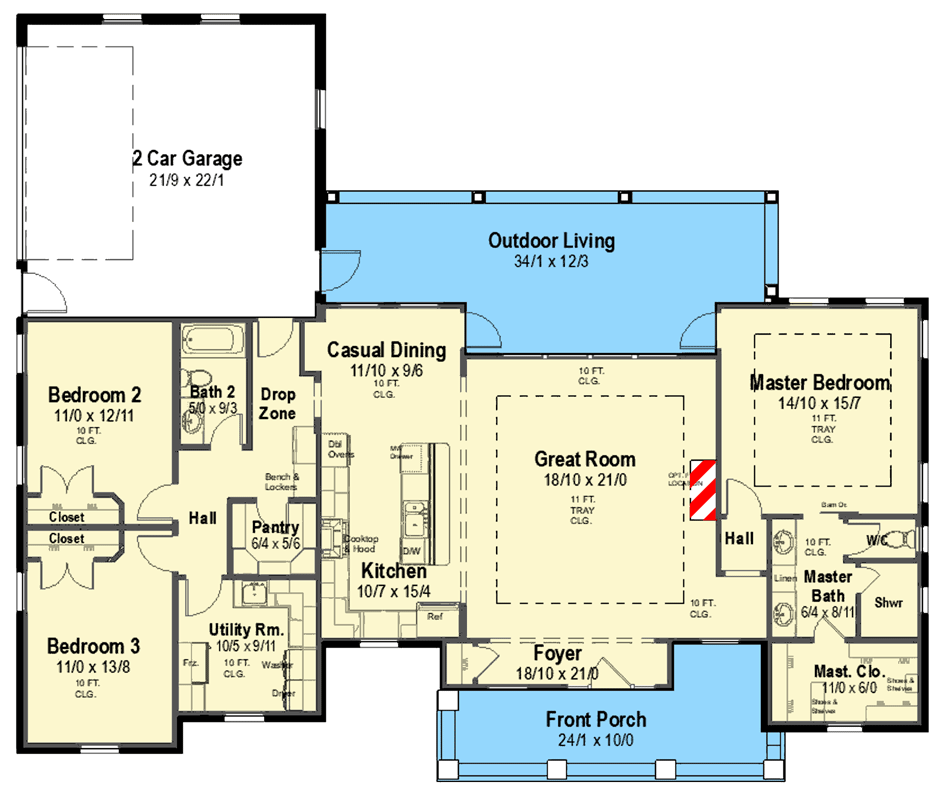

Floor Plan

Plan 54076LK

Floor Plan 1

Plan 54076LK

M-F 9am-5pm EST |

1-203-761-8500

Plan 54076LK: Southern Ranch House Plan: 3 Beds, Split Layout, and Inviting Porches - Floor Plan - - Ranch, Southern

Plan Details

  • This charming 1,928 sq ft Southern Ranch House Plan presents 3 bedrooms, 2 baths, and a 497 sq ft attached 2-car garage, all framed by classic brick and an inviting front porch.
  • Step through the inviting front porch into a home designed for comfortable living, featuring 10-foot ceilings that enhance the open flow.
  • The central living space flows effortlessly, connecting to a functional kitchen with a walk-in pantry and a cozy breakfast nook, ideal for daily routines.
  • The private primary suite is thoughtfully separated from the two secondary bedrooms, ensuring a peaceful retreat on the main level.
  • Enjoy gracious outdoor living with 567 sq ft of combined porch space, perfect for relaxing or entertaining guests.

What's Included

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

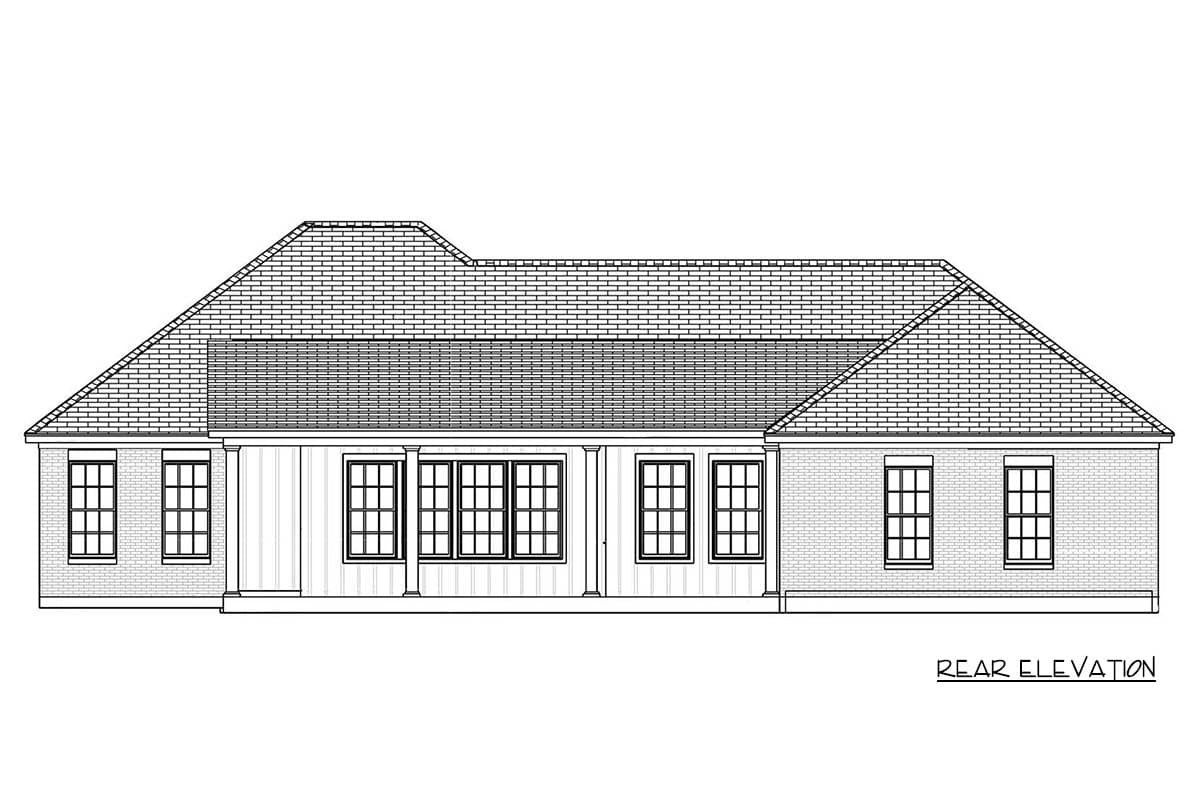

  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,928 sq. ft.

1st Floor

1,928 sq. ft.

Porch, Combined

567 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

57' 0"

Max Ridge Height

23' 7"

Garage

Type

Standard, Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,928 sq. ft.

1st Floor

1,928 sq. ft.

Porch, Combined

567 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

57' 0"

Max Ridge Height

23' 7"

Garage

Type

Standard, Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
