Plan 59784ND

Southern Ranch House Plan with 4 Beds, Split Layout, and Grilling Porch

Heated S.F.
1,552
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59784ND

Main Level
Main Level

Plan 59784ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

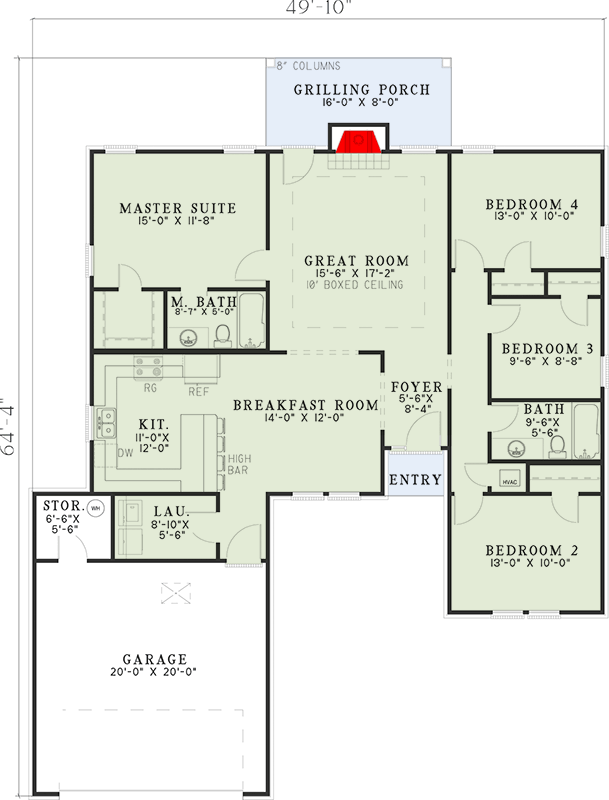

Plan 59784ND: Southern Ranch House Plan with 4 Beds, Split Layout, and Grilling Porch - Floor Plan - Main Level - Ranch, Southern

Plan Details

  • This charming 1,552 sq. ft. Southern Ranch house plan features 4 bedrooms, 2 full bathrooms, and an attached 461 sq. ft. two-car garage, all wrapped in a classic brick exterior.
  • Step inside from the welcoming entry foyer, which elegantly guides you into the heart of the home, revealing a versatile layout that balances connectivity with defined spaces, including a spacious great room and an inviting breakfast room.
  • The main living areas flow seamlessly, with the breakfast room connecting to a well-appointed kitchen featuring a high bar perfect for casual meals. The expansive great room, boasting a dramatic 17'2" ceiling, serves as the central gathering space, ideal for relaxation and everyday living.
  • The master suite, a private sanctuary, is thoughtfully positioned on one side of the home, offering tranquility and comfort with its generous dimensions. Three additional bedrooms are located on the opposite side, sharing a full bathroom, ensuring privacy and convenience for family members or guests in this popular split-bedroom design.
  • Enjoy outdoor living on the generous 151 sq. ft. grilling porch, directly accessible from the great room, providing an ideal spot for al fresco dining or morning coffee.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,552 sq. ft.

1st Floor

1,552 sq. ft.

Porch, Combined

151 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 10"

Depth

64' 4"

Max Ridge Height

17' 9"

Garage

Type

Attached

Area

461 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,552 sq. ft.

1st Floor

1,552 sq. ft.

Porch, Combined

151 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 10"

Depth

64' 4"

Max Ridge Height

17' 9"

Garage

Type

Attached

Area

461 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans
