Plan 83973JW

Southern Ranch House Plan with Two Bedrooms and Two-Car Garage

Name: Plan 83973JW: Southern Ranch House Plan with Two Bedrooms and Two-Car Garage
Brand: Architectural Designs
SKU: 83973JW
Price: 845.0 USD
Availability: InStock

Heated S.F.

1,644

Beds

Baths

2.5

Stories

Cars

Floor Plan

Plan Details

This charming Southern ranch house plan offers 1,644 square feet of heated living space, two bedrooms, two full bathrooms, a half bath, and a two-car side-entry garage.
The home greets you with a classic white brick facade and a welcoming covered porch that leads into a thoughtfully designed, efficient interior layout.
Inside, the floor plan emphasizes a seamless flow between the main living areas, centered around a kitchen equipped with a convenient walk-in pantry.
A split-bedroom design ensures privacy, positioning the primary suite away from the secondary bedroom to create a quiet, restful retreat for homeowners.
Practical daily life is supported by a dedicated mudroom and a main-level laundry room, both designed to keep the home organized and clutter-free.
Expansive porch areas totaling 248 square feet provide beautiful outdoor spaces for relaxing or enjoying the surrounding scenery.

What's Included

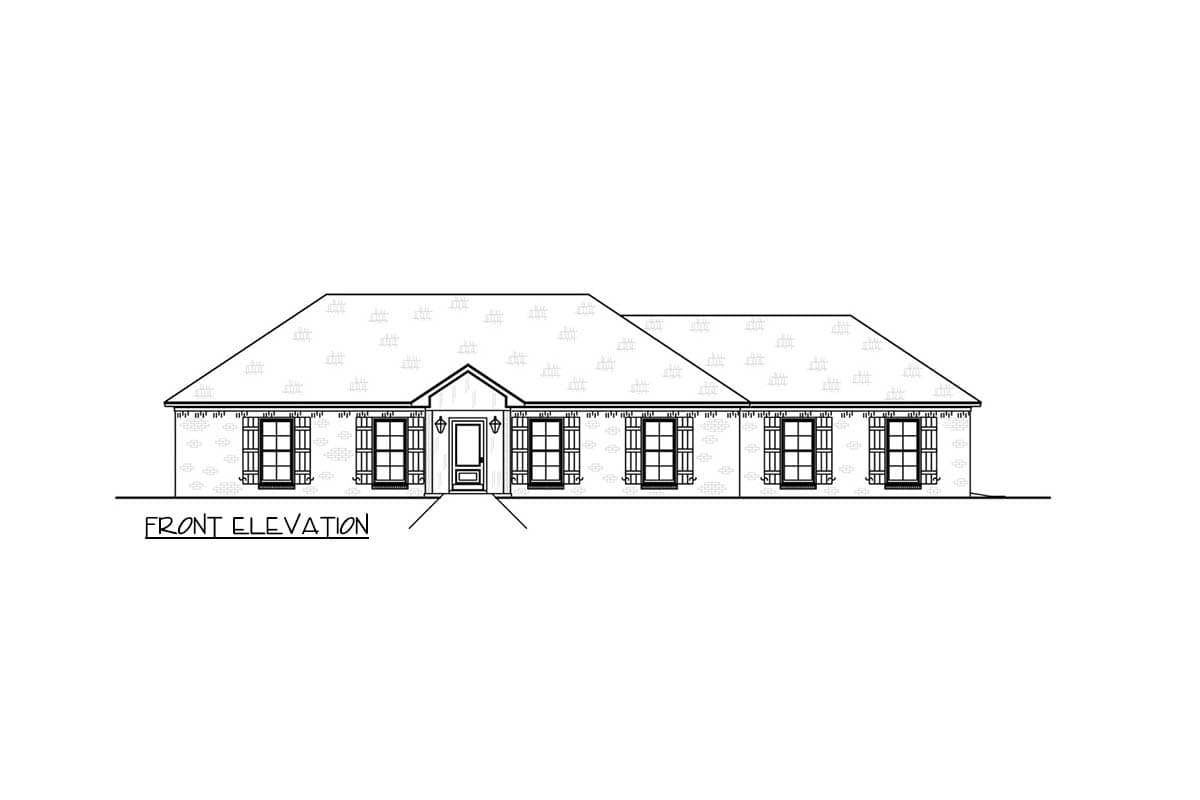

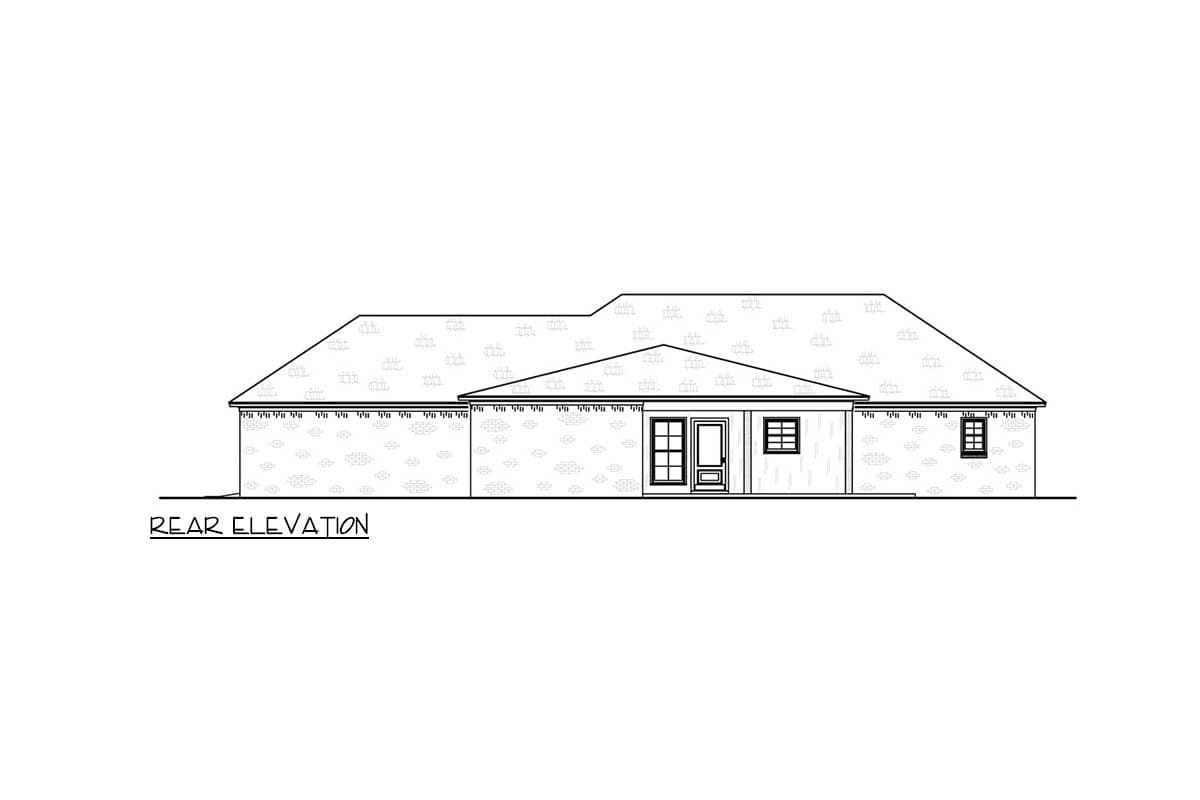

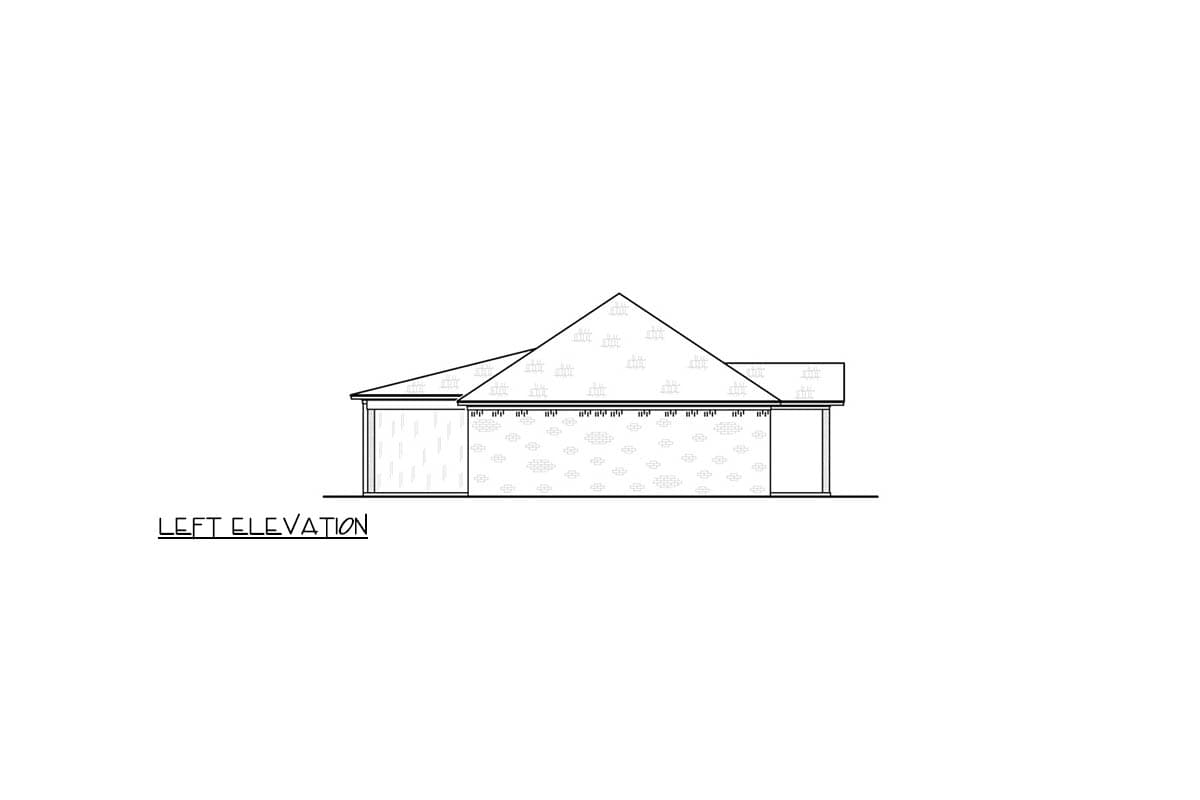

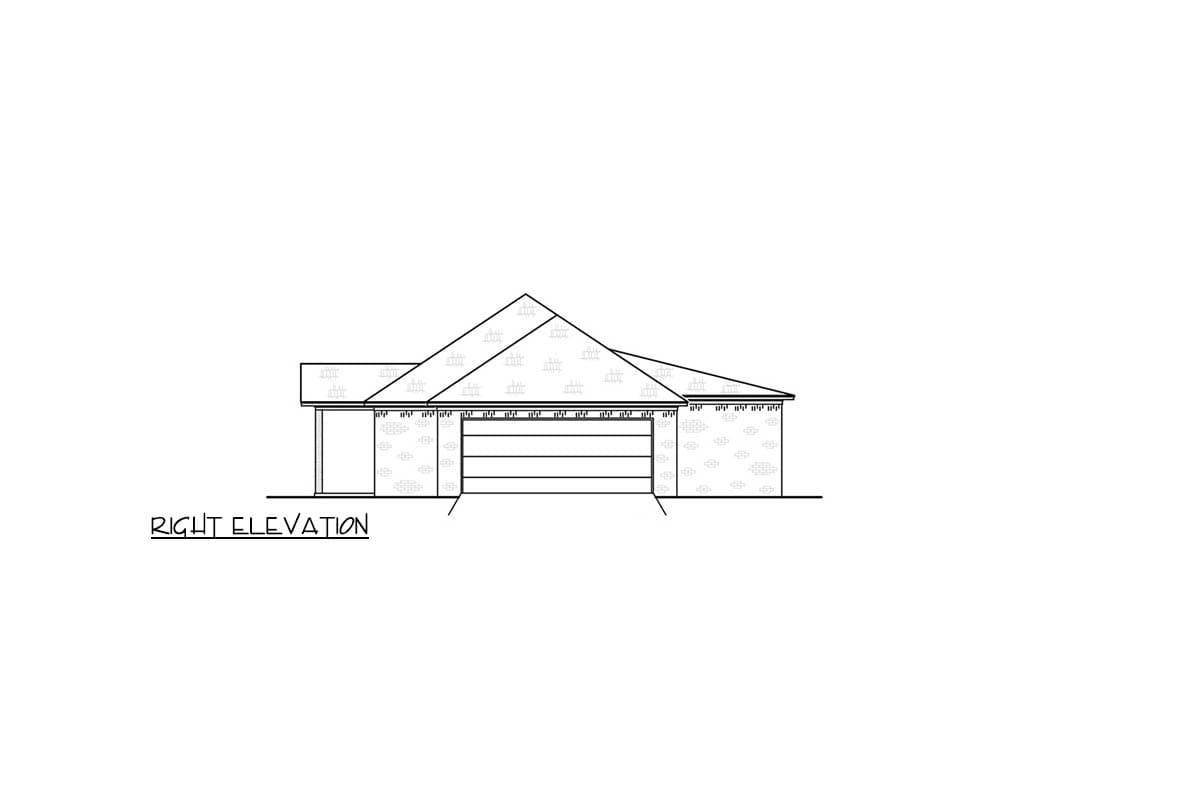

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

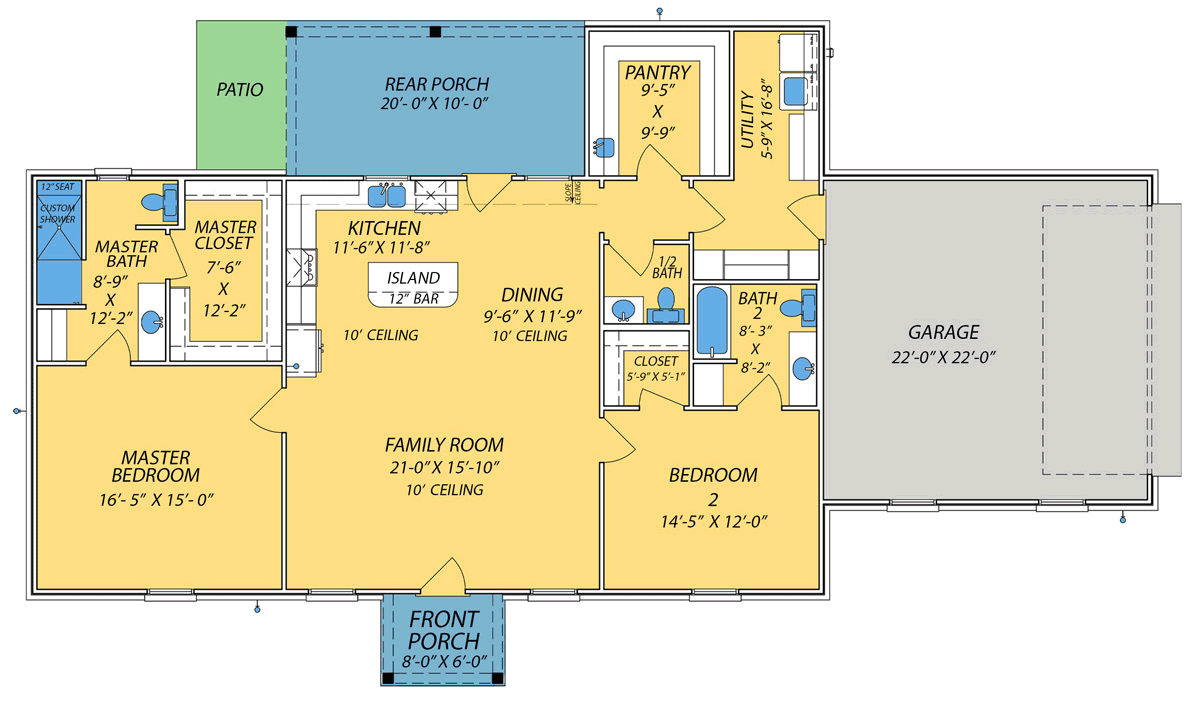

Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
