Plan 59636ND

Southern Style House Plan with Bonus Room

Heated S.F.
3,670
Beds
3 - 4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 59636ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59636ND

M-F 9am-5pm EST |

1-203-761-8500

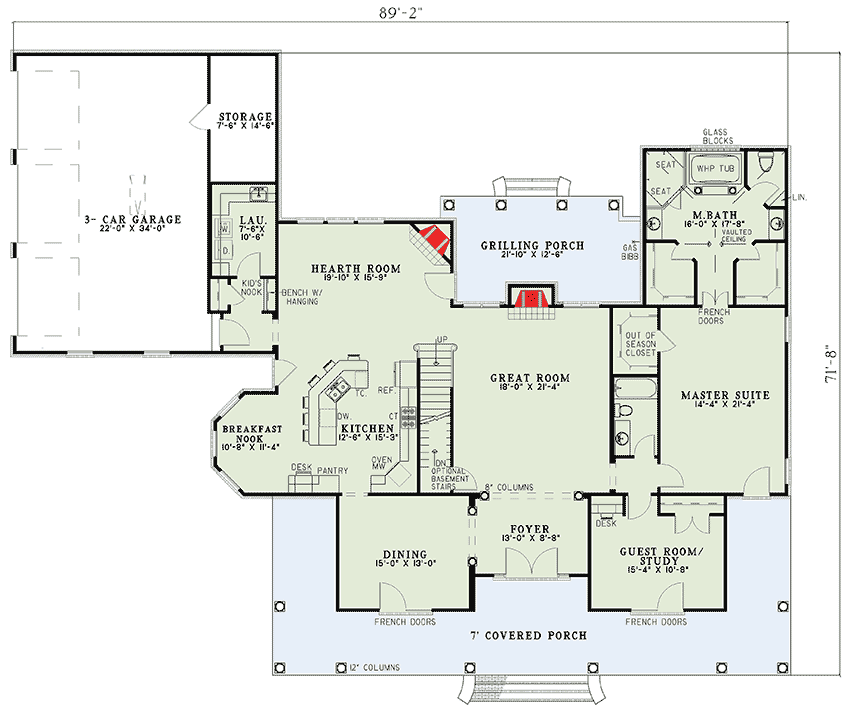

Main Level

Plan 59636ND: Southern Style House Plan with Bonus Room - Floor Plan - Main Level - Southern

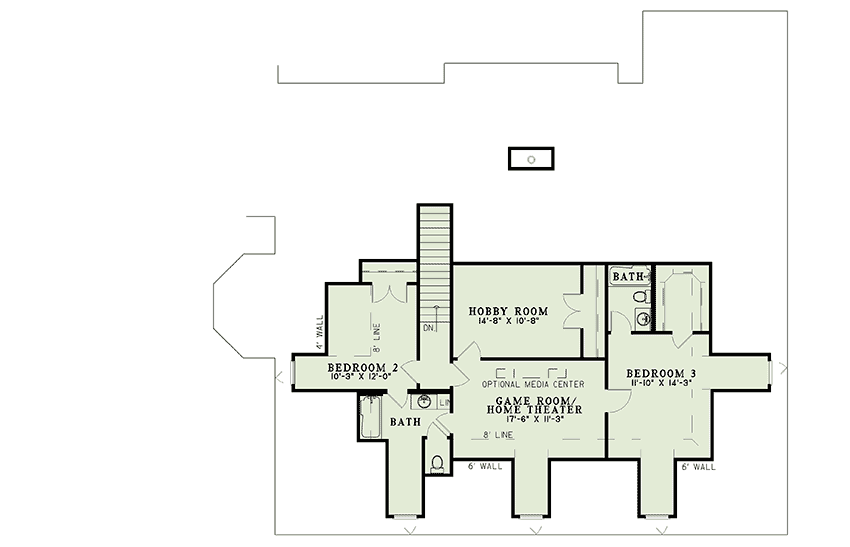

2nd Floor

Plan 59636ND: Southern Style House Plan with Bonus Room - Floor Plan - 2nd Floor - Southern

Plan Details

  • A foyer divides the dining room from the study and leads into the great room with fireplace.
  • Warmth and family gatherings await you in the cozy hearth room that opens into a spacious kitchen with breakfast nook.
  • Luxury can be found in the master suite located at the rear of the main level for the ultimate privacy.
  • Travel upstairs and find a game room or home theater with a nearby hobby room as well as additional bedrooms and private baths.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,670 sq. ft.

1st Floor

2,580 sq. ft.

2nd Floor

1,098 sq. ft.

Porch, Combined

943 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

89' 2"

Depth

71' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

902 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Breakfast Nook

Finished Bonus Room

Game/Rec Room

Home Theater

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Wraparound Porch

Plan Collections
