Plan 86346HH
Southern Traditional Home Plan with Screened Porch
Heated S.F.
2,682
Beds
3-4
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details

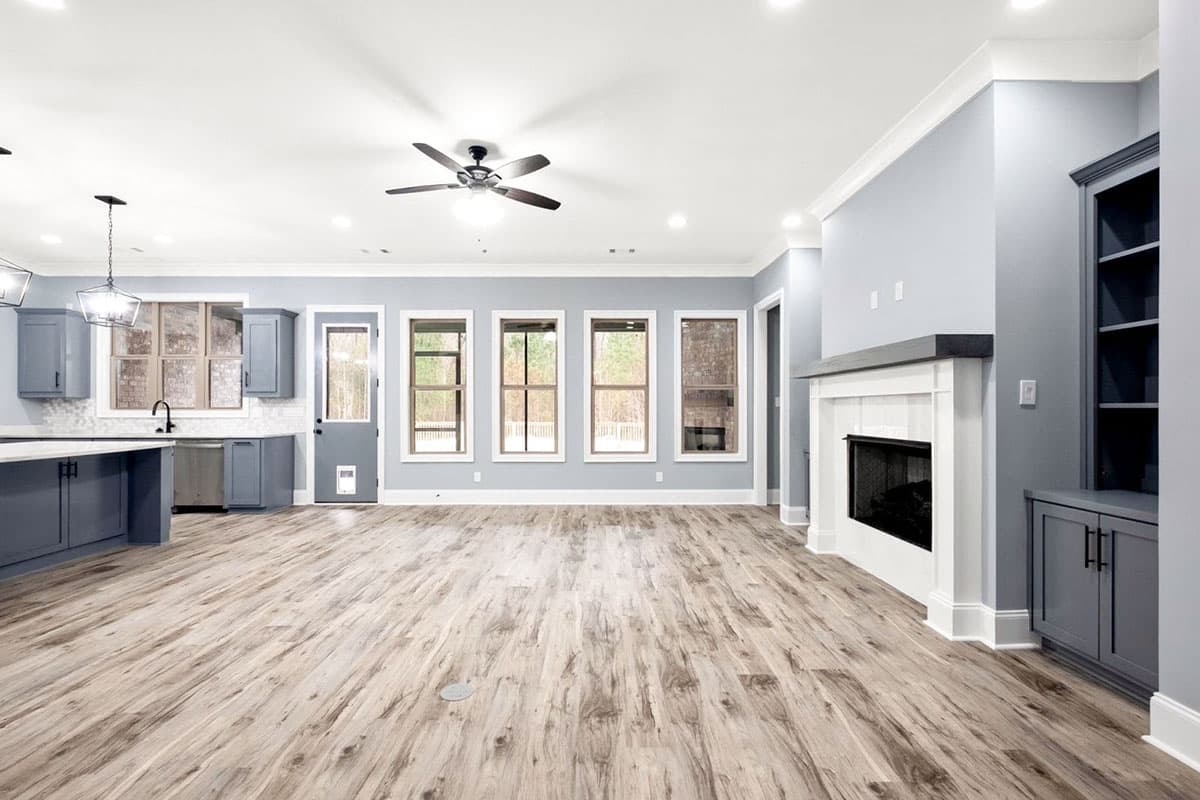

  • This Southern, traditional home plan presents a thoughtful interior flow with a private master bedroom set apart from the secondary bedrooms, and an open layout in the center of the home.

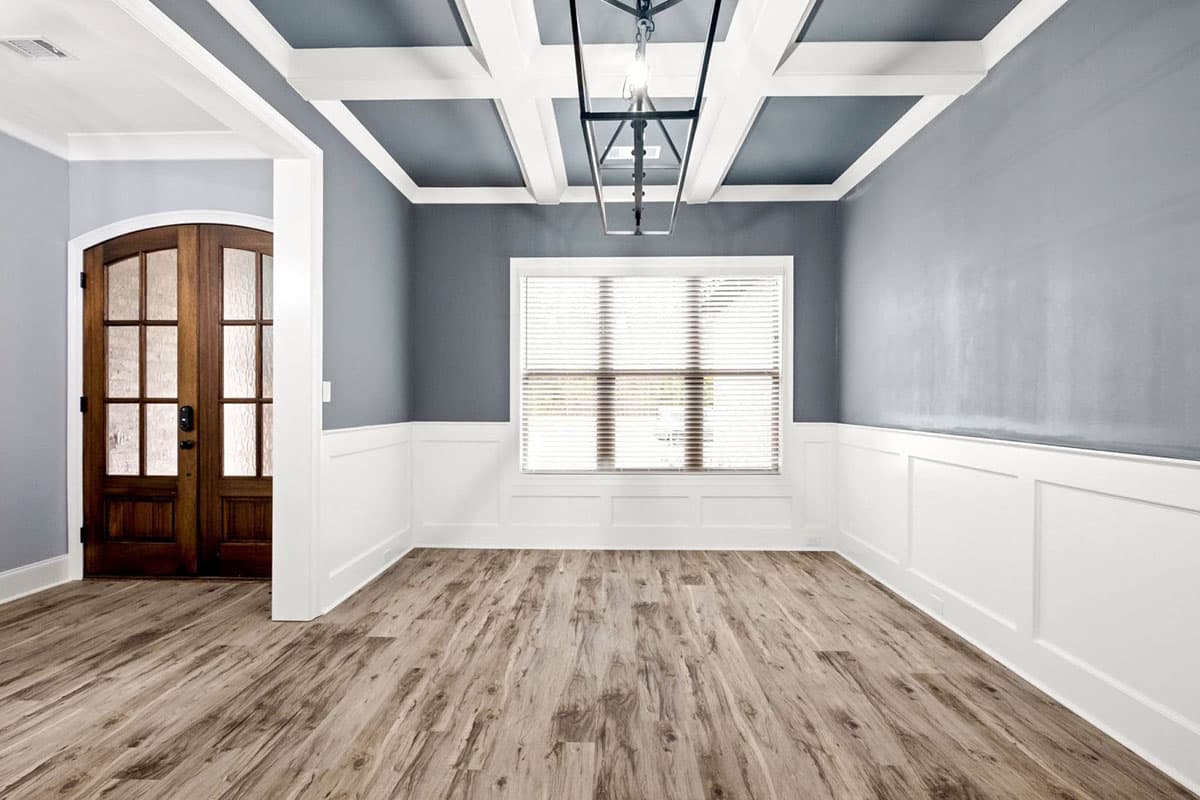

  • French doors welcome you inside, where elegant coffered ceilings sit atop the neighboring dining room.

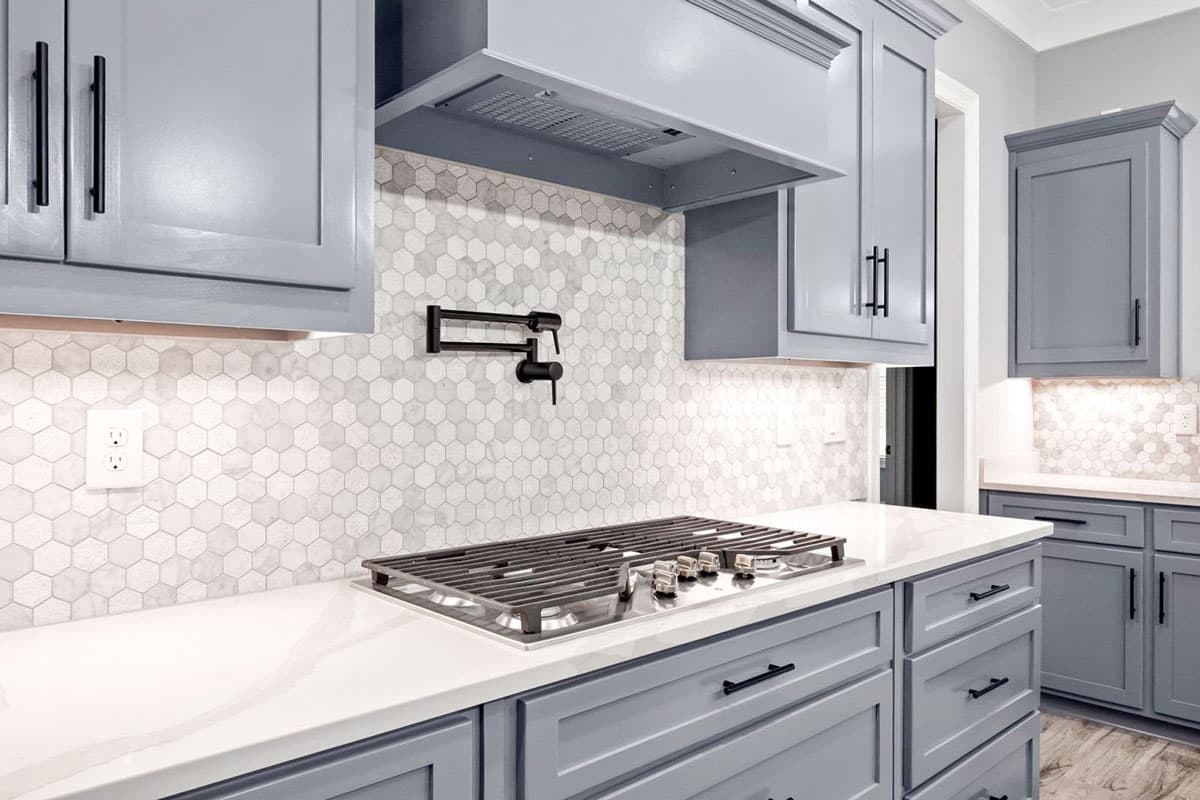

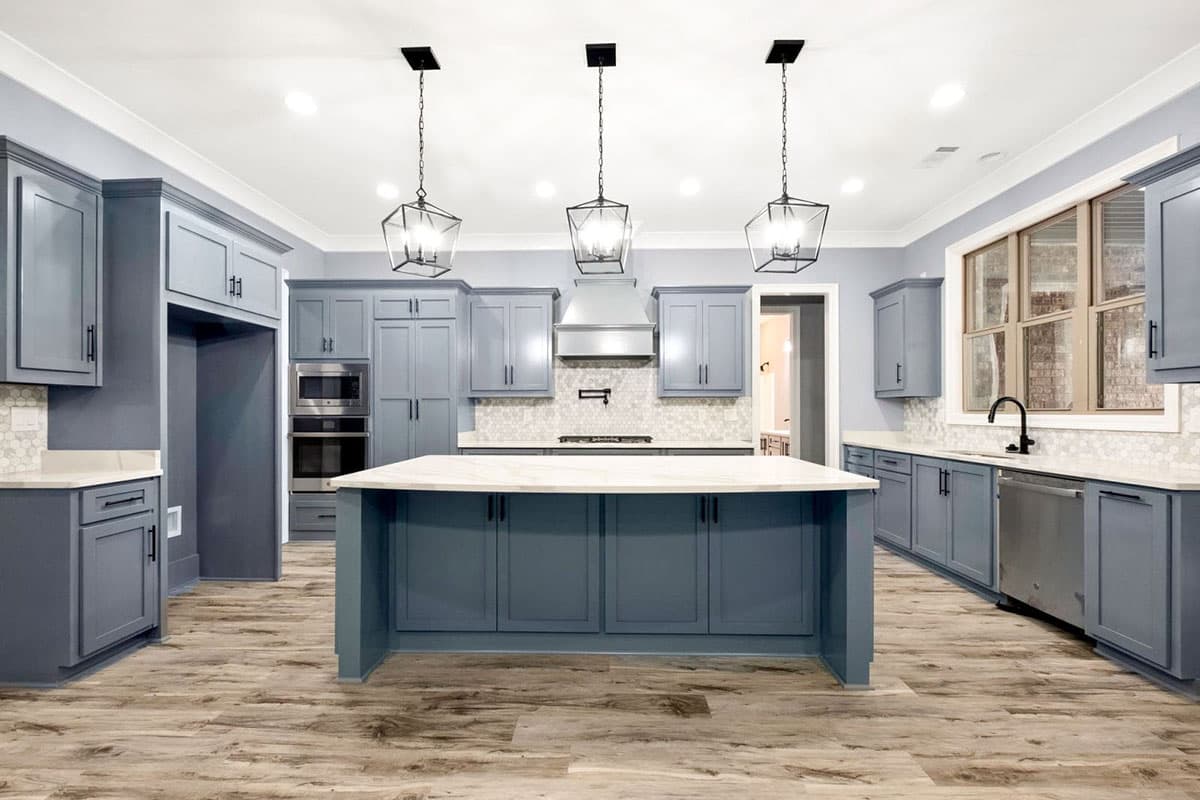

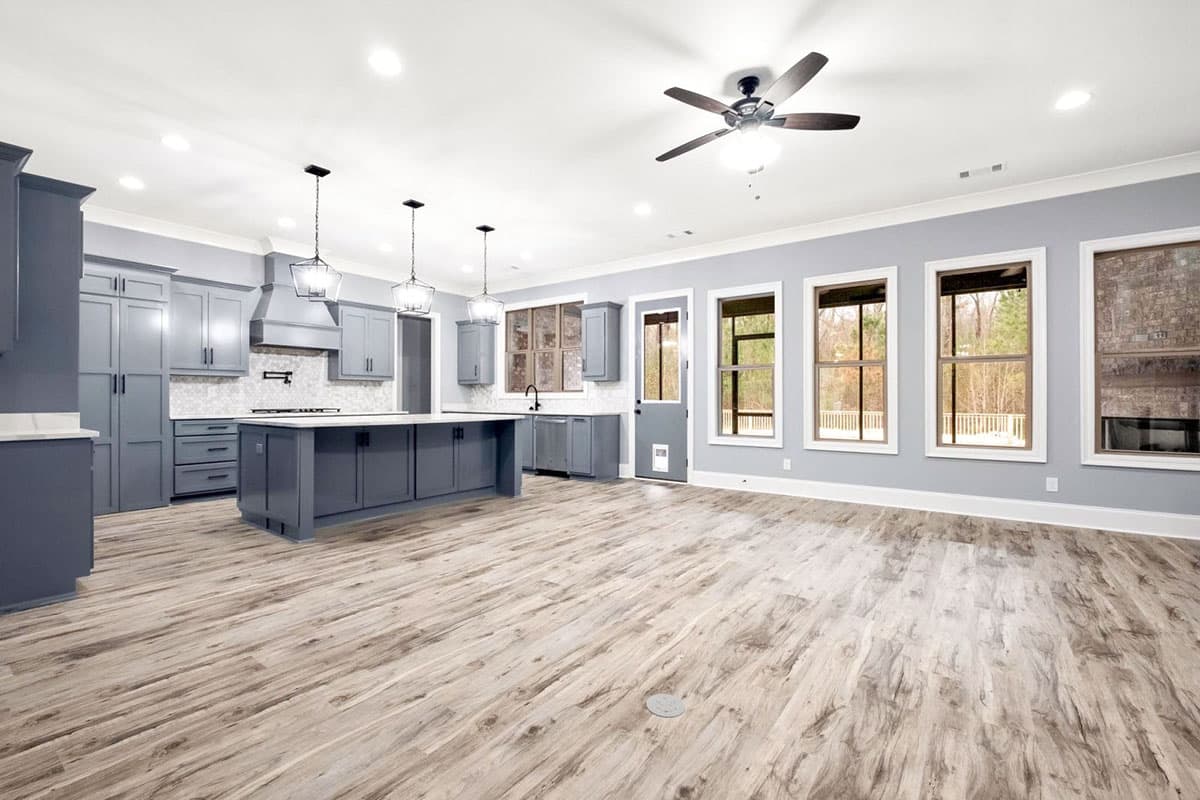

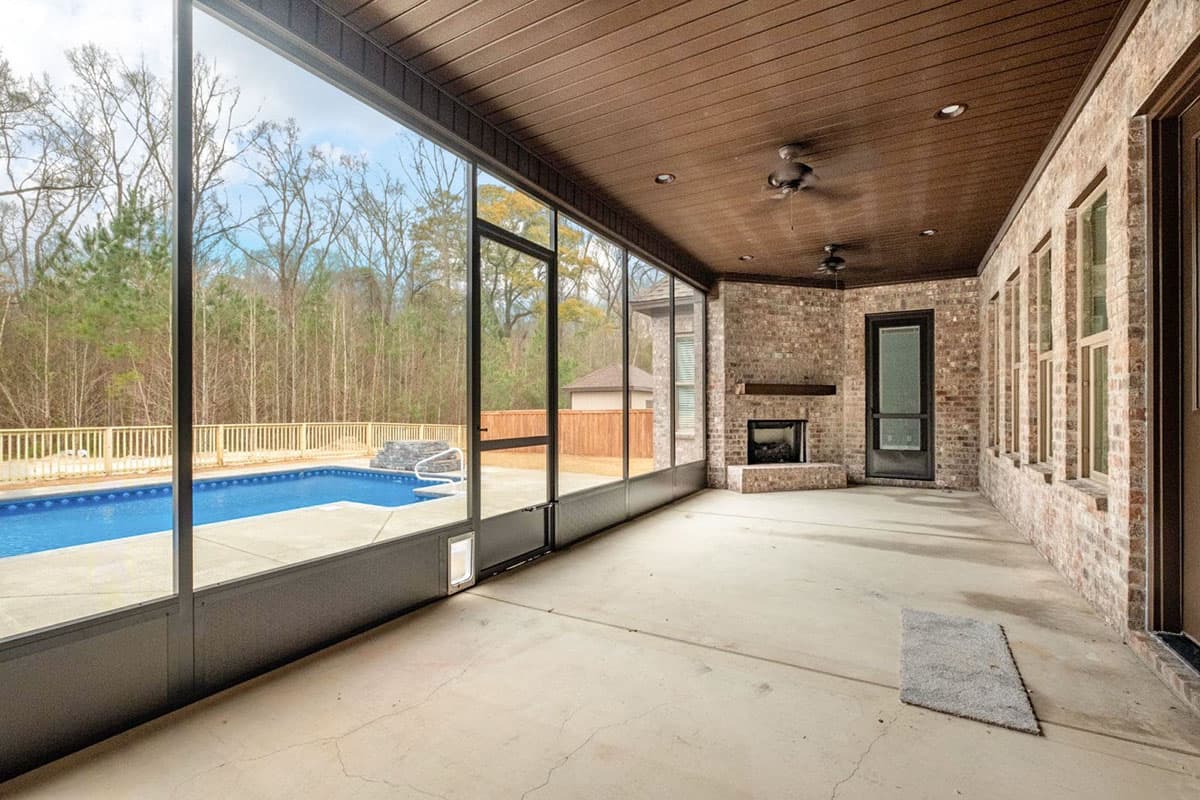

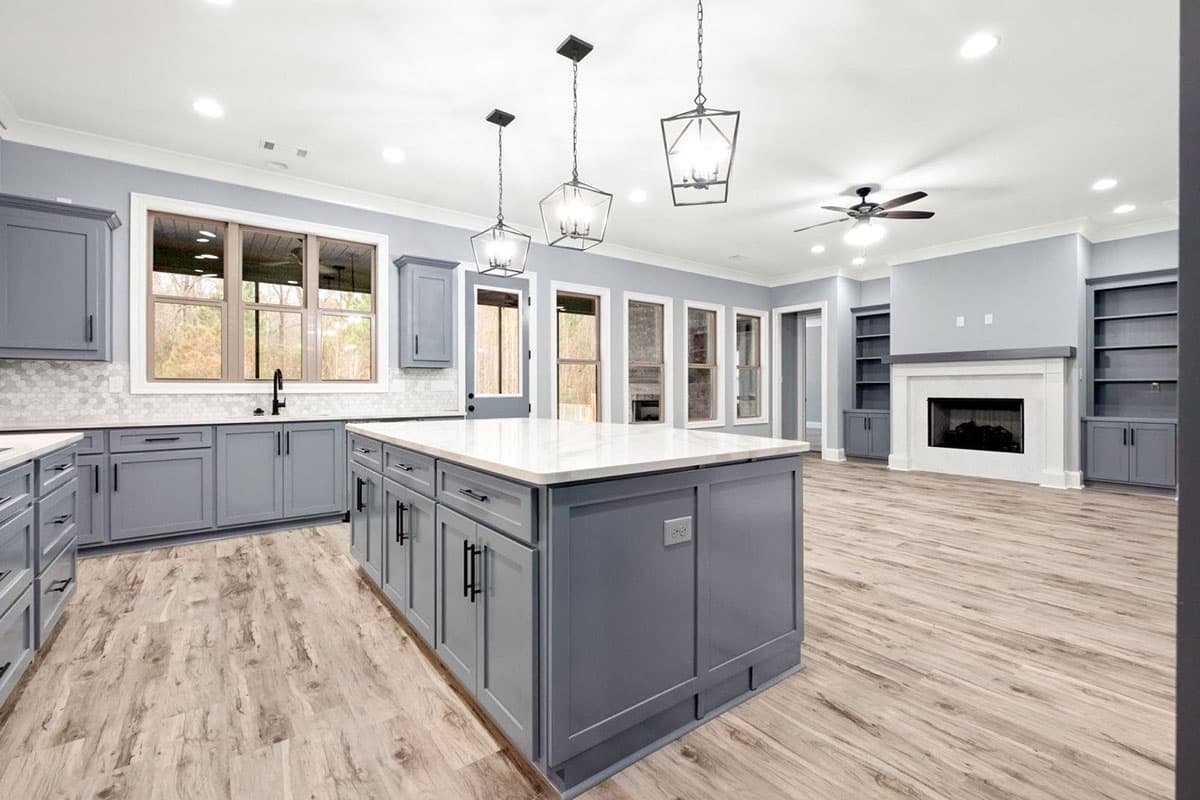

  • The kitchen boasts a sizable island with seating for casual meals, and a hidden pantry reveals itself behind cabinet doors. A large rear porch is screened, and includes a fireplace for colder months.

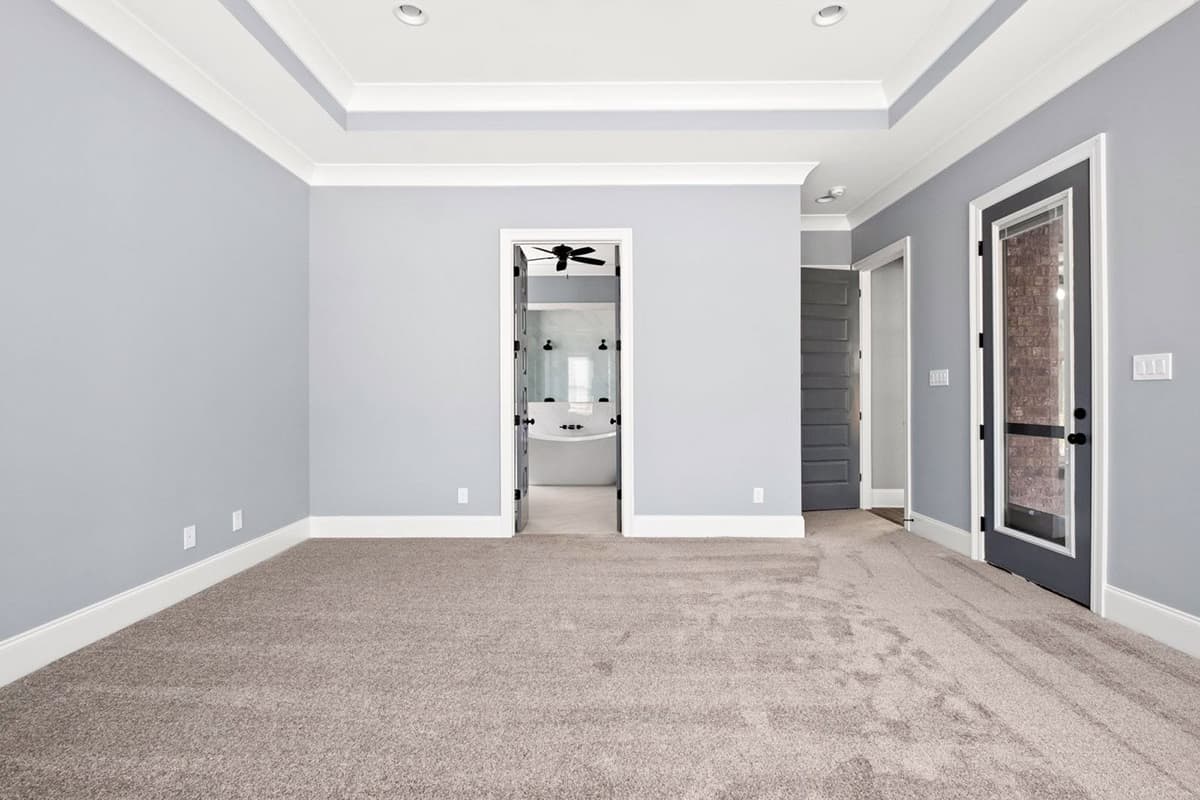

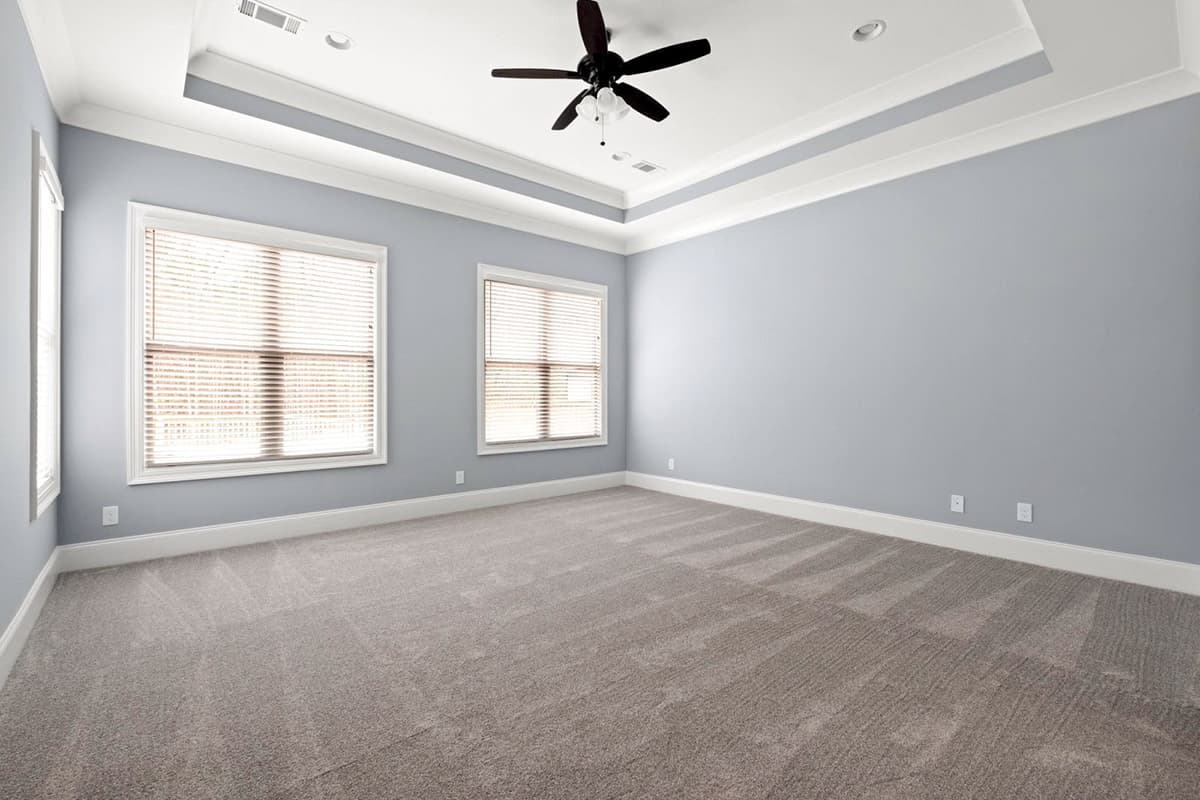

  • The master suite is tucked away in the back corner, and features a spa-like en suite with a freestanding tub in front of the 2-person shower.

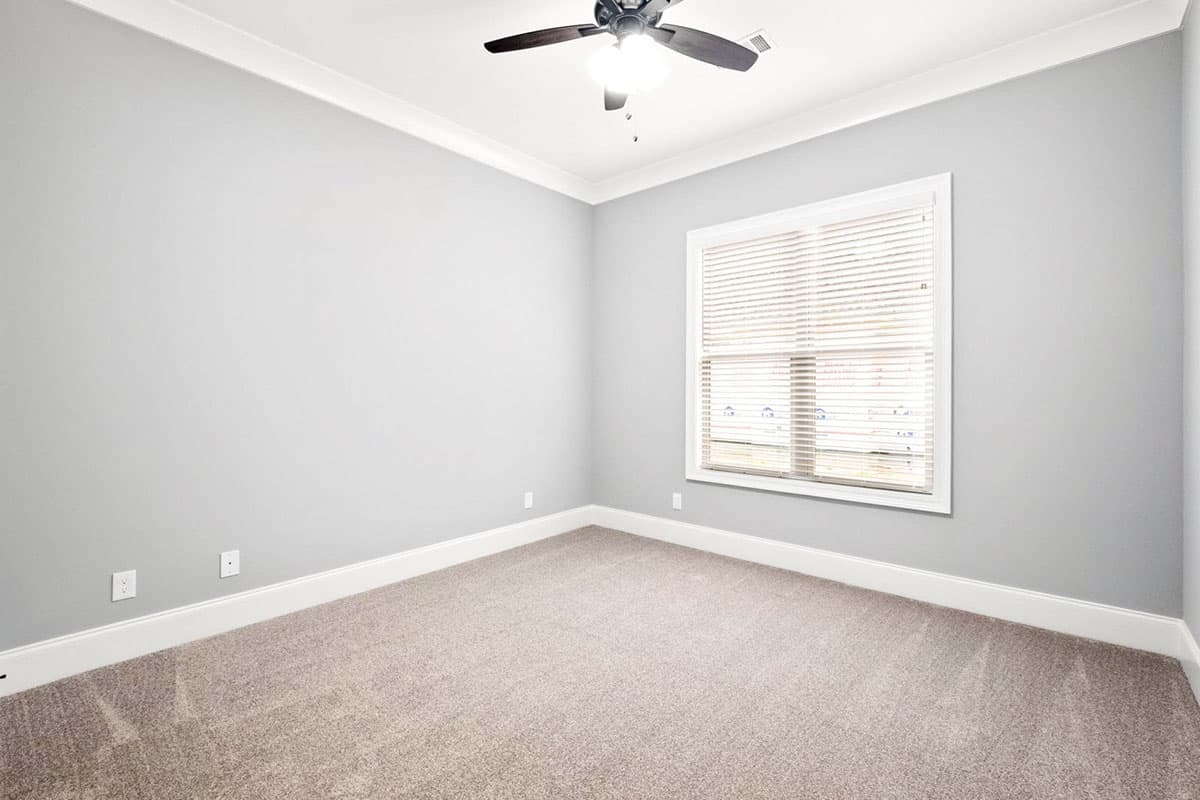

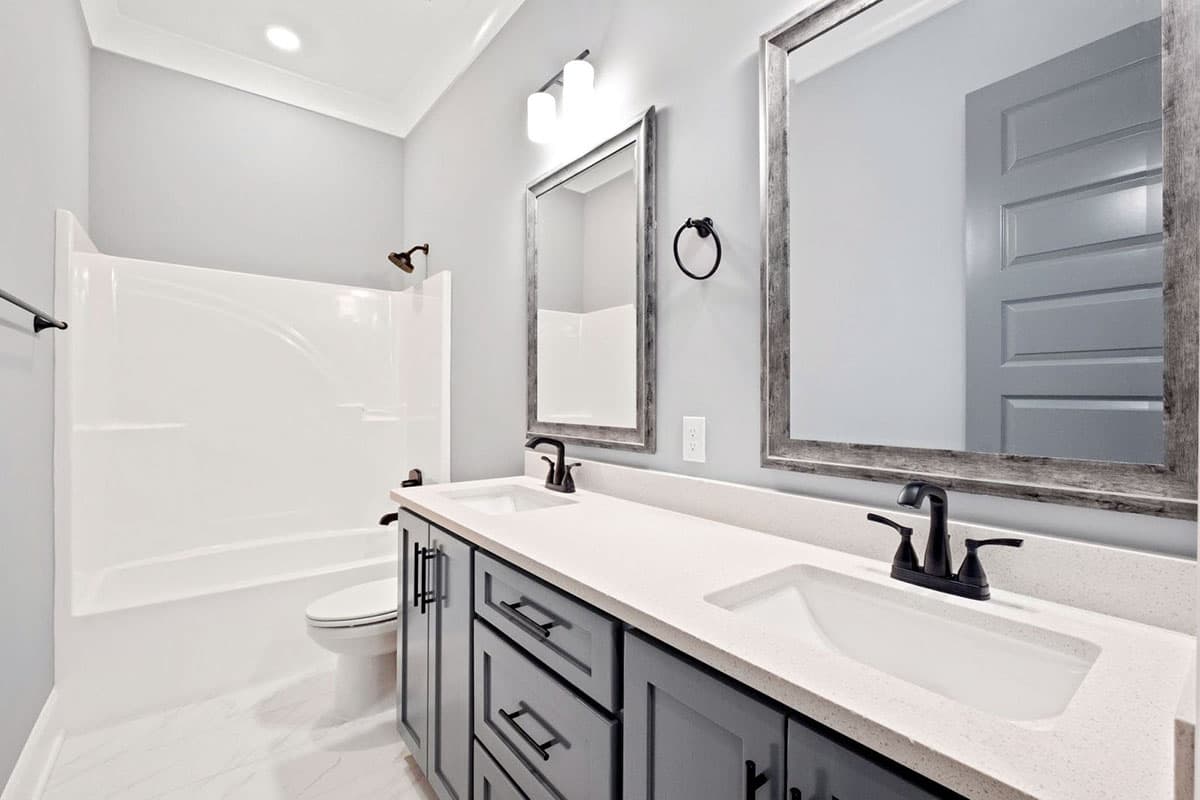

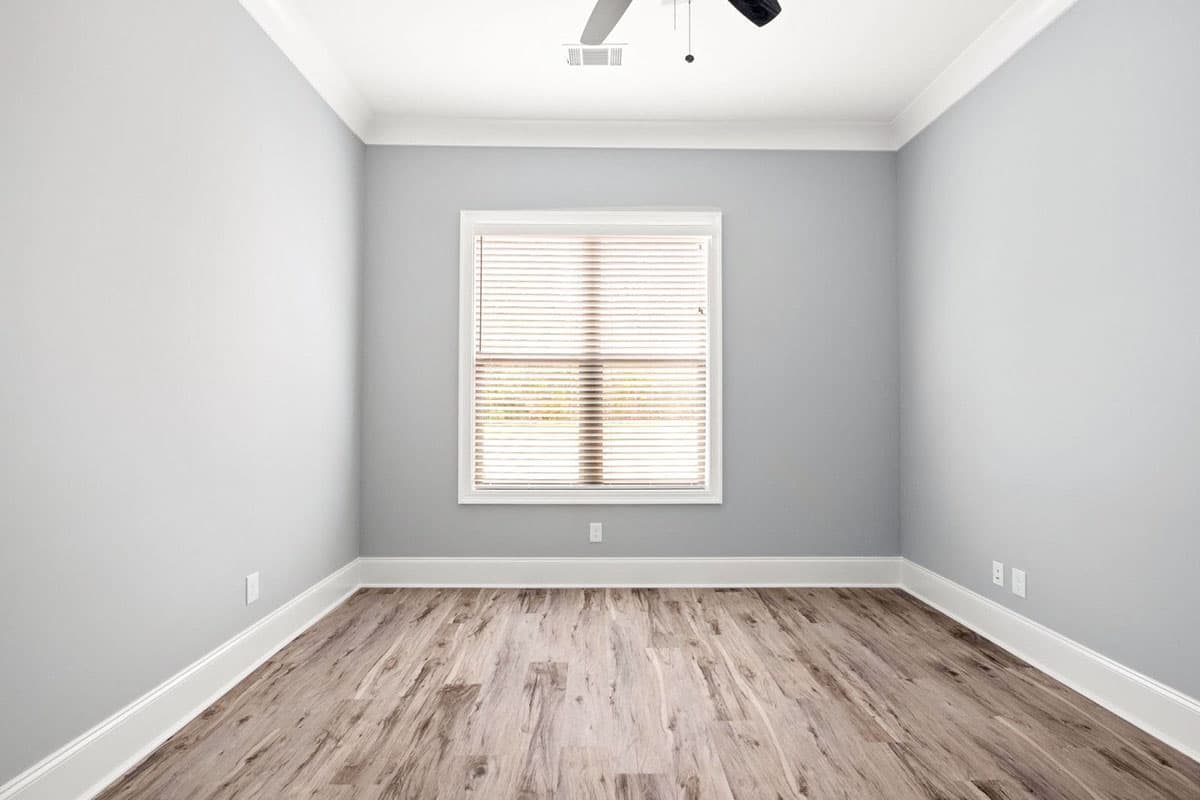

  • Bedrooms 2 and 3 are both generously sized, and share the hall bath with two vanities. A home office, or additional bedroom, completes the main level.
  • Related Plan: Get an alternate exterior with house plan 86370HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Traditional Home Plan with Screened Porch

  • 2,682

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

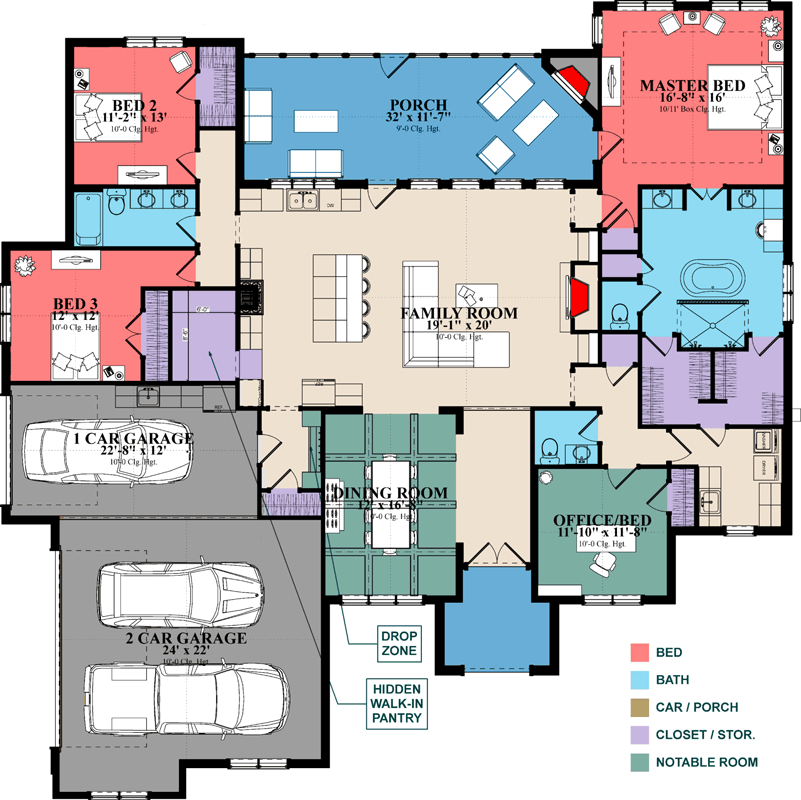

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,682 sq. ft.
  • 1st Floor: 2,682 sq. ft.

Dimensions

  • Width: 72' 4"
  • Depth: 73' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
