Southern Traditional Home Plan with Split-Beds
Heated S.F.
1,683
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Dormer windows enhance the front of the home while the front porch with columns and railings provides and elegant entry.
  • The expansive great room with vaulted ceiling and cozy fireplace will provide a wonderful atmosphere for visiting with your guests.
  • A U-shaped kitchen provides you ample counter space for preparing dinner while the nearby grilling porch awaits the family chef.
  • This split bedroom design offers privacy for all household members and ample closet space in each bedroom.
  • Enjoy the luxurious master suite and private bath with relaxing whirlpool bath.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Traditional Home Plan with Split-Beds

  • 1,683

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

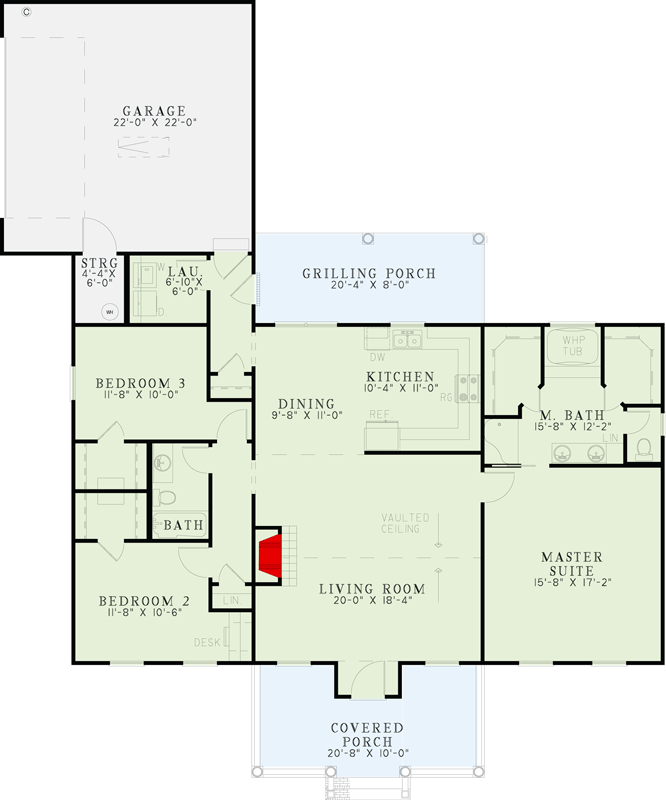

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,683 sq. ft.
  • 1st Floor: 1,683 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 69' 0"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 538 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
