Plan 50206PH Southern Traditional Home Plan with Walk-out Basement

3,163 4 3.5 2-3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Southern Traditional Home Plan with Walk-out Basement

Plan 50206PH

  • 3,163

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2-3

    Stories

  • This 3-bedroom, Southern Traditional house plan boasts a classic exterior with an elongated front porch and clapboard siding.
  • Once past the threshold, a powder bath and coat closet greet you, and a flex room resides to the left which can be used as a home office or formal dining room.
  • The open living room, kitchen, and dining area create a family-friendly environment and a back porch is perfect for a grill or outdoor dining.
  • The bedrooms are located upstairs, including the primary bedroom that features two closets and a freestanding tub in the attached bath.
  • Downstairs, discover a fourth bedroom next to a full bath, and a generous play room that leads to the backyard.
  • Related Plan: Get a slab or crawlspace foundation with house plan 50205PH.

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

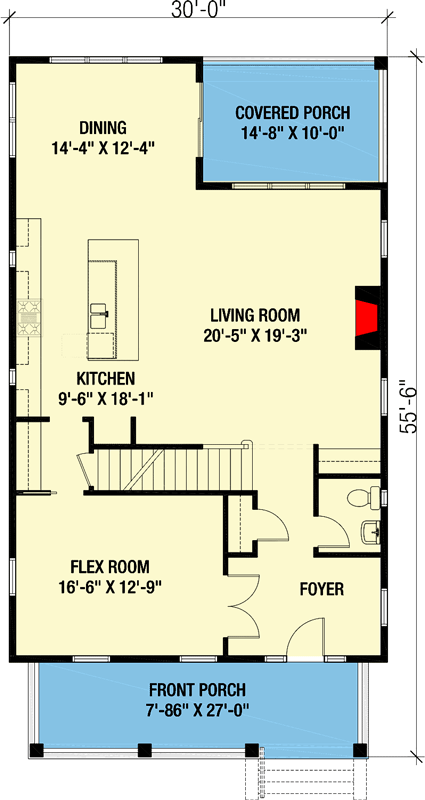

Southern Traditional Home Plan with Walk-out Basement - 50206PH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

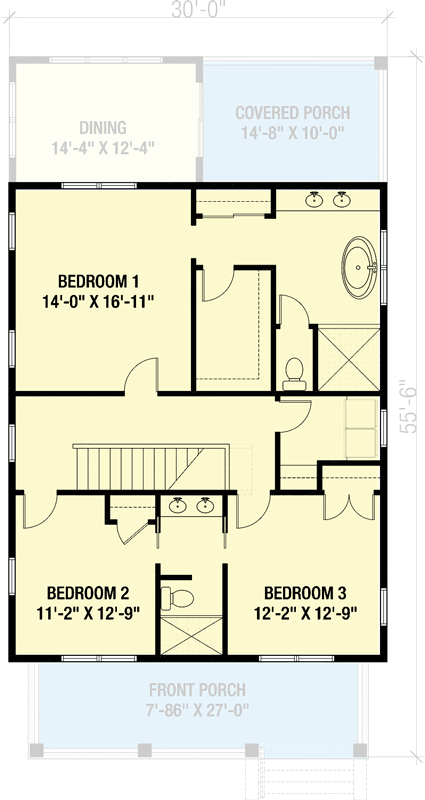

Southern Traditional Home Plan with Walk-out Basement - 50206PH floor plan - 2nd Floor

Walkout Basement with Crawl Space

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

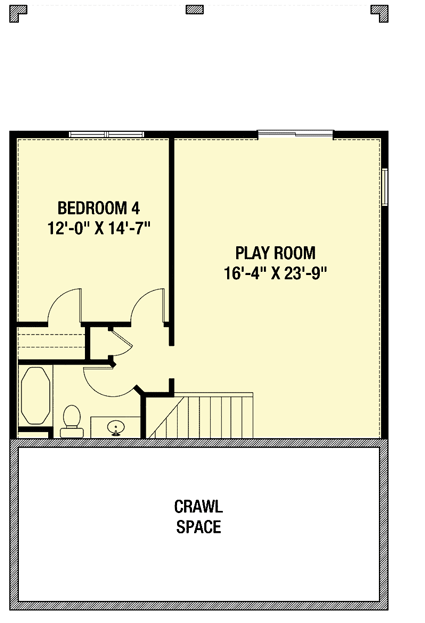

Southern Traditional Home Plan with Walk-out Basement - 50206PH floor plan - Walkout Basement with Crawl Space
