Southern Tudor Home Plan with Screened Porch and Keeping Room

Plan 510213WDY

  • 4,339

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The sweeping roof line above the front porch makes this Southern Tudor home stand out while adding to the immense curb appeal.
  • Coffered ceilings dance above the living room, which hosts a grand fireplace and french doors to the adjacent screened porch. An oversized opening leads to the kitchen and keeping room, complete with a large island and nearby walk-in pantry.
  • The master bedroom protrudes from the rear of the layout, and is joined by a 5-fixture ensuite with a freestanding tub, two vanities, and his and hers walk-in closets.
  • Three secondary bedrooms can be found throughout the home; two share a Jack-and-Jill bath, and one includes a full bath. Bedroom 5 is located above the garage with a full bath and walk-in closet.
  • Dedicated storage space in the 3-car garage helps keep the space free of clutter, while a mudroom just inside serves as a drop zone when returning home.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

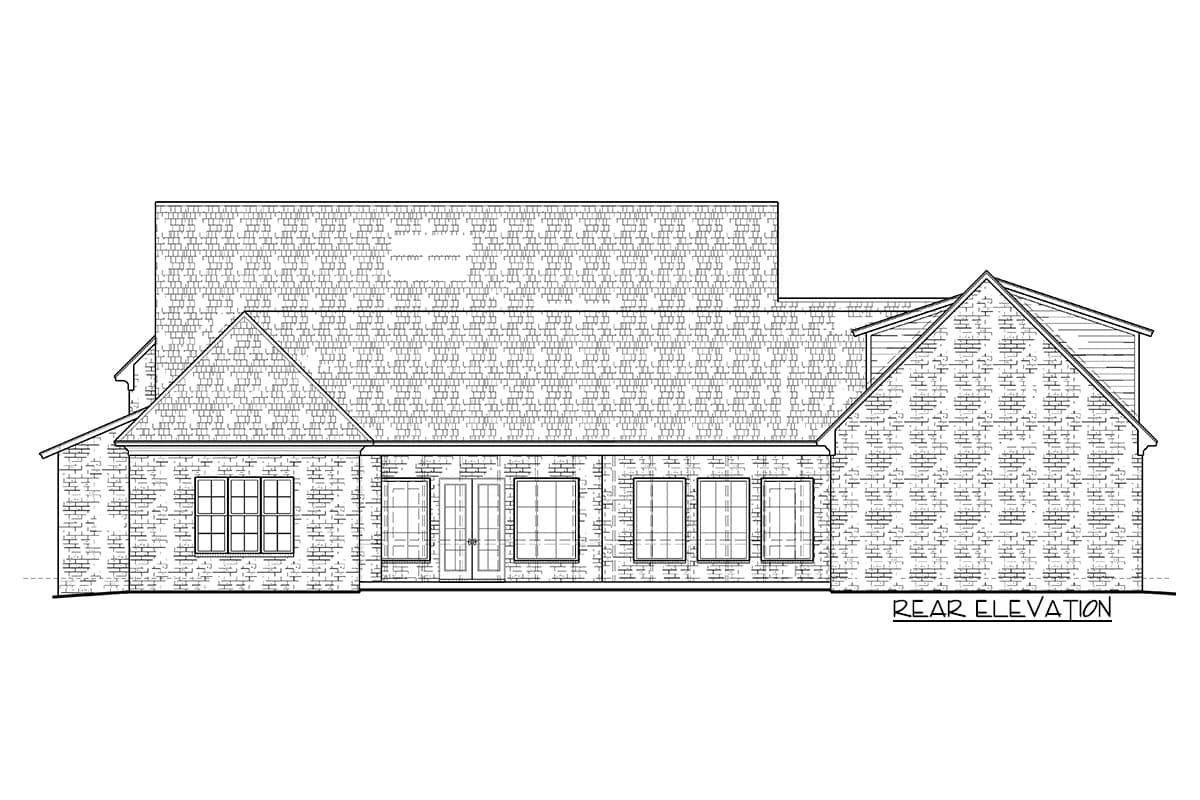

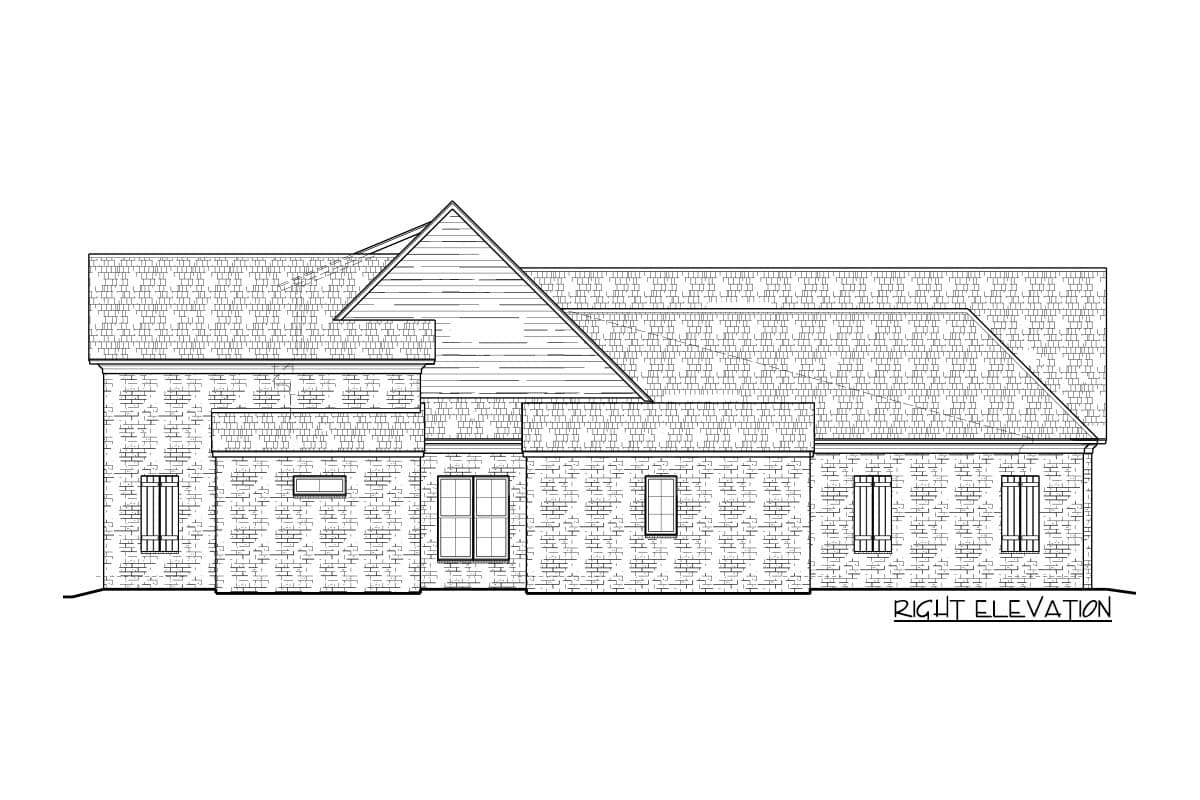

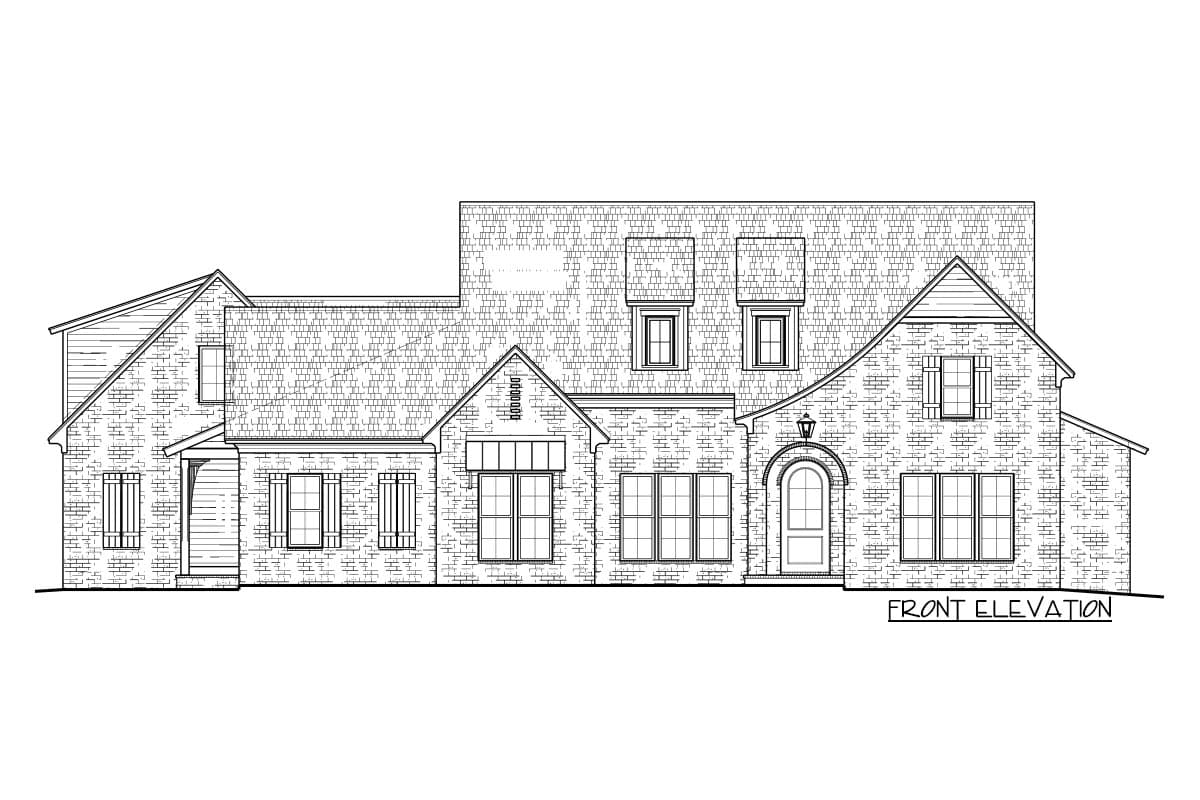

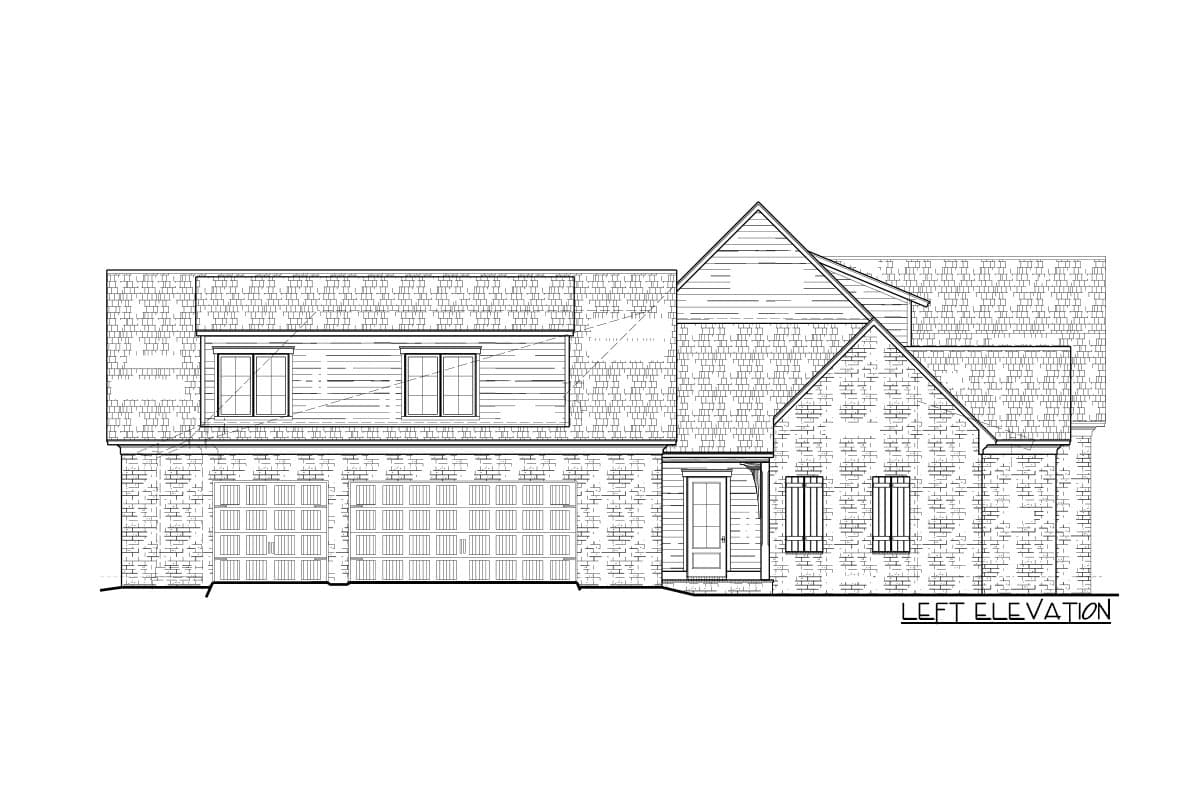

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

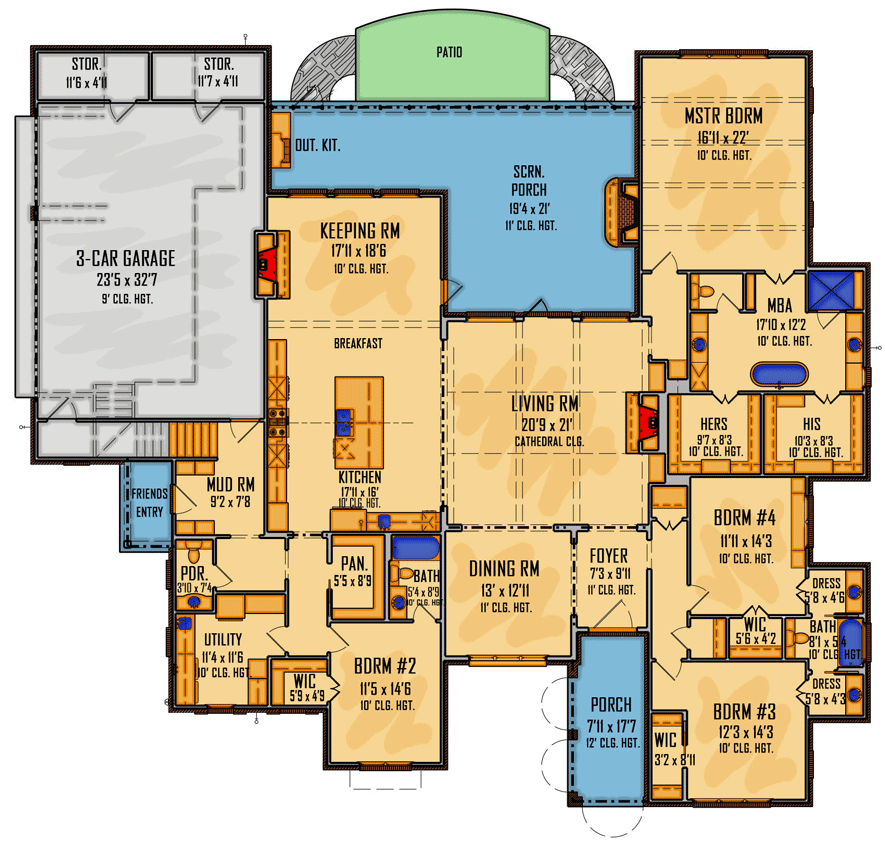

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Tudor Home Plan with Screened Porch and Keeping Room - 510213WDY floor plan - Main Level

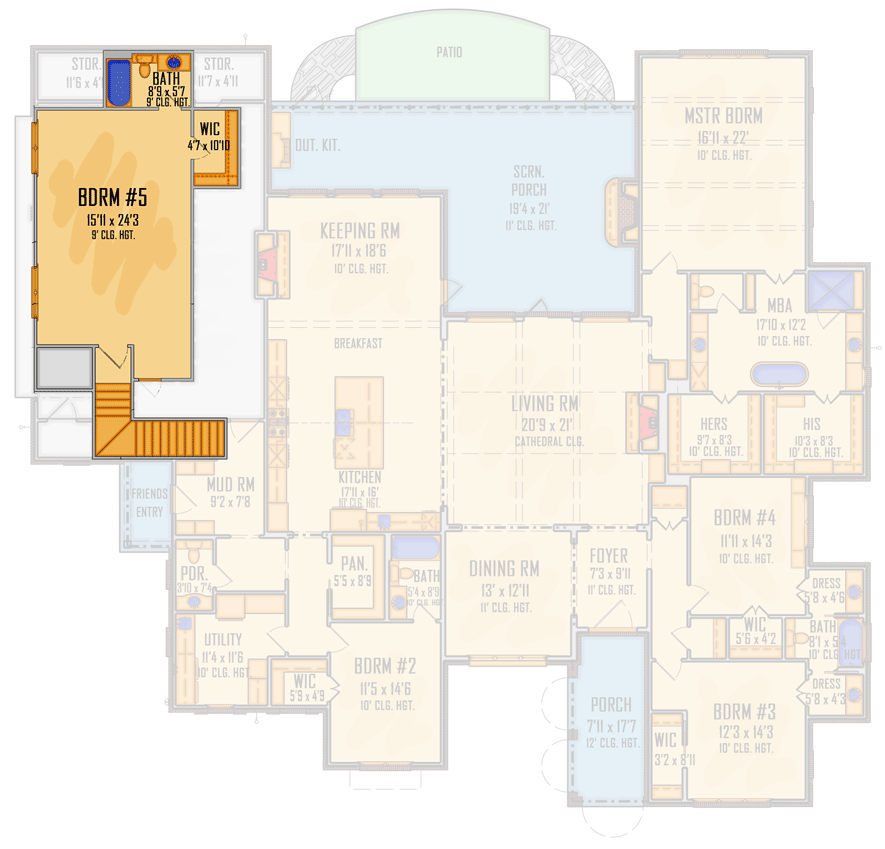

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Tudor Home Plan with Screened Porch and Keeping Room - 510213WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,339 sq. ft.
  • 1st Floor: 3,594 sq. ft.
  • 2nd Floor: 615 sq. ft.
  • Porch, Combined: 774 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 8"
  • Depth: 78' 6"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 968 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Southern Tudor Home Plan with Screened Porch and Keeping Room

  • 4,339

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,500
  • 8 Sets $1,600
  • PDF - Single-Build $1,850
  • 5 Sets + PDF $2,100
  • CAD + PDF - Unlimited Build $2,850
  • View all purchase option online

About This Plan

  • The sweeping roof line above the front porch makes this Southern Tudor home stand out while adding to the immense curb appeal.
  • Coffered ceilings dance above the living room, which hosts a grand fireplace and french doors to the adjacent screened porch. An oversized opening leads to the kitchen and keeping room, complete with a large island and nearby walk-in pantry.
  • The master bedroom protrudes from the rear of the layout, and is joined by a 5-fixture ensuite with a freestanding tub, two vanities, and his and hers walk-in closets.
  • Three secondary bedrooms can be found throughout the home; two share a Jack-and-Jill bath, and one includes a full bath. Bedroom 5 is located above the garage with a full bath and walk-in closet.
  • Dedicated storage space in the 3-car garage helps keep the space free of clutter, while a mudroom just inside serves as a drop zone when returning home.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,339 sq. ft.
  • 1st Floor: 3,594 sq. ft.
  • 2nd Floor: 615 sq. ft.
  • Porch, Combined: 774 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 8"
  • Depth: 78' 6"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 968 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
