Plan 51307MM

Spacious 3-Bedroom New American House Plan with Split Layout

Heated S.F.
1,625
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51307MM

Main Level
Main Level

Plan 51307MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

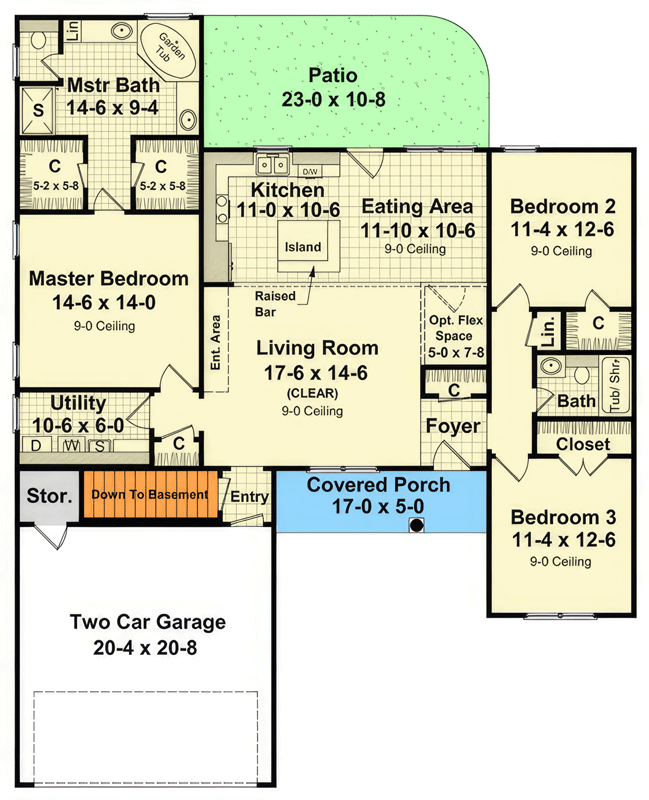

Plan 51307MM: Spacious 3-Bedroom New American House Plan with Split Layout - Floor Plan - Main Level - New American

Plan Details

  • This inviting 1,625 sq. ft. New American house plan features 3 bedrooms, 2 full bathrooms, and an attached 515 sq. ft. two-car garage, showcasing a charming stone and gabled facade.
  • Upon entry from the covered front porch, a welcoming foyer leads directly into the expansive open-concept living room, seamlessly connecting to the kitchen and eating area, creating an effortless flow for daily life and gatherings.
  • The heart of the home is the open-plan living room, featuring a raised bar that defines the space from the well-appointed kitchen, complete with an island and ample counter space, flowing into the bright eating area that opens to the rear patio.
  • The luxurious master bedroom suite is thoughtfully placed on the first floor for convenience, offering a private oasis with a spacious master bath featuring a garden tub, separate shower, and dual vanities, plus direct access to the main-level laundry room; two additional bedrooms and a full bath are located on the opposite side of the home, ensuring privacy with a split-bedroom layout.
  • Enjoy morning coffee on the charming 85 sq. ft. covered front porch or host al fresco dinners on the generous 23'-0" x 10'-8" rear patio, offering ample space for outdoor living and entertaining.
  • An expansive 1,698 sq. ft. unfinished basement provides significant potential for future expansion, offering a blank canvas for additional living spaces, a home gym, or personalized storage.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,625 sq. ft.

1st Floor

1,625 sq. ft.

Porch, Front

85 sq. ft.

Basement Unfinished

1,698 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

62' 2"

Max Ridge Height

22' 11"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
