Spacious 3-Car Garage House Plan with 10 Ceilings

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 720195DA

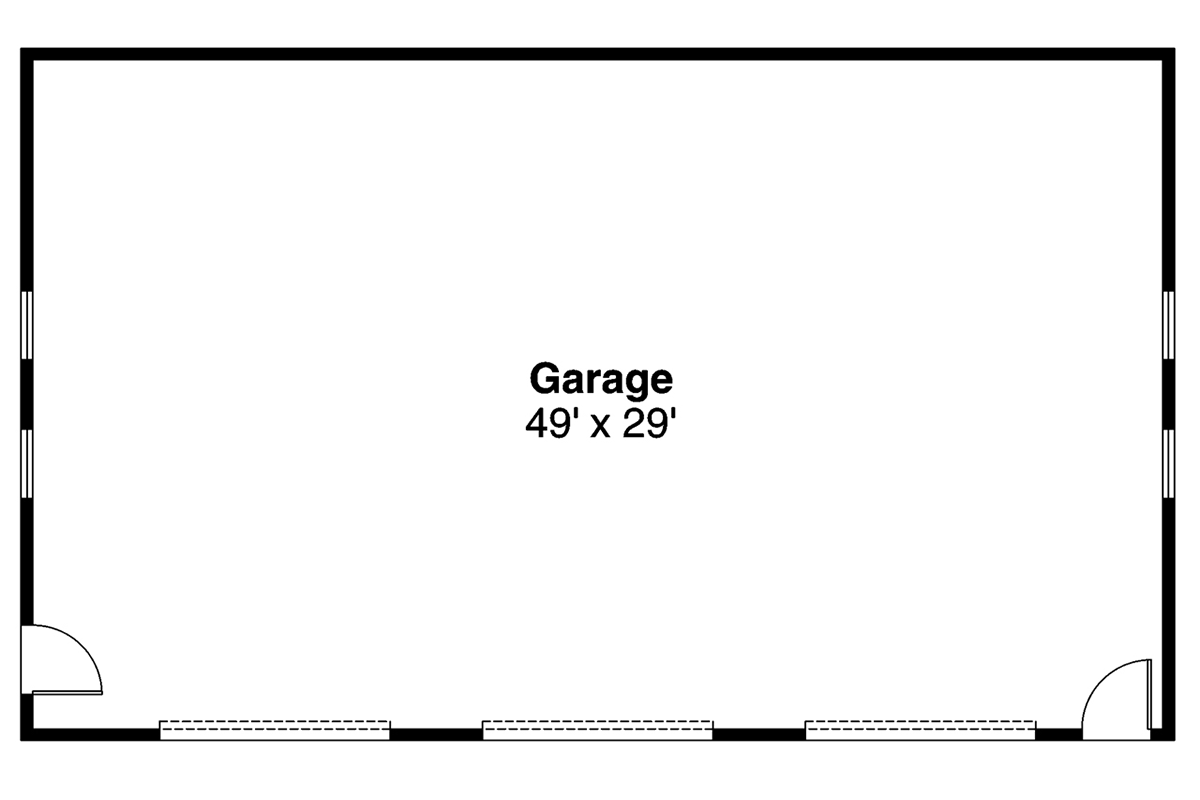

Floor Plan 1

Plan 720195DA

M-F 9am-5pm EST |

1-203-761-8500

Plan 720195DA: Spacious 3-Car Garage House Plan with 10 Ceilings - Floor Plan - - Ranch, Traditional

Plan Details

  • This expansive garage is designed to accommodate three cars and boasts a 50' width and 30' depth, with a maximum ridge height of 19'.
  • Upon entering this versatile space, you'll appreciate the open layout, perfect for a variety of uses from vehicle storage to a workshop.
  • The generous 49' x 29' interior provides ample room for parking, storage, or creative endeavors. The 10' ceiling height on the first floor offers a sense of spaciousness.
  • The exterior features a stone accent base and clean siding, complemented by multi-pane windows above the garage doors, enhancing its curb appeal and blending seamlessly with natural surroundings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

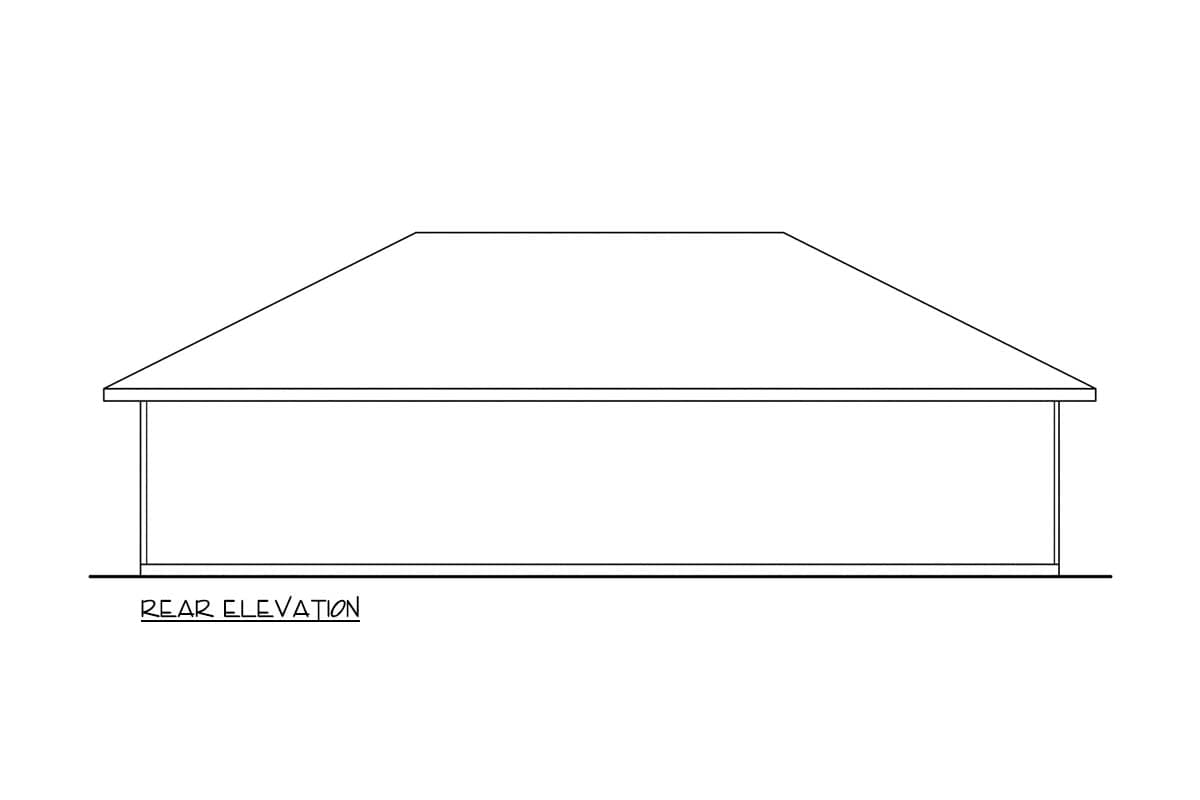

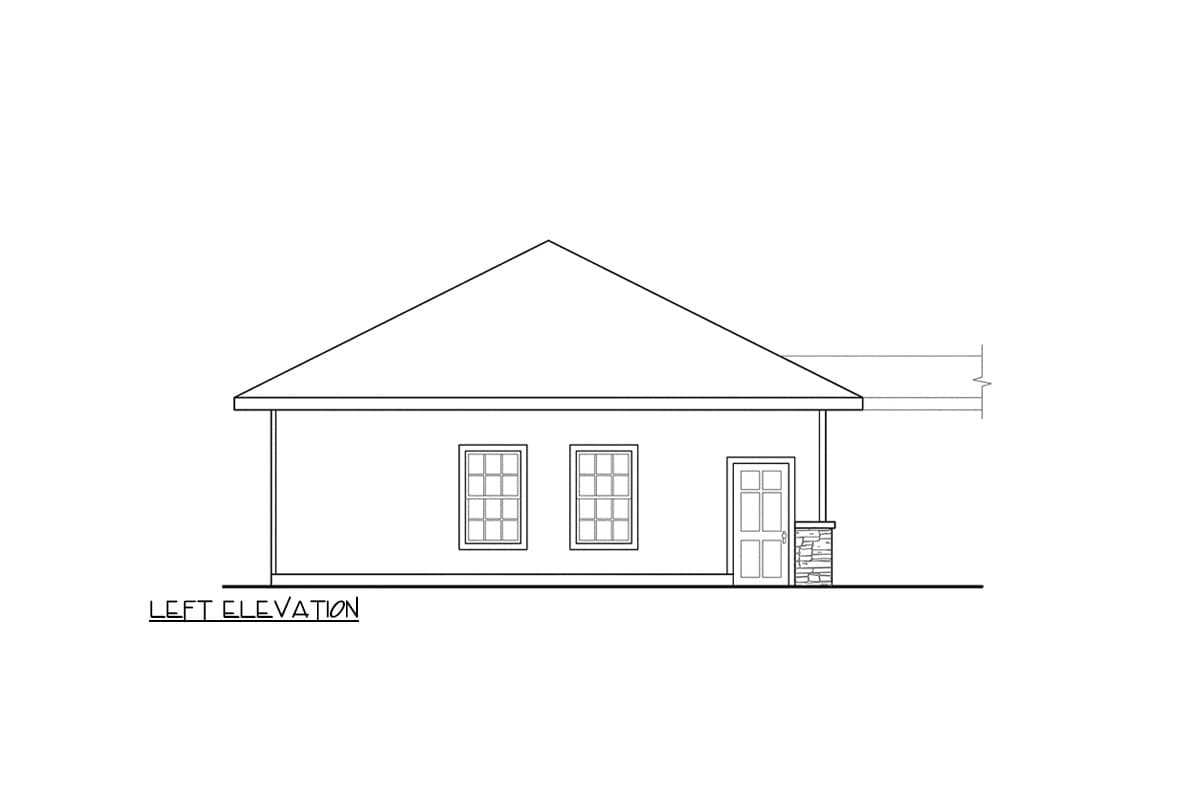

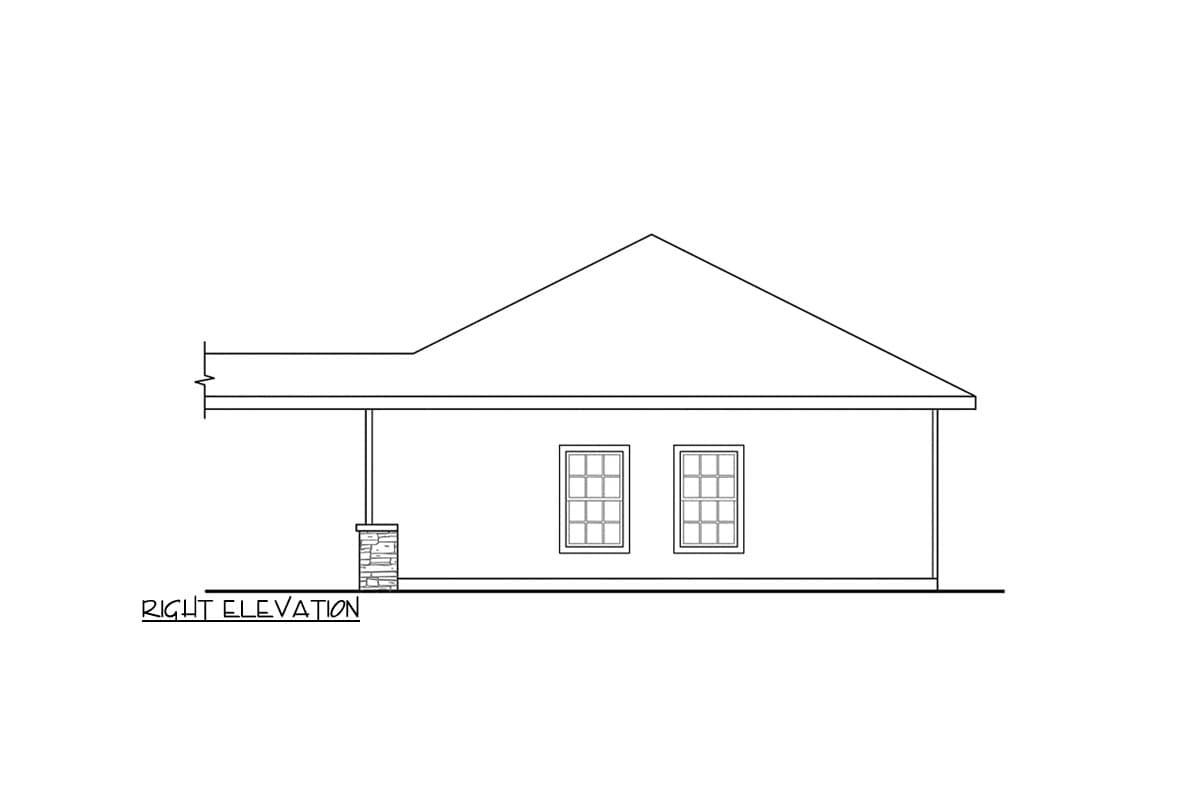

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

30' 0"

Max Ridge Height

19' 0"

Garage

Area

1500 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Plan Collections
