Plan 720196DA

Spacious 3-Car Garage House Plan with Ample Space

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 720196DA

Floor Plan 1

Plan 720196DA

M-F 9am-5pm EST |

1-203-761-8500

Plan 720196DA: Spacious 3-Car Garage House Plan with Ample Space - Floor Plan - - Ranch, Traditional

Plan Details

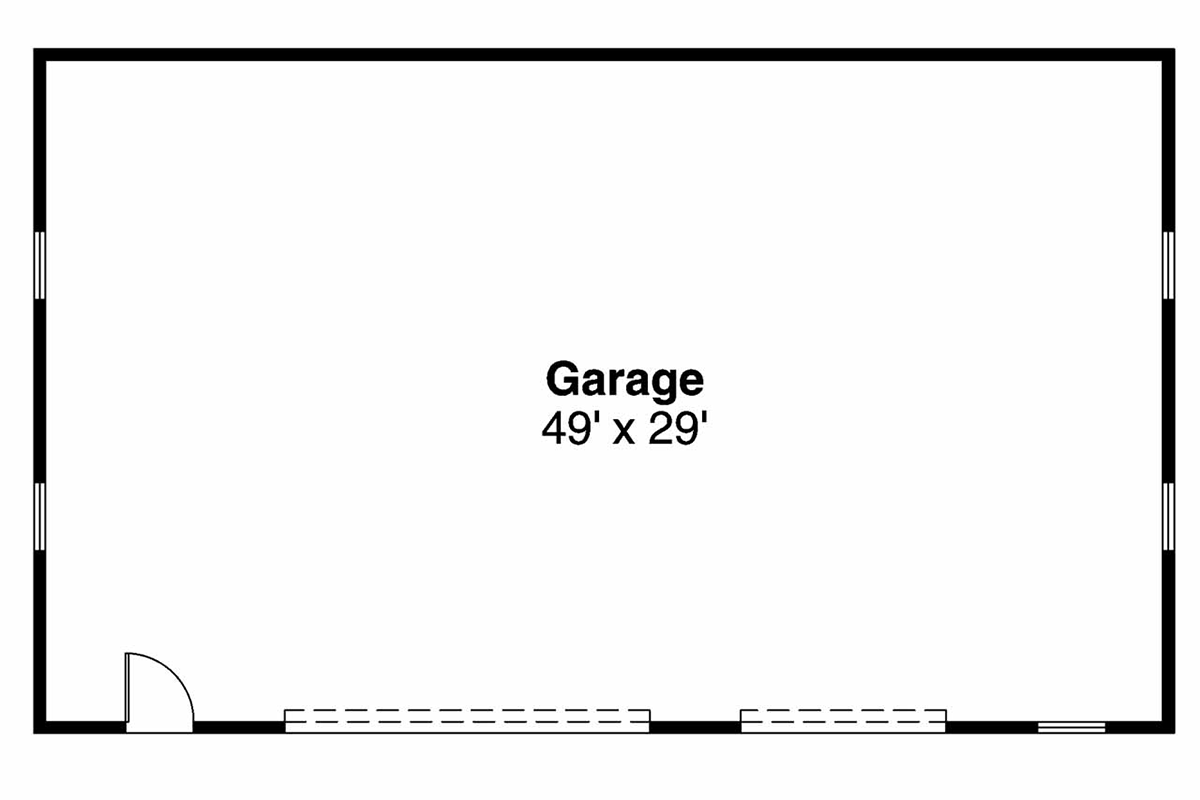

  • This spacious 1,500 sq. ft. garage is designed to accommodate three cars, boasting a 49' x 29' interior footprint with ample clearance.
  • The exterior presents a classic Craftsman-style aesthetic, featuring durable siding and traditional garage doors.
  • The main entry door opens directly into the expansive garage space, providing immediate access to parking and storage.
  • This plan focuses solely on garage space, providing a dedicated and functional area for vehicle storage and utility.
  • This plan offers a large, adaptable garage space that can be customized for various needs, from simple vehicle storage to a workshop or hobby area.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

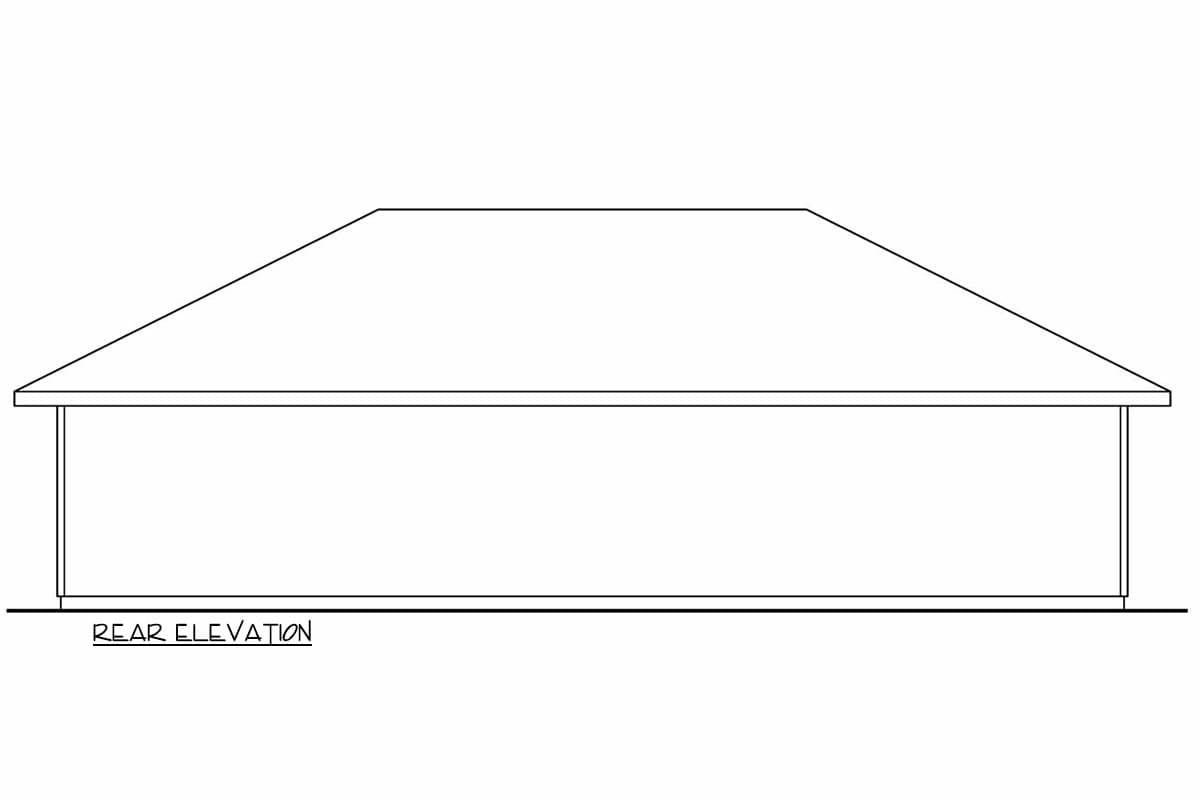

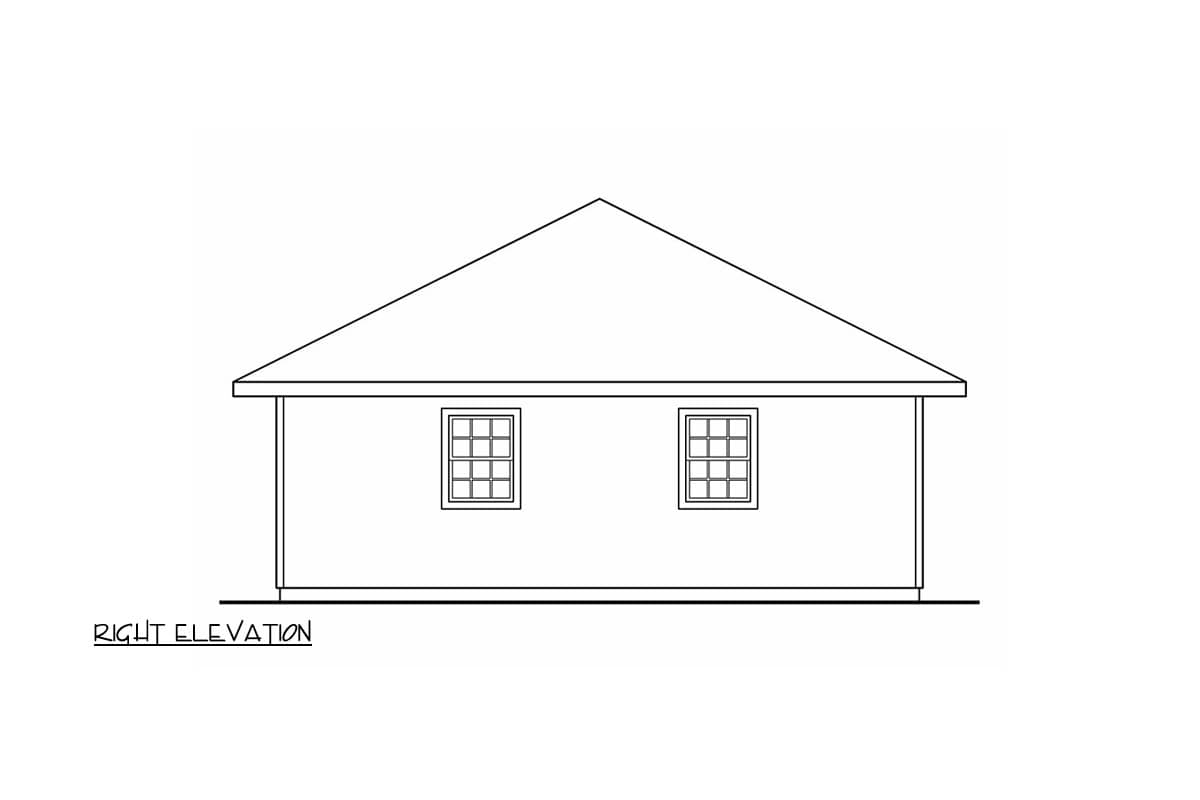

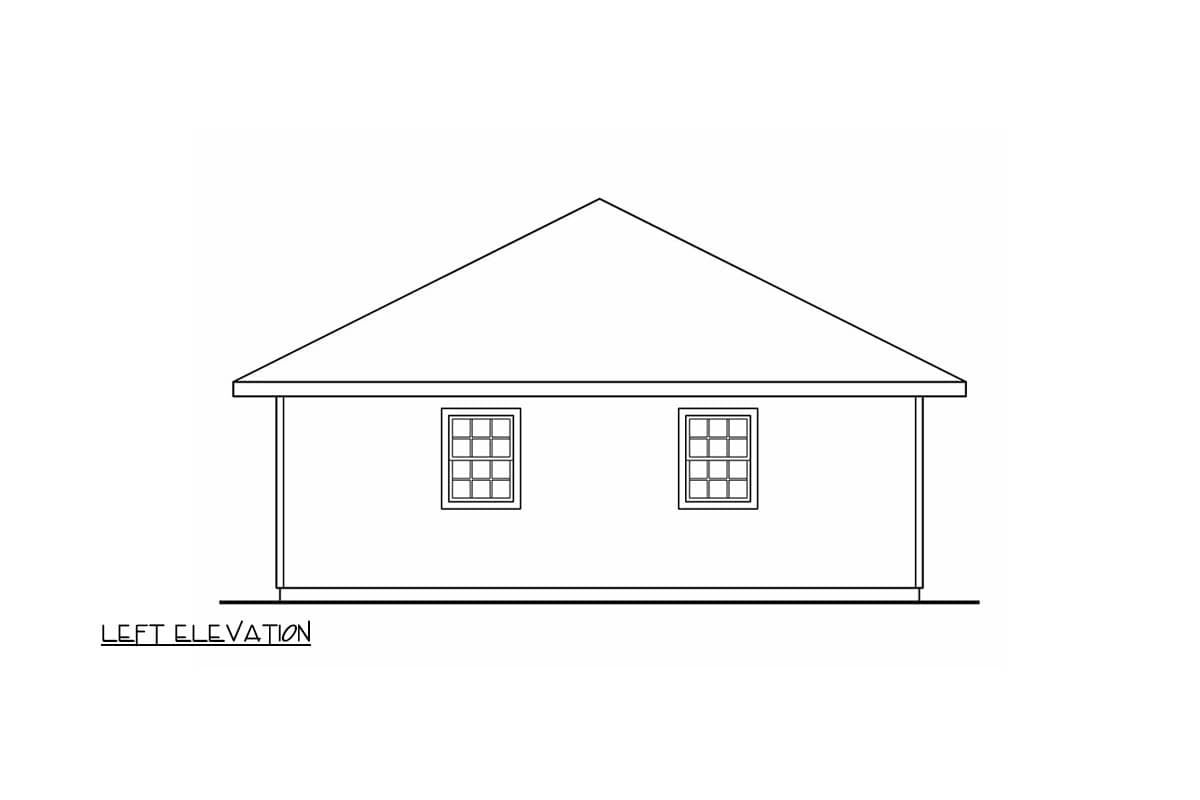

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Basement Unfinished

1,500 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

30' 0"

Max Ridge Height

19' 0"

Garage

Type

Carport

Area

1500 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Basement Unfinished

1,500 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

30' 0"

Max Ridge Height

19' 0"

Garage

Type

Carport

Area

1500 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Plan Collections

Unlimited Build License
